CAT FH125 D Face Haulage Operation Manual SN 5004003 – PDF DOWNLOAD

Description

CAT FH125 D Face Haulage Operation Manual SN 5004003

FILE DETAILS:

CAT FH125 D Face Haulage Operation Manual SN 5004003

Language : English
Pages : 90
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CAT FH125 D Face Haulage Operation Manual SN 5004003

INTRODUCTION
The operation of heavy mining machinery can be hazardous. To ensure safe operation, operators and personnel must be alert, competent, correctly trained, tested and licensed in the principles, capabilities and correct operating and isolation procedures of the machinery.
This manual is designed to provide the FH125 D Face Haulage machine operator with the proper information regarding the machine’s instrumentation, operating controls and general safe working procedures. All operators of this machine must be conversant with the information contained within this manual before operating the machine.
To ensure safe and efficient operation, the FH125 D must be adequately maintained by the operators and service personnel. To achieve this, the operator’s pre-start inspection procedure contained in Section 6 of this manual must be performed before any use of this machinery is undertaken.
Any abnormalities should be reported immediately to service personnel to avoid costly machine repairs, production downtime and unsafe operation of the machine.

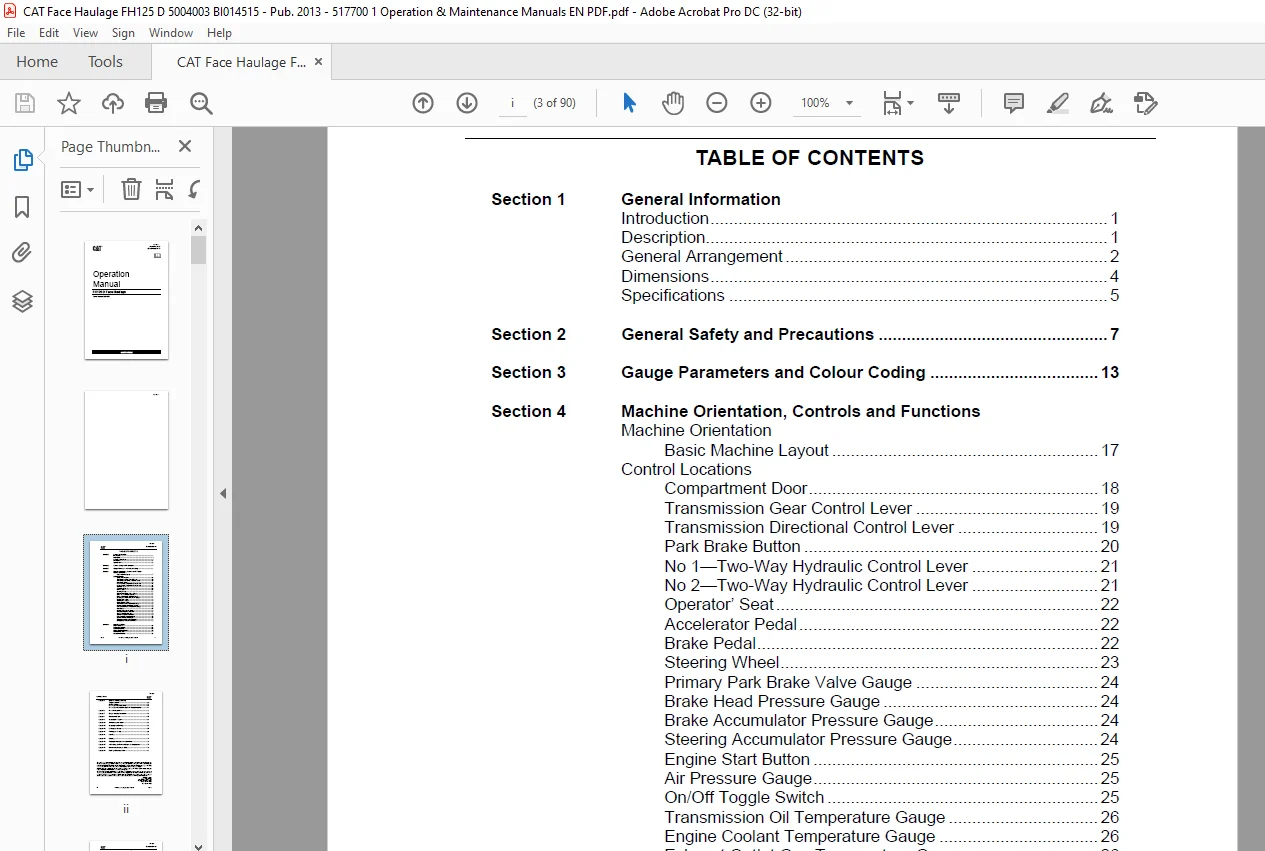

TABLE OF CONTENTS:

CAT FH125 D Face Haulage Operation Manual SN 5004003

Table of Contents............................................ 3
Section 1 General Information................................ 5
Section 2 General Safety and Precautions.....................11
Section 3 Gauge Parameters and Colour Coding.................17
Section 4 Machine Orientation, Controls and Functions........21
Section 5 Machine Isolation..................................37
Section 6 Pre-Start Procedure................................47
Section 7 Engine Starting Procedure..........................59
Section 8 Post Start Checks..................................61
Section 9 Stopping the Engine................................65
Section 10 Tramming the Machine..............................67
Section 11 Stopping and Braking..............................69
Section 12 Driving on a Ramp.................................71
Section 13 Parking on a Ramp.................................73
Section 14 Loading...........................................75
Section 15 Ejecting..........................................77
Section 16 Towing the Machine when Disabled..................79
Section 17 Air Venting the Fuel and Engine Cooling System....81
Section 18 Diesel Control System.............................83
Section 19 Fluid Specification Table.........................87
