Cat Jumbo Drill Mark III Hydraulic Jumbo Operating Manual (BI009875) – PDF DOWNLOAD

Description

Cat Jumbo Drill Mark III Hydraulic Jumbo Operating Manual (BI009875) – PDF DOWNLOAD

FILE DETAILS:

Cat Jumbo Drill Mark III Hydraulic Jumbo Operating Manual (BI009875) – PDF DOWNLOAD

Language : English
Pages : 110
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Cat Jumbo Drill Mark III Hydraulic Jumbo Operating Manual (BI009875) – PDF DOWNLOAD

Th is manual provides in-depth coverage of the specifications. set-up and starting procedures. operating instructions. and maintenance recommendations for the Gardner-Denver two-800m. All -Hydraulic Mark III Jumbo. It also includes troubleshooting guides and complete details of the operator procedures for tramming. setting up to drill.0 drilling and removal of the Jumbo. The purpose of this manual is to help you understand the functions of this unit a:ld also to help you operate and maintain it more efficiently. Operating and maintenance personnel should become thoroughly familiar with the contents of this manual for optimum operating efficiency. It is very important that you read and understand the Mark III operator’s manual completely and keep it on hand for later reference

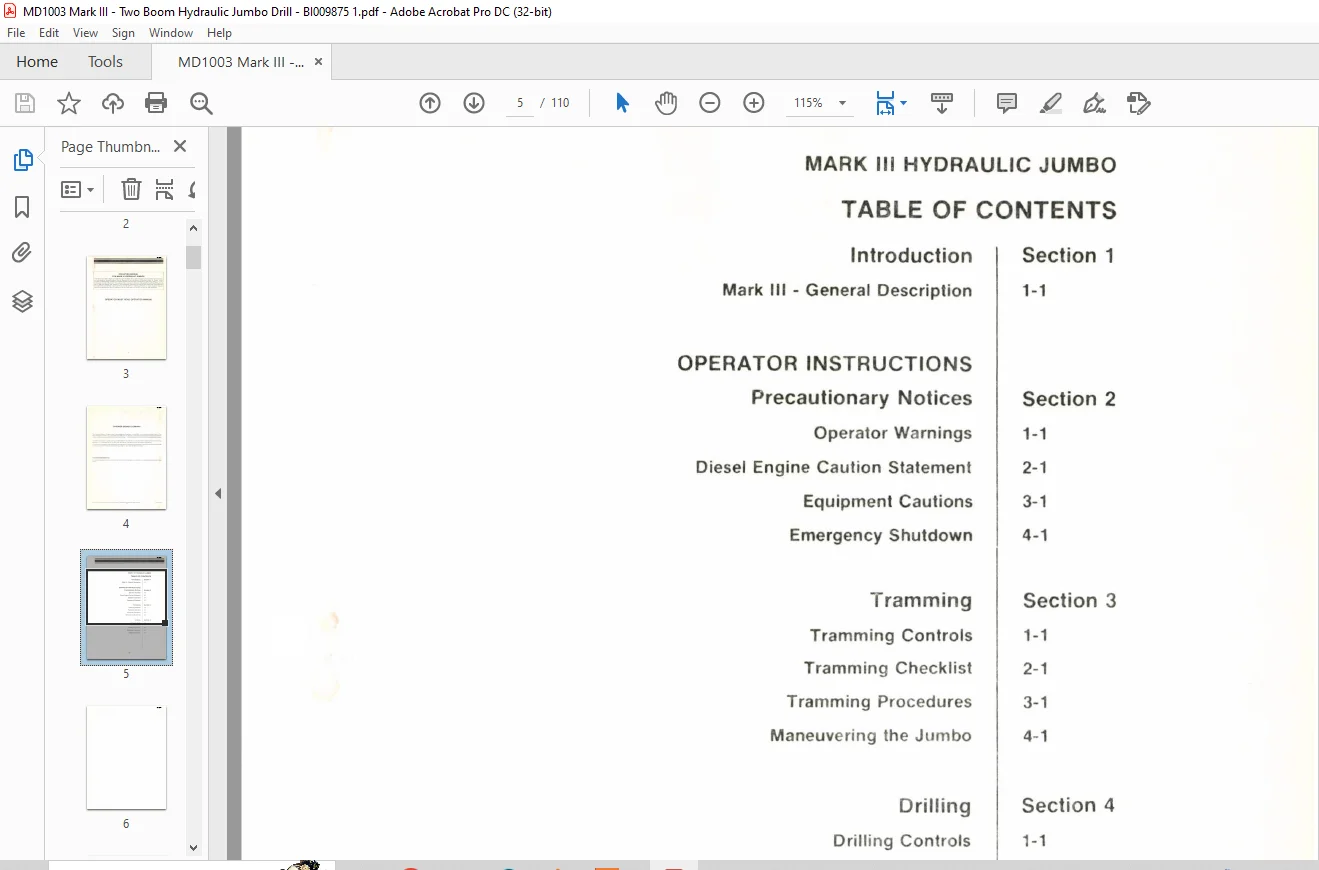

TABLE OF CONTENTS:

Cat Jumbo Drill Mark III Hydraulic Jumbo Operating Manual (BI009875) – PDF DOWNLOAD

Introduction
Mark III – General Description
OPERATOR INSTRUCTIONS
Precautionary Notices
Operator Warnings
Diesel Engine Caution Statement
Equipment Cautions
Emergency Shutdown
Tramming
Tramming Controls
Tramming Checklist
Tramming Procedures
Maneuvering the Jumbo
Drilling
Drilling Controls
Drilling Checklist
Drilling Procedures
Shutdown Procedures
Pullback from Face
Lubrication
Carrier Lubrication
Boom, Feed, & Positioner Lubrication
Drill Lubrication
Checklist
Preventive Maintenance
General
Drill & Feed
Changing the Shank
Checklist
Troubleshooting
General Troubleshooting Guide
Electric Troubleshooting Guide
Hydraulic Troubleshooting Guide
Diesel Engine Troubleshooting Guide
Specifications
Jumbo Carrier
Electrical Diagram
Booms, Feeds, & Positioners
Drills
General
Drilling Coverage Pattern
