CAT Mark III Two Boom Hydraulic Jumbo Operating Manual BI009857 – PDF DOWNLOAD

• The Gardner-Denver Mark III is a two-boom all-hydraulic operated Jumbo drilling rig mounted on a heavy-duty carriage for stability and efficiency in drilling underground through hardrock. The rig is easily maneuverable in most drilling situations.
• The Mark III utilizes a highly efficient hydraulic drilling team . . . the Model HPR-1 Hydraulic Drill and HFM Hydraulic Feed. This combination is designed for faster rock penetration for hole sizes from 1-1 /2″ to 2-1 /2″ (38 mm to 64 mm).
• The Mark II I with HPR-1 features fully automatic blowing ai r and hole-cleaning water with manual over-ride capability, plus automatic drill return .
  Powered by a Duetz Diesel engine, the Mark III Jumbo can be trammed into position, then connected to mine air, water, and electric power for drilling .
• The operator’s drilling console is fully illuminated with controls grouped for efficiency and ease. Warning lights and gauges are conveniently located to provide the operator with drilling and maneuvering pressures, filter blockage, etc. The tramming console includes engine operating gauges and controls for engine oil pressure, motor temperature, and fuel level.
• A rollover-type boom provides maximum maneuverability in positioning to drill the face. Drill positioning is accomplished by moving the boom lift, boom rollover, feed dump, feed swing, and feed extension cylinders to cover a pattern approximately 19feet high by 32 feet wide (5.79m x 9.75m).

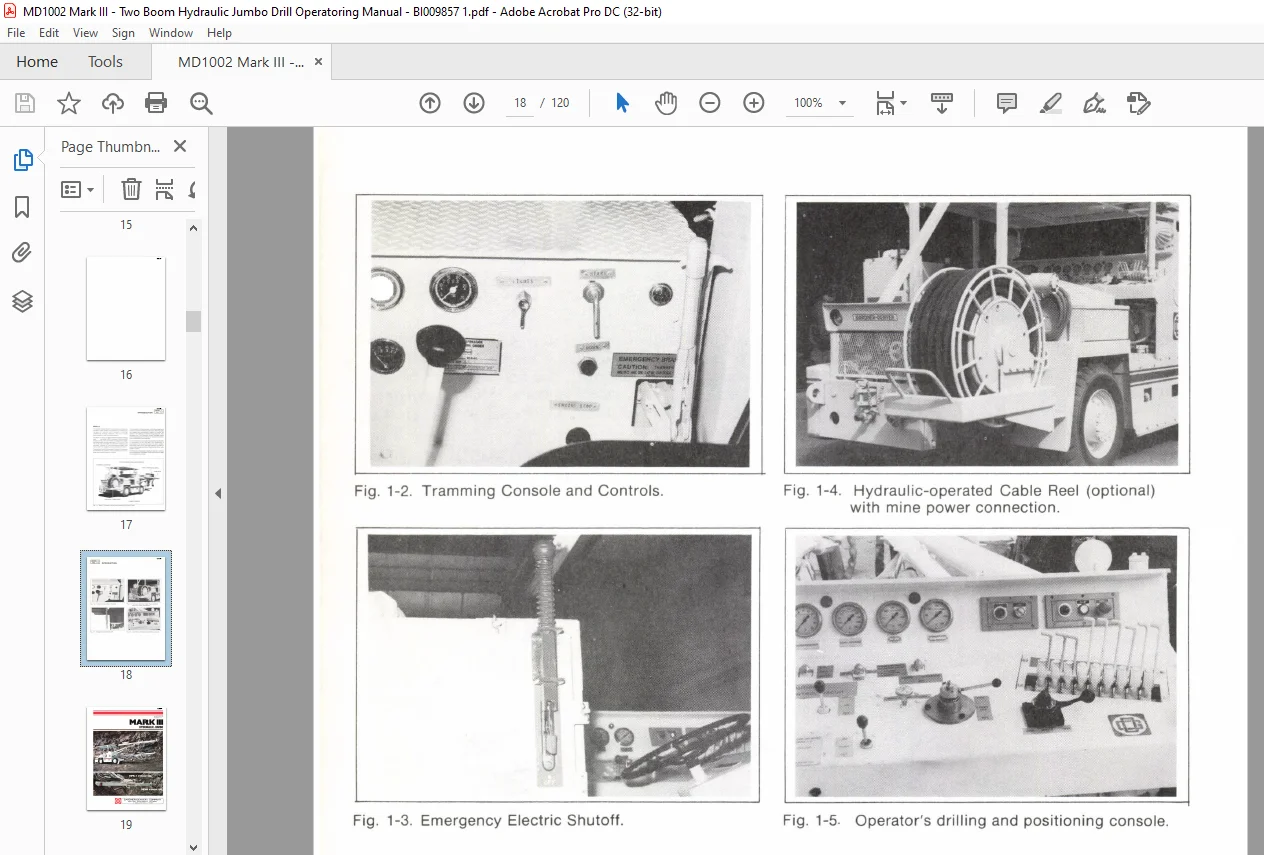

• The following photographs highlight features, controls, and components of the Mark III that are covered in detail in the sections that follow.

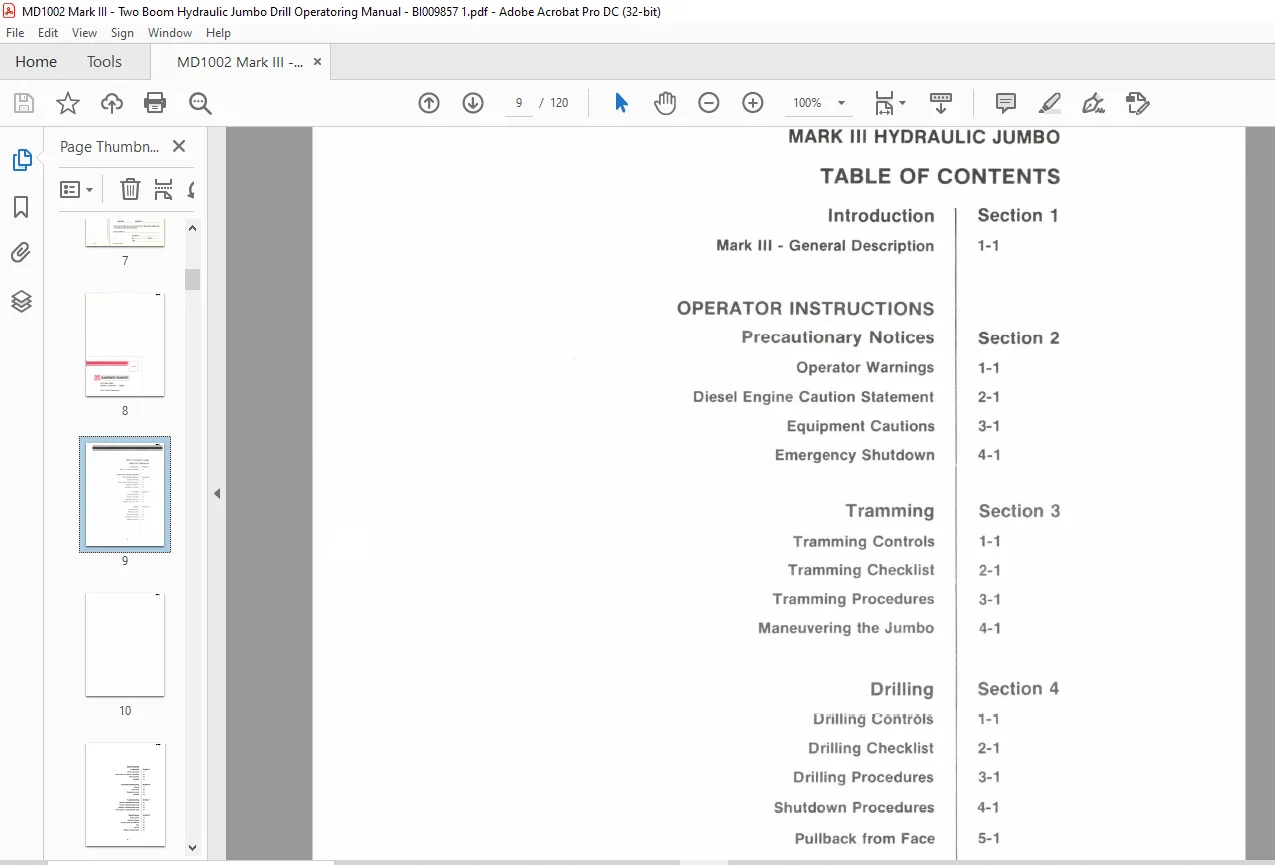

TABLE OF CONTENTS:
