Cat MD6640 Blast Hole Drill System Operation Testing & Adjusting Manual – PDF DOWNLOAD


Cat MD6640 Blast Hole Drill System Operation Testing & Adjusting Manual – PDF DOWNLOAD

$29.95 $98.95

  Happy to Help You :) Any queries / Requests? CLICK HERE to ask!

Cat MD6640 Blast Hole Drill System Operation Testing & Adjusting Manual – PDF DOWNLOAD

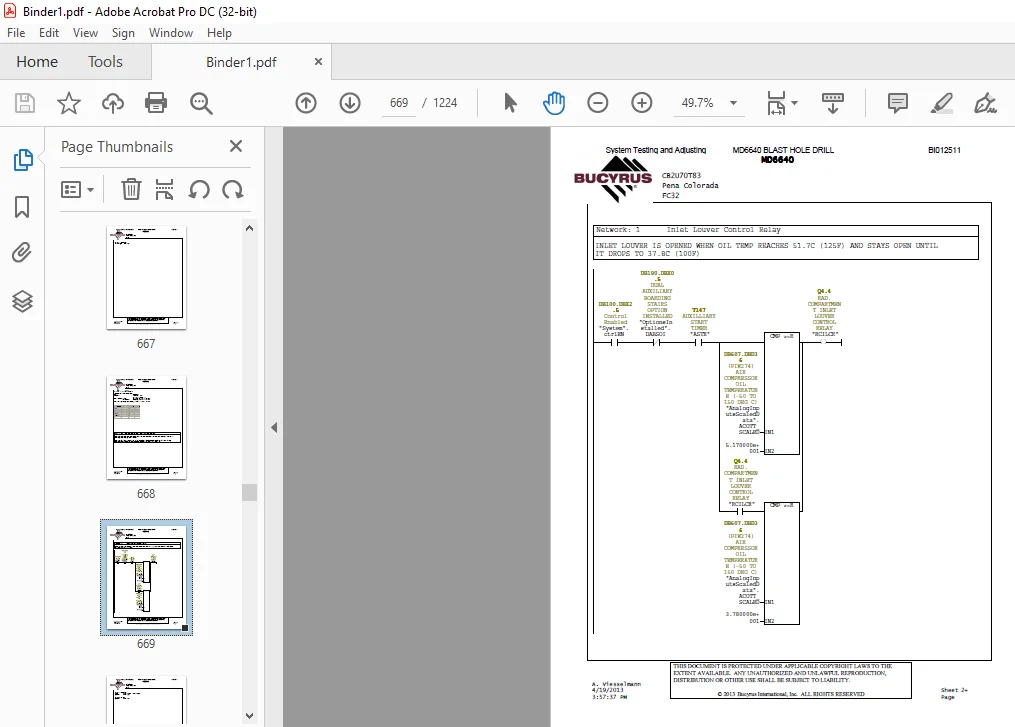

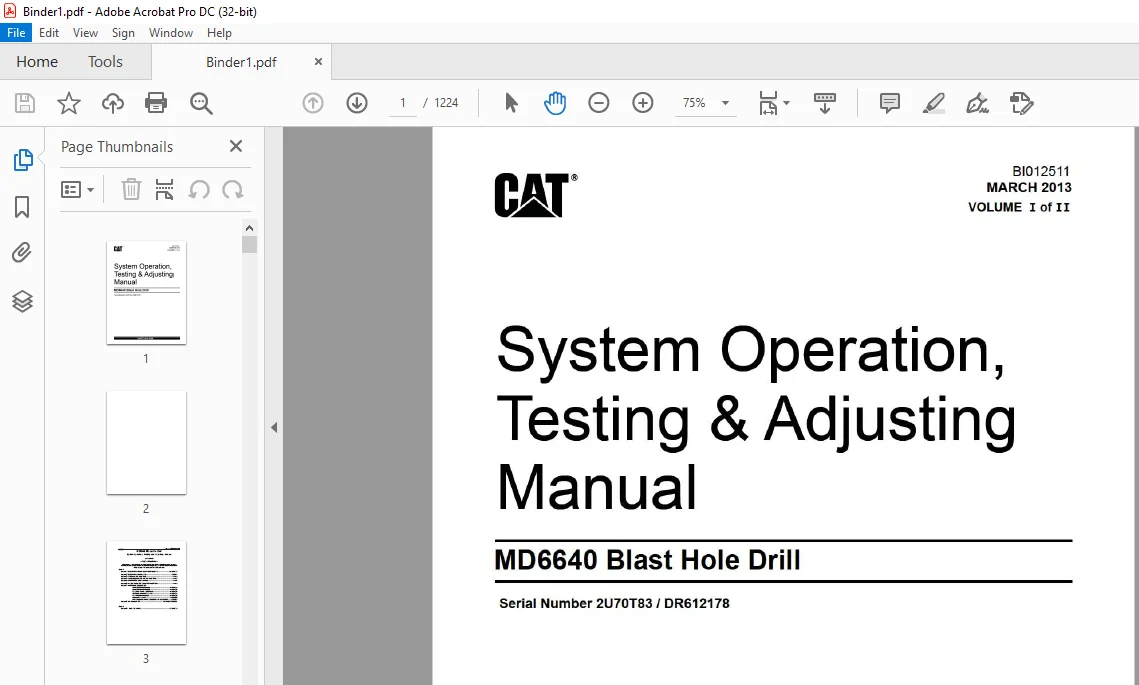

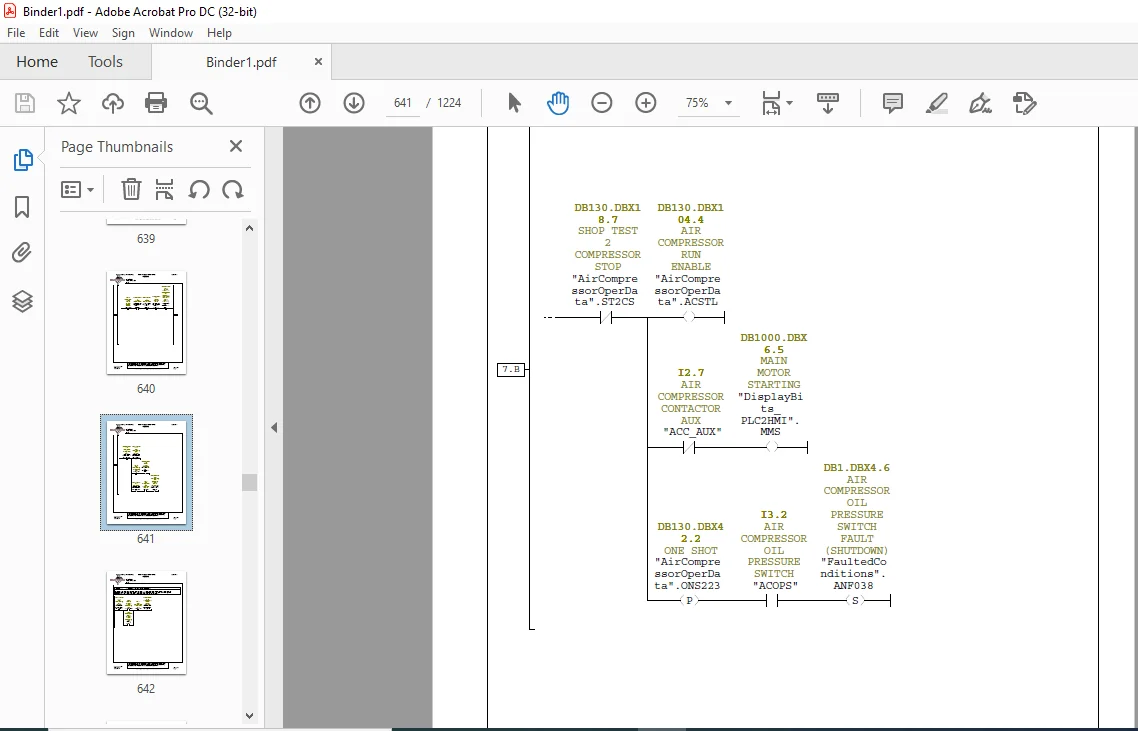

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Cat MD6640 Blast Hole Drill System Operation Testing & Adjusting Manual – PDF DOWNLOAD

Serial Number 2U70T83 DR612178

The FEEDER CABLE must contain a provision for a ground connection, especially whenever 2,300 volts or greater are used. At the substation, the power line must terminate (see paragraph on ground circuits) to a suitable permanent ground. At the machine, the power line must securely terminate through a bolted connection to the machine frame. This provides a constant ground for the machine and its electrical equipment.

  • Failure to provide this adequate ground endangers employees and equipment. THE NEED FOR A POWER LINE GROUNDING CIRCUIT ADEQUATE FOR THE MACHINE CANNOT BE OVEREMPHASIZED. Without a good grounding system, high voltages exist between the machine and the ground.
  • The portable trail cable and power lines supplying electric energy to the machine must have a ground wire, ample in capacity, running parallel to the main wires over the entire distance from the transformer to the machine. A suitable grounding system must be used at the transformer. Consult your local electrical supplier for details.

TABLE OF CONTENTS:

Cat MD6640 Blast Hole Drill System Operation Testing & Adjusting Manual – PDF DOWNLOAD

Section 1 – ELECTRICAL ADJUSTMENTS DATA SHEETS CS2U70T83
Section 2 – ELECTRICAL SCHEMATICS 4309004
Section 3 – START-UP INSTRUCTIONS X-4138
Section 4 – SIMOREG DRIVE SET-UP INSTRUCTIONS X-4123
Section 5 – OPERATOR DISPLAY MANUAL X-4137
Section 6 – WATER INJECTION SET-UP INSTRUCTIONS X-4139
Section 7 – HYDRAULIC SCHEMATICS:
MAIN FRAME HYDRAULICS 1546046(1)
MAIN FRAME HYDRAULICS 1546046(2)
RESERVOIR INLET & RETURN 1546046(3)
LEVELING JACK HYDRAULICS 1546046(4)
CRAWLER HYDRAULICS 1546046(5)
MAST HYDRAULICS 1546046(6)
HYD SOLENOID VALVE & GAUGE PORT LOCATIONS E023596
Section 8 – AIR SCHEMATICS
Book 2:
Section 9 – PLC SOFTWARE CB2U70T83

VIDEO PREVIEW OF THE MANUAL:

PLEASE NOTE:

  • This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
  • This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
  • Require some other service manual or have any queries: please WRITE to us at heydownloadss@gmail.com
