CAT Roof Bolter 62 ROOF BOLTER Parts Catalog Manual – PDF DOWNLOAD

Description

CAT Roof Bolter 62 ROOF BOLTER Parts Catalog Manual – PDF DOWNLOAD

TABLE OF CONTENTS:

CAT Roof Bolter 62 ROOF BOLTER Parts Catalog Manual – PDF DOWNLOAD

Serial Number – 974

Mechanical
62-974 (887115) 21-01-000
Mechanical Assembly (885964) 21-01-001
Stabilizer Foot (252067) 21-01-002
Light & Tapeswitch Mounting Assembly (270447) 21-01-003
Speed Reducer (246419) 21-01-004
Lift Arm Assembly (232666) 21-01-005
Lift Arm (228112) 21-01-006
Guide Arm (268519) 21-01-007
Carriage Assembly (247383) 21-01-008
Cable Reel Cup End (214639) 21-01-009
Spooler Assembly (320140) 21-01-010
Motor Mounting w/o Guard Bracket (235388) 21-01-011
Idler Roll Assembly (230252) 21-01-012
Frame Assembly (268428) 21-01-013
Frame Horn (253226) 21-01-014
Bearing Block Assembly (216581) 21-01-015
Tags & Decals Assembly (217283) 21-01-016
Cover Extension (249308) 21-01-017
Canopy Installation (252098) 21-01-018
Canopy Assembly (241744) 21-01-019
Tire & Wheel Assembly (885965) 21-01-020
Thin Seam ATRS Assembly (219539) 21-01-021
ATRS Lift Arm (209176) 21-01-022
Thin Seam Support Head (219130) 21-01-023
Disc Brake (238168) 21-01-024
Electrical
Electrical Layout (264851) 21-01-100
Motor (246734) 21-01-101
Starter Assembly (229103) 21-01-102
Panel Board Assembly (207594) 21-01-103
Black Pushbutton Assembly (230872) 21-01-104
Selector Switch Installation (237907) 21-01-105
Selector Switch Assembly (240798) 21-01-106
Starter Handle Assembly (212345) 21-01-107
Cable Reel Assembly (227703) 21-01-108
Pushbutton Station (240436) 21-01-109
Tapeswitch Assembly (235831) 21-01-110
Cable Assembly (244893) 21-01-111
Junction Box Assembly (241237) 21-01-112
Lighting Package (264850) 21-01-113
BI377579
BUCYRUS AMERICA, INC.
Lamp Assembly (213157) 21-01-114
Headlight Assembly (211107) 21-01-115
Light Switch Assembly (236822) 21-01-116
Selector Switch Assembly (240798) 21-01-117
Hydraulic
Hydraulic Components (227655) 21-01-200
Roof Support Cylinder (224357) 21-01-201
Hose & Fittings (224007) 21-01-202
Hydraulic Components Assembly (207295) 21-01-203
Oil Tank Assembly (216324) 21-01-204
Oil Tank Cover (214413) 21-01-205
Filler Assembly (212655) 21-01-206
Hydraulic Pump Assembly (241811) 21-01-207
Valve Bank Assembly (222269) 21-01-208
Valve Bank (237891) 21-01-209
Valve Handle (228941) 21-01-210
Valve Handle (242378) 21-01-211
Valve Handle Assembly (207168) 21-01-212
Valve Bank Assembly (218887) 21-01-213
Valve Bank (251762) 21-01-214
Filter Assembly (245614) 21-01-215
Stabilizing Cylinder (221680) 21-01-216
Thrust Cylinder (222453) 21-01-217
Tram Motor (237943) 21-01-218
Cable Reel Motor (245297) 21-01-219
Drill Motor (229325) 21-01-220
Hose Kit (327789) 21-01-221
Hydraulic Schematic (211939) 21-01-222
General Sheets Section 2
General Sheets 21-02-000
Fail Safe Braking System 21-02-001
Drill Thrust and Torque Settings 21-02-002

FILE DETAILS:

CAT Roof Bolter 62 ROOF BOLTER Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages :160
Downloadable : Yes
File Type : PDF
Size:16.9 MB

CAT ROOF BOLTER 62 ROOF BOLTER PARTS CATALOG MANUAL – PDF DOWNLOAD:

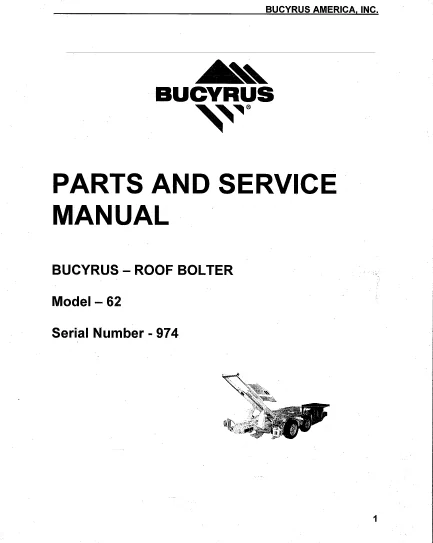

IMAGES PREVIEW OF THE MANUAL:
