• ALLEN-BRADLEY CENTERLINE® MOTOR CONTROL CENTERS START-UP PROCEDURE Application Notes The intent ofthis publication is to provide guidance for the start-up of a newly installed Bulletin2100 CENTERLINE Motor 1Control Center (MCC).
It is recommended that an itemized list including such items, as the number of sections, number of units and their corresponding voltage, current ratings, horsepower ratings, types of circuits, fuse sizes, circuit breaker ratings and trip settings, heater element requirements and any other pertinent data, is available for the particular start-up.~ This itemized list could be modeled after the Fonn 385 which is supplied with each MCC.

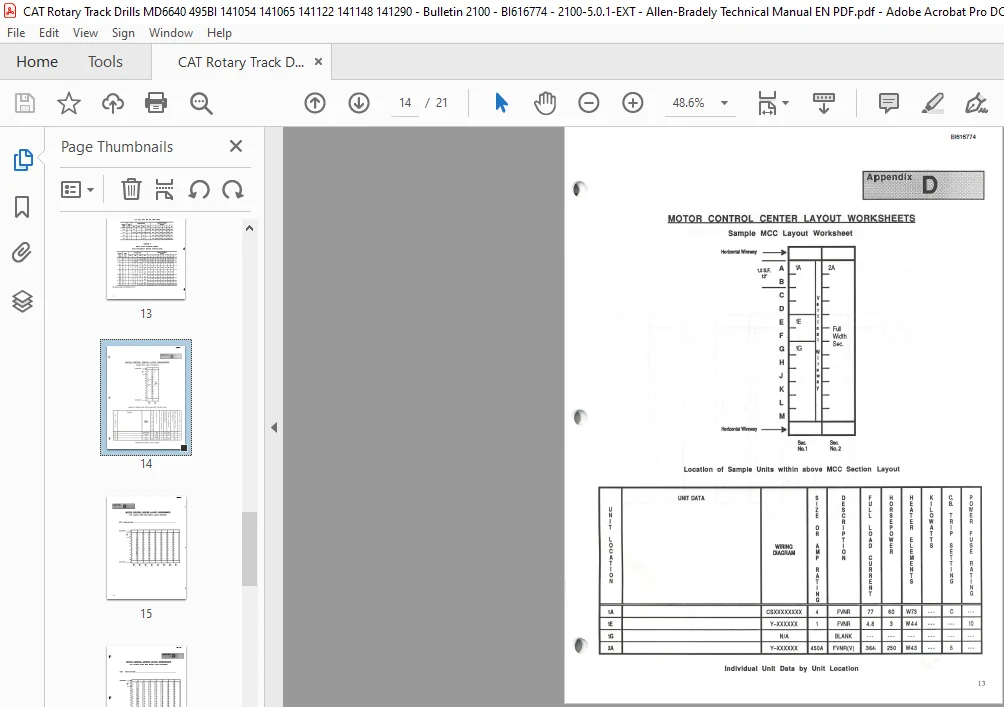

This itemized list should be saved in a file along with other pertinent data.for the MCC, such as, component manuals, heater element instructions,.MCC manuals, Fonn 385s, etc. See Appendix D for a sample fonn and.·
blank fonns. Utilizing this publication; an itemized list as described above; and the Bulletin 2100 Centerline Motor Control Centers Instruction Manual, Publication 2100-5.0; begin the Pre-Energizing Check Procedure
The following procedures should be executed by a “qualified person” as defined by NEMAStandards Publication/ No. ICS 2.3, “Instructions for the Handling, Installation, Operation, and Maintenance of Motor Control Centers”, Section 1 as follows:
