- The RPE/RPX utilizes reed switches in the instrument’s stem and a permanent magnet in the float.
As the float rises or falls with the level of the liquid, the magnet inside the float act on the
reed switches inside the stem and provides a resistive-chain output. - The RPE/RPX is also available with optional electronics that convert the resistance output into a 4-20mA signal.
Installation
– Unpacking –
When unpacking the instrument, exercise care not to subject the instrument to
mechanical shock. After unpacking, visually inspect the instrument for
damage.
– Environment –
The RPE/RPX series intruments should be installed in an area which meets the following conditions:
1. The ambient temperature does not exceed -400F to 1850F (-400C to 850C).
NOTE: It is recommended that a sun shield be installed over the housing if
exposed to direct sunlight.
2. The medium temperature does not exceed -400F to 1850F (-400C to 850C).
3. Locate the sensor away from strong magnetic fields such as those produced
by motors, transformers, solenoid valves, etc.
4. The medium is free from metallic substances and other foreign matter.
5. No corrosive gases such as NH3, SO2, Cl2, etc.
6. No excessive vibration
7. Ample space for maintenance and inspection.

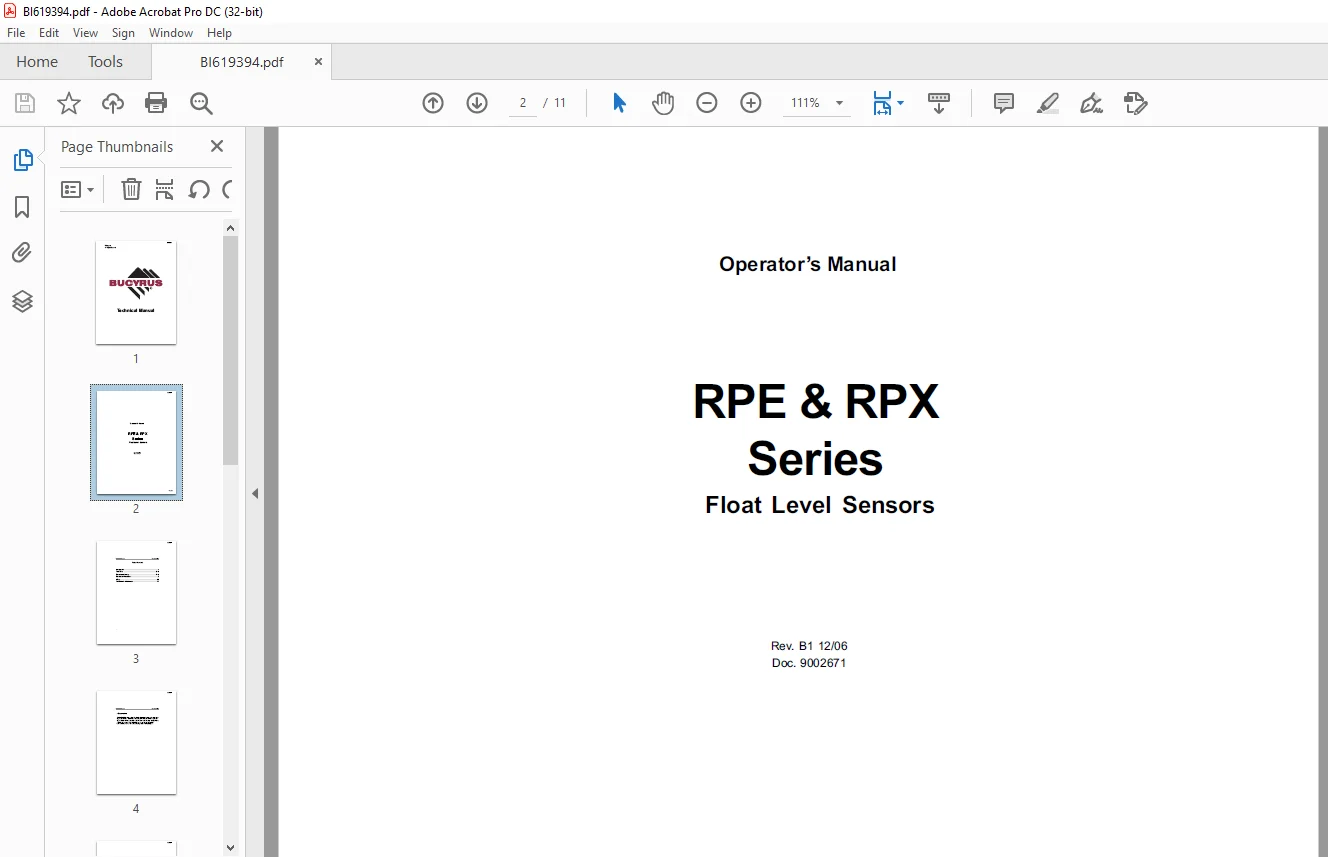

IMAGES PREVIEW OF THE MANUAL:
