Cat TL943 Operation & Maintenance Manual – PDF DOWNLOAD

Description

Cat TL943 Operation & Maintenance Manual – PDF DOWNLOAD

DESCRIPTION:

Cat TL943 Operation & Maintenance Manual – PDF DOWNLOAD

• This is manual is a very important tool! Keep it with the machine at all times.
• The purpose of this manual is to provide owners, users, operators, lessors, and lessees with the precautions and operating procedures essential for the safe and proper machine operation for its intended purpose.
• Due to continuous product improvements, JLG Industries, Inc. reserves the right to make specification changes without prior notification. Contact JLG Industries, Inc. for updated information.

Operator Qualifications The operator of the machine must not operate the machine until this manual has been read, training is accomplished and operation of the machine has been completed under the supervision of an experienced and qualified operator.

• Operation within the U.S.A. requires training per OSHA 1910.178. Operators of this equipment must possess a valid, applicable driver’s license, be in good physical and mental condition, have normal reflexes and reaction time, good vision and depth perception and normal hearing.
• Operator must not be using medication which could impair abilities nor be under the influence of alcohol or any other intoxicant during the work shift. In addition, the operator must read, understand and comply with instructions contained in the following material furnished with the telehandler:

• This Operation & Maintenance Manual
• Telehandler Safety Manual (ANSI only)
• All instructional decals and plates
• Any optional equipment instructions furnished

The operator must also read, understand and comply with all applicable Employer, Industry and Governmental rules, standards and regulations

• This product must comply with all safety related bulletins. Contact JLG Industries, Inc. or the local Caterpillar dealer representative for information regarding safety related bulletins which may have been issued for this product.
• JLG Industries, Inc. sends safety related bulletins to the owner of record of this machine. Contact JLG Industries, Inc. to ensure that the current owner records are updated and accurate.
• JLG Industries, Inc. must be notified immediately in all instances where JLG products have been involved in an accident involving bodily injury or death of personnel or when damage has occurred to personal property or the JLG product

FOR:
• Accident Reporting and Product Safety Publications
• Current Owner Updates
• Questions Regarding Product Applications and Safety
• Standards and Regulations Compliance Information
• Questions Regarding Product Modifications

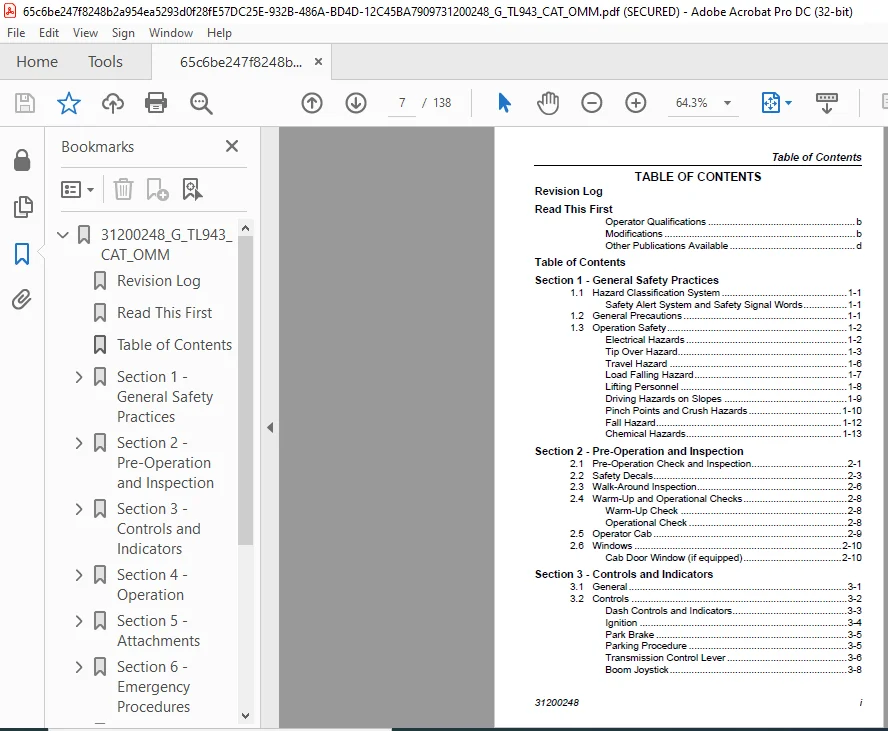

TABLE OF CONTENTS:

Cat TL943 Operation & Maintenance Manual – PDF DOWNLOAD

31200248_G_TL943_CAT_OMM....................................  1
	Revision Log............................................  3
	Read This First.........................................  4
	Table of Contents.......................................  7
	Section 1 - General Safety Practices.................... 11
		1.1 Hazard Classification System.................... 11
			Safety Alert System and Safety Signal Words..... 11
		1.2 General Precautions............................. 11
		1.3 Operation Safety................................ 12
			Electrical Hazards.............................. 12
			Tip Over Hazard................................. 13
			Travel Hazard................................... 16
			Load Falling Hazard............................. 17
			Lifting Personnel............................... 18
			Driving Hazards on Slopes....................... 19
			Pinch Points and Crush Hazards.................. 20
			Fall Hazard..................................... 22
			Chemical Hazards................................ 23
	Section 2 - Pre-Operation and Inspection................ 25
		2.1 Pre-Operation Check and Inspection.............. 25
		2.2 Safety Decals................................... 27
		2.3 Walk-Around Inspection.......................... 30
		2.4 Warm-Up and Operational Checks.................. 32
			Warm-Up Check................................... 32
			Operational Check............................... 32
		2.5 Operator Cab.................................... 33
		2.6 Windows......................................... 34
			Cab Door Window (if equipped)................... 34
	Section 3 - Controls and Indicators..................... 35
		3.1 General......................................... 35
		3.2 Controls........................................ 36
			Dash Controls and Indicators.................... 37
			Ignition........................................ 38
			Park Brake...................................... 39
			Parking Procedure............................... 39
			Transmission Control Lever...................... 40
			Boom Joystick................................... 42
			Frame Level Joystick............................ 43
			Outrigger Joysticks (if equipped)............... 44
			Auxiliary Hydraulic Joystick.................... 45
			Heater and Air Conditioning Controls............ 46
			Accessory Control Lever (if equipped)........... 47
		3.3 Steer Modes..................................... 48
			Steer Mode Change............................... 48
		3.4 Operator Seat................................... 49
			Adjustments..................................... 49
			Seat Belt....................................... 50
		3.5 Boom Angle and Extension Indicators............. 51
	Section 4 - Operation................................... 53
		4.1 Engine.......................................... 53
			Starting the Engine............................. 53
			Extreme Cold Weather Starting (if equipped)..... 54
			Battery Boosted Starting........................ 55
			Normal Engine Operation......................... 56
			Shut-Down Procedure............................. 56
		4.2 Operating with a Non-Suspended Load............. 57
			Lift Load Safely................................ 57
			Picking Up a Load............................... 57
			Transporting a Load............................. 58
			Leveling Procedure.............................. 58
			Placing a Load.................................. 59
			Disengaging a Load.............................. 59
		4.3 Operating with a Suspended Load................. 60
			Lift Load Safely................................ 60
			Picking Up a Suspended Load..................... 60
			Transporting a Suspended Load................... 61
			Leveling Procedure.............................. 61
			Placing a Suspended Load........................ 62
			Disengaging a Suspended Load.................... 62
		4.4 Loading and Securing for Transport.............. 63
			Tiedown......................................... 63
			Lifting......................................... 64
	Section 5 - Attachments................................. 65
		5.1 Approved Attachments............................ 65
		5.2 Unapproved Attachments.......................... 65
		5.3 JLG Supplied Attachments........................ 66
		5.4 Telehandler/Attachment/Fork Capacity............ 68
		5.5 Use of the Load Chart........................... 69
			Capacity Indicator Locations.................... 69
			Sample Load Chart............................... 70
			Example......................................... 72
		5.6 Attachment Installation......................... 73
			Mechanical Quick Coupler........................ 74
			Hydraulic Quick Coupler......................... 75
		5.7 Hydraulic Operated Attachment................... 76
		5.8 Adjusting/Moving Forks.......................... 77
		5.9 Attachment Operation............................ 78
			Carriage w/Forks................................ 79
			Side Shift Carriage............................. 80
			Rotate/Side Tilt Carriage....................... 82
			Swing Carriage.................................. 84
			Bucket.......................................... 86
			Multi-Purpose Bucket............................ 88
			Fork Mounted Hook............................... 90
			Coupler Mounted Hook............................ 92
			Truss Boom...................................... 93
			Personnel Work Platform - Fork Mounted.......... 94
			Boom Head-Mounted Winch......................... 96
	Section 6 - Emergency Procedures........................ 97
		6.1 Towing a Disabled Product....................... 97
			Moving Short Distances.......................... 97
			Moving Longer Distances......................... 97
		6.2 Emergency Lowering of Boom...................... 98
		6.3 Emergency Exit from Enclosed Cab................ 98
	Section 7 - Lubrication and Maintenance................. 99
		7.1 Introduction.................................... 99
			Clothing and Safety Gear........................ 99
		7.2 General Maintenance Instructions................100
		7.3 Service and Maintenance Schedule................101
			10, 1st 50 & 50 Hour Maintenance Schedule.......101
			1st 250, 250 & 500 Hour Maintenance Schedule....102
			1000 & 1500 Hour Maintenance Schedule...........103
		7.4 Lubrication Schedules...........................104
			50 Hour Lubrication Schedule....................104
			250 Hour Lubrication Schedule...................105
			1000 Hour Lubrication Schedule..................106
		7.5 Operator Maintenance Instructions...............108
			Fuel System.....................................108
			Air Intake System...............................110
			Engine Oil......................................112
			Hydraulic Oil...................................113
			Tires...........................................114
			Transmission Oil................................117
			Engine Cooling System...........................118
			Battery.........................................119
			Windshield Washer System (if equipped)..........120
	Section 8 - Additional Checks...........................121
	Section 9 - Specifications..............................123
		9.1 Product Specifications..........................123
			Fluids..........................................123
			Capacities......................................125
			Tires...........................................126
			Performance.....................................127
			Dimensions......................................128
	Index...................................................129
	Inspection, Maintenance and Repair Log..................133

CAT TL943 OPERATION & MAINTENANCE MANUAL – PDF DOWNLOAD:

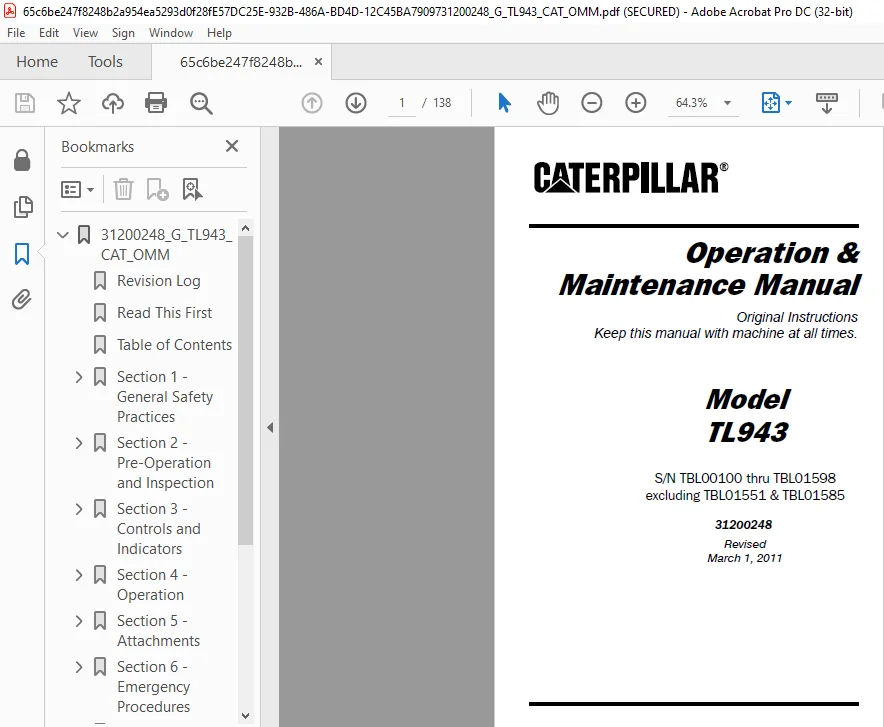

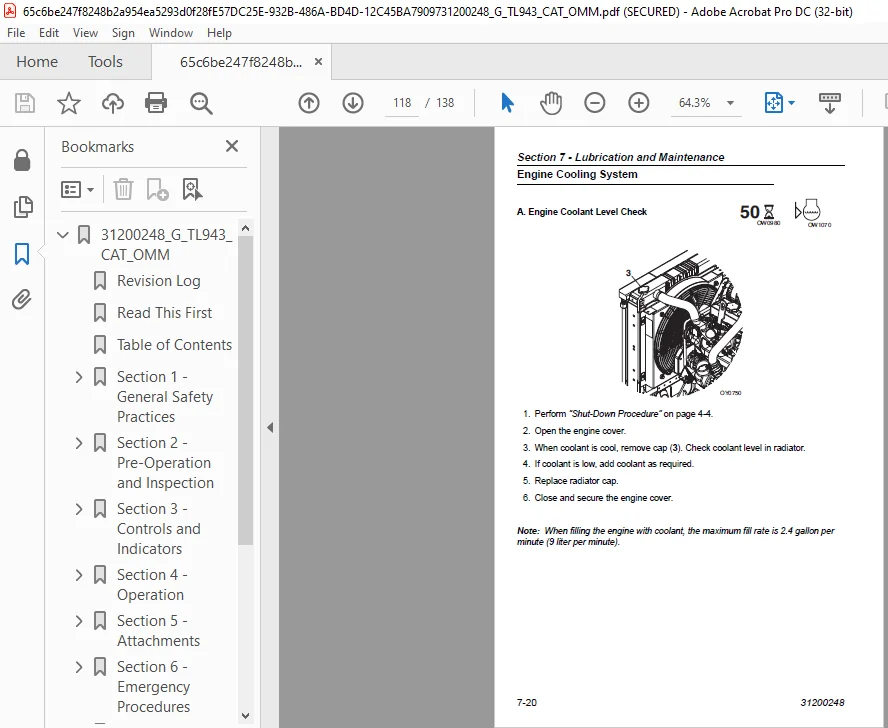

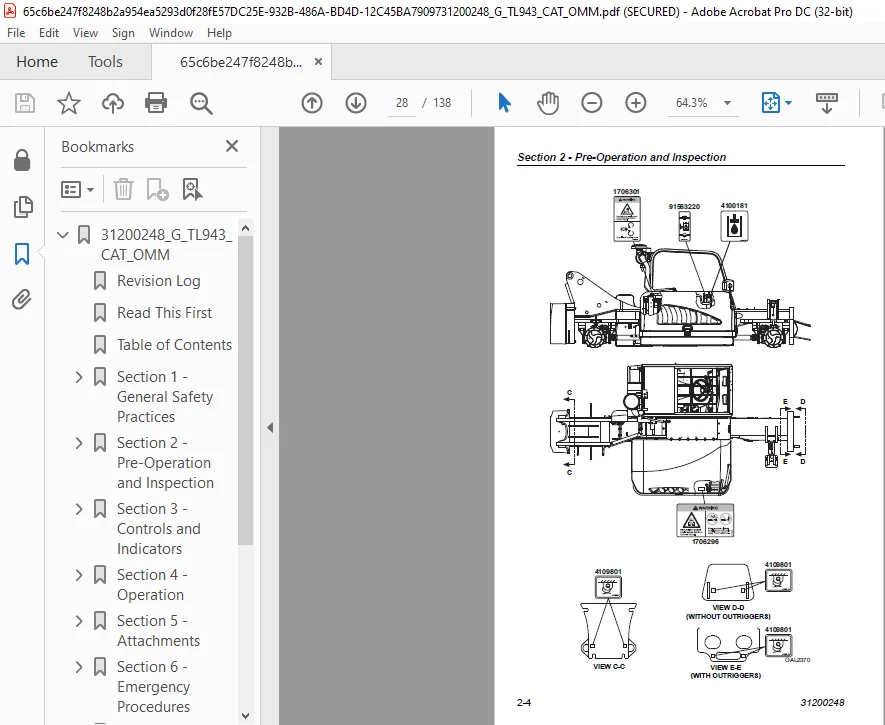

IMAGES PREVIEW OF THE MANUAL:
