Caterpillar 236 246 252 262 Skid Steer Loader Parts Manual Volume II SEBP3271-55

Description

Get comprehensive, genuine factory parts identification with the Caterpillar 236 246 252 262 Skid Steer Loader Parts Manual Volume II SEBP3271-55. This publication is an essential resource for equipment owners, fleet managers, field mechanics, and parts specialists needing exact part numbers, assembly breakdowns, and exploded technical schematics for Cat skid steer loaders.

File Details

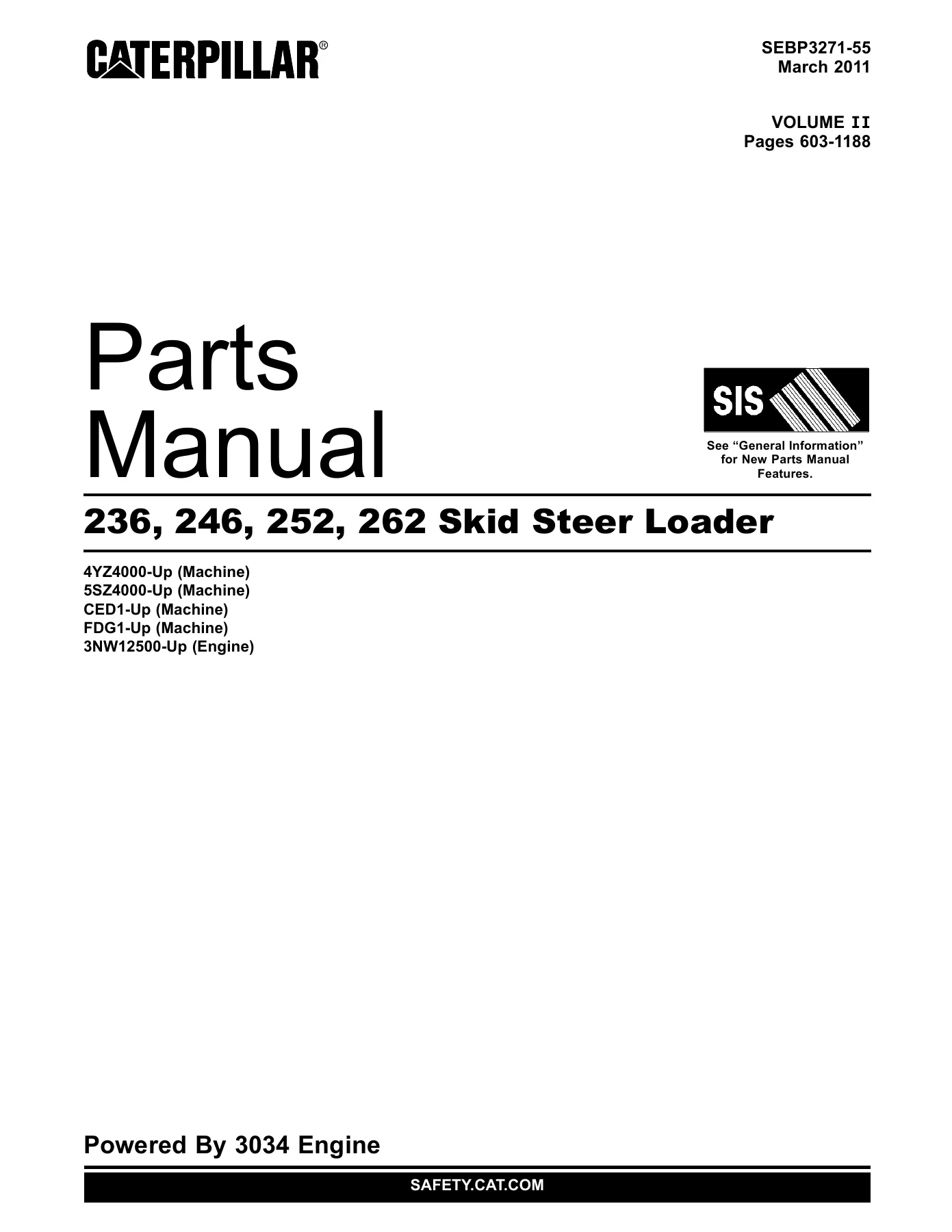

• Manual Type: Parts Manual (Volume II, Pages 603-1188)
• Brand: Caterpillar
• Covered Models: 236, 246, 252, 262 Skid Steer Loader
• Covered Engine: 3034 Engine
• Serial Number Coverage: 4YZ4000-Up (Machine), 5SZ4000-Up (Machine), CED1-Up (Machine), FDG1-Up (Machine), 3NW12500-Up (Engine)
• Publication Number: SEBP3271-55
• Publication Date: March 2011
• Language: English
• Page Count: 643 pages (PDF file count)
• Format: Digital PDF

Key Systems & Assemblies Covered

The Caterpillar 236 246 252 262 Skid Steer Loader Parts Manual Volume II SEBP3271-55 delivers in-depth parts cataloging across major loader structures, hydraulic work tools, operator station assemblies, and field retrofit kits:

IMAGES PREVIEW

• Implements: Lift arm assemblies (including 190-7998 and 195-6798 Arm As-Lift), machine frame groups, support bracket groups, and pivot pins.
• Work Tools & Attachments: Angling blades (177-1989, 177-1990, 231-5275, 231-5277), general purpose buckets (229-3426, 279-5365, 279-5370, 296-8192), dirt buckets (268-4083, 279-5435, 285-6090), light material buckets (279-5420, 296-7597), utility buckets (285-6095, 285-6100), industrial grapple buckets (157-7223, 217-6229, 286-9300), and multipurpose clamshell buckets (154-5004, 199-8320, 279-5382, 325-7036).
• Forks & Carriages: Carriage and fork arrangements (242-9998, 293-9427, 353-1693), pallet fork groups (36-in, 42-in, and 48-in tines), utility fork groups, and material handling arms.
• Coupler Systems: Hydraulic quick couplers (192-2655), manual quick coupler groups (196-8870, 142-9080, 188-0142), cylinder and link groups, conversion kits, and locking hardware.
• Operator Station: Enclosed ROPS/FOPS cabs (206-3819, 152-1160), cab doors with glass or polycarbonate windows (195-6724, 195-6726, 218-6441, 223-0616, 233-5812, 233-5813), wiper motors and arms, console covers, armrests, storage boxes, and floor mats.
• Cab Heating & Air Conditioning: Complete HVAC retrofit kits (222-5721, 222-5722, 223-8413, 223-8416, 266-9189, 266-9194), refrigerant compressors, condenser mounting groups, blower assemblies, heater lines, defroster ducts, and fresh air filter groups.
• Controls & Gauges: Pilot-operated joystick controls, proportional and on/off auxiliary handle switches (160-4320, 204-1395, 204-1396, 204-1398, 242-8279), electric horn groups, instrument panels, service hour meters, and warning indicator gauge modules.
• Water Spray & Roading Equipment: Water tank and mounting groups (166-2550, 252-0386, 346-1834), 12V diaphragm spray pumps, roading plate kits, and safety reflectors.

Chapters Covered

This volume spans pages 603 through 1188 and presents the original manufacturer parts listings organized into defined catalog groups:

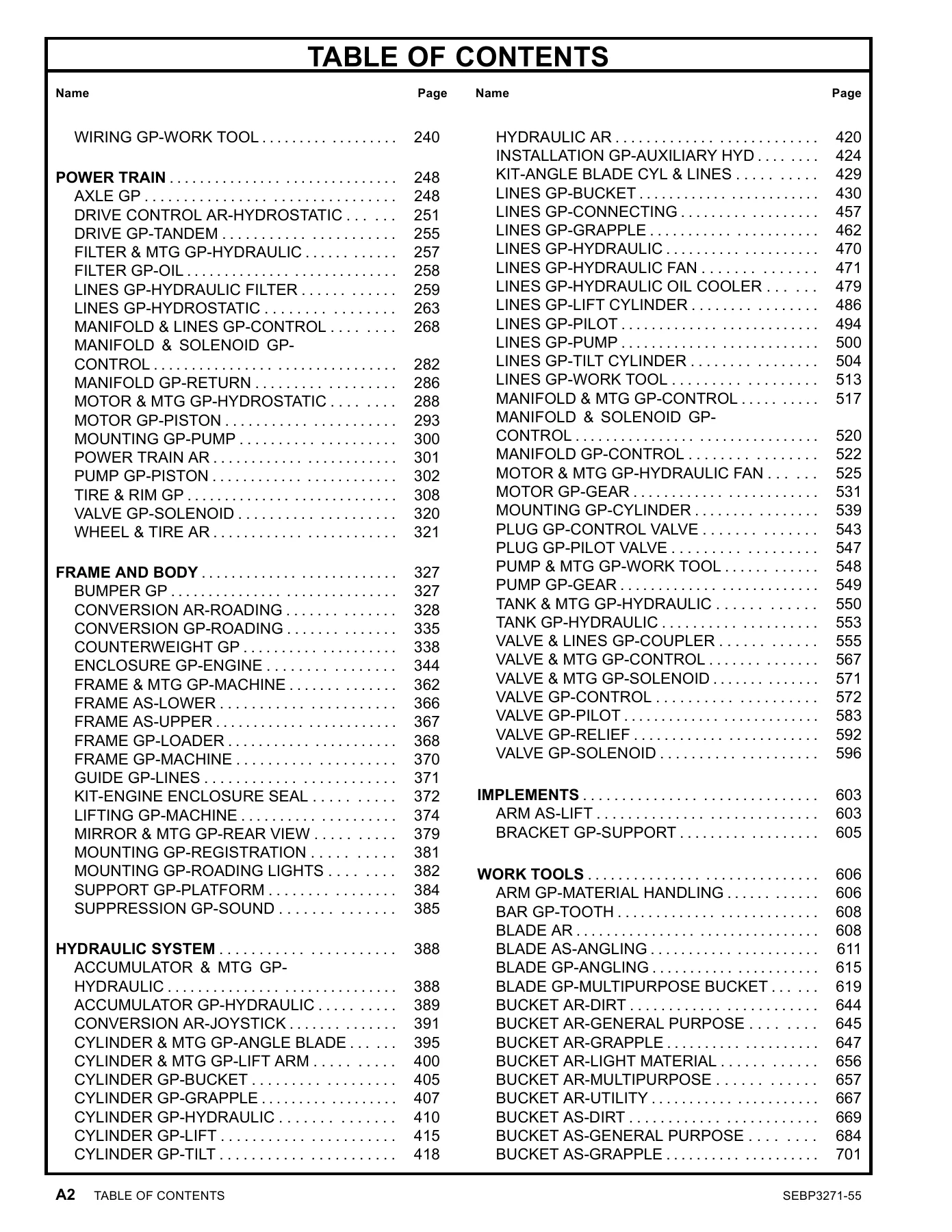

• General Information & SIS Guide
• Implements (Lift Arm Assemblies, Machine Frame Brackets)
• Work Tools (Material Handling Arms, Tooth Bars, Angling Blades)
• Buckets (General Purpose, Dirt, Light Material, Utility, Multipurpose 4-in-1, Industrial Grapple)
• Pallet & Utility Forks (Carriages, Tines, Grapple Arms)
• Quick Couplers & Coupler Linkage Groups
• Operator Station (Cab Shell, ROPS/FOPS Guards, Liners, Consoles)
• Doors & Glazing (Glass Windows, Polycarbonate Windows, Latches, Wiper Systems)
• Air Conditioning & Cab Heating Groups (Compressors, Condensers, Coils, Blowers, Air Ducts)
• Operator Controls & Pilot Valves (Joysticks, Handles, Rocker Switches)
• Gauges, Warning Modules & Instrument Panels
• Water Spray Tanks, Mounting Groups & Diaphragm Pumps
• Service Equipment & Preventive Maintenance Supplies
• Numerical Part Number Index

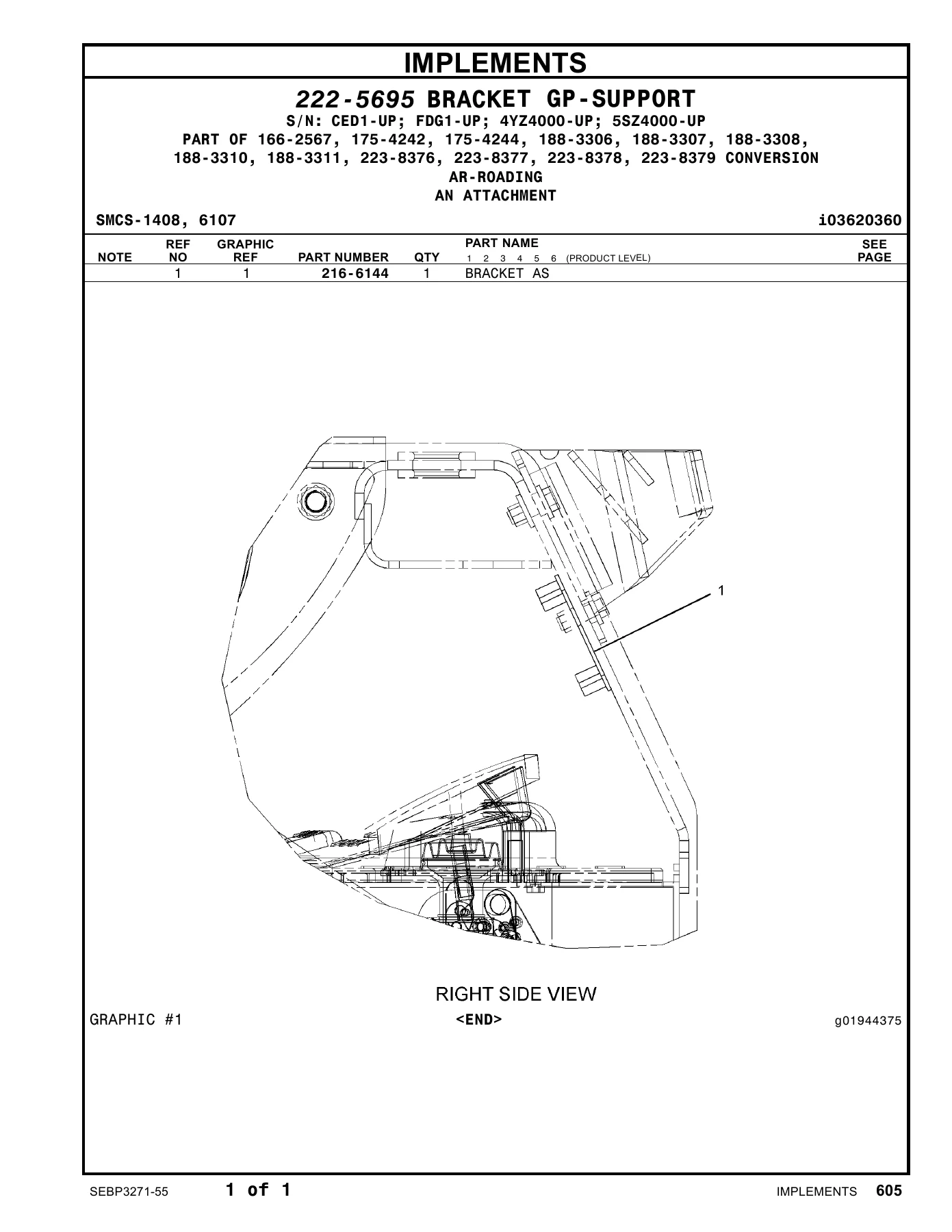

Each section provides part numbers, precise part names, quantities per assembly, SMCS codes, and reference callouts linked directly to clear exploded view line drawings.

Professional Capability & Instant Delivery

Maintaining high-hour machines requires correct component identification. Whether ordering replacement cutting edges, repairing high-flow auxiliary hydraulic connections, replacing cracked cab door glass, or overhauling joystick handles, having the exact part numbers eliminates costly ordering mistakes and downtime. The Caterpillar 236 246 252 262 Skid Steer Loader Parts Manual Volume II SEBP3271-55 delivers factory-level parts identification directly to your computer, tablet, or smartphone. Available as an instant PDF download, you get immediate access without waiting for shipping, and you can print any exploded diagram needed right in the workshop.
