CATERPILLAR 297c Multi Terrain Loader Parts Manual – PDF DOWNLOAD

Description

CATERPILLAR 297c Multi Terrain Loader Parts Manual – PDF DOWNLOAD

DESCRIPTION:

CATERPILLAR 297c Multi Terrain Loader Parts Manual – PDF DOWNLOAD

1. MACHINE IDENTIFICATION

• Caterpillar machines are identified by Product Identification Numbers (PIN). Some components included in a machine may be identified by Serial Numbers (S/N). Typical components that will be serialized include engines, transmissions, bulldozers, and rippers. The machine and engine are further identified by arrangement numbers and in some cases modification numbers.
• These numbers are shown on the product identification plate(s) and on the master plate in the operator’s compartment. Caterpillar dealers need all of these numbers to determine accurate parts identification. Effective First Quarter 2001 the Caterpillar Product Identification Number (PIN) changed from 8 to 17 characters.
• In an effort to provide uniform equipment identification, Caterpillar and other construction equipment manufacturers are moving to comply with the latest version of the product identification numbering standard. Non-road machine PINs are defined by ISO 10261. The new PIN format will apply to all Caterpillar machines and generator sets. The PIN plates and frame marking will display the 17 character PIN. The new format will look like the following

Where:

1. Caterpillar’s World Manufacturing Code (characters 1-3)

2. Machine Descriptor (characters 4-8)

3. Check Character (character 9)

4. Machine Indicator Section (MIS) or Product Sequence Number (characters 10-17). These were previously referred to as the Serial Number. Machines and generator sets produced before First Quarter 2001 will maintain their 8 character PIN format. Components such as engines, transmissions, axles, etc. and work tools will continue to use an 8 character Serial Number (S/N)

2. ORDERING PARTS

WARNING

• When replacement parts are required for this product Caterpillar recommends using Caterpillar replacement parts or parts with equivalent specifications including, but not limited to, physical dimensions, type, strength and material.
• Failure to heed this warning can lead to premature failures, product damage, personal injury or death.
• Quality Caterpillar replacement parts are available from Caterpillar dealers throughout the world. Their parts inventories are up to date and include all parts normally required to protect your investment in Caterpillar machines.
• Dealers may offer repair kits or remanufactured parts to allow selection of the most effective repair alternative for a particular situation.When ordering parts, your order should specify the quantity, part number, part name, and the serial number/product identification number of the machine for which the parts are needed

3. PARTS MANUAL ORGANIZATION

Product information in this manual is presented as “information elements” that represent all of the components for the specific model. Engine Arrangement and Seat Group are examples of information elements. The information elements are organized alphabetically by part name and secondarily by part number within each major section of the manual.

4. TABLE OF CONTENTS

A table of contents (TOC) is found at the beginning of the manual. The TOC lists each section of the manual with a complete list of all information elements organized as they appear in the manual. Page numbers are provided for quick reference to detailed parts identification illustrations and serviceable consist lists

5. MAINTENANCE PARTS INDEX

The Maintenance Parts Index, located near the beginning of the manual, references most frequently used maintenance part numbers, providing description, quantity, usage and page number. This information is organized alphabetically by part description.

TABLE OF CONTENTS:

CATERPILLAR 297c Multi Terrain Loader Parts Manual – PDF DOWNLOAD

GENERAL INFORMATION A20
REPAIR ALTERNATIVES A39
SUPPLEMENTAL COOLANT ADDITIVES A44
MAINTENANCE PARTS A49
INDEX A68
MACHINE ARRANGEMENT 1
CHASSIS AR 1
COMMON AR 1
MACHINE AR-SPECIAL 2
ENGINE ARRANGEMENT 5
ENGINE AR 5
ENGINE AR-PRIMARY 6
INSTALLATION AR-ENGINE 9
BASIC ENGINE 11
BEARING GP-MAIN 11
CAMSHAFT GP 12
CONNECTING ROD GP 14
COVER GP-VALVE MECHANISM 15
CRANKSHAFT GP 17
CYLINDER BLOCK GP 19
CYLINDER HEAD GP 23
DRAIN GP 26
DRAIN GP-ENGINE OIL 27
FLYWHEEL GP 28
GEAR GP-FRONT 30
GUARD GP-BELT 33
HOUSING GP-FLYWHEEL 34
HOUSING GP-FRONT 36
LIFTING GP-ENGINE 40
MOUNTING GP-ENGINE 42
PAN GP-OIL 43
PISTON & ROD GP 47
PISTON GP 48
PLUG GP-CYLINDER BLOCK 49
PLUG GP-ENGINE 50
PULLEY GP-CRANKSHAFT 52
PULLEY GP-WATER PUMP 54
V-BELT GP 55
VALVE MECHANISM GP 56
LUBRICATION SYSTEM 57
BREATHER GP 57
FILTER GP-ENGINE OIL 62
LINES GP-ENGINE OIL 64
PUMP GP-ENGINE OIL 65
VALVE GP-ENGINE OIL RELIEF 66
COOLING SYSTEM 67
COOLER GP-ENGINE OIL 67
HOUSING & REGULATOR GP 69
LINES GP-WATER 70
MOUNTING GP-RAD & OIL COOLER 73
PUMP GP-WATER 75
RADIATOR & HYD OIL COOLER GP 76
AIR INLET AND EXHAUST SYSTEM 78
AFTERCOOLER & MOUNTING GP 78
AIR CLEANER GP 80
KIT-DEBRIS GUARD 84
LINES GP-AIR 85
MANIFOLD GP-EXHAUST 89
MANIFOLD GP-INLET 90
MUFFLER & MOUNTING GP 91
MUFFLER GP 92
TURBOCHARGER GP 93
FUEL SYSTEM 97
CONTROL GP-GOVERNOR 97
LINES GP-FUEL 100
LINES GP-FUEL INJECTION 102
LINES GP-FUEL PRM & FILTER 106
PUMP GP-FUEL INJECTION 108
TANK & MTG GP-FUEL 114
TANK GP-FUEL 116
ELECTRICAL AND STARTING SYSTEM 117
ALTERNATOR GP-CHARGING 117
BATTERY &WIRING GP 122
COVER GP-FUSE PANEL 124
GLOWPLUG GP 125
HEATER GP-JACKETWATER 126
KIT-CONTROL MOUNTING 128
KIT-SECURITY 129
KIT-WORK TOOLWIRING 131
LAMP GP-FLOOD 132
LAMP GP-HEAD & SIGNAL 133
LAMP GP-WARNING BEACON 135
LIGHTING GP-FLOOD 136
LIGHTING GP-ROADING 137
LIGHTING GP-STOP & TAIL 139
LIGHTING GP-WARNING BEACON 140
RELAY GP 141
SENSOR GP-POSITION 142
SENSOR GP-SPEED 143
SENSOR GP-TEMP & PRESS 144
SERVICE GP-MACHINE 145
STARTING MOTOR GP-ELECTRIC 146
SWITCH GP-PRESSURE 149
WIRING GP-AIR CONDITIONER 150
WIRING GP-CAB 151
WIRING GP-COUPLER 153
WIRING GP-ENGINE 154
SEBP4518-04 TABLE OF CONTENTS A1
TABLE OF CONTENTS
Name Page Name Page
WIRING GP-MACHINE 158
WIRING GP-WORK TOOL 160
POWER TRAIN 162
DRIVE GP-TRACK 162
FILTER & LINES GP-HYDRAULIC 170
FILTER GP-OIL 172
LINES GP-HYDROSTATIC 173
LINES GP-PARKING BRAKE 175
MANIFOLD GP-RETURN 176
MOUNTING GP-AXLE 178
MOUNTING GP-PUMP 179
PUMP & MTG GP-HYDROSTATIC 181
PUMP GP-PISTON 182
SPROCKET GP 186
FRAME AND BODY 187
CONVERSION AR-ROADING 187
CONVERSION GP-ROADING 189
COUNTERWEIGHT GP 191
DOOR AS-ACCESS 192
ENCLOSURE GP-ENGINE 193
FRAME & MTG GP-MACHINE 194
FRAME GP-MACHINE 196
GUIDE GP-LINES 197
KIT-COUNTERWEIGHT 198
KIT-ENGINE ENCLOSURE 200
KIT-MACHINE ENCLOSURE SEAL 201
KIT-ROADING CONVERSION 203
LIFTING GP-MACHINE 205
MIRROR & MTG GP-REAR VIEW 208
MOUNTING GP-REGISTRATION 209
MOUNTING GP-ROADING LIGHTS 210
SUPPRESSION GP-SOUND 213
UNDERCARRIAGE 216
AXLE GP-BOGIE 216
AXLE GP-IDLER 217
AXLE GP-UNDERCARRIAGE 218
FRAME GP-UNDERCARRIAGE 219
SUSPENSION GP-BOGIE 239
UNDERCARRIAGE AR 240
WHEEL GP-BOGIE 285
WHEEL GP-IDLER 286
HYDRAULIC SYSTEM 288
ACCUMULATOR GP-HYDRAULIC 288
CYLINDER & MTG GP-BUCKET 289
CYLINDER GP-BUCKET 290
CYLINDER GP-GRAPPLE 292
CYLINDER GP-HYDRAULIC 293
CYLINDER GP-LIFT ARM 297
FITTING GP-HYDRAULIC 298
HYDRAULIC AR 302
KIT-QUICK COUPLER CONVERSION 305
KIT-WORK TOOL POSITIONER 308
LINES GP-BUCKET 310
LINES GP-COUPLER 326
LINES GP-GRAPPLE 332
LINES GP-HYDRAULIC 336
LINES GP-HYDRAULIC FAN 339
LINES GP-HYDRAULIC OIL COOLER 344
LINES GP-LIFT CYLINDER 345
LINES GP-LOWERING CONTROL 346
LINES GP-PUMP 348
LINES GP-TILT CYLINDER 359
LINES GP-WORK TOOL 361
MANF & SOLENOID MTG GP-ACCUM 367
MANIFOLD & LINES GP-ACCUM 368
MANIFOLD & LINES GP-CONTROL 370
MANIFOLD & MTG GP-CONTROL 372
MANIFOLD & SOLENOID GPCONTROL
374
MANIFOLD GP-CONTROL 375
MOTOR & MTG GP-HYDRAULIC FAN 378
MOTOR GP-GEAR 381
MOUNTING GP-CYLINDER 384
PUMP & MTG GP-GEAR 387
PUMP GP-PISTON & GEAR 389
TANK & MTG GP-HYDRAULIC 390
TANK GP-HYDRAULIC 391
VALVE & MTG GP-CONTROL 393
VALVE GP-CHECK 394
VALVE GP-CONTROL 395
VALVE GP-MANUAL 401
VALVE GP-RELIEF 402
VALVE GP-SHUTTLE 403
VALVE GP-SOLENOID 404
IMPLEMENTS 406
PIN & LINK GP-LIFT ARM 406
WORK TOOLS 408
BLADE GP-MULTIPURPOSE BUCKET 408
BUCKET AR-DIRT 413
BUCKET AR-GENERAL PURPOSE 414
BUCKET AR-GRAPPLE 416
BUCKET AR-LIGHT MATERIAL 420
BUCKET AR-MULTIPURPOSE 421
BUCKET AR-UTILITY 425
BUCKET AS-DIRT 426
BUCKET AS-GENERAL PURPOSE 430
BUCKET AS-LIGHT MATERIAL 435
BUCKET GP-DIRT 439
BUCKET GP-GENERAL PURPOSE 440
BUCKET GP-GRAPPLE 441
BUCKET GP-MULTIPURPOSE 443
BUCKET GP-UTILITY 449
CARRIAGE & FORK AR 452
CARRIAGE GP-FORK 453
A2 TABLE OF CONTENTS SEBP4518-04
TABLE OF CONTENTS
Name Page Name Page
COUPLER AR-QUICK 454
COUPLER GP-QUICK 455
COVER GP-LINES 457
CYLINDER & LINK GP-COUPLER 458
EDGE GP-CUTTING 460
FORK AR-GRAPPLE 465
FORK GP-GRAPPLE 467
FORK GP-PALLET 470
FORK GP-UTILITY 471
FRAME GP-FORK 473
FRAME GP-GRAPPLE 475
GRAPPLE GP-UTILITY 476
HANDLE & PIN GP-COUPLER 479
KIT-ROADING PLATE & MOUNTING 481
KIT-WATER TANK & MOUNTING 482
LINK GP-COUPLER 484
LOCK GP-QUICK COUPLER 485
MOUNTING GP-BACKHOE 488
PLATE GP-ROADING 489
STOP GP-GRAPPLE 491
STRAINER GP-WATER 492
TANK GP-WATER 493
TOOTH GP-UNI 494
OPERATOR STATION 495
ACCESSORY GP-CAB 495
ACCUMULATOR GP-REFRIGERANT 496
AIR CONDITIONER & MOUNTING GP 498
AIR CONDITIONER AR 499
AIR CONDITIONER GP 500
ARMREST & MOUNTING GP 502
CAB AR-ENCLOSED ROPS 503
CABLE GP-CONTROL 504
COMPRESSOR & MTG GP-REFRIG 505
CONTROL & WIRING GP-AIR & TEMP 506
CONTROL GP-AIR & TEMPERATURE 507
CONTROL GP-ELECTROHYDRAULIC 508
CONTROL GP-HANDLE 513
CONTROL GP-JOYSTICK 514
COVER GP-CAB 519
COVER GP-CONSOLE 521
COVER GP-INSTRUMENT PANEL 522
DOOR GP-CAB 523
DUCT & FILTER GP-CAB AIR 537
GUARD GP-ROPS/FOPS 539
HEATER & MTG GP-CAB 540
HEATER AR-CAB 541
HEATER GP-CAB 542
INSTALLATION GP-RADIO 543
KIT-AIR COND & HEATER INSTL 545
KIT-AIR CONDITIONER INSTL 547
KIT-CAB DOOR & MOUNTING 549
KIT-CAB HEATER & MOUNTING 550
KIT-CABWINDOW 552
KIT-CONTROL PATTERN CHANGE 553
KIT-INSTRUMENT PANEL 555
LEVER GP-GOVERNOR 556
LINER GP-CAB 557
LINES GP-AIR CONDITIONER 561
LINES GP-HEATER 563
LITERATURE GP 564
MIRROR GP-REAR VIEW 565
MOUNTING GP-ARMREST 566
MOUNTING GP-ROPS 568
PANEL GP-INSTRUMENT 571
PEDAL GP-GOVERNOR 575
SEAT & ARMREST GP 577
SEAT & MOUNTING GP 579
SEAT AR-SUSPENSION 581
SEAT BELT GP 582
SEAT GP 584
SEAT GP-SUSPENSION 586
SPRING GP-GAS 588
SUSPENSION GP-SEAT 590
VISOR GP-CAB 594
WINDOWGP-CAB 596
SERVICE EQUIPMENT AND SUPPLIES 600
BRACKET GP-MOUNTING 600
FILM GP 601
PLATE & FILM GP 604
PART NUMBER INDEX B1
SEBP4518-04

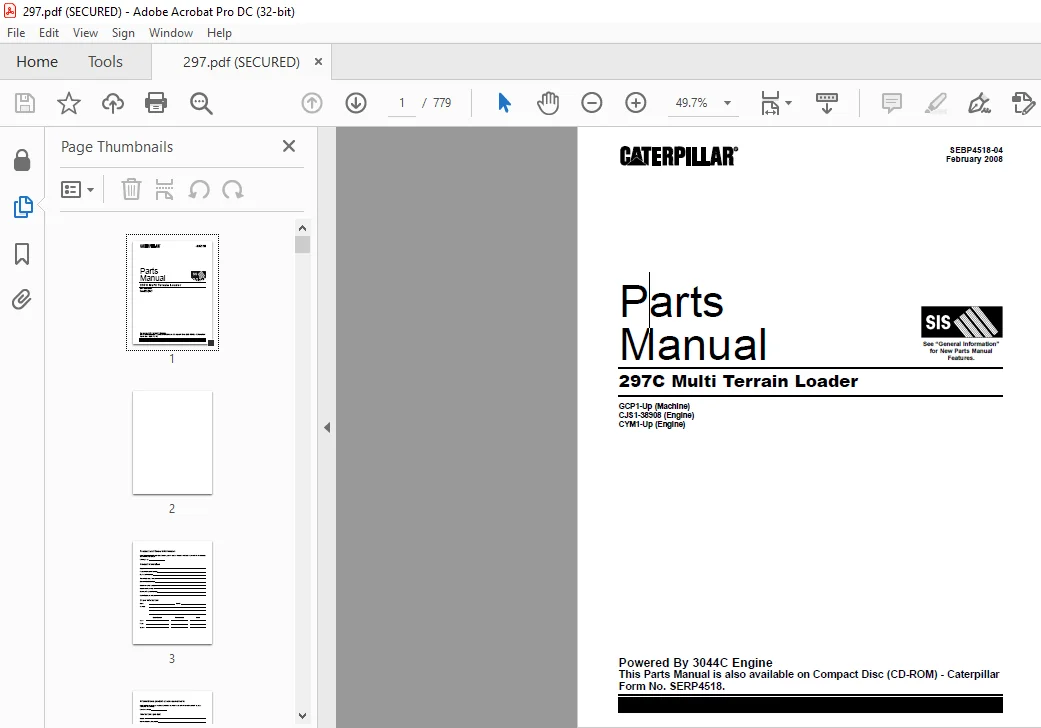

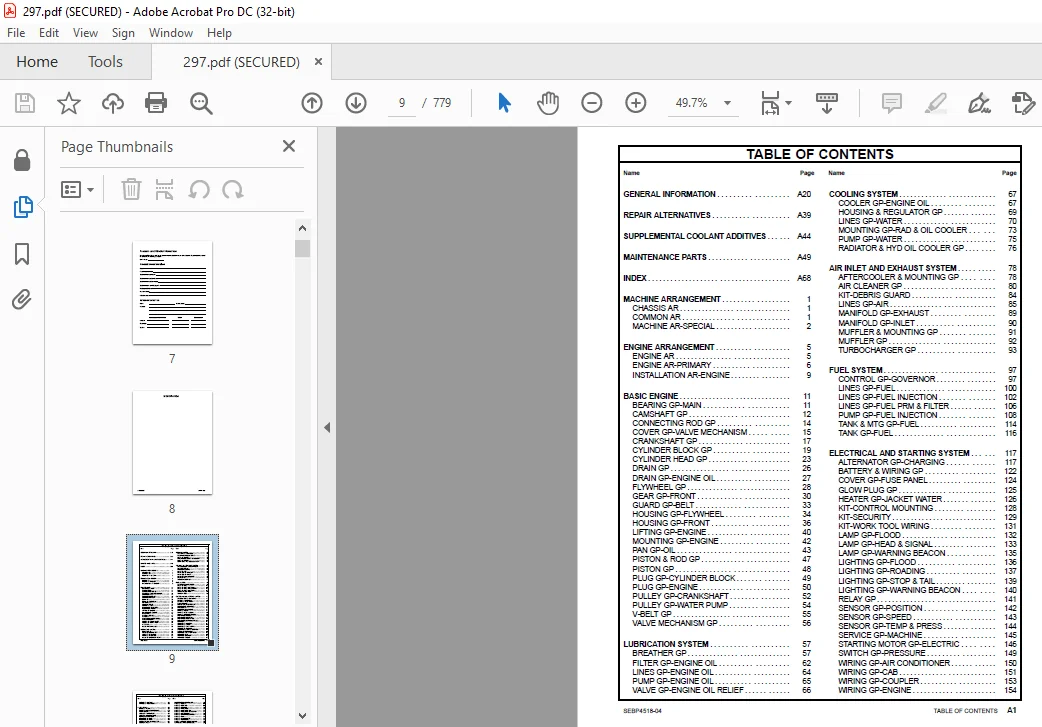

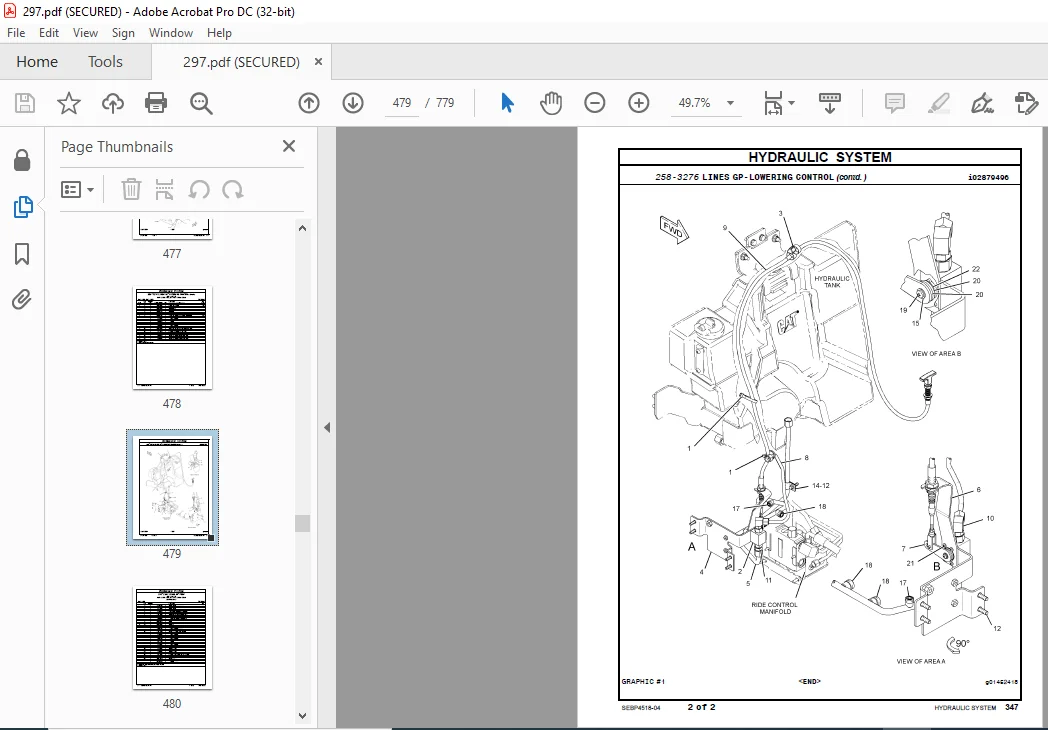

IMAGES PREVIEW OF THE MANUAL:
