Caterpillar 3408C & 3412C Marine Engines Disassembly & Assembly Manual

Description

Caterpillar 3408C & 3412C Marine Engines Disassembly & Assembly Manual – PDF DOWNLOAD

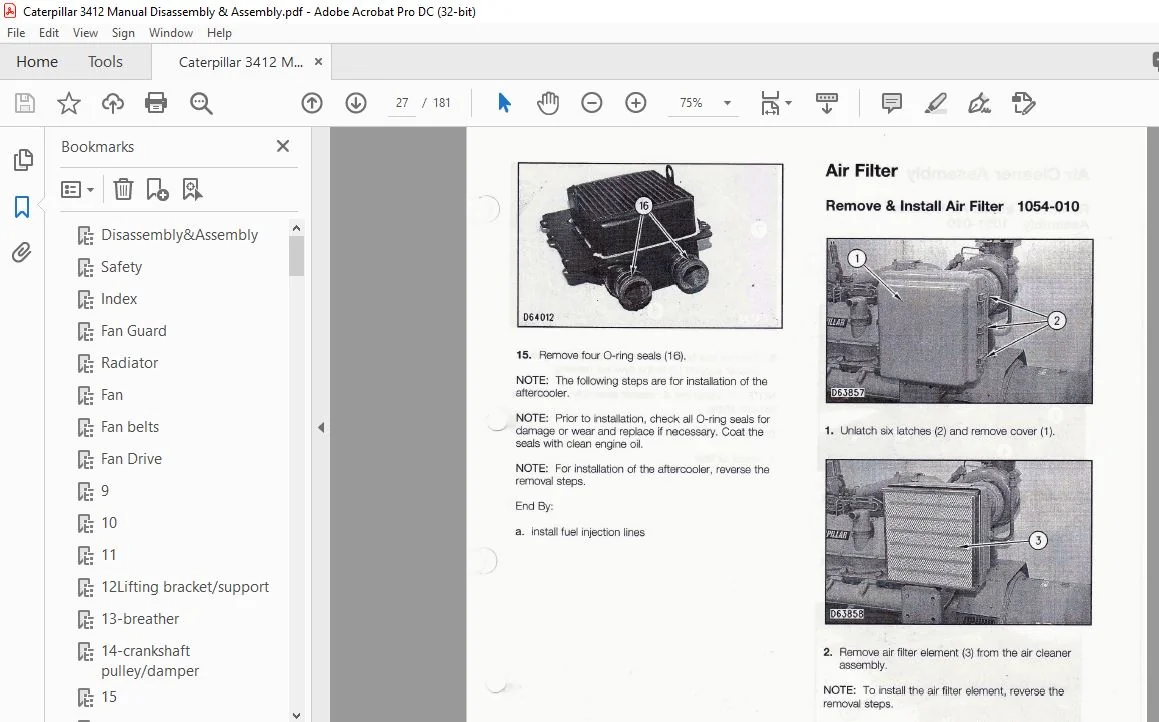

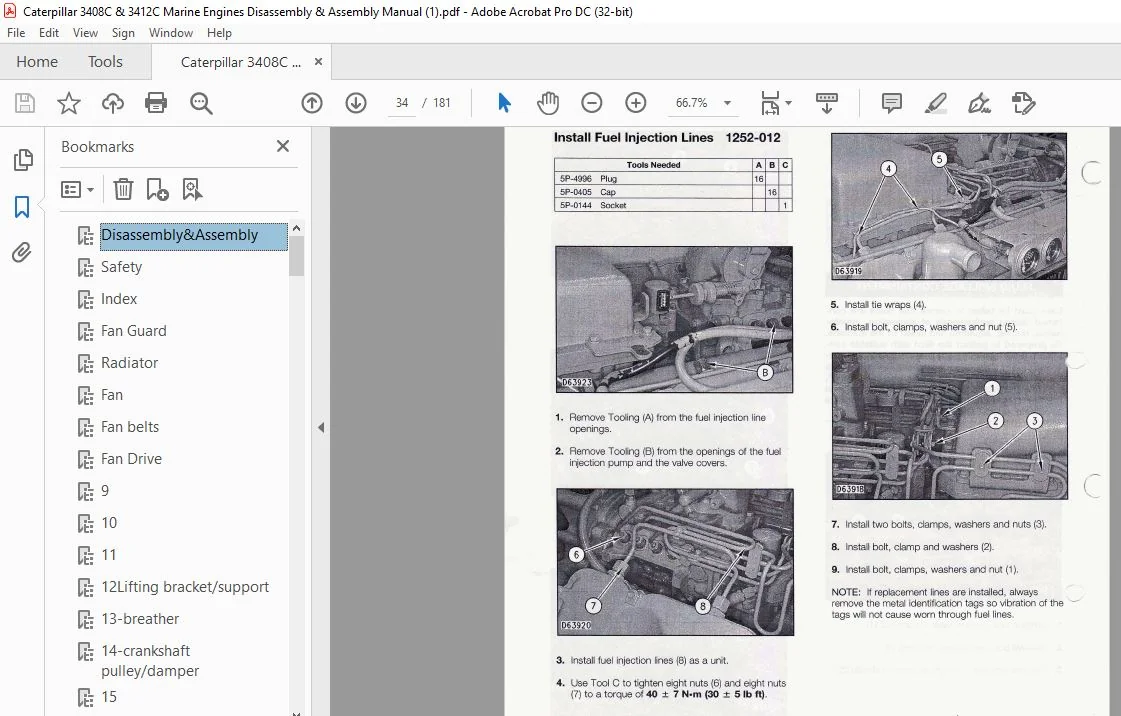

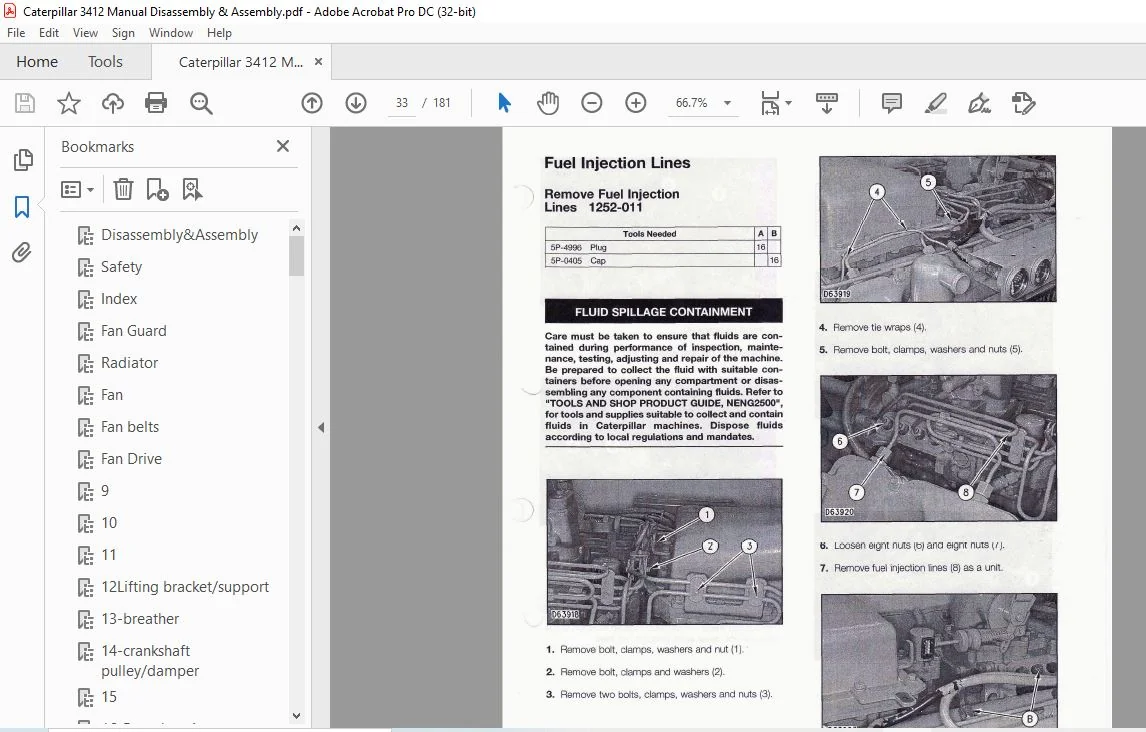

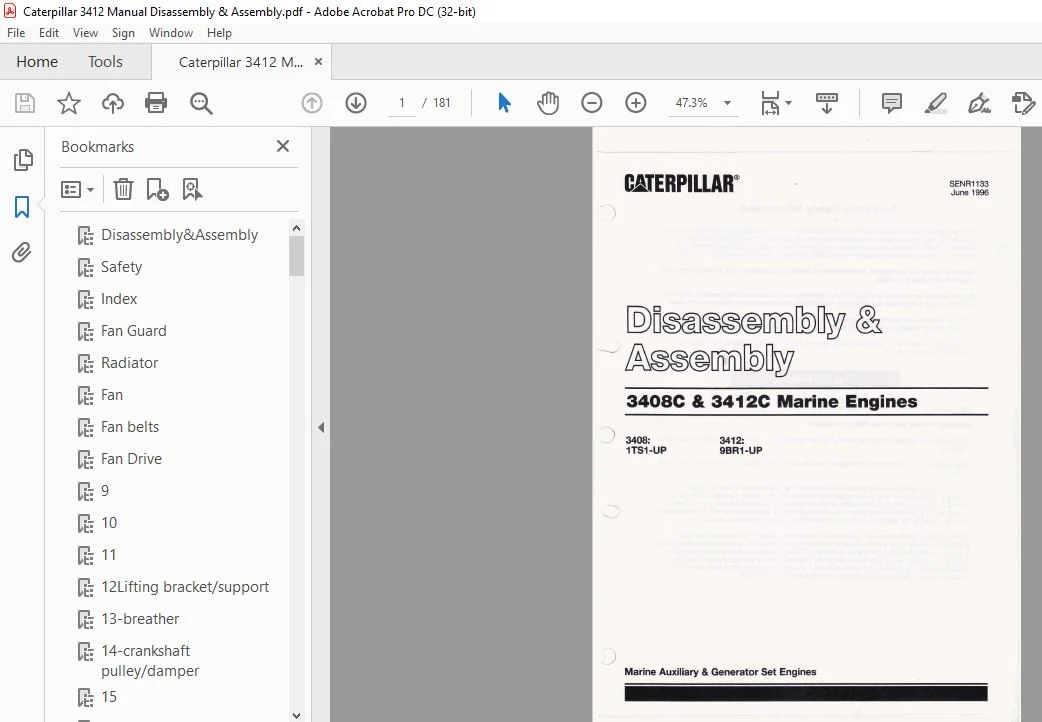

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Caterpillar 3408C & 3412C Marine Engines Disassembly & Assembly Manual – PDF DOWNLOAD

Important Safety Information :

Most accidents involving product operation, maintenance and repair are caused by failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing potentially hazardous situations before an accident occurs. A person must be alert to potential hazards.

• This person should also have the necessary training, skills and tools to perform these functions properly. Improper operation, lubrication, maintenance or repair of this product can be dangerous and could resutt in injury or death.
• Safety precautions and warnings are provided in this manual and on the product. warnings are not heeded, bodily injury’ or dedth could occur to you or other perso “WARNING” as shown below.

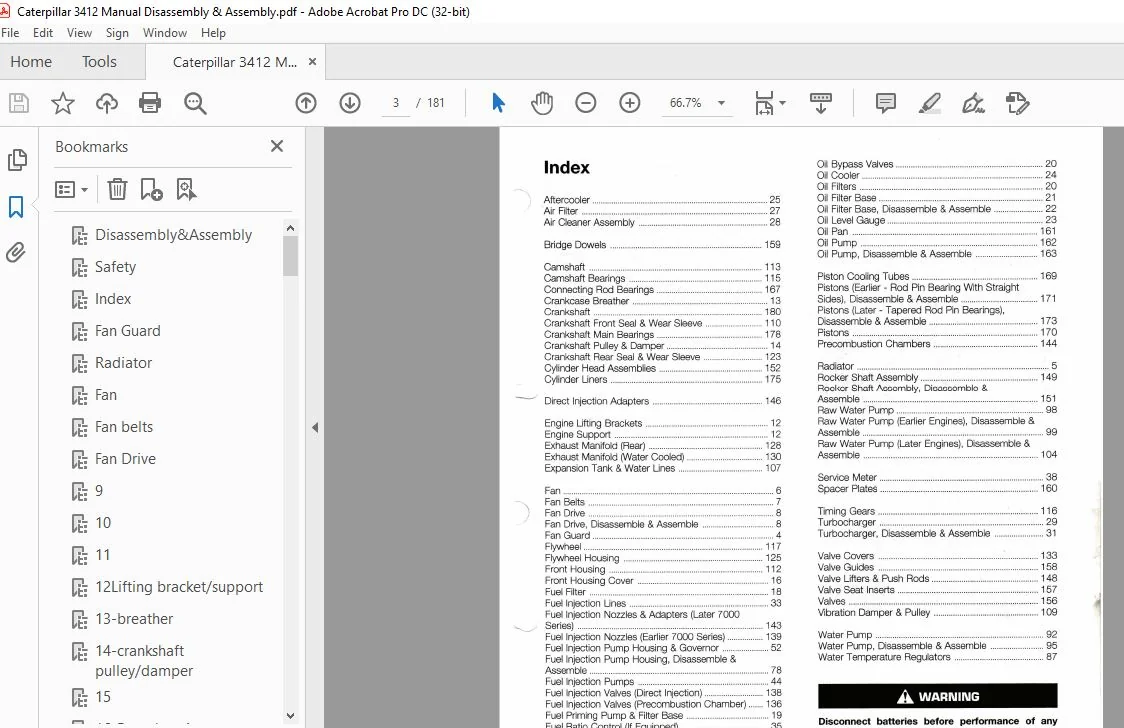

TABLE OF CONTENTS:

Caterpillar 3408C & 3412C Marine Engines Disassembly & Assembly Manual – PDF DOWNLOAD

Aftercooler 25
Air Filter 27
Air Cleaner Assembly 28
Bridge Dowels 1 59
Camshaft 1 13
Camshaft Bearings 1 15
Connecting Rod Bearings 167
Crankcase Breather 13
Crankshait 1 80
Crankshaft Front Seal & Wear Sleeve 1 10
Crankshaft Main Bearings 178
Crankshaft Pulley & Damper 14
Crankshaft Rear Seal & Wear Sleeve 123
Cylinder Head Assemblies 152
Cylinder Liners 175
-‘ Direct Injection Adapters 146
Engine Lifting Brackets 12
Engine Support 12
Exhaust Manifold (Rear) 128
Exhaust Manifold (Water Cooled) 130
Expansion Tank & Water tines 1 07
Fan 6
Fan Belts 7 ) Fan Drive 8 Fan Drive Disassemble & Assemble 8
Fan Guard 4
Flywheel 1 17
Flywheel Housing 125
Front Housing 1 12
Front Housing Cover 16
Fuel Filter 18
Fuel Injection Lines 33
Fuel lnjection Nozzles & Adapters (Later 7000
1- Series) 143
Fuel Injection Nozzles (Earlier 7000 Series) 139
Fuel Injection Pump Housing & Governor 52
Fuel lnjection Pump Housing Disassemble &
Assemble 78
Fuel Injection Pumps 44
Fuel Injection Valves (Direct Injection) 138
Fuel Injection Valves (Precombustion Chamber) 136
Fuel Priming Pump & Filter Base 19
Fuel Ratio Control (If Equipped) 35
Fuel Ratio Control Disassemble & Assemble 36
Fuel Transfer Pump 39
Fuel Transfer Pump Disassemble & Assemble 40
Generator 1 18
Glow Plugs (Precombustion Chambers) 1 35
Governor Disassemble & Assemble 55
Governor & Fuel Pump Drive 47
Governor & Fuel Pump Drive Disassemble &
Assemble 50
Oil Bypass Valves 20
Oil Cooler 24
Oil Filters 20
Oil Filter Base 21
Oil Filter Base Disassemble & Assemble 22
Oil Level Gauge 23
Oil Pan 161
Oil Pump 162
Oil Pump Disassemble & Assemble 163
Piston Cooling Tubes 169
Pistons (Earlier Rod Pin Bearing With Straight
Sides) Disassemble & Assemble 171
Pistons (Later Tapered Rod Pin Bearings)
Disassemble & Assemble 173
Pistons 170
Precombustion Chambers 1 4 4
Radiator 5
Rocker Shaft Assembly 149
Rocker Shaft Assembly Disassemble &
Assemble 1 51
Raw Water Pump 98
Raw Water Pump (Earlier Engines) Disassemble &
Assemble 99
Raw Water Pump (Later Engines) Disassemble &
Assemble 104
Service Meter 3 8
Spacer Plates 160
Timing Gears 116
Turbocharger 29
Turbocharger Disassemble & Assemble 31
Valve Covers 133
Valve Guides 1 5 8
Valve Lifters & Push Rods 1 48
Valve Seat Inserts 1 57
Valves 1 5 6
Vibration Damper & Pulley 1 09
Water Pump 92
Water Pump Disassemble & Assemble 95
Water Temperature Regulators 87
