Caterpillar Forklift Trucks S4Q2 Diesel Engine DP15N DP18N DP20N Chassis Parts Manual

Description

Caterpillar Forklift Trucks S4Q2 Diesel Engine DP15N DP18N DP20N Chassis Parts Manual – PDF DOWNLOAD

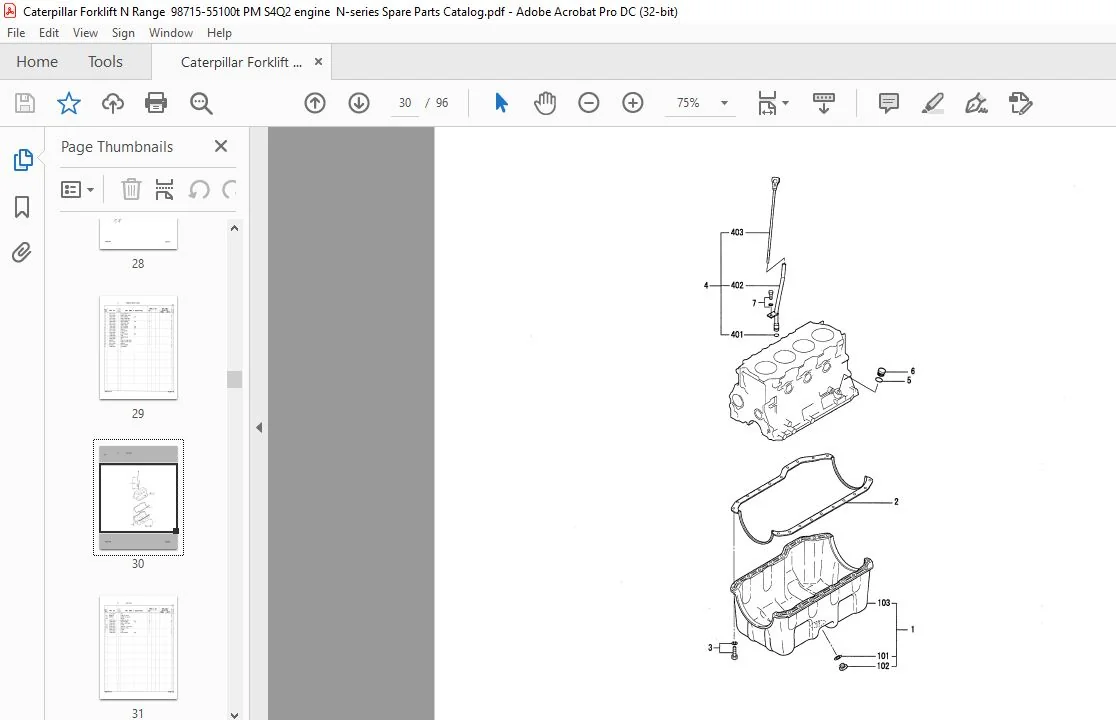

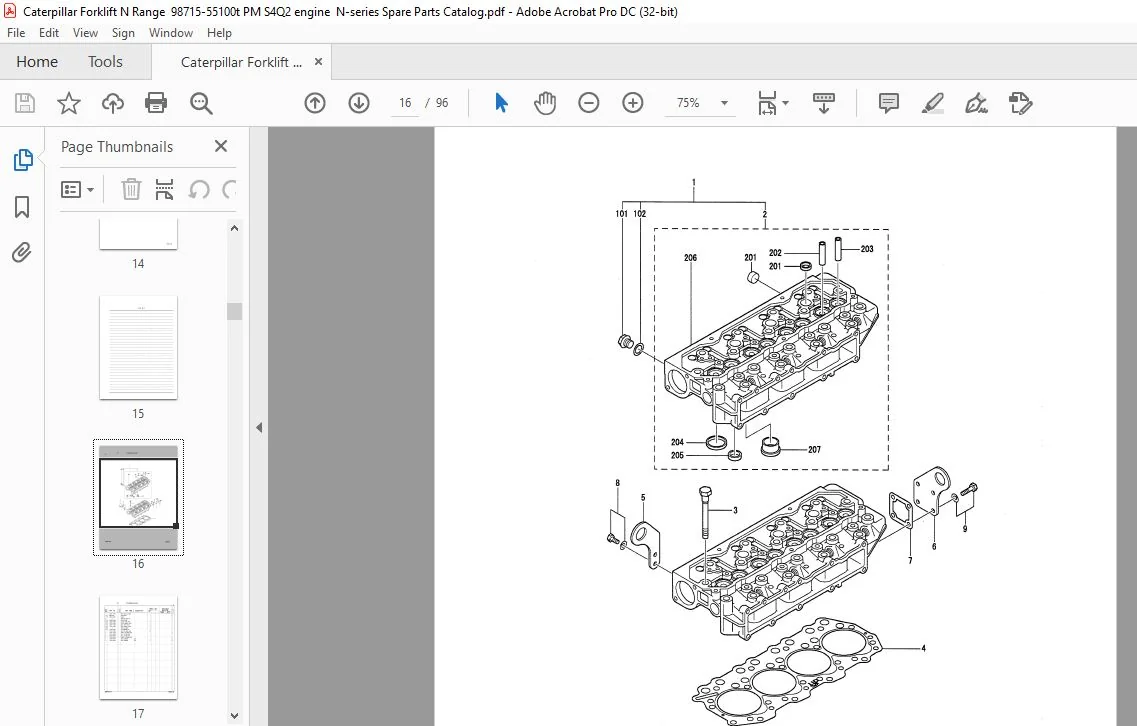

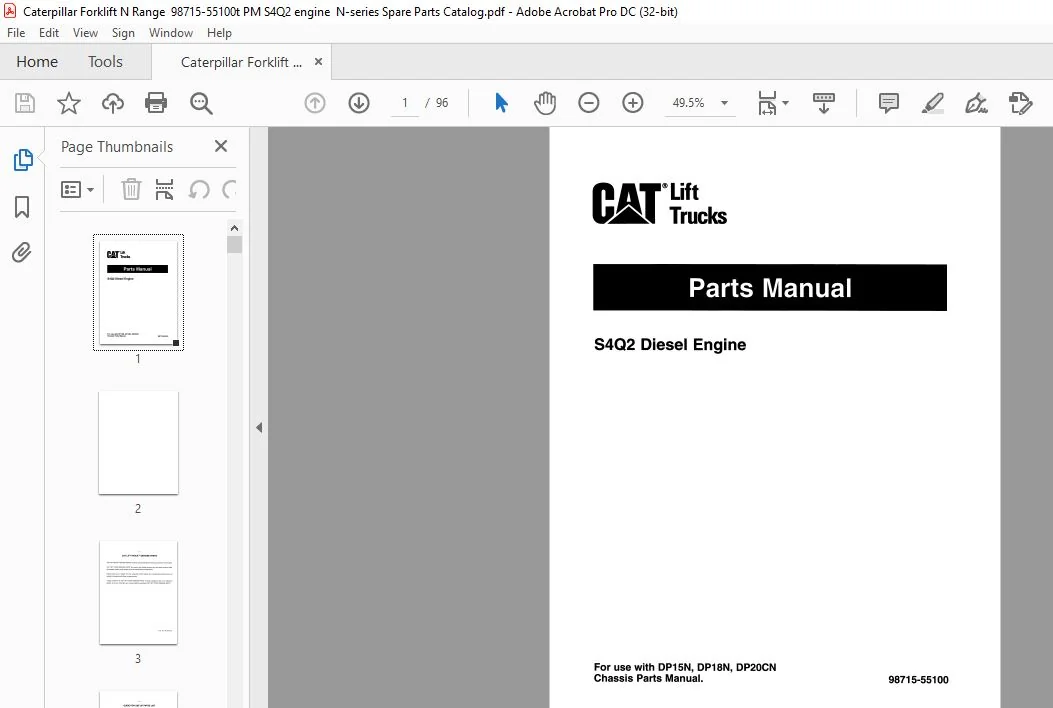

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Caterpillar Forklift Trucks S4Q2 Diesel Engine DP15N DP18N DP20N Chassis Parts Manual – PDF DOWNLOAD

САТ LIFT TRUCK™ GENUINE PARTS :

• “САТ LIFТ TRUCK™ GENUINE PARTS” should Ье used exclusively for servicing your Cat Lift Truck.
• “САТ LIFT TRUCK GENUINE PARTS” are superior and reliaЫe because they have Ьееп produced under the excellent quality-control system, and have passed the strict inspections.
• Imitation parts are not reliaЫe from the viewpoints of their material and manufacturing method which are entirely incomparable with those of genuine parts.
• А large assortment of “САТ LIFT TRUCK GENUINE PARTS” is always available at апу of our authorized dealers, so do your ordering at your nearest dealer Ьу specifying “САТ LIFТ TRUCK GENUINE PARTS”.

GUIDE FOR USE OF PARTS LIST :
1. This Parts List contains complete lists of parts for the S4Q2 engine mounted оп
Cat Lift Trucks :
For the chassis parts of these lift trucks, refer to the following parts lists: DP15N, DP18N, DP20CN
2. This Parts List is applicable to the initial serial numbers.
3. When ordering parts, give the Cat Lift Truck dealer or distributor the following information:
(1) Part number (or assemЫy number) and part name
(2) Quantity required
(3) Model and serial number
NOTE :In cases where the ordered parts happen to Ье out of stock, substitute parts (interchangeable with those ordered) will Ье supplied.
4.Indication of assembled bolts with washer Of the standard bolts, those with washers are identified Ьу the symbol “B/W” in the Description column
of each list. (Part Name : BOLT,W/WASHER)
For the part numbers of the bolts and washers and those of bolts with washers, refer to the listing (beginning with the page D1) at the end of this parts list. These bolts and washers should Ье ordered individually.
5. For the numerical index, refer to the page beginning with С1 at the end of this parts list.
6. The parts and part numbers are subject to change without prior notice.

TABLE OF CONTENTS:

Caterpillar Forklift Trucks S4Q2 Diesel Engine DP15N DP18N DP20N Chassis Parts Manual – PDF DOWNLOAD

01 CYLINDER HEAD 2
04-01 VALVE MECHANISM 4
04-02 ROCKER COVER & BREATHER 6
05 CAMSHAFT 8
07-01 CRANKCASE ASSY 1 О
07-02 CRANKCASE 12
11 ТIМING GEAR CASE 14
13 О I L PAN 16
17 РISTON & CONNECTING ROD 18
20 CRANKSHAFT & FLY WHEEL 20
23 TIMING GEAR 22
INLET & EXHAUST SYSTEM
30 INLET & EXHAUST MAN I FOLD 24
OIL SYSTEM
35 О I L PUMP & ОIL STRAINER 26
40 О I L F I L TER 28
COOLING SYSTEM
46 C00L I NG SYSTEM 30
715551-00
– В2 –
GROUP NO GROUP NAME PAGE
FUEL SYSTEM
61-01 FUEL SYSTEM 32
61-02 NOZZLE 34
62 FUEL F I L TER 38
65-01 INJECTION PUMP (PART-1) 40
65-02 1 NJECT I ON PUMP (PART-2) 50
ELECTRIC SYSTEM
66-01 ELECTR I С PARTS 52
66-02 STARTER (12V-2 0KW) 54
68 AL TERNATOR (12V-50A) 56
INSTRUMENT
90 INSTRUMENT •• • 58
REPAIR PARTS
94 OVERHAUL GASKET К I Т 60
NUMERICAL PARTS INDEX С1
Т ABLE OF BOLT,W/WASHER D1

CATERPILLAR FORKLIFT TRUCKS S4Q2 DIESEL ENGINE DP15N DP18N DP20N CHASSIS PARTS MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
