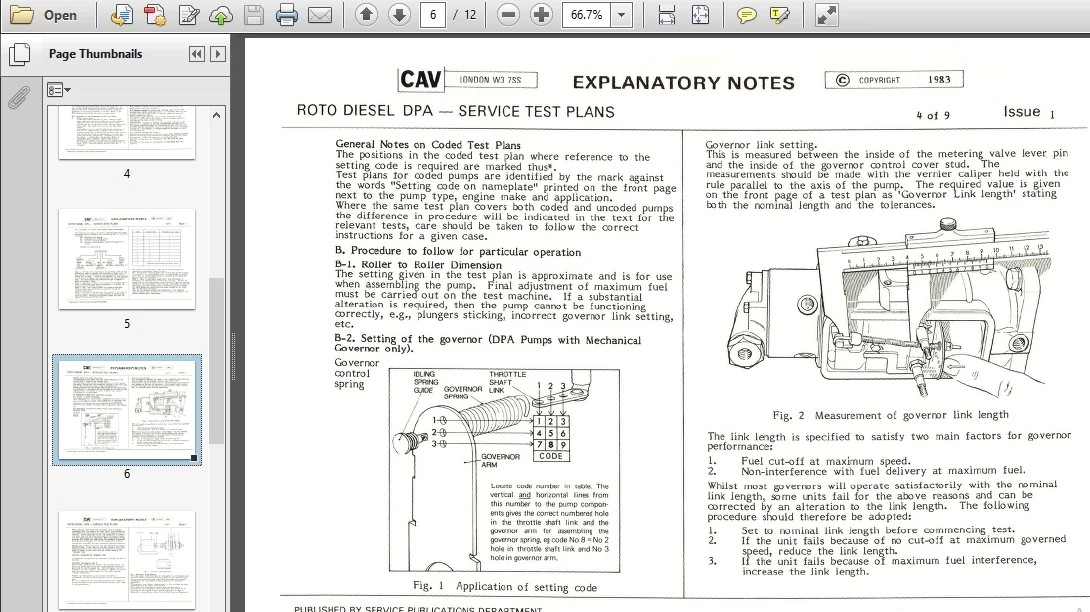

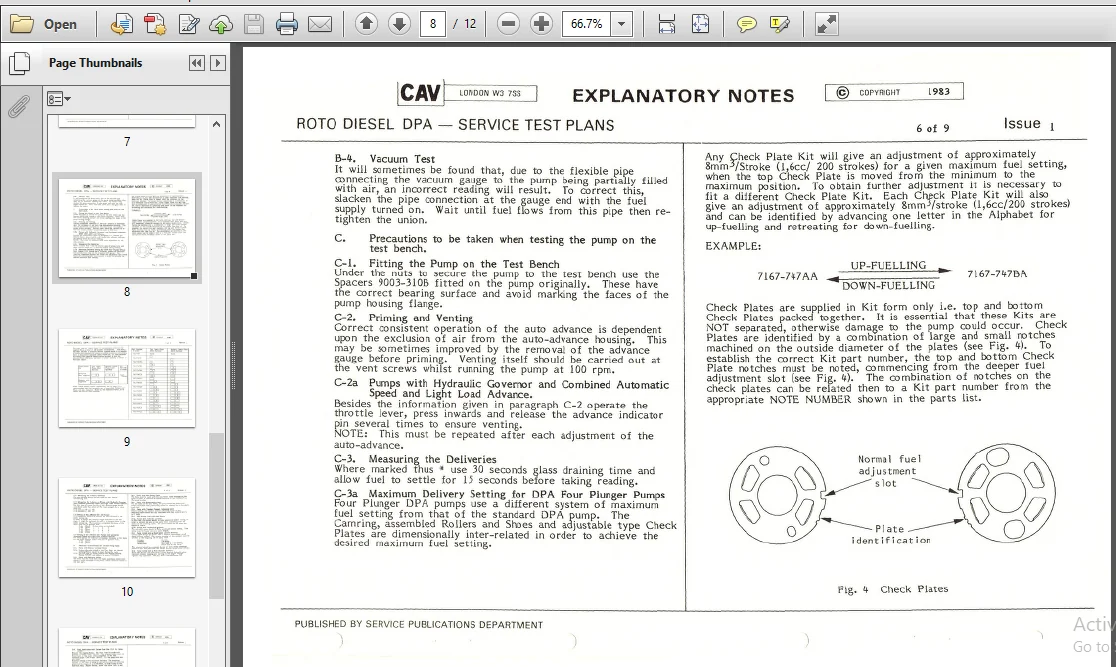

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Cav Rotodiesel Dpa Pumps Service Test Data

SECTION 1 – GENERAL TEST INSTRUCTIONS
A. Scope of Test Plan Instructions
A-1 These instructions apply to all DPA pumps unless otherwise stated in the test plans. They are not mentioned on each test plan, but must be referred to separately for each test whenever required.
A-2 References are made in test plans to RotoDiesel Service Instruction Notes. These must be read before each test whenever they are mentioned in ‘Requirement& column.
B. Test Bench Equipment and preparation of Pump for test
To ensure the accuracy of pump settings on the test bench, certain equipment and conditions must exist. These general instructions, specified below, apply to all types of DPA pumps. Certain types require special conditions for testing and these are recorded on individual test plans.
B.1. Test Bench and Equipment
1. Speed range of machine to be between 70 rpm and 3000 rpm.
2. Drop in speed of the motor under load to be as little as possible (choice of motor).
3. Fuel tank 0,6m above pump. Capacity 5 to 6 litres.
4. Paper fuel filter (element 7111-296) to be fitted between tank and pump.
.5. Minimum fuel delivery at the pump inlet to be 1000 cm3 per minute.
NOTE: If this cannot be obtained under gravity, a feed pump can be used giving a maximum pressure of 0,15 bar (2 lbf/in2) to give the prescribed delivery.
6. High pressure pipe:
Length 865m m.
Outside diameter 6mm
Bore diameter 2mm
7. Nozzle holder BKB5OSD19b or BKB5OSD533b.
8. Nozzles RDN12SDC6399R or RDN12SD12R (balanced for delivery). Setting pressure 177 bar (175 atm).
9. Delivery values – see Section 2 A-2.
10. Back leakage connection from pump. Nylon tube 6mm x one metre long.
