Challenger LВ2ЗВ LB24B LВЗЗВ LВЗ4В LВЗ4В XD LB44B Large Rectangular Baler Service Manual 79025217F

Description

Challenger LВ2ЗВ LB24B LВЗЗВ LВЗ4В LВЗ4В XD LB44B Large Rectangular Baler Service Manual 79025217F – PDF DOWNLOAD

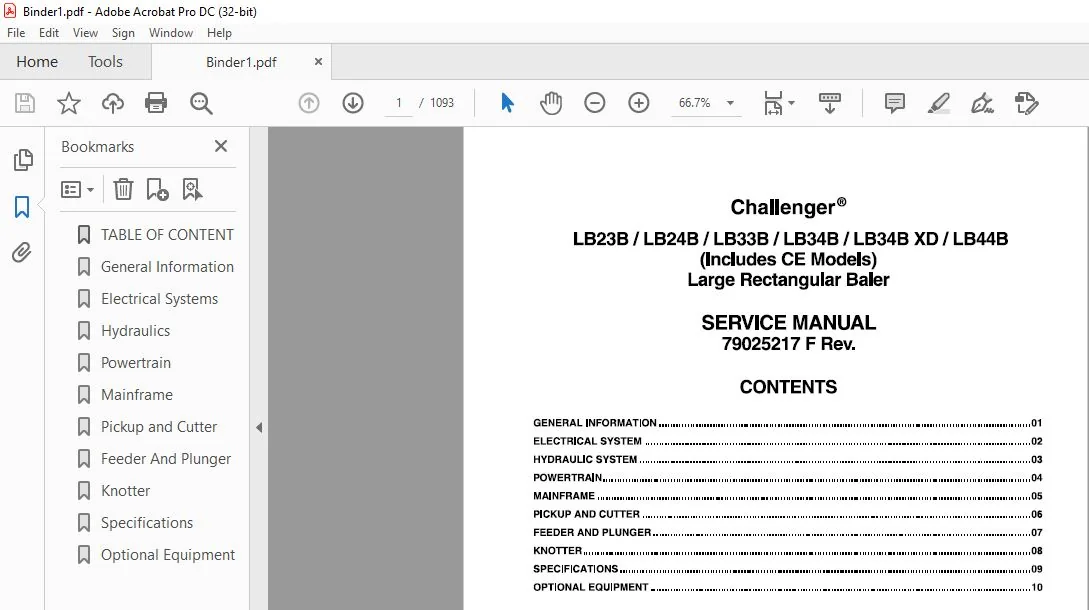

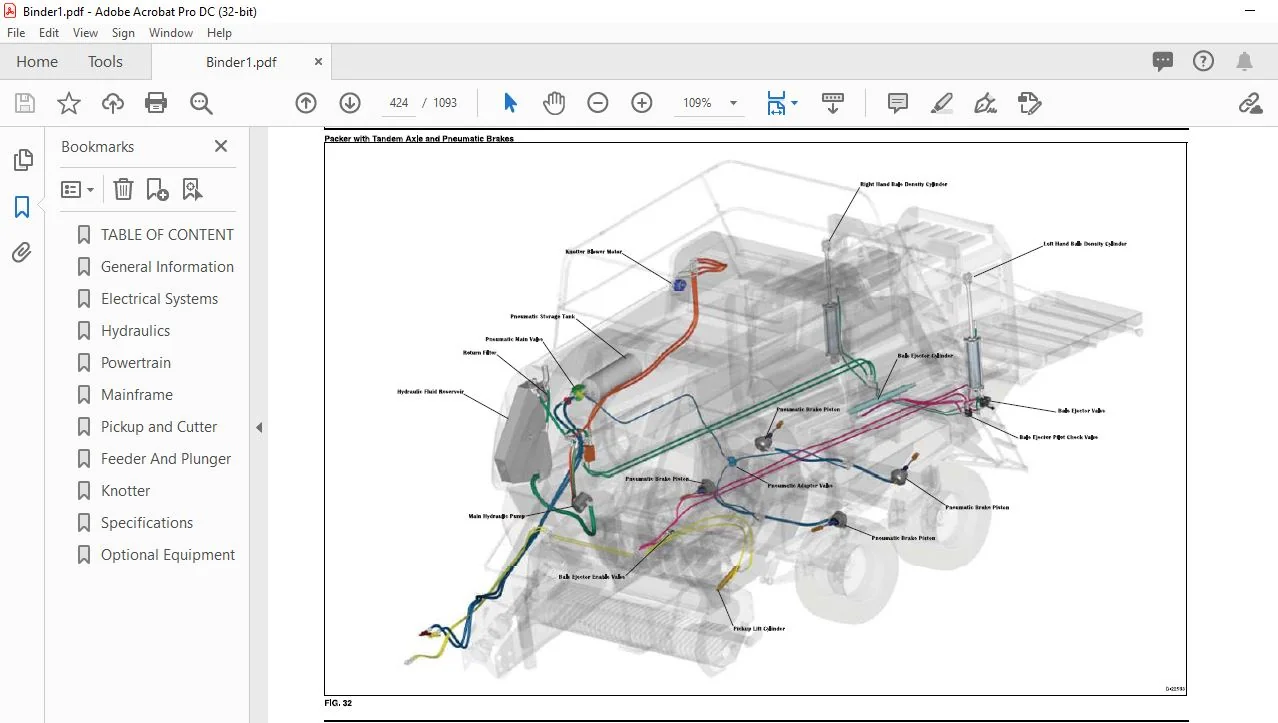

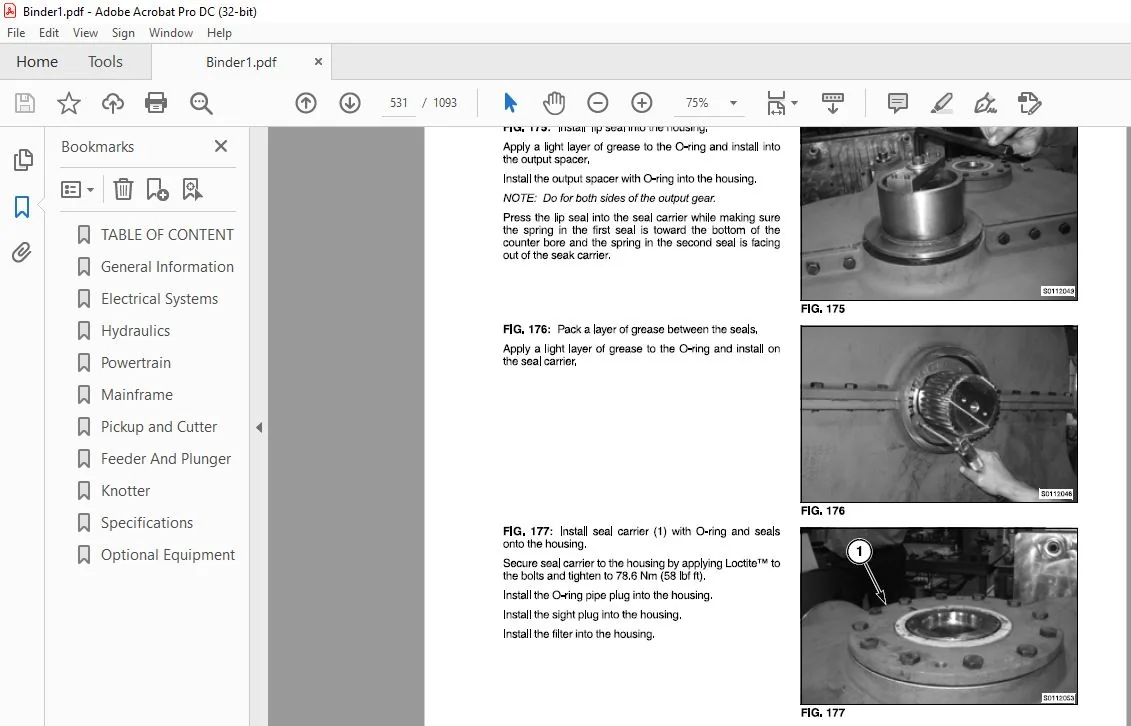

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Challenger LВ2ЗВ LB24B LВЗЗВ LВЗ4В LВЗ4В XD LB44B Large Rectangular Baler Service Manual 79025217F – PDF DOWNLOAD

GENERAL INFORMATION
INTRODUCTION :

• This service manual has been prepared with the latest service information availaЫe at the time of puЫication. Read the service manual carefully before doing any service on the baler. This manual is one of the most important tools availaЫe to the service technician.
• Right-hand and left-hand, as used in this manual, is determined Ьу facing the direction the machine will travel when in use. The photos, illustrations, and data used in this manual were current at the time of printing, but due to possiЫe production changes, the machine сап vary slightly. The Manufacturer reserves the right to redesign and change the machine as necessary without notification.

ТО ТНЕ DEALERS :

This manual was developed to provide the best possiЫe information, technical support and service to the service technician. Review the ТаЫе of Contents and basic layout to become familiar with locations of pertinent information such as maintenance tаЫе, specifications and etc.
UNITS OF MEASUREMENT
Measurements are given in metric units followed Ьу the equivalent in US units. Hardware sizes are given in millimeters for metric hardware and inches for US hardware.
TABLE OF CONTENTS
А ТаЫе of Contents is in the front of this manual. The ТаЫе of Contents shows the divisions. The individual divisions also have а ТаЫе of Contents.
PAGE NUMBERS
AII page numbers are made of two numbers separated Ьу а dash, such as 01-25. The number before the dash is the division number. The number following the dash is the
page number in that division. Page numbers will Ье at the lower right or left-hand side of each page.

TABLE OF CONTENTS:

Challenger LВ2ЗВ LB24B LВЗЗВ LВЗ4В LВЗ4В XD LB44B Large Rectangular Baler Service Manual 79025217F – PDF DOWNLOAD

GENERAL INFORMATION 01
ELECTRICAL SYSTEM 02
HYDRAULIC SYSTEM 03
POWERTRAIN 04
MAINFRAME 05
PICKUP AND CUПER 06
FEEDER AND PLUNGER 07
KNOTTER 08
SPECIFICATIONS 09
OPTIONAL EQUIPMENT 1 О

CHALLENGER LВ2ЗВ LB24B LВЗЗВ LВЗ4В LВЗ4В XD LB44B LARGE RECTANGULAR BALER SERVICE MANUAL 79025217F:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.V
