CLAAS Dominator 108 SL/S Spare Parts Catalog 185 675.1 (May 1988) PDF

Description

CLAAS Dominator 108 SL/S Spare Parts Catalog 185 675.1 (May 1988) PDF

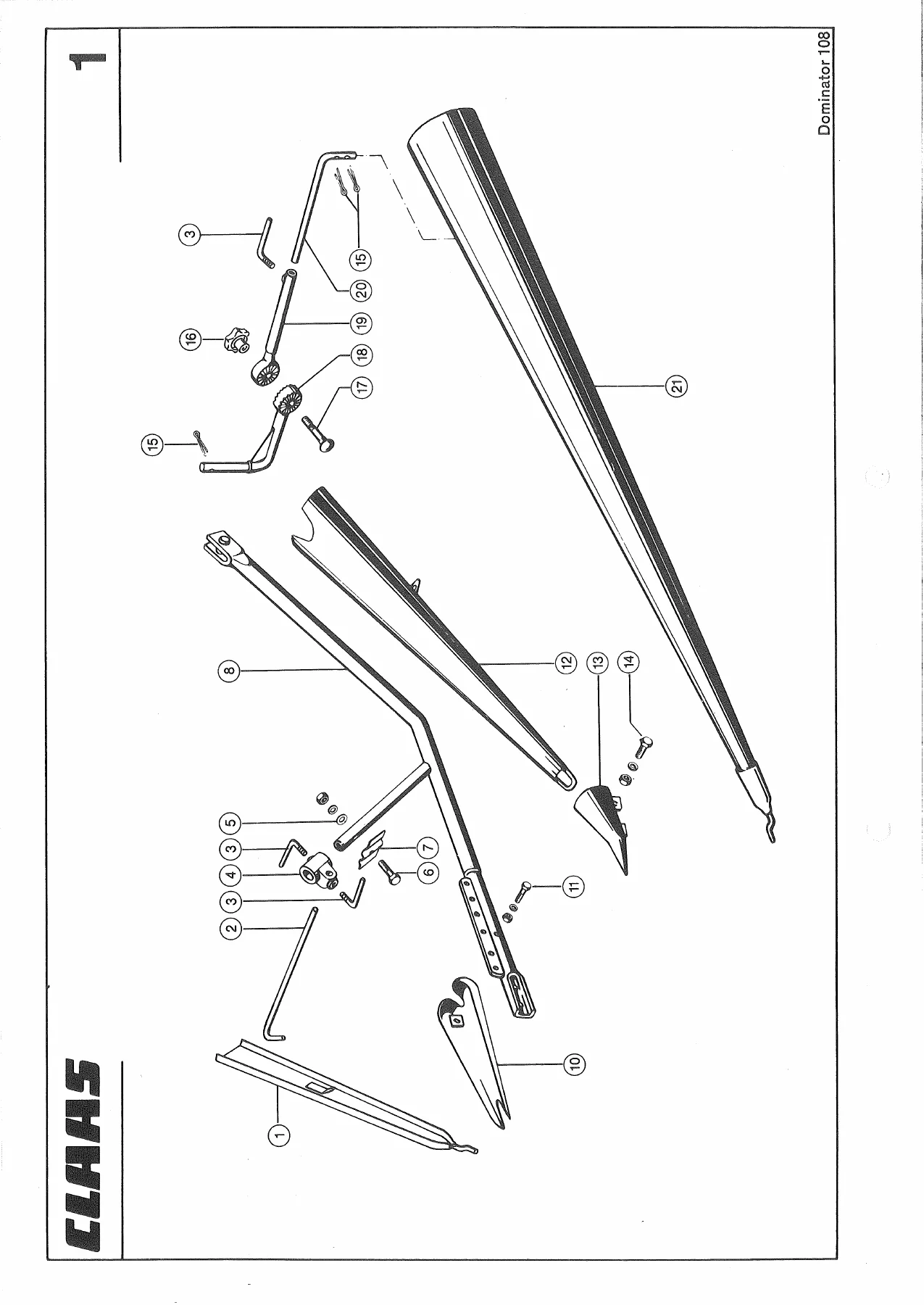

This CLAAS Dominator 108 SL/S Spare Parts Catalog 185 675.1 (May 1988) PDF is the master parts list for the Dominator 108 SL/S combine. Parts are shown in assembly order: each Bildtafel exploded drawing faces a text page that lists the CLAAS Ersatzteil-Nummer, designation, quantity, DIN hardware data where used, and remarks for variants and machine or header serial ranges. Right, left, front, and rear follow the direction of travel. New or superseded items are marked + or – so a part can be matched to earlier machines or only to the serial block printed on the line.

File Details

• Manual type: Spare parts catalog / Ersatzteilliste / spare parts list
• Brand / model: CLAAS Dominator 108 SL/S (also printed Dominator 108 SL/S)
• Document number: Nr. 185 675.1
• Print marking: 5.88, 1.000, Printed in Western Germany
• List sheet dates appearing in the catalog: 15.05.86 and 18.05.88
• Validity printed on the imprint page: from combine / machine no. 094 00 011
• Languages: German, English, French, Danish, Swedish, Dutch, Italian, Spanish, Portuguese, Hungarian
• Page count: 836
• File format: PDF
• Publisher imprint: CLAAS OHG Kundendienst, 4834 Harsewinkel 1, Western Germany

How This Catalog Is Organized

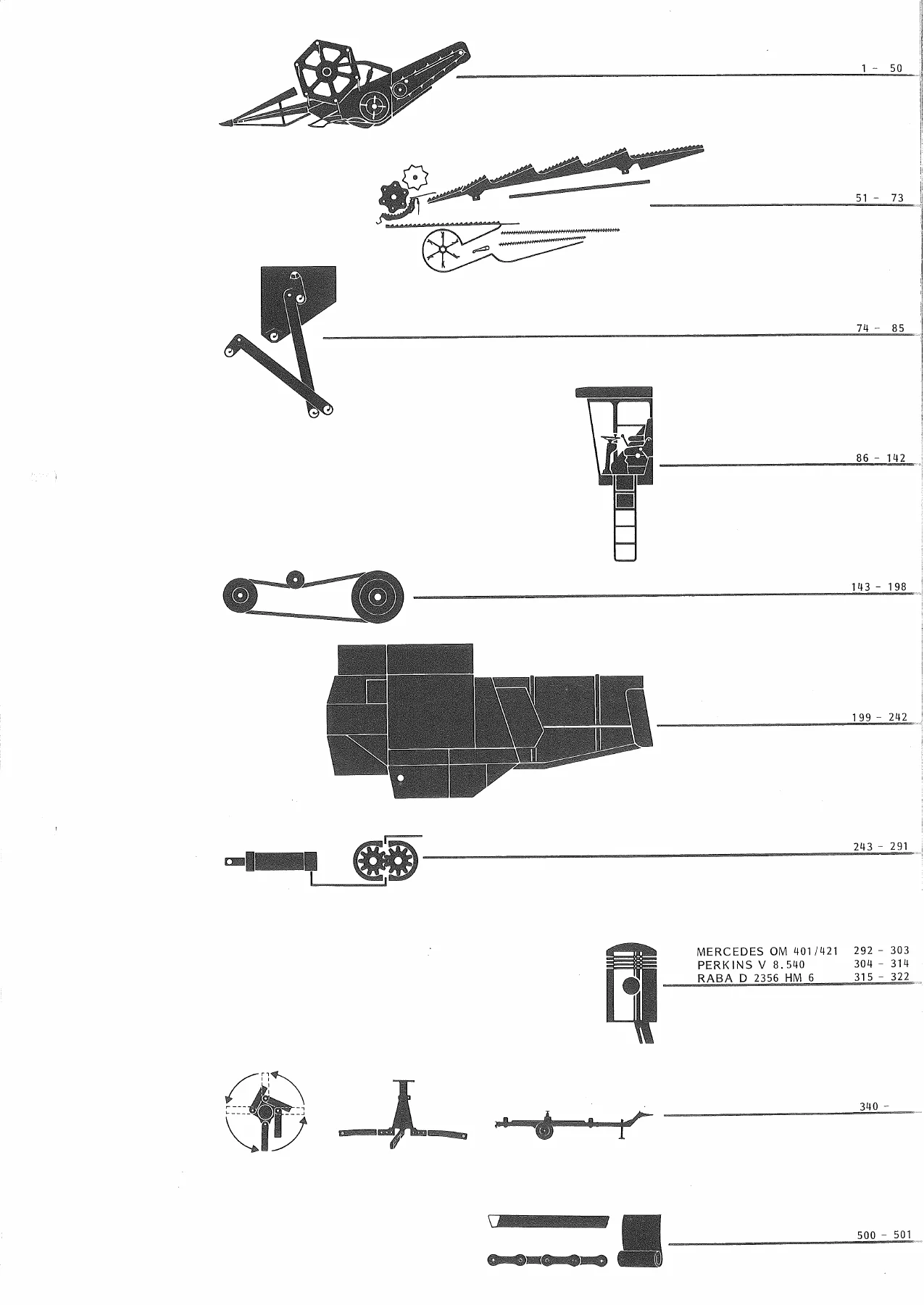

A schematic survey before the first group maps plate ranges onto the machine: cutterbar unit 1-50, threshing and cleaning 51-73, grain handling 74-85, operator platform and cab 86-142, belt and chain drives 143-198, body and housings 199-252, hydraulics 253-291, engine installations 292-322, straw chopper and attachments from 340, and drive elements 500-501. Opposite every drawing the CLAAS Ersatzteil-Liste columns give Bild-Nr., part number, Bezeichnung, DIN, Stck., and Bemerkung. Option codes such as VAR. 2556 long divider and VAR. 2527 short divider, header widths, feeder-house lengths, hydrostatic make, and engine brand sit in those remarks so the same plate can serve more than one build.

The CLAAS Dominator 108 SL/S Spare Parts Catalog 185 675.1 (May 1988) PDF therefore works as a lookup book, not a workshop procedure manual. You identify the assembly on the plate, read the callout, then copy the exact CLAAS number, quantity, and serial note before ordering. A numerical index is described in the opening service pages as the way to jump from a known part number back to its plate.

Chapters Covered

• Cutterbar unit / Schneidwerk (plates 1-50): dividers (long VAR. 2556, short VAR. 2527, special VAR. 4282); 3.9-5.1 m cutterbar trough, stone guards VAR. 4944/4945/4946, knife bar, guards, cutterbar drive and knife drive, intake drum, reel frame, reel speed adjustment and control drive, spring-tine reel; 6.0-9.0 m trough, left/right shields, PTO shaft, left and right countershafts, multifinger intake drum, long and standard feeder housings
• Feeder housing: standard Einzugskanal, shaft spacing 1177 mm (VAR. 4784, 4785, 4898, 4926); long Einzugskanal, shaft spacing 1463 mm (VAR. 4786, 4960)
• Threshing and separation (plates 51-73): threshing drum, concave, awner, concave adjustment, beater, walkers, front and rear raffers, return pan, grain pan, shaker, sieve-frame hangers left and right, sieve frame, shoe, sieves, throughput monitor VAR. 4800, wind reduction VAR. 4897/4989
• Grain path (plates 74-85): grain augers, returns elevator and outlet, grain elevator and head, tank filling, distributing auger, tank unloading, unloading-tube drive and tube
• Operator station and cab (plates 86-142): front ladder, platform, railings, cab structure, cab heater VAR. 4603, air conditioning VAR. 4600 with York compressor, seat, steering, foot controls, foot brake and clutch actuation, ground-speed pedal, 6/9-way valve control, instrument box, travel controls, drum-speed valve control, cutting-height preselection and indicator VAR. 7329, engine actuation, gear shift and linkage, control tunnel, handbrake and concave lever, tank-tube valve control, instrument column, front and rear instruments
• Central electrics and lighting: power supply, front console, travel-lever position switch, high-pressure hydraulic control, feeder-house harness, relief indicator, Contour-System ground-pressure sensors VAR. 4651/4866, low-pressure hydraulic harness, grain-tank full sensor, work lights VAR. 4652, main harness, connectors, safety equipment, overwidth kit VAR. 4805
• Main drives (plates 143-198): hydraulic-pump drive, threshing-unit belt tension and drive, header clutch and header drive tension, tank drive tension, tank countershaft, longitudinal auger drive, electric blower adjustment VAR. 4643 and mechanical VAR. 4895, blower control drive, shoe and auger drive, walker drive, distributing-auger drive, drum control drives VAR. 3254/4264/4418, drum chain drives VAR. 3498/4416, rotor drive
• Travel driveline: travel-drive tension, hydrostatic travel drive Linde, hydrostatic travel drive Rexroth, gearbox, differential, brakes, axle drive (including Rexroth and rice equipment), travel control drive, clutch, tyres, track widening, adjustable steering axle VAR. 3262/7313, 2.4 m steering axle VAR. 4522, drive axle
• Body and housings (plates 199-252): feeder-to-machine transition sheets, drum flap and stone trap, drum housing, wind board and splash cloth, walker housing, blower housing and intake guards, trough, steering-axle suspension, straw hood, rear lighting, engine cladding, rotating radiator screen, radiator connections, grain-tank roof and extension, tank, left and right side panels, fuel-tank bracket, rear ladder
• Hydraulics (plates 243-291): pump, 6/9-way valve, foot valve, solenoid valve block, valve block, 4/3- and 3/3-way valves with and without solenoid or relief, lock block, cylinders for threshing engagement, tank engagement, header, reel (3.9-5.1 m and 6.0-9.0 m), unloading tube, and steering (VAR. 3262 and 4522); low-pressure lines, pump-to-block and block-to-consumer lines for header, reel, drum control, travel, steering, cooler coil, filter, 3-D control, Linde travel lines, Rexroth travel lines
• Engine installations (plates 292-322): fuel tank; additional fuel filter VAR. 4987; Mercedes OM 421 (schematic also lists Mercedes OM 401/421) engine accessories and Motorwächter VAR. 4834; Perkins V8.540 / V 8.540 accessories and engine electrics; RABA D 2356 HM 6 accessories. Harness and panel remarks split many items at machine no. 09400751
• Straw chopper and spreaders (from plate 340): chopper, cross cutter, deflector adjustment VAR. 7334/35 and 7336/37, electric deflector VAR. 7342, maize-chopper extras VAR. 3884, chopper variants 3311/3312 and 4365/4366, straw spreader VAR. 3468/3494
• Further options: reel horizontal adjustment VAR. 4809/4810, header reversing drive VAR. 4864, Bordinformator VAR. 4833/4935, CLAAS-Autopilot VAR. 4798 with harness and solenoid valve, hitch VAR. 4482, automatic hitch VAR. 3960, header trailer VAR. 4298, jockey wheel VAR. 4807/4298, transport wagon VAR. 7085 with winch, support wheel, lock block, cylinder and lines
• Drive elements (plates 500-501): belts and chains parts list

IMAGES PREVIEW

Taken together, the plates let a technician rebuild a header of either width family, trace a threshing or cleaning complaint to drum, concave, walker, sieve or blower parts, identify tank and elevator wear items, rebuild cab and control hardware, follow central-electric harnesses, separate Linde from Rexroth travel parts, and order engine-bay pieces for Mercedes OM 421, Perkins V8.540 or RABA D 2356 HM 6 without mixing serial blocks.

Header Widths, Feeder Houses and Variant Codes

Cutterbar coverage is split in the group survey and in the plate titles. The 3.9 m, 4.2 m, 4.5 m and 5.1 m troughs, strippers and stone guards occupy the early Schneidwerk plates; 6.0-9.0 m plates add the longer trough, left and right shields, articulated shaft and both countershafts. Divider options include the long inner stripper 870 mm and tube 1800 mm (VAR. 2556) versus the short 600 mm stripper and 1540 mm tube (VAR. 2527), plus the special curved divider set VAR. 4282. Header-number breakpoints such as Schneidwerk 267062 and 264387 appear on toggle nuts, carriage bolts, adjusting tubes and outer deflectors.

Two feeder houses are catalogued. The standard canal uses 1177 mm shaft spacing under VAR. 4784, 4785, 4898 and 4926. The long canal uses 1463 mm spacing under VAR. 4786 and 4960. Intake drums are listed with and without multifinger tines. That split is the practical reason to keep this CLAAS Dominator 108 SL/S Spare Parts Catalog 185 675.1 (May 1988) PDF on the bench when a 108 SL/S changes headers or a long feeder is swapped onto a short-house machine.

Engines, Electrics and Travel Drives

The engine schematic on the survey plate lists Mercedes OM 401/421 on plates 292-303, Perkins V 8.540 on 304-314 and RABA D 2356 HM 6 on 315-322. The later multilingual engine contents page titles the Mercedes block as Motorzubehör MERCEDES OM 421, the Perkins block as PERKINS V8.540, and the Raba block as RABA D 2356 HM 6, plus the shared fuel tank on 292-293 and the extra fuel filter VAR. 4987. Engine looms, battery cables and radiator rear panels are further split at machine no. 09400751 for each engine brand. Cab climate parts include heater VAR. 4603 and air-conditioning VAR. 4600 with a York compressor plate. Contour-System sensors VAR. 4651/4866 and work lamps VAR. 4652 sit in the central-electric section.

Travel parts are not interchangeable across hydrostatic suppliers. Separate Linde and Rexroth hydrostatic assemblies, line plates and axle-drive remarks (including rice equipment on the Rexroth axle plate) keep those bills of material apart. Gearbox, differential, clutch, brakes, tyres, track spacers and the two steering-axle options (adjustable VAR. 3262/7313 and 2.4 m VAR. 4522) complete the running gear list.

Reading Part Lines, + / – Marks and Serial Notes

Opening pages in German, English and the other languages explain the same rules. A + mark means the part also fits earlier machines; where several executions are stacked, the first listed execution runs up to and including the next line marked -. A – mark limits the part to the machine number or number band printed on that line. Remarks also carry header numbers, variant numbers and engine brand. Hardware rows often stack a hex bolt, hex nut and contact washer under one Bild-Nr. so the fastener set is ordered with the component. Those conventions are why a Dominator 108 SL/S parts lookup is safer from this catalog than from a mixed-model list that ignores 094 00 011 validity and the 09400751 loom change.

What This Manual Enables

With the CLAAS Dominator 108 SL/S Spare Parts Catalog 185 675.1 (May 1988) PDF you can identify divider, knife, intake-drum and reel parts for both header-width families; match feeder-house parts to 1177 mm or 1463 mm shaft spacing; order drum, concave, walker, sieve and blower pieces; rebuild grain elevators, tank fill and unload hardware; pick cab, seat, steering and control-lever items including heater and York air-conditioning parts; trace central-electric looms, Contour-System sensors and lighting; separate Linde from Rexroth hydrostatic and line sets; select hydraulic valves, lock blocks and cylinders for header, reel, drum, tank tube and steering; and distinguish Mercedes OM 421, Perkins V8.540 and RABA D 2356 HM 6 accessory and wiring parts, including the 09400751 split. Correct part numbers and serial notes prevent mixing long and short dividers, short and long feeder houses, or the wrong hydrostatic and engine kits. After payment the file is delivered as an instant PDF download with no shipping wait, usable on any device and printable for the workshop binder.
