Claas Renault Ceres 316 326 336 346 Tractor Service Repair Manual
FILE DETAILS:
Claas Renault Ceres 316 326 336 346 Tractor Service Repair Manual
LANGUAGE:ENGLISH
PAGES:599
DOWNLOADABLE:YES
FILE TYPE:PDF
VIDEO PREVIEW OF THE MANUAL:
IMAGES PREVIEW OF THE MANUAL:
SAMPLE PAGE FROM THE MANUAL:
Claas Renault Ceres 316 326 336 346 Tractor Service Repair Manual
1. Run the engine until it reaches normal operating temperature.
2. Switch off the engine.
3. Disconnect the lead from the engine stop solenoid on the injection pump in order to close the valve and block the flow of fuel to the injectors.
4. Remove the injectors from the cylinder to be tested.
5. Turn the engine over a few times with the starter motor in order to expel any carbon residue.
6. Fit the dummy injector 1035170086 in place of the injector removed previously, interposing the copper-sealing washer.
7. Connect the compression test equipment and take readings while turning the engine over with the starter motor; On engine in perfect working order, with the sump oil approximate 40oC at sea level (760 mm of mercury) and at an engine speed of 200 to 280 rpm, the compression should be 26 to 28 bar.
8. Test the compression on the other cylinders, repeating steps 4-5-6-7, bearing in mind that.
TABLE OF CONTENTS:
Claas Renault Ceres 316 326 336 346 Tractor Service Repair Manual
GENERAL SPECIFICATIONS
Engine Specifications A1 2
Fuel System Data A1 5
Service Data And Tolerances A1 12
Tightening Torque A1 22

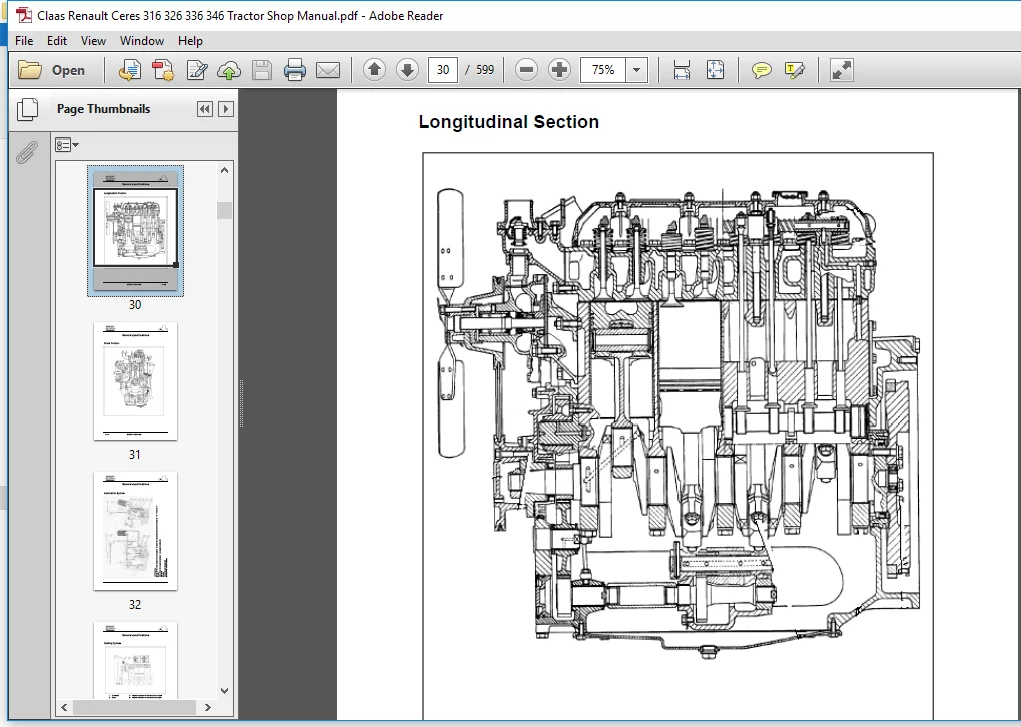

Longitudinal Section A1 23

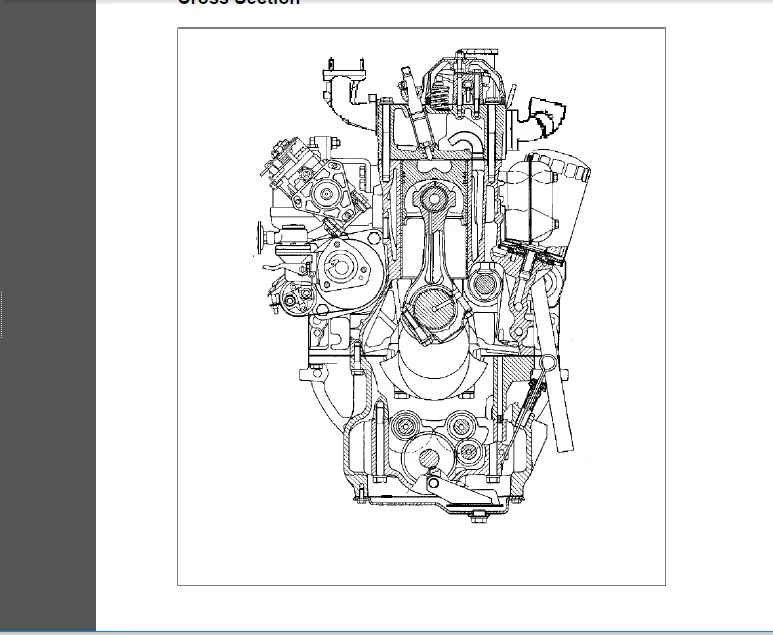

Cross Section A1 24

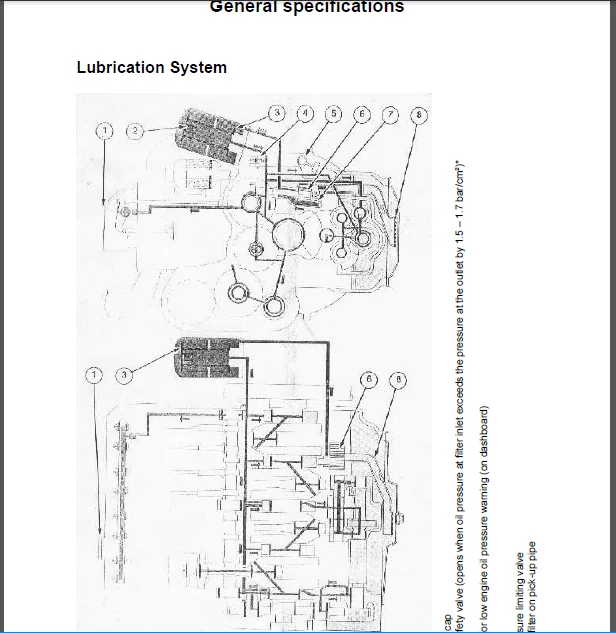

Lubrication System A1 25
Cooling System A1 26
Fault Diagnosis Chart A1 27
ENGINE REMOVAL & INSTALLATION
Engine Removal A1 32
Engine Installation A1 43
ENGINE DISASSEMBLING & ASSEMBLING
Engine Disassembling A1 47
Engine Assembling A1 59
CHECKS, DIMENSIONS & REPAIRS
Cylinder Block and Cylinder Liner A1 71
Crankshaft, Main Bearing and Flywheel A1 73
Connecting Rods A1 76
Pistons A1 77
Camshaft, Tappets and Valves A1 80
Cylinder Head A1 82
Valve Guides A1 83
Valve Seat In Cylinder Head A1 86
Injector Sleeves A1 87
MR306-10 2004-EN
CONTENTS
CHECKS, DIMENSIONS & REPAIRS (continued)
Rotating Counterweight Dynamic Balancer A1 89
Lubrication System A1 90
Cooling System A1 91
Coolant Pump and Alternator Drive Belt A1 92
Engine Compression Test A1 93
SUB ASSEMBLY REMOVAL / INSTALLATION & SETTING
Crankshaft Front Oil Seal A1 97
Coolant Pump A1 101
System Thermostat Cooling A1 102
Bosch Injection Pump A1 103
Fuel Injectors A1 109
Valve Clearance Adjustment A1 111
Water Pump A1 113
TOOLS
Special Tools A1 116
PLEASE NOTE:
⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
