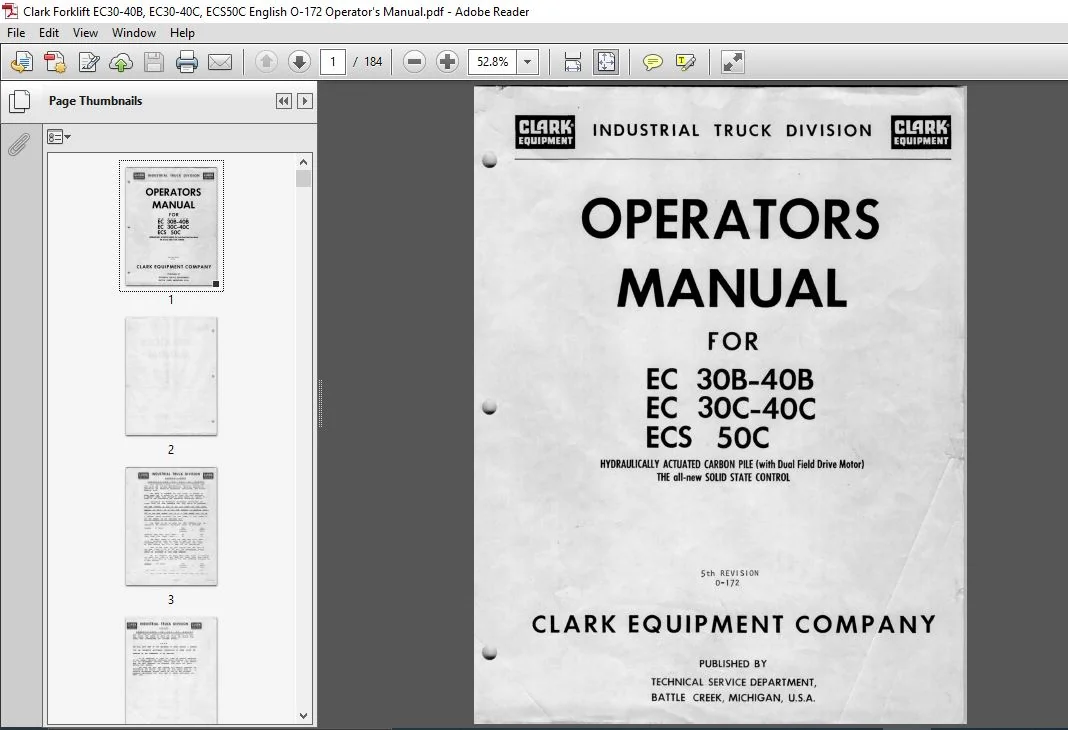

CLARK FORKLIFT EC30-40B, EC30-40C, ECS50C ENGLISH O-172 OPERATOR’S MANUAL:

Image Preview:

Description:

Clark Forklift EC30-40B, EC30-40C, ECS50C English O-172 Operator’s Manual

• SAFETY INSTRUCTIONS FOR MAINTAINING INDUSTRIAL TRUCKS Powered industrial trucks may become hazardous if adequate maintenance is neglected. Therefore, adequate maintenance facilities, personnel and procedures should be provided. Maintenance and inspection of all powered industrial trucks should be performed in conformance with the recOllYllendation in this manual and the following practices.
• 1. A scheduled preventive maintenance, lubrication, and inspection system should be followed. 2. Only qualified and authorized personnel should be permitted to maintain, repair, adjust, and inspect industrial trucks. 3. Before Leaving The Truck: A. Stop truck. B. Fully lower the load engaging means. C. Place directional controls in neutral. D. Apply the parking brake.
• E. Stop the engine or turn off power. F. Lock the control or ignition circuit. G. Block the wheels if truck is on a ramp, or being worked on. 4. Before Working On Truck: A. Raise wheels free of floor or disconnect power source. B. Use chocks or other positive truck positioning devices. C. Block load engaging means, innermast(s), or chassis before working under them.
• Before working on engine fuel system of gasoline powered trucks with gravity feed fuel systems, be sure fuel shutoff valve is closed. Before working on engine fuel system of LP gas powered trucks, close LP gas cylinder valve and run engine until fuel in system is depleted and engine stops running. Operation to check performance of the truck or attactvnents should be conducted in an authorized, safe clearance area.
• 5. Before Starting To Operate The Truck: A. Be in operating position. B. Depress clutch (or brake pedal on automatic transmission and electric trucks). C. Place directional controls in neutral. D. Start engine or turn on power. E. Before operating truck, check functioning of I ift and tilt systems, directional and speed controls, steering, warning devices, brakes, and any attachment. (If used) F. Release parking brake.

Table Of Contents:

Clark Forklift EC30-40B, EC30-40C, ECS50C English O-172 Operator’s Manual

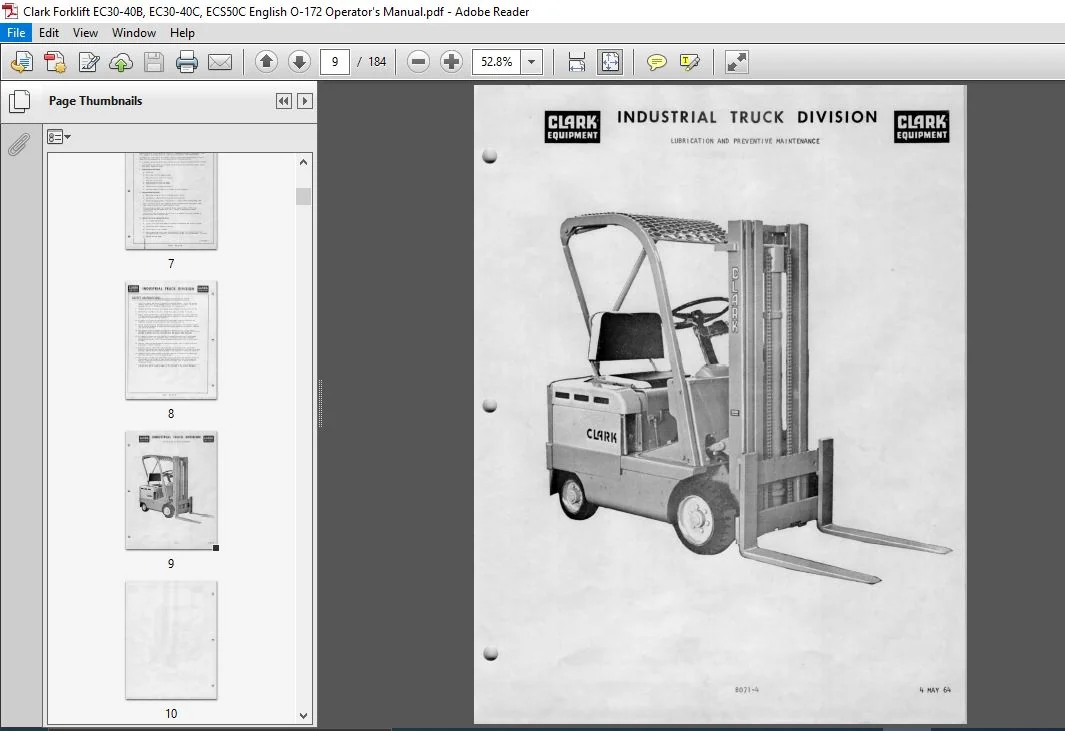

LUBRICATION ANO PREVENTIVE MAINTENANCE ILLUSTRATION
Contactor panel, fuses, lights and horn check
Contactor panel
Instruments check
Brake check
Brake interlock and seat safety switch check
Battery check
Hydraulic sump and control levers check and operation
Tire inspection
LUBRICATION ANO PREVENTIVE MAINTENANCE ILLUSTRATION
Axle adapter check
Speed control cylinder check
Brake interlock switch adjustment
Seat safety switch adjustment
Brake pedal free travel check
Brake system check
Lift and tilt cylinder check
Pump control switches adjustment
Accelerator pedal adjustment
Hydraulic sump tank breather check
Steering gear level check
Contactor panel check
Lubrication chart
LUBRICATION ANO PREVENTIVE MAINTENANCE ILLUSTRATION
Sump tank drain and refiI I
Sump tank drain and filter replace
Steering gear check
Steer axle and linkage adjustment
LUBRICATION ANO PREVENTIVE MAINTENANCE ILLUSTRATION
Carbon pile bleeding proceedures
Carbon pile accumulator adjustment
Motor inspection checks
Steer wneel oear1ng
xle ends clean and reoack
3rake leeding proceedur
Brake adjustment
Axle adapter drain and refi 11
Yvdraulic oressurcheck
Upright adjustments
