CLARK FORKLIFT FD RD- 30001 – 36500 SERVICE MANUAL

Description

CLARK FORKLIFT FD RD 30001 36500 SERVICE MANUAL – PDF DOWNLOAD

Questions? Email us: [email protected]

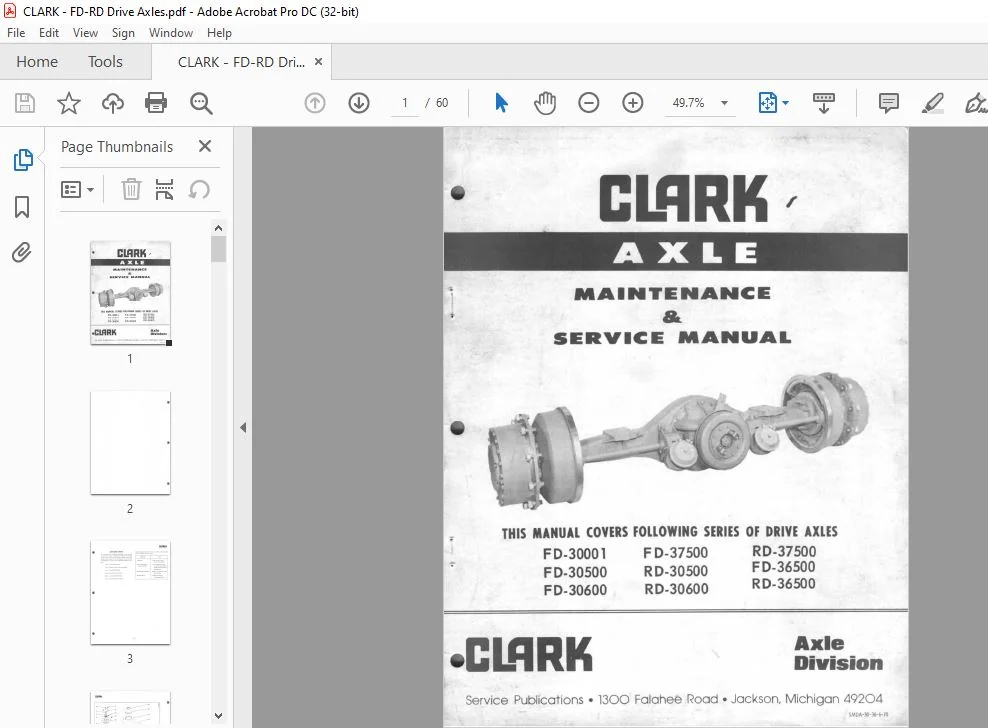

Image Preview:

Description:

CLARK FORKLIFT FD RD 30001 36500 SERVICE MANUAL – PDF DOWNLOAD

• The instructions contained herein cover the disassembly and reassembly of the axle assembly in a sequence that would normally be followed after the unit has been removed from the machine and is to be completely overhauled.
• CAUTION: Cleanliness is of extreme importance and an absolute must in the repair and overhaul of this unit. Before attempting any repairs, the exterior of the unit must be thoroughly cleaned to prevent the possibility of dirt and foreign matter entering the mechanism.
• NOTE: Placing axles on steel horses facilitates disassembly and reassembly. Greater stability is gained by resting axle mounting pads on horses so that axles are inverted from normal operating positions.
• Photographs showing this overhaul procedure were taken with axle in inverted position.

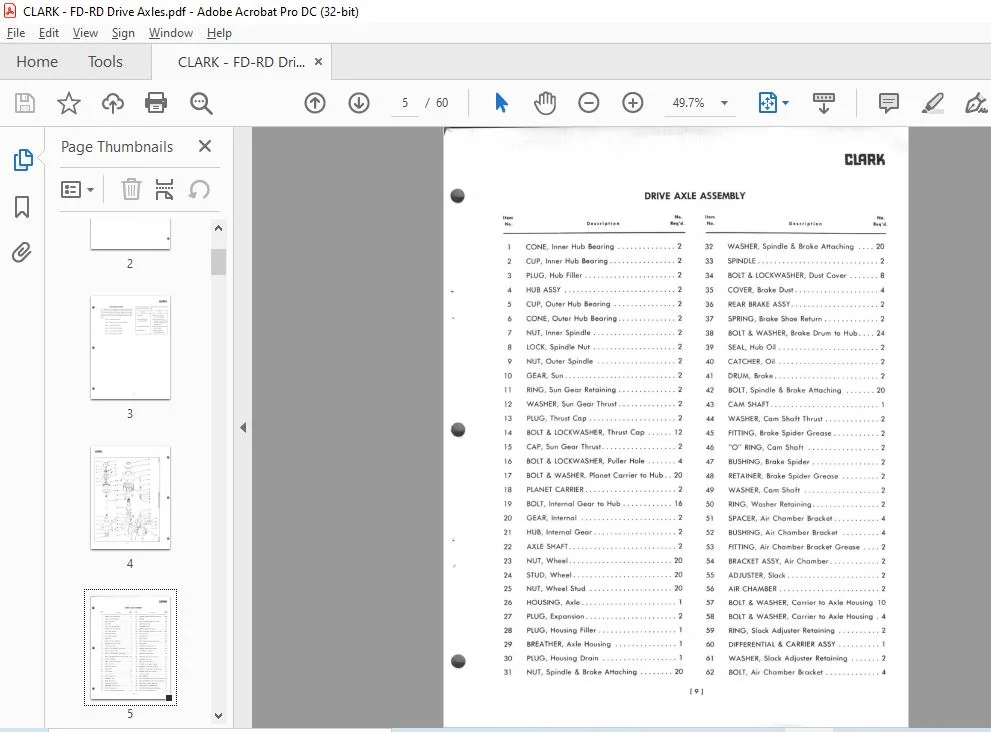

Table Of Contents:

CLARK FORKLIFT FD RD 30001 36500 SERVICE MANUAL – PDF DOWNLOAD

CONE, Inner Hub Bearing ………….. 2
2 CUP, Inner Hub Bearing ……………. 2
3 PLUG, Hub Filler …………………. 2
4 HUB ASSY ……………………… 2
5 CUP, Outer Hub Bearing …………… 2
6 CONE, Outer Hub Bearing ………….. 2
7 NUT, Inner Spindle ……………….. 2
8 LOCK, Spindle Nut ……………….. 2
9 NUT, Outer Spindle ………………. 2
10 GEAR, Sun ……………………… 2
11 RING, Sun Gear Retaining ………….. 2
12 WASHER, Sun Gear Thrust ………….. 2
13 PLUG, Thrust Cop ………………… 2
14 BOLT & LOCKWASHER, Thrust Cop …… 12
15 CAP, Sun Gear Thrust ……………… 2
16 BOLT & LOCKWASHER, Puller Hole ……. 4
17 BOLT & WASHER, Planet Carrier to Hub .. 20
18 PLANET CARRIER …………………. 2
19 BOLT, Internal Gear to Hub ………… 16
20 GEAR, Internal ………………….. 2
21 HUB, Internal Gear ……………….. 2
22 AXLE SHAFT …………………….. 2
23 NUT, Wheel ……………………. 20
STUD, Wheel …………………… 20
NUT, Wheel Stud ……………….. 20
HOUSING, Axle ………………….. 1
PLUG, Expansion …………………. 2
PLUG, Housing Filler ………………. 1
BREATHER, Axle Housing …………… 1
PLUG, Housing Drain ……………… 1
NUT, Spindle & Brake Attaching …….. 20
WASHER, Spindle & Brake Attaching …. 20
33 SPINDLE ……………………….. 2
34 BOLT & LOCKWASHER, Dust Cover ……. 8
35 COVER, Broke Dust ……………….. 4
36 REAR BRAKE ASSY ………………… 2
37 SPRING, Brake Shoe Return …………. 2
38 BOLT & WASHER, Brake Drum to Hub …. 24
39 SEAL, Hub Oil …………………… 2
40 CATCHER, Oil …………………… 2
41 DRUM, Brake ……………………. 2
42 BOLT, Spindle & Broke Attaching ……. 20
43 CAM SHAFT …………………….. 1
44 WASHER, Cam Shaft Thrust …………. 2
45 FITTING, Brake Spider Grease ……….. 2
46 “O” RING, Com Shaft …………….. 2
47 BUSHING, Broke Spider ……………. 2
48 RETAINER, Brake Spider Grease ……… 2
49 WASHER, Com Shaft ……………… 2
50 RING, Washer Retaining ……………. 2
51 SPACER, Air Chamber Brocket ……….. 4
52 BUSHING, Air Chamber Bracket ……… 4
53 FITTING, Air Chamber Bracket Grease …. 2
54 BRACKET ASSY, Air Chamber ………… 2
ADJUSTER, Slack …………………. 2
AIR CHAMBER …………………… 2
BOLT & WASHER, Carrier to Axle Housing 10
BOLT & WASHER, Carrier to Axle Housing . 4
RING, Slack Adjuster Retaining ………. 2
DIFFERENTIAL & CARRIER ASSY ………. 1
WASHER, Slack Adjuster Retaining ……. 2
BOLT, Air Chamber Brocket …………. 4

Please Note:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
