Clark Forklift IT581 English OMA-224 Operator’s Manual

Description

Clark Forklift IT581 English OMA-224 Operator’s Manual

CLARK FORKLIFT IT581 ENGLISH OMA-224 OPERATOR’S MANUAL:

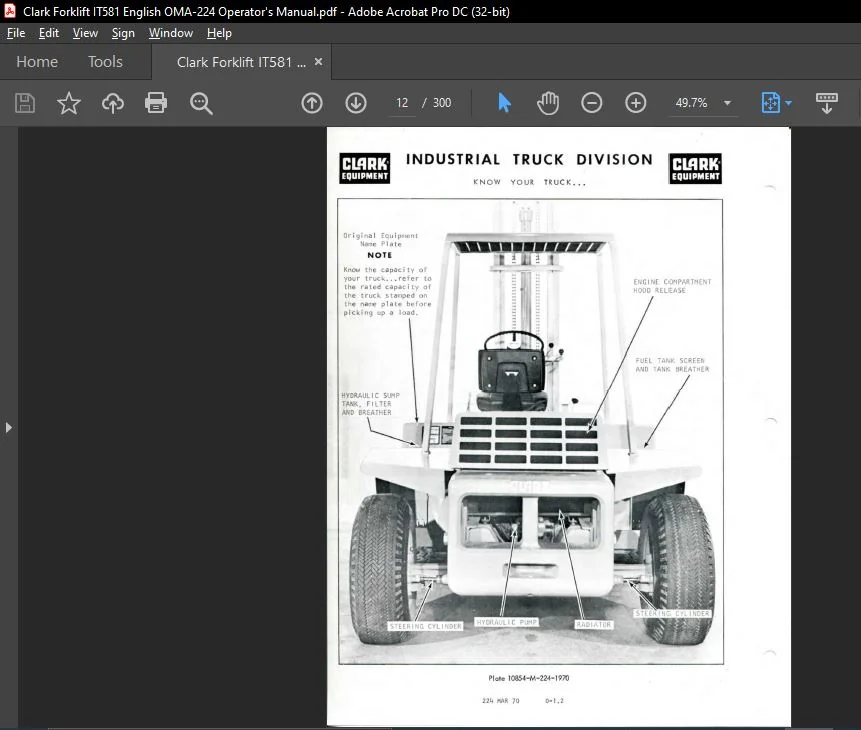

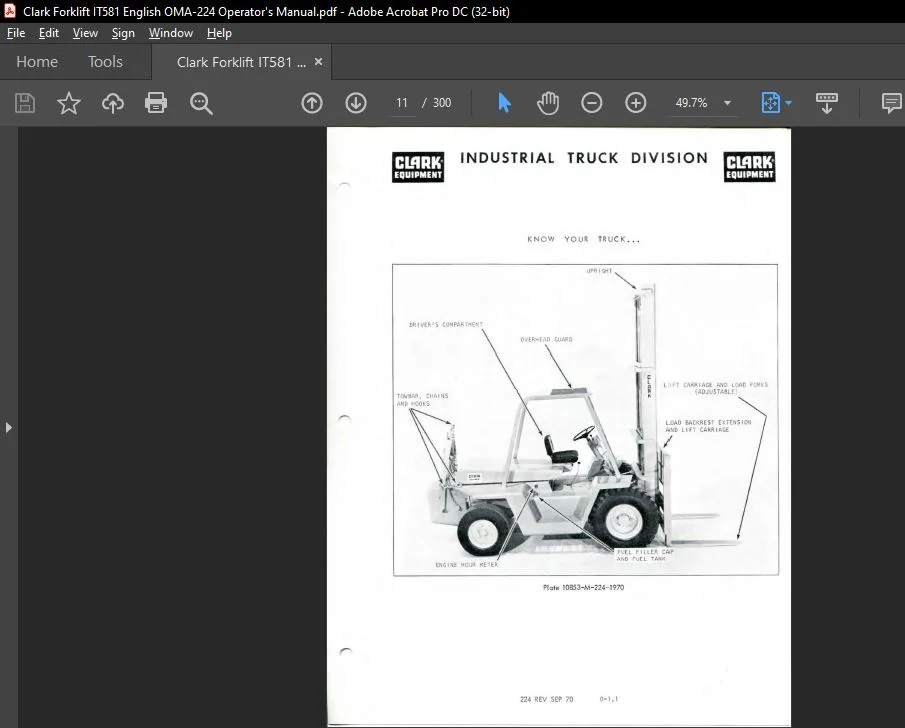

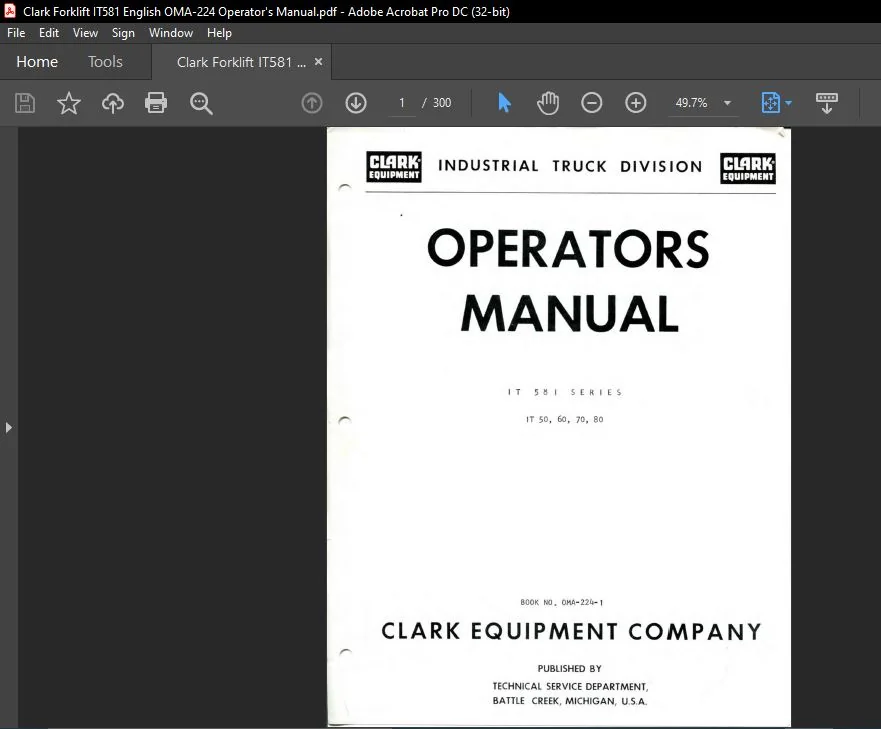

Image Preview:

Description:

Clark Forklift IT581 English OMA-224 Operator’s Manual

• SAFETY INSTRUCTIONS FOR MAINTAINING INDUSTRIAL TRUCKS m;rn ra:tD Powered industrial trucks may become hazardous if adequate maintenance is neglected. Therefore, adequate maintenance facilities, personnel and procedures should be provided. Maintenance and inspection of all powered industrial trucks should be performed in conformance with the recOflYllendation in this manual and the following practices. 1. A scheduled preventive maintenance, lubrication, and inspection system should be followed.
• 2. Only qualified and authorized personnel should be permitted to maintain, repair, adjust, and inspect industrial trucks. ). Before Leaving The Truck: A. Stop truck. B. Fully lower the load engaging means. C, Place directional controls in neutral. D. Apply the parking brake. E. Stop the engine or turn off power. F. Lock the control or ignition circuit. G. Block the wheels if truck is on a ramp, or being worked on.
• 4. Before Working On Truck: A. Raise wheels free of floor or disconnect power source. B. Use chocks or other positive truck positioning devices. C. Block load engaging means, innermast(s), or chassis before working under them. Before working on engine fuel system of gasoline powered trucks with gravity feed fuel systems, be sure fuel shutoff valve is closed.
• Before working on engine fuel system of LP gas powered trucks, close LP gas cylinder valve and run engine until fuel in system is depleted and engine stops running. Operation to check performance of the truck or attachments should be conducted in an authorized, safe clearance area. 5. Before Starting To Operate The Truck: A. Be in operating position.
• B. Depress clutch (or brake pedal on automatic transmission and electric trucks). C. Place directional controls in neutral. D. Start engine or turn on power. E. Before operating truck, check functioning of lift and tilt systems, directional and speed controls, steering, warning devices, brakes, and any attachment. (If used) F. Release parking brake,

Table Of Contents:

Clark Forklift IT581 English OMA-224 Operator’s Manual

Engine Tune-Up Group 00, Page 1-1
Lubrication Charts and Key Group 01, Page 1-1
Cooling System Maintenance Group 01, Page 2-1
Drive Belts / Replace Group 01, Page 3-1
Appendix 2 Pressure Checks and Stoll
(Engine – Transmission – F&R Unit)
Group 06, Page 1-1
Alternator I Battery /Voltage Regulotor Group 12, Page 1-1
Appendix 3 Bleed Truck Tow Brakes Group 23, Page 1-1
Bleed Service Brakes Group 23, Page 2-1
Adjust Broke Pedal Group 23, Page 3-1
Adjust Service Brakes Group 23, Page 4-1
Adjust Pork Broke Group 23, Page 5-1
Wheels & Tires Group 23, :->age 6-1
Appendix 4 Pres.sure Checks / Steer Gro•Jp 26, Page 1-1
Steer Axle Linkage – Adjust Group 26, Page 2-1
Pressure Checks / Hydraulic System Group 30, Page 1-1
Appendix 5 Upright And Carriage Roi I ers
Adjushnent Check & Adjushnent
Group 34, Page 1-1
Lift Chains Group 34,
Adjushnent Check & Adjushnent
Page 2-1
Appendix 6 CounterWeight Removal Group 38, Page 1-1
Decals and Nome Plates Group 40, Page 1-1
Truck Specifications Group 40, Page 2-1
SAFETY – “P .M.” Group 40, Page 3-1
Forms Driver’s Doily Check List Form Number C -635
“P .M.” Report Sheets Form Number C-772
224 OCT
