Clark Forklift Model 1623351 English O-146 Operator’s Manual

Description

Clark Forklift Model 1623351 English O-146 Operator’s Manual

CLARK FORKLIFT MODEL 1623351 ENGLISH O-146 OPERATOR’S MANUAL:

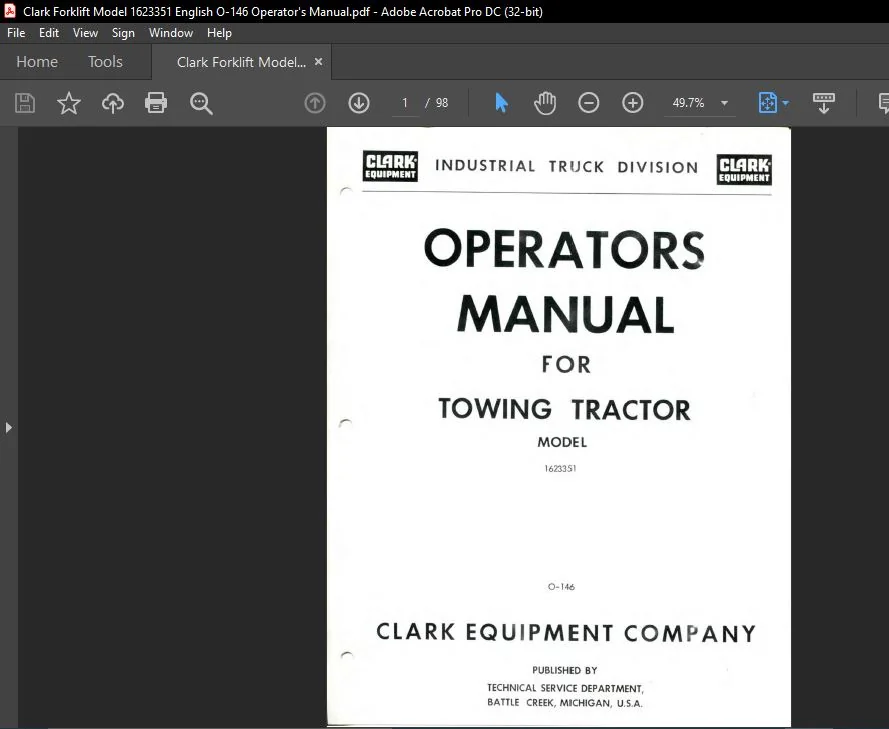

Image Preview:

Description:

Clark Forklift Model 1623351 English O-146 Operator’s Manual

• This Operator’s Manual is published as a service reference guide and includes Specifications, Operating Instructions, Lubrication and Preventive Maintenance Instructions, and Trouble Shooting Guide.
• The TABLE OF CONTENTS for this manual is printed on green paper and is placed at the front for easy reference. A separate INDEX (also printed on green paper) is placed in front of the Lubrication and Preventive Maintenance Section. Lubrication and Preventive Maintenance Instructions are listed under the TIME INTERVALS that they should be performed.
• The TIME INTERVAL is part of the page number. Such as: 8H 002-0; 8H is the time interval (8 operating hours), 002 is the page number, and -0 is a code number that you as a customer should disregard. The dash number is for the benefit of the publisher to cover Operating all types conditions It is impossible tions in one manual. the lubrication and maintenance intervals.
• can best determine the service your machine. a close which you The observance should care you the satisfaction and give your machine will service life that you number or code only. of machine operashould determine Common sense and frequency with greatly determine will obtain from it. A definite maintenance program should be set up and followed. Haphazard maintenance will only lead to faulty performance and short life.

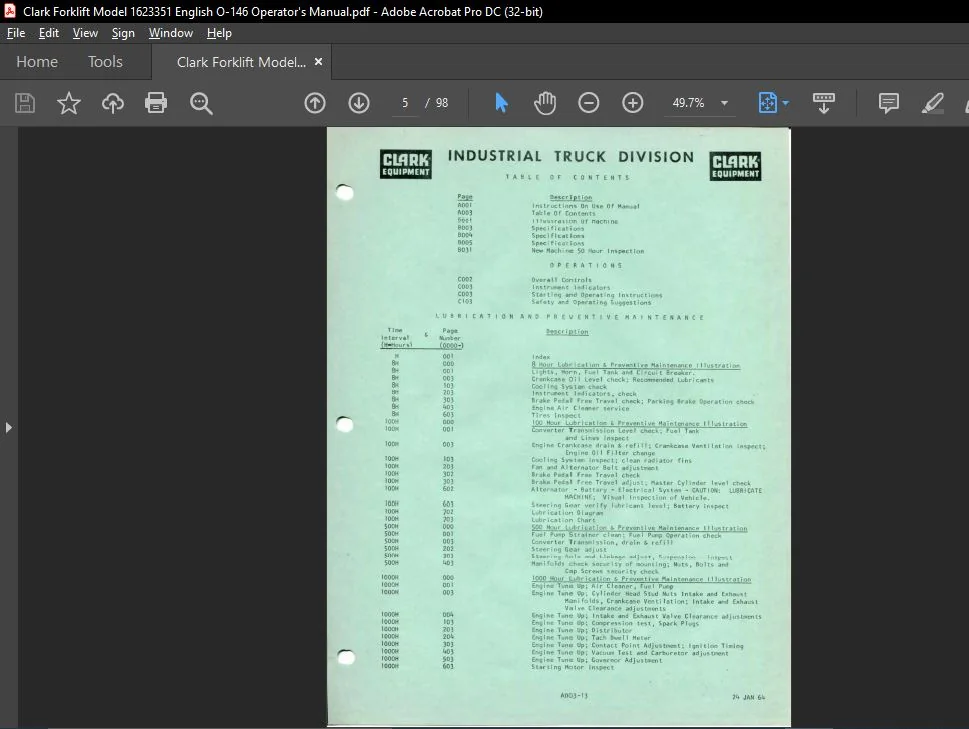

Table Of Contents:

Clark Forklift Model 1623351 English O-146 Operator’s Manual

Index
8 Hour Lubrication & Preventive Maintenance 11 lustration
Lights, Horn, Fuel Tank and Circuit Breaker.
Crankcase OiI Level check; RecOITWTlended Lubricants
Cooling System check
Instrument Indicators, check
Brake Pedal Free Travel check; Parking Brake Operation check
Engine Air Cleaner service
T ires inspect
100 Hour Lubrication & Preventive Maintenance Illustration
Converter Transmission Level check; Fuel Tank
and Lines inspect
Engine Crankcase drain & refil I; Crankcase Ventilation inspect;
Engine OiI F ilter change
Cooling System inspect; clean radiator fins
Fan and Alternator Belt adjustment
Brake Pedal Free Travel check
Brake Pedal Free Travel adjust; Master Cylinder level check
Alternator – Battery -Electrical System – CAUTION: LUBRICATE
MACHINE; Visual Inspection of Vehicle.
Steering Gear verify lubricant level; Battery inspect
Lubrication Diagram
Lubrication Chart
500 Hour Lubrication & Preventive Maintenance Illustration
Fuel Pump Strainer clean; Fuel Pump Operation check
Converter Transmission, drain & refilI
Steering Gear adjust
Steering Axle and Linkage adjust, Suspension – inspect
Manifolds check security of mounting; Nuts, Bolts and
Cap Screws security check
1000 Hour Lubrication & Preventive Maintenance II lustration
Engine Tune Up; Air Cleaner, Fuel Pump
Engine Tune Up; Cylinder Head Stud Nuts Intake and Exhaust
Manifolds, Crankcase Ventilation; Intake and Exhaust
Valve Clearance adjustments
Engine Tune Up; Intake and Exhaust Valve Clearance adjustments
Engine Tune Up; Compression test, Spark Plugs
Engine Tune Up; Distributor
Engine Tune Up; Tach Dwell Meter
Engine Tune Up; Contact Point Adjustment; lgni tion Timing
Engine Tune Up; Vacuum Test and Carburetor adjustment
Engine Tune Up; Governor Adjustment
Starting Motor inspect

Please Note:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
