CLARK FORKLIFT SM577 PT5, PT7, PTT5, PTT7 SERVICE MANUALS

Description

CLARK FORKLIFT SM577 PT5, PT7, PTT5, PTT7 SERVICE MANUALS – PDF DOWNLOAD

Contact us: [email protected]

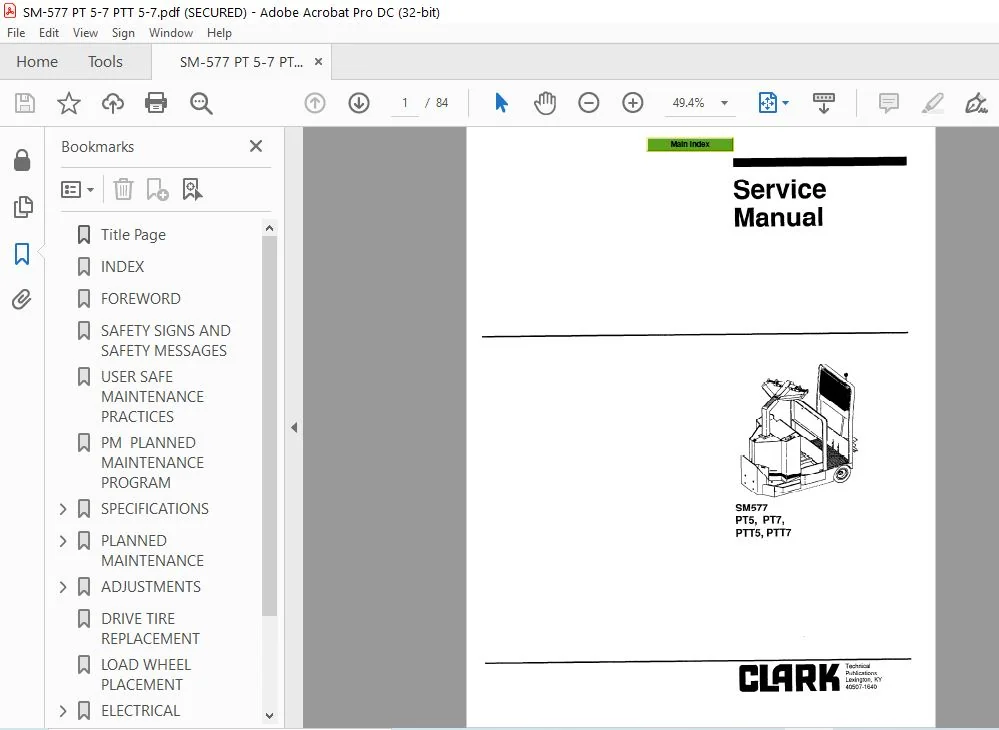

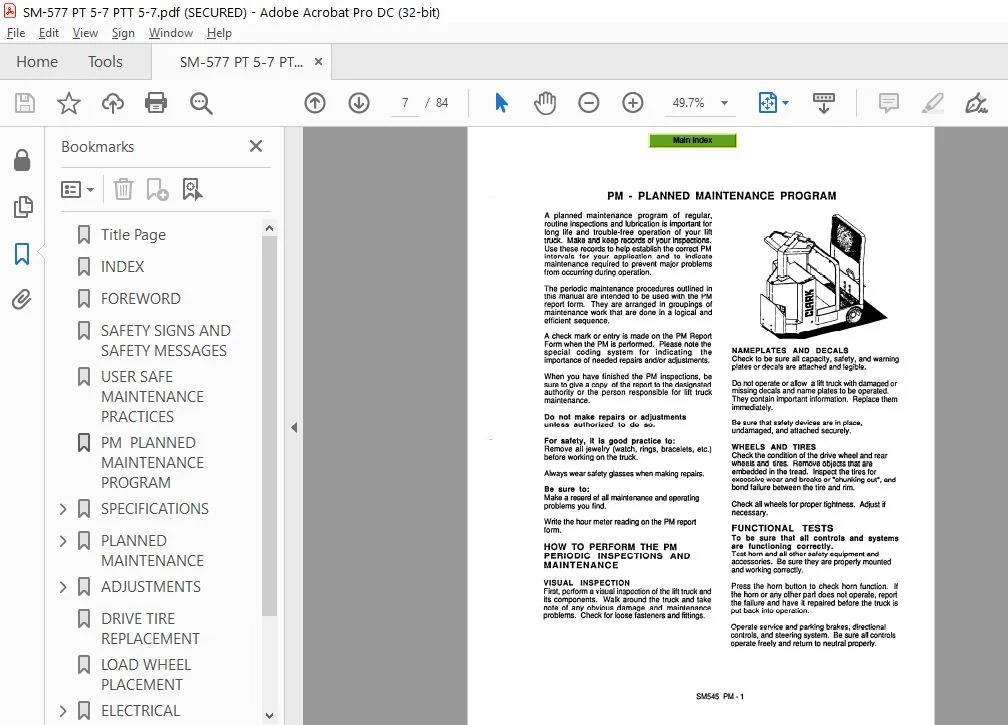

Image Preview:

Description:

CLARK FORKLIFT SM577 PT5, PT7, PTT5, PTT7 SERVICE MANUALS – PDF DOWNLOAD

• Clark Equipment Company welcomes you to the growing group of professional people who own, operate and maintain Clark lift trucks. This manual will familiirtze you with service maintenance and ovefiaui information about your new truck. It has been espedaliy prepared to help yoir maintain your Clark lift truck in an efficient and safe operating condition.
• Regular, corred maintenance and care of your Iii truck is not only important for full and efficient truck life; it is essential for your safety. A faulty Iii tnxk is a potential source of danger to the operator, and to other personnel working near it. The importance of maintaining your lift truck in a safe operating condition by servicing it regularly and, when necessary, repairing it promptly cannot be emphasized too strongly.
• To assist you in keeping your Iii truck in good operating condition, this manual includes an outline of planned maintenance (PM) procedures that are considered essential to the life and safe performance of your truck. Brief procedures for inspections, operatianai checks, cleaning, lubrication, and adjustments are included for your reference. Clark recommends that a planned maintenance and safety inspection program (PM) be performed by a trained and authorized mechanic on a regular basis.
• The PM program provides the opportunity to make thorough inspections and checks on the safe condition of your truck. Necessary adjustments and repairs can be done during the PM, which will increase the life of components and reduce unscheduled downtime.
• The need for major adjustments, repairs, or replacements Is found and corrections made as required; not after failure has occurred.

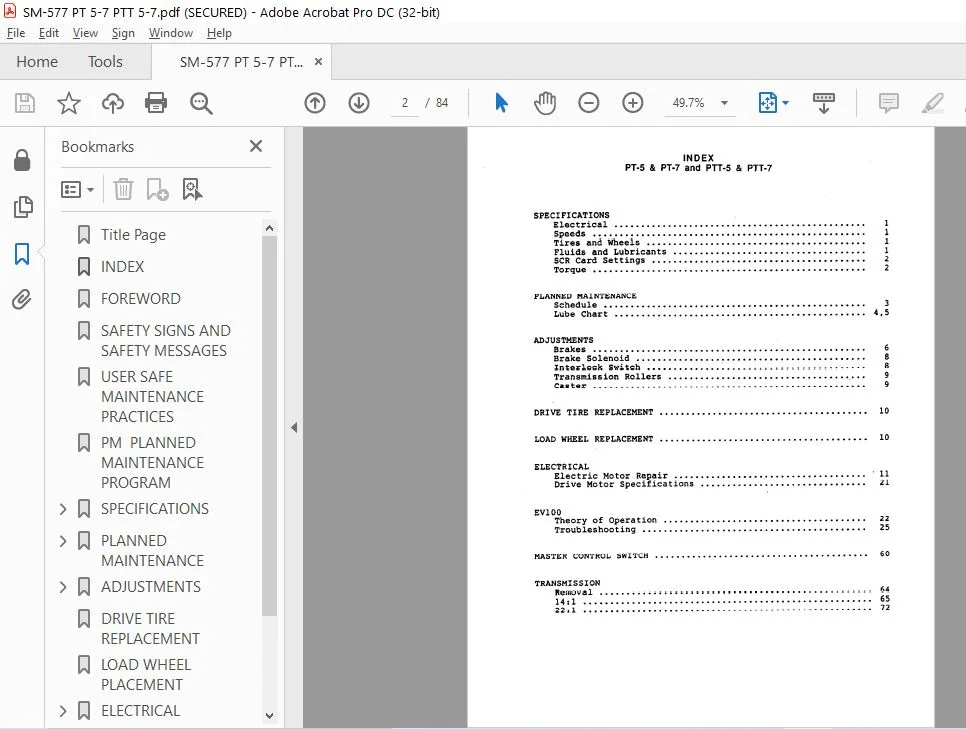

Table Of Contents:

CLARK FORKLIFT SM577 PT5, PT7, PTT5, PTT7 SERVICE MANUALS – PDF DOWNLOAD

SPECIFICATIONS
Electrical .
Speeds
Tires and Wheels ..
Fluids and Lubricants ..
SCR Card Settings …
Torque ….
PLANNED MAINTENANCE
Schedule .
Lube Chart .
ADJUSTMENTS
Brakes .
Brake Solenoid
Interlock Switch
Transmission Rollers
Caster .
DRIVE TIRE REPLACEMENT .
LOAD WHEEL REPLACEMENT .
ELECTRICAL
Electric Motor Repair .
Drive Motor Specifications
Theory of Operation
Troubleshooting .
MASTER CONTROL SWITCH .
TRANSMISSION

Please Note:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
