Clark Forklift CTR Repair Manual (SPM 640)

Description

CLARK FORKLIFT SPM 640 CTR SERVICE MANUAL – PDF DOWNLOAD

Contact us: [email protected]

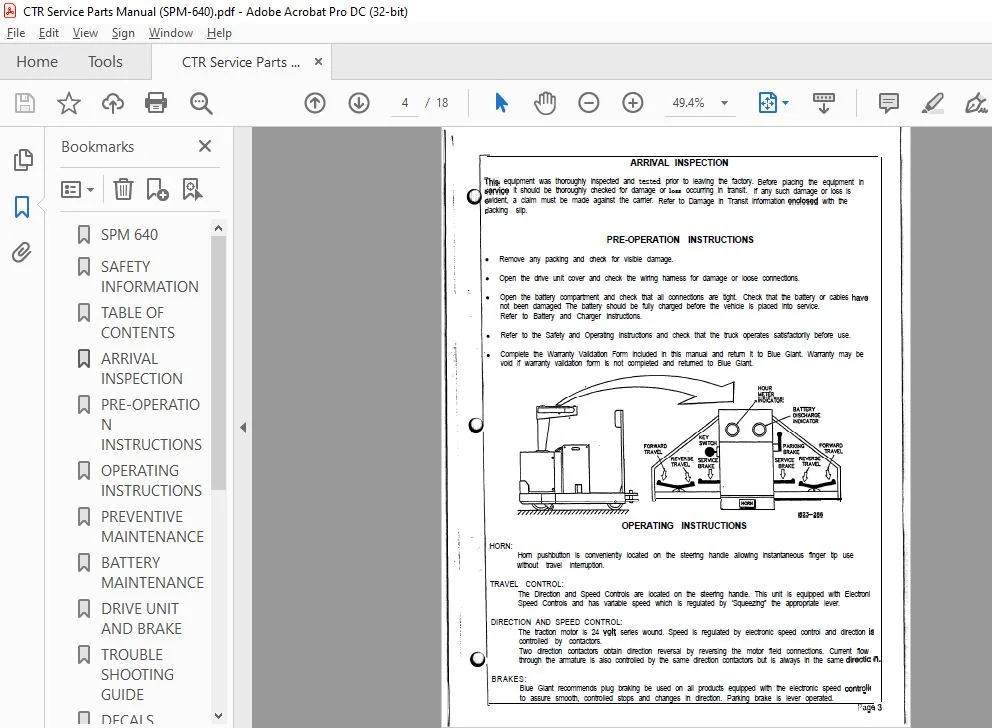

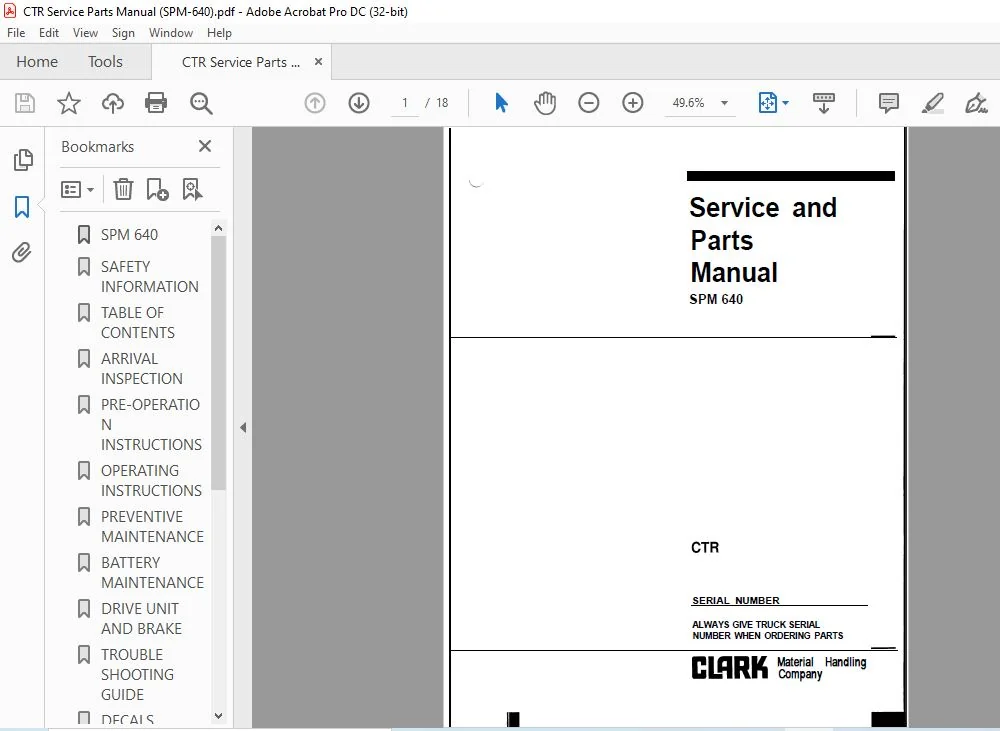

Image Preview:

Description:

CLARK FORKLIFT SPM 640 CTR SERVICE MANUAL – PDF DOWNLOAD

• Do not operate this truck unless you have been trained and authorlzed to do so. Do not operate this truck until you have checked its condition. Give special attention to tires, battery, controls, lifting systems including switches, brakes, steering mechanism, guards and safety devices. Report the need for truck repairs to your supervisor immediately and do not operate truck until repairs are made.
• Neglect may cause a minor repair to become a major service problem and cause the truck to become unsafe. Do not exceed the rated capaicty of the vehicle as marked on the nameplate. Do not lift with the fork tips or one fork only, if equipped. Units equipped with forks are designed for evenly centered loads with forks completely supporting the load. Off centering of loads can result in a dangerous operating condition and may cause damage or injury.
• Always look in direction of travel. Use caution when load interferes with visibility. Extreme caution must be used when handling or transporting loosely stacked/packaged loads. Start, stop, change direction, travel and brake smoothly. Slow down for turns on ramps and on uneven or slippery surfaces that could cause truck to slide or tip. Be aware that the truck behaves differently without a load than with a load. Know and understand gradeability capabilities of this vehicle.
• Maximum recommended gradeabilityu under load not the exceed 5%. Straddle type equipment is designed for lever surface only. Do not leave truck unattended on ramp 1 observie applicable traffice regulations. Yield right of way to pedestrians. Slow down and sound horn at all aisle intersections and where vision is obstructed. , do not ride on this equipment unless it has been equipped and designed for such use.
• D do not allow personnel to stand under the forks, if equipped (loaded or unloaded) when forks are in the raised position. D before you leave the truck, fully lower lifting mechanism, shut off power and keyswitch if equipped, and apply parking brake, if equipped. D do not use forward mast tilt, if equipped with the load elevated unless the load is directly over other support.
• L when travelling with or without a load, forks should be in lower most position and tilted back if applicable . . For straddle trucks, straddle distance must be equally spaced in reglation to truckchassis. Straddle inside dimension must be set at a minium of 25% of maximum lifting height. Straddle legs adjustment should be done by authorized blue giant representative. Remember: a safe operator is a smart operator

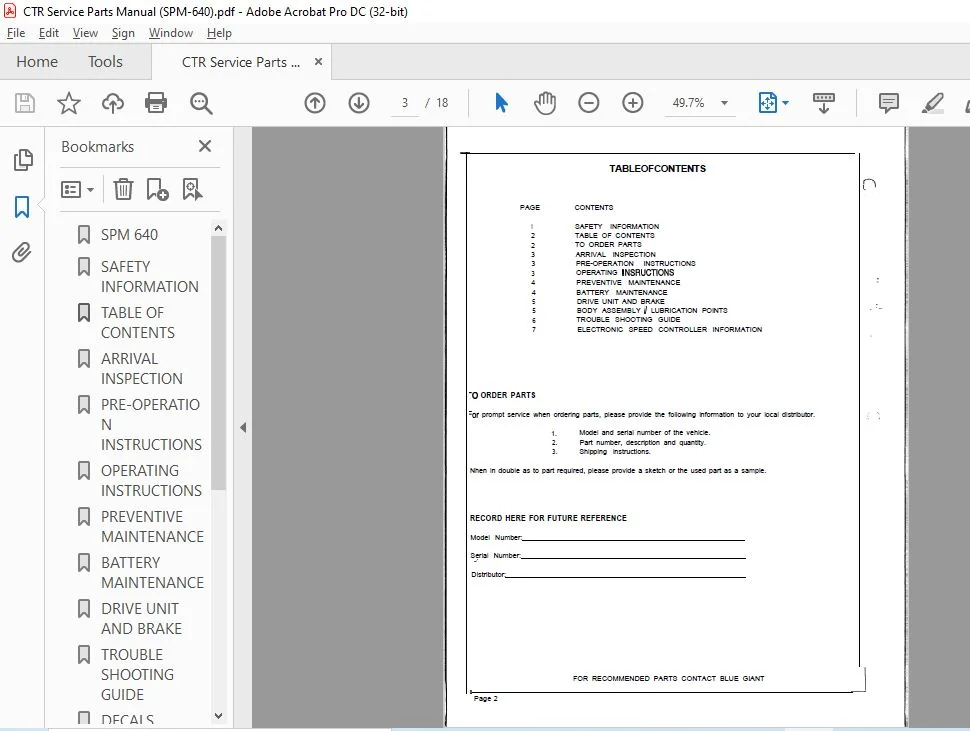

Table Of Contents:

CLARK FORKLIFT SPM 640 CTR SERVICE MANUAL – PDF DOWNLOAD

SPM 640......................... 1
SAFETY INFORMATION.............. 2
TABLE OF CONTENTS............... 3
ARRIVAL INSPECTION.............. 4
PRE-OPERATION INSTRUCTIONS...... 4
OPERATING INSTRUCTIONS.......... 4
PREVENTIVE MAINTENANCE.......... 5
BATTERY MAINTENANCE............. 5
DRIVE UNIT AND BRAKE............ 6
TROUBLE SHOOTING GUIDE.......... 7
DECALS.......................... 8
“Electronic Speed Control”...... 9
PANEL ASSEMBLY..................10
DIRECTION CONTACTOR.............11
TROUBLE SHOOTING GUIDE..........12
OPERATION and MAINTENANCE.......14
POTENTIOMETER TEST PROCEDURE....16
POTENTIOMETER ADJUSTMENT........16
WIRING DIAGRAM..................18

Please Note:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
