Daewoo Doosan DL300 Wheel Loader Shop Manual K1010636E – PDF DOWNLOAD

Description

Daewoo Doosan DL300 Wheel Loader Shop Manual K1010636E – PDF DOWNLOAD

DESCRIPTION:

Daewoo Doosan DL300 Wheel Loader Shop Manual K1010636E – PDF DOWNLOAD

Safety Rules:

• Only trained and authorized personnel can operate and maintain the machine.
• Follow all safety rules, precautions and instructions when operating or performing maintenance on the machine.
• Do not operate the machine if you are not feeling well, if you are taking medication that makes you feel sleepy, if you have been drinking, or if you are suffering from emotional problems.
• These problems will interfere with your sense of judgement in emergencies and may cause accidents.
• When working with another operator or with a person on work site traffic duty, be sure that all personnel know the nature of the work and understand all hand signals that are to be used.
• Always observe strictly any other rules related to safety.

Safety Features:

• Be sure that all guards and covers are installed in their proper position.
• Have guards and covers repaired immediately if damaged.
• Be sure that you understand the method of use of safety features such as transmission lever neutral lock and the seat belt, and use them properly.
• Never remove any safety features.
• Always keep them in good operating condition.
• Failure to use safety features according to the instructions in the Operation and Maintenance Manual could result in serious bodily injury.

Inside Operator’s Compartment:

• When entering the operator’s compartment, always remove all mud and oil from the soles of your shoes.
• If you operate the accelerator and brake pedals with mud or oil stuck to your shoes, your foot may slip and this may cause a serious accident.
• Clean grease and dirt from pedals and controls. This contributes to safe operation.
• Cleaning also provides an opportunity to inspect equipment. Minor damage can be repaired or corrected before major problems result.
• Keep cab floor and consoles free of tools and personal items. After using the ashtray, make sure that any matches or cigarettes are properly extinguished, and be sure to close the ashtray.
• If the ashtray is left open, there is danger of fire.
• Do not stick suction pads to the window glass. Suction pads act as a lens and may cause fire.

TABLE OF CONTENTS:

Daewoo Doosan DL300 Wheel Loader Shop Manual K1010636E – PDF DOWNLOAD

Safety
Wheel Loader Safety …………………………………………………………………. SP000095
Specifications
Specification for DL300………………………………………………………………. SP000104
General Maintenance
General Maintenance Procedures……………………………………………….. SP000097
Standard Torques……………………………………………………………………… SP000098
Drive Train
Transmission and Torque Converter ……………………………………………. SP000118
Transmission Error Codes (ZF) …………………………………………………… SP000100
Front Axle (ZF-MT-L 3095) …………………………………………………………. SP000199
Rear Axle (ZF-MT-L 3085)………………………………………………………….. SP000217
Drive Shaft ……………………………………………………………………………….. SP000218
Brake
Service Brake …………………………………………………………………………… SP000219
Brake Supply Valve …………………………………………………………………… SP000220
Parking Brake …………………………………………………………………………… SP000221
Brake Pedal Valve …………………………………………………………………….. SP000222
Accumulator……………………………………………………………………………… SP000223
Steering
Steering …………………………………………………………………………………… SP000224
Cushion Valve…………………………………………………………………………… SP000328
Emergency Steering ………………………………………………………………….. SP000225
Table of Contents
Page II
Frame
Articulation Center …………………………………………………………………….. SP000231
Counterweight…………………………………………………………………………… SP000130
Tank
Oil Tank …………………………………………………………………………………… SP000226
Fuel Tank…………………………………………………………………………………. SP000227
Hydraulics
Main Control Valve ……………………………………………………………………. SP000233
Load Isolation System ……………………………………………………………….. SP000228
Cooling System…………………………………………………………………………. SP000229
Pilot System……………………………………………………………………………… SP000230
Hydraulic Schematic (DL300) ……………………………………………………… SP000234
Electrical System
Air Conditioner ………………………………………………………………………….. SP000172
Electrical System ………………………………………………………………………. SP000268
Electrical Schematic (DL300) ……………………………………………………… SP000272

DAEWOO DOOSAN DL300 WHEEL LOADER SHOP MANUAL K1010636E – PDF DOWNLOAD:

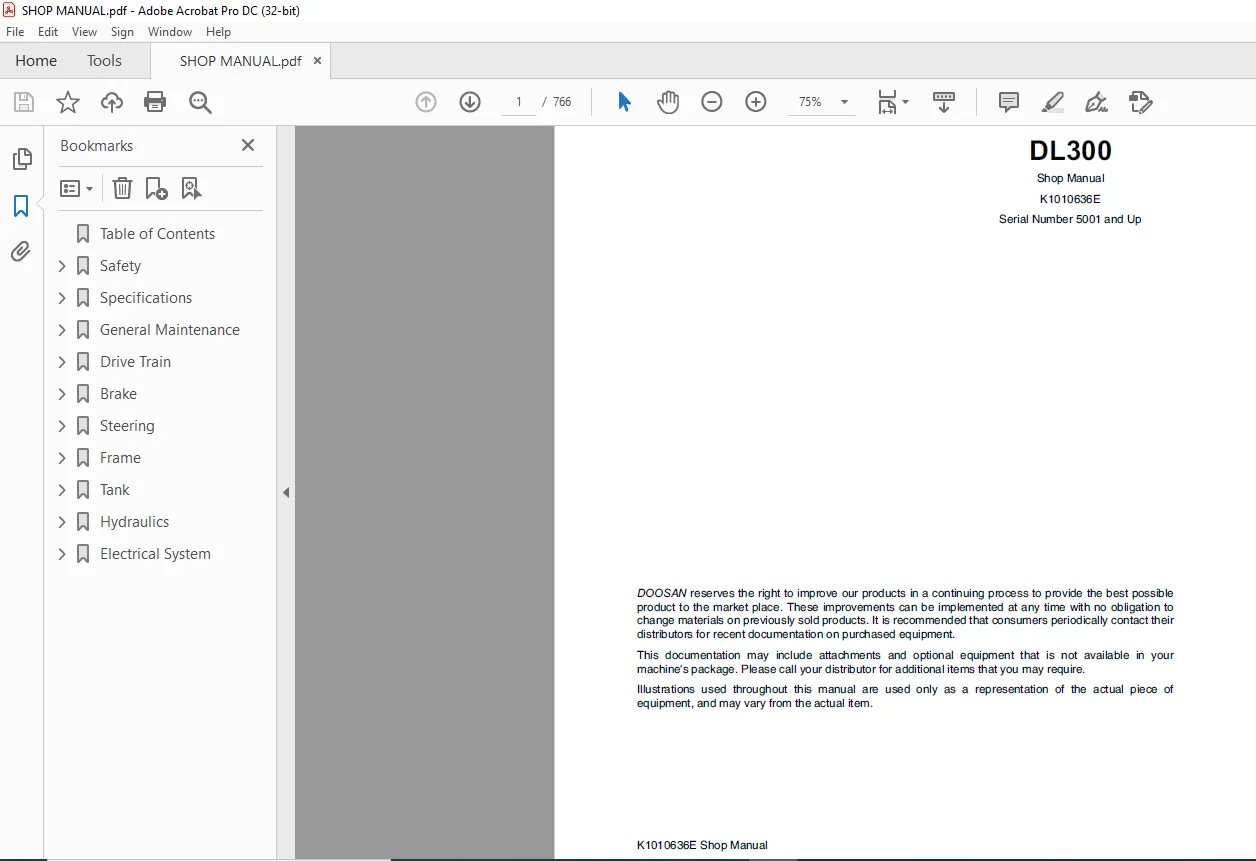

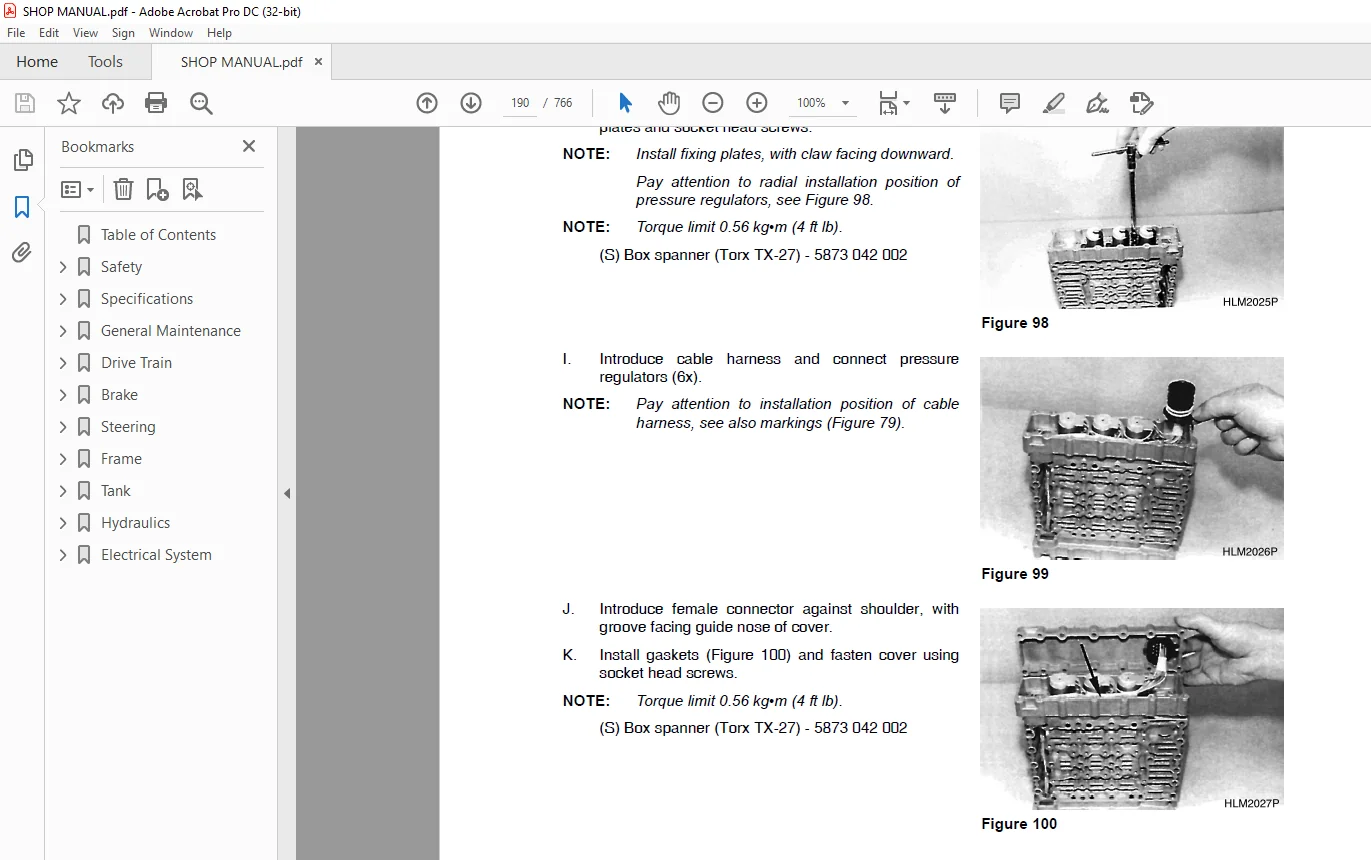

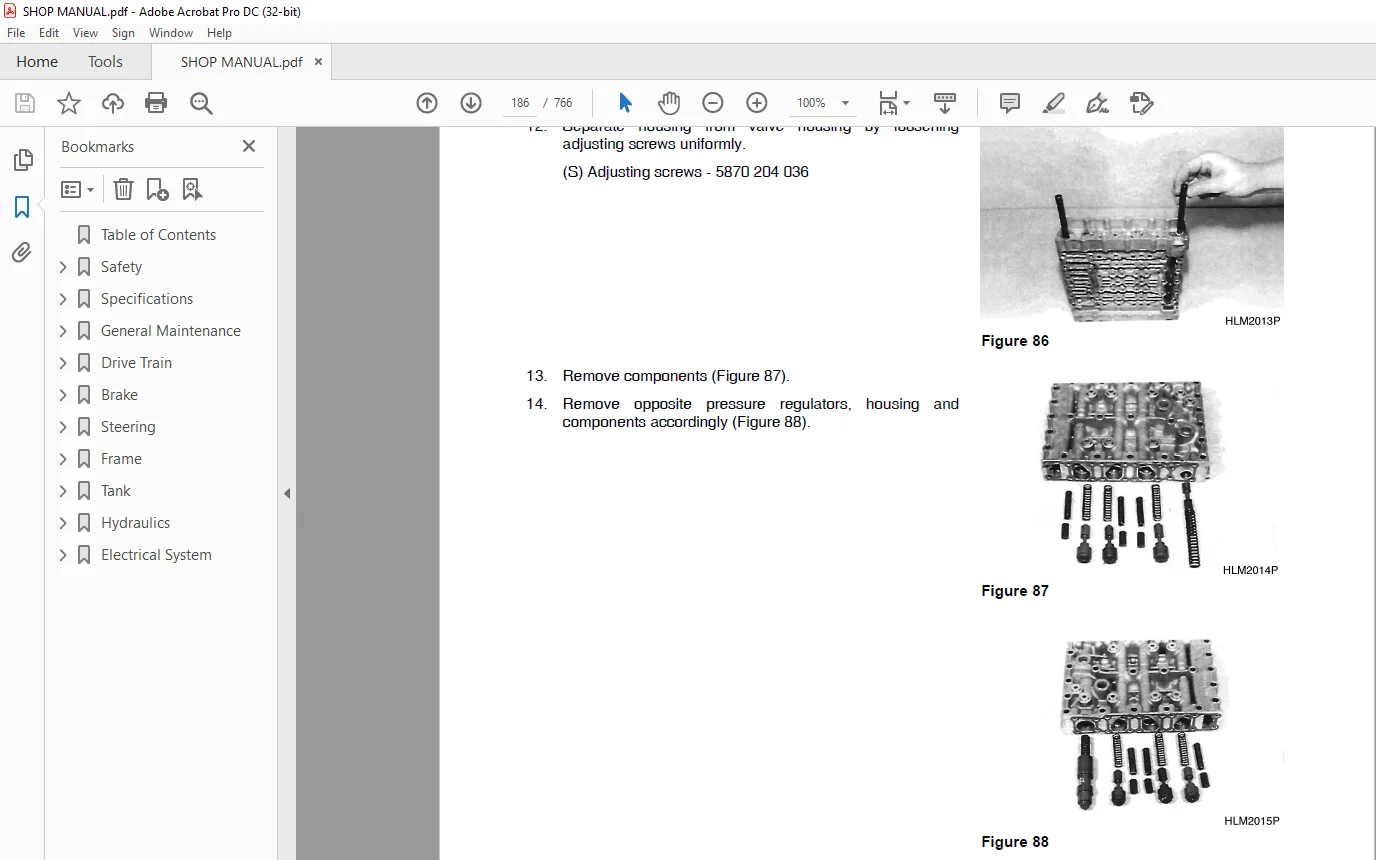

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

M.A
