Daewoo Doosan DL350 Wheel Loader Shop Manual K1046897E – PDF DOWNLOAD

Description

Daewoo Doosan DL350 Wheel Loader Shop Manual K1046897E – PDF DOWNLOAD

DESCRIPTION:

Daewoo Doosan DL350 Wheel Loader Shop Manual K1046897E – PDF DOWNLOAD

Accessory Applications:

• This wheel loader has been designed primarily for moving earth with a bucket.
• For use as a grapple or for other object handling, contact DOOSAN.
• Lifting-work applications are permitted in approved lift configuration, to rated capacity only, with no side-loading (unless prohibited by local regulation).
• Do not use machine for activities for which it was not intended. Do not use bucket for lifting work, unless lift slings are used in approved configuration.

LOCATION OF SAFETY LABELS:

• Location of safety labels (decals) can vary from unit to unit.
• Refer to appropriate Operation and Maintenance Manual, and Parts Manual for your unit.
• There are several specific warning signs on this machine. The exact location of hazards and the description of the hazards are reviewed in the appropriate Operation and Maintenance Manual.
• Please become familiarized with all warning signs. Make sure that all of the warning signs are legible. Clean the warning signs or replace the warning signs if you cannot read the words.
• Replace the illustrations if the illustrations are not visible.
• When you clean the warning signs, use a cloth, water and soap.
• Do not use solvent, gasoline, or other harsh chemicals to clean the safety signs.
• Solvents, gasoline, or other harsh chemicals could loosen the adhesive that secures the warning sign.
• Loose adhesive will allow the warning sign to fall off. Replace any safety sign that is damaged, or missing. If a safety sign is attached to a part that is replaced, install a safety sign on the replacement part.

UNAUTHORIZED MODIFICATIONS:

• Any modification made without authorization or written approval from DOOSAN can create a safety hazard, for which the machine owner must be held responsible.
• For safety’s sake, replace all OEM parts with the correct authorized or genuine DOOSAN part.
• For example, not taking the time to replace fasteners, bolts or nuts with the correct replacement parts could lead to a condition in which the safety of critical assemblies is dangerously compromised.

TABLE OF CONTENTS:

Daewoo Doosan DL350 Wheel Loader Shop Manual K1046897E – PDF DOWNLOAD

Safety
Wheel Loader Safety …………………………………………………………………. SP001667
Specifications
Specification for DL350………………………………………………………………. SP001801
General Maintenance
General Maintenance Procedures……………………………………………….. SP000097
Standard Torques……………………………………………………………………… SP000813
Drive Train
Transmission and Torque Converter ……………………………………………. SP001802
Transmission Error Codes (ZF) …………………………………………………… SP000100
Front Axle (ZF-MT-L 3095) …………………………………………………………. SP001803
Rear Axle (ZF-MT-L 3095)…………………………………………………………. SP001804
Drive Shaft ……………………………………………………………………………….. SP001805
Brake
Service Brake …………………………………………………………………………… SP001806
Brake Supply Valve …………………………………………………………………… SP001807
Parking Brake …………………………………………………………………………… SP000221
Brake Pedal Valve …………………………………………………………………….. SP001808
Accumulator……………………………………………………………………………… SP000223
Steering
Steering …………………………………………………………………………………… SP000224
Cushion Valve…………………………………………………………………………… SP000328
Emergency Steering ………………………………………………………………….. SP000225
Articulation Center …………………………………………………………………….. SP001809
Counterweight…………………………………………………………………………… SP000130
Tank
Oil Tank …………………………………………………………………………………… SP001880
Fuel Tank…………………………………………………………………………………. SP000227
Hydraulics
Main Control Valve ……………………………………………………………………. SP001810
Load Isolation System ……………………………………………………………….. SP001811
Cooling System…………………………………………………………………………. SP001812
Pilot System……………………………………………………………………………… SP000230
Hydraulic Schematic (DL350) ……………………………………………………… SP001813
Electrical System
Air Conditioner………………………………………………………………………….. SP000172
Electrical System………………………………………………………………………. SP001819
Electrical Schematic (DL350) ……………………………………………………… SP001820

DAEWOO DOOSAN DL350 WHEEL LOADER SHOP MANUAL K1046897E – PDF DOWNLOAD:

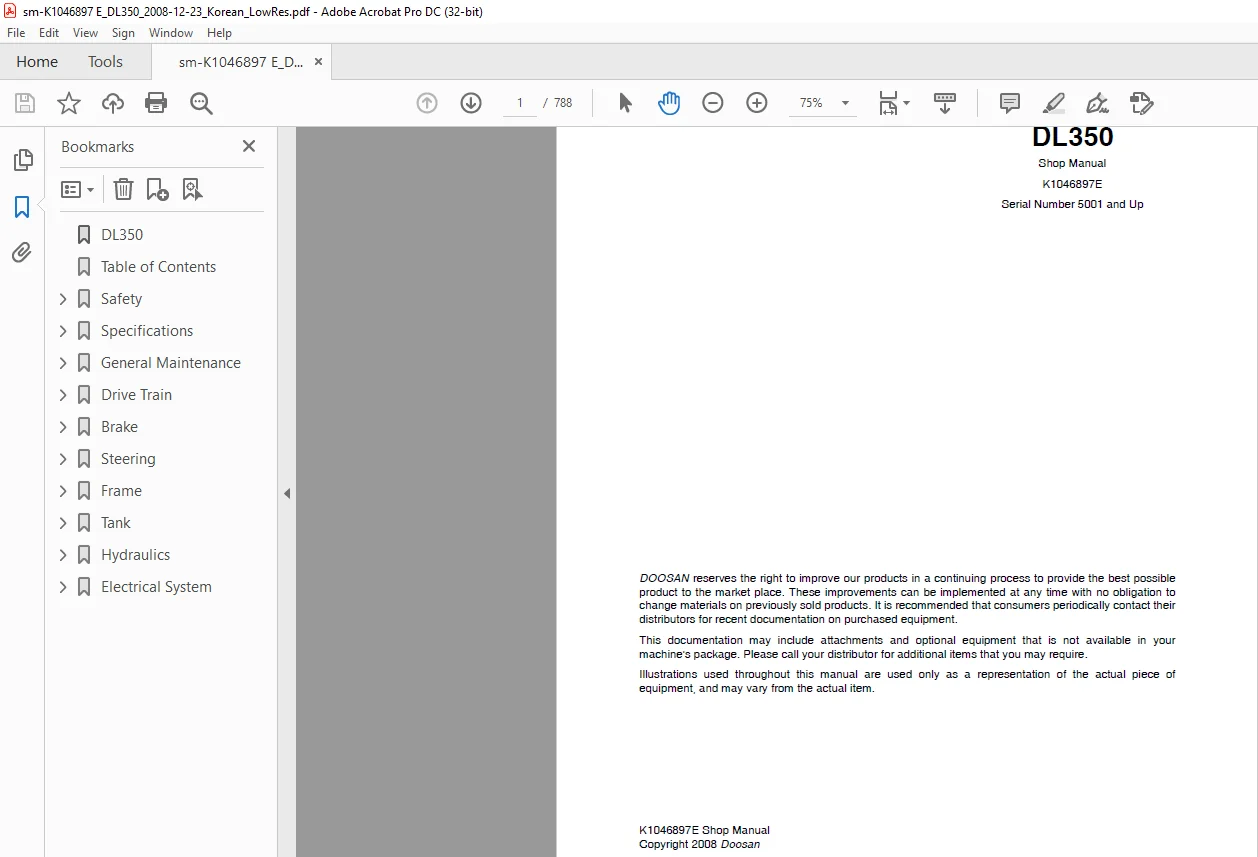

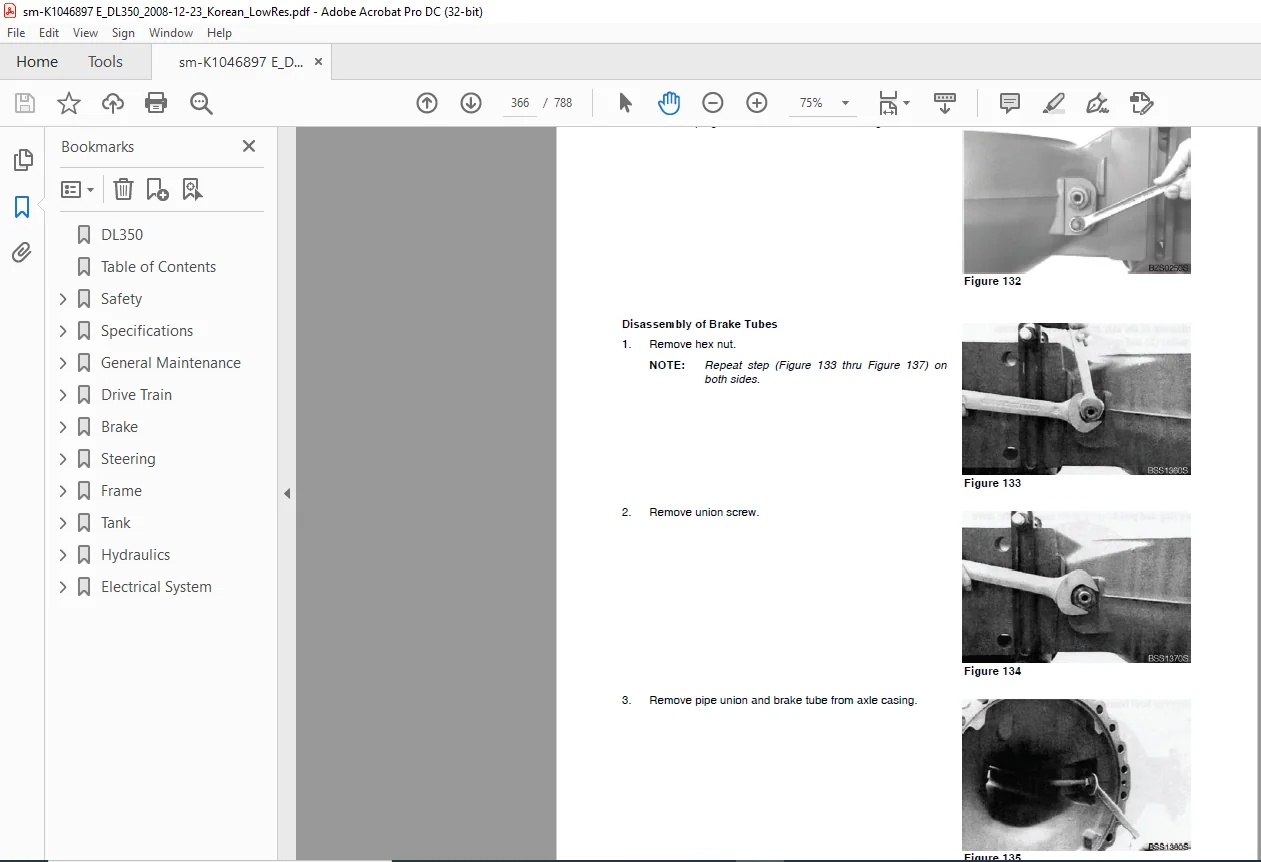

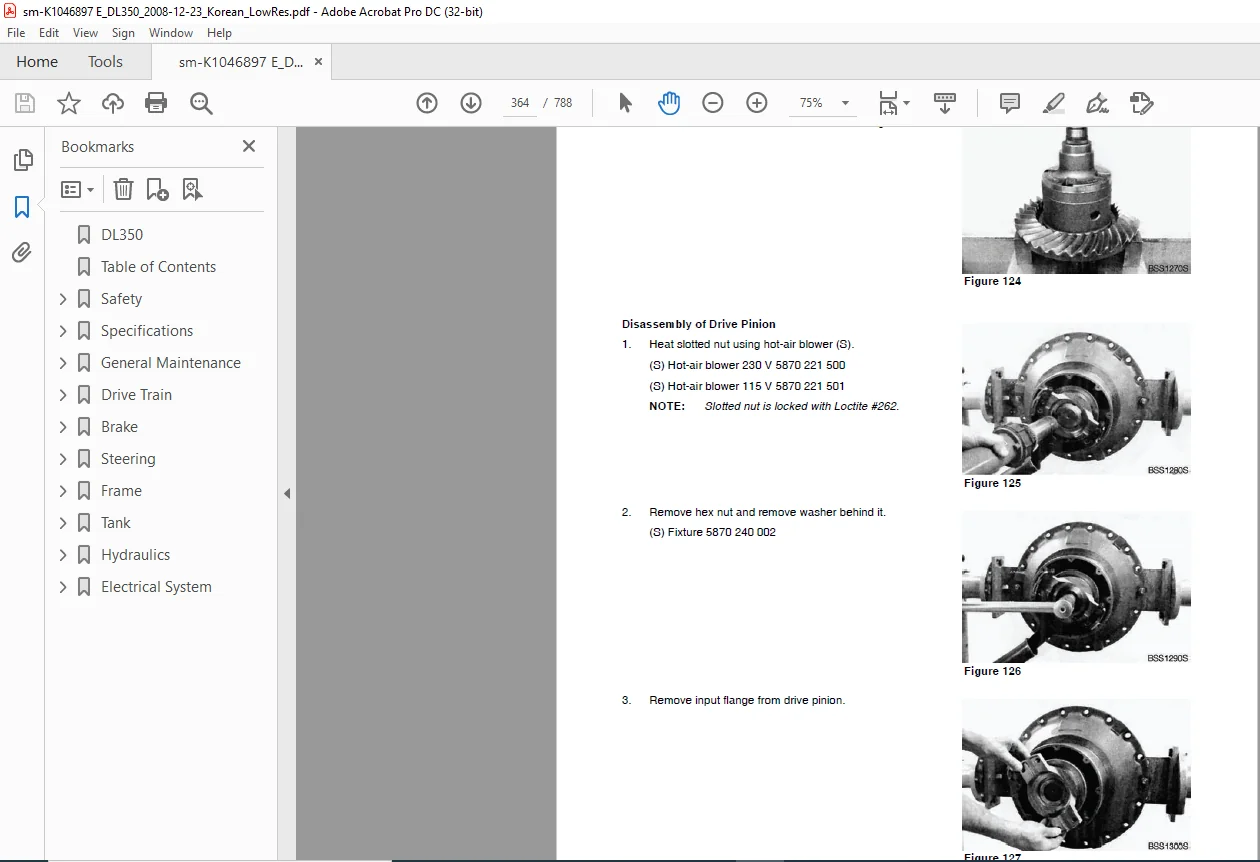

IMAGES PREVIEW OF THE MANUAL:
