Daewoo Doosan M250TC-III Parts Manual 4021 – 7127FEF – PDF DOWNLOAD

Description

Daewoo Doosan M250TC-III Parts Manual 4021 – 7127FEF – PDF DOWNLOAD

DESCRIPTION:

Daewoo Doosan M250TC-III Parts Manual 4021 – 7127FEF – PDF DOWNLOAD

• Daewoo reserves the right to improve our products in a continuing process to provide the best possible product to the market place. These improvements can be implemented at any time with no obligation to change materials on previously sold products.
• It is recommended that consumers periodically contact their distributors for recent documentation on purchased equipment. This documentation may include attachments and optional equipment that is not available in your machine’s package.
• Please call your distributor for additional items that you may require. Illustrations used throughout this manual are used only as a representation of the actual piece of equipment, and may vary from the actual item.

FOREWORD

2. HOW TO USE THIS PARTS LIST.

• Key No. Part No. Description It shows the reference no. on the illustration. It shows the part number of the parts which are included in an illustration. It shows the name of part. Components of an assembly part are shown with [el marks and are shown on the line, or lines. below the assembly part. Qlty Also if the components with [el mark is consists of further components part. These further components are shown with the marks [eel. It shows the quantity use for one machine.
• quantity of components show the quantity for one assembly part. Service code Abbreviations in this column have their own meaning as show below. The parts with this abbreviation shows that the part requires some work on it before installing in the machine. B D The part with this abbreviation is a component of an assembly and is not available independently. The assembly part containing this part should be ordered. K This means that the part is contained in the service part kit.
• M This means that the part is available only with its mating parts altogether. R The part with this abbreviation shows that the quantity of the part is changed depending on the machine, such as an adjusting shim etc. S This part is specially provided as a service part, which was not provided in the machine before shipping from the factory. G This part need grade control and should be requested as the same grade of counter part. OP Optional parts
• (THIS PARTS BOOK IS FOR REFERENCE ONLY. PART NUMBERS AND SERAIL NUMBERS MAY BE OUTDATED. ALWAYS USE THE ONLINE PARTS SYSTEM)
• Serial no. ICA EX Specific design parts. OS Over-sized parts. US Under-sized parts. # (Part with abbreviation “OS” or “US” is described on the line below the standard sized part.) The part with this mark is newly added on that page of the equipment. Serial No. shows the machine serial number which the parts were applied. As to the engine Serial No. shows only engine serial number which the parts were applied.
• Parts without any applicable serial number are used in every machine. ICA shows the interchangeability between the original and the improved parts. Abbreviations used in this column are as follows; Part No. in the column of “Replaceable part” can be used instead of this part but not vice versa. P This must not be used for machine. The part No. in the column “Replaceable part” should be used instead. T Parts No. those in the column of “Replaceable part” can be used as an assembly instead of this part.
• Y This part and the part in the column of “Replaceable part” are interchangeable with each other. Blank : This part has no “Repleaceable part” Replaceable part Interchangeable parts nos. and their required quantity are shown in this column. If interchangeable improved parts are provided for the parts which you may order, the improved parts classified as “I’, “P” T’ or ‘Y” may be supplied. • When repairing, it is recommended to use our standard part. • Researching the assembling parts from

TABLE OF CONTENTS:

Daewoo Doosan M250TC-III Parts Manual 4021 – 7127FEF – PDF DOWNLOAD

e ENGINE PARTS 2
Fig. 011 CYLINDER BLOCK BLOC CYLINDRES 4
012 TIMING GEAR CASE CARTER DE DISTRIBUTION 6
013 FLYWHEEL HOUSING CARTER DE VOLANT MOTEUR 8
014 CRANKSHAFT VILEBREQUIN 10
015 PISTON PISTON 12
016 CYLINDER HEAD CULLASSE 14
017 CAMSHAFT ARBRE A CAMES 18
018 INTERMEDIATE GEAR PIGNON 20
019 OIL PIPE-IN OIL PAN CONDUITES DE HUILE 24
020 OIL FILTER FILTRE DE HUILE
26
021 OIL COOLER REFROIDISSEUR D’HUILE
022 COOLING WATER PUMP POMPEA EAU
28
023 COOLING SYSTEM SYSTEME DE VENTILA TEUR
30
024 INTAKE,EXHAUST MANIFOLD TUBULURE ET COLLECTEUR 32
025 NOZZLE AND HOLDER PORTE INJECTEUR 34
026 INJECTION PIPE CONDUITES D’INJECTION 36
027 INJECTION PUMP POMPE D’INJECTION 38
028 FUEL FILTER FILTRE A GAZOLE 40
029 ELEC.PARTS & TACHOMETER DRIVE PIECES ELECTRIQUE ET TACHYMETRE 42
030 ENGINE MOUNTING SUPPORT DE MOTEUR 44
031 TURBO CHARGER & OIL PIPE TURBO CHARGER 46
032 OVER HAUL GASKET KIT PIECES DE RECHANGE 49-1
eBODY PARTS
Fig. 1100 FRAME CHASSIS 54
1110 ENGINE MOUNTING MOTEUR 56
1120 HYDRAULIC OIL TANK RESERVOIR D’HUILE 58
1130 FUEL TANK RESERVOIR DE GAZOLE 60
1140 FUEL PUMP ASS’Y-OPTION POMPE DE GAZOLE 62
1150 AXLE AND DRIVE SHAFT PONTS ET ARBRES DE TRANSMISSION 64
1155 AXLE AND DRIVE SHAFT-LOCAL AXLE PONTS ET ARBRES DE TRANSMISSION 67-1
1157 AXLE AND DRIVE SHAFT-SUPER MAX. TRAC PONTS ET ARBRES DE TRANSMISSION 67-5
1160 REAR AXLE PIVOT LUB.PIPING GRAISSAGE DU PIVOT DE PONT 68
1165 REAR AXLE PIVOT LUB.PIPING-LOCAL AXLE GRAISSAGE DU PIVOT DE PONT 69-1
1170 MAIN PIPING PRINCIPALES CONDUITES 70
1180 CONTROL VALVE PIPING-2 SPOOL(GRESEN) CANALISATIONS PRINCIPALES 74
1181 CONTROL VALVE PIPING-2 SPOOL(TOSHIBA) CANALISATIONS PRINCIPALES 77-1
1190 CONTROL VALVE PIPING-3 SPOOL(GRESEN) CANALISATIONS PRINCIPALES 78
1191 CONTROL VALVE PIPING-3 SPOOL(TOSHIBA) CANALISATIONS PRINCIPALES 81-1
1200 PILOT PIPING-2 SPOOL STD.(GRESEN) CANALISATIONS PILOTE 82
1201 PILOT PIPING-2~~ST~~~l~OK IS ~~1!:Wl~~~’c1f>(5NL y_ 85-1
1210 PILOT PIPING-3 S ~U~§~ f\ND s~t,~~<i\,~ y BE 86
MEGA250-3 OUTDATED. ALWAYS USE THE
1211 PILOT PIPING-3 SPOOL OPT.(TOSHIBA) CANALISATIONS PILOTE 8~1
1220 STEERING PIPING CANALISATION DE PILOTAGE 90
1221 STEERING PIPING CANALISATION DE PILOTAGE 91-1
1230 BRAKE PIPING CANALISATIONS DE FREIN 92
1235 BRAKE PIPING-LOCAL AXLE CANALISATIONS DE FREIN 95-3
1236 BRAKE PIPING-LOCAL AXLE CANALISATIONS DE FREIN 95-9
1240 GREASE PIPING LUBRIFICATION 96
1250 REMOTE PRESSSURE PIPING CONDUITES 98
1255 LOAD ISOLATION SYS.(LIS)-OPT.(GRESEN) CANALISATIONS DU SYSTEME LIS 100
1256 LOAD ISOLATION SYS.(LIS)-OPT.(TOSHIBA) CANALISATIONS DU SYSTEME LIS 101-1
1260 HEATER PIPING CANALISATIONS DE CHAUFFAGE 102
1270 COOLING SYSTEM SYSTEME DE REFROIDISSEMENT 104
1280 FLOOR PLATE ASS’Y TOLE DE PLANCHER 108
1281 FLOOR PLATE ASS’Y-STEEL TOLE DE PLANCHER 111-1
1285 SEAT SIEGE 111-5
1286 SEAT SIEGE 111-7
1290 CONTROL STAND ASS’Y ENSEMBLE DE CONSOLE 112
1291 CONTROL ST AND ASS’Y-STEEL ENSEMBLE DE CONSOLE 115-1
1300 FRONT PANNEL ASS’Y ENSEMBLE DE PANNEAU 116
1301 FRONT PANNEL ASS’Y-STEEL ENSEMBLE DE PANNEAU 117-1
1310 COVER ASS’Y ENSEMBLE DE COUVERCLE 118
1311 COVER ASS’Y-STEEL ENSEMBLE DE COUVERCLE 11~1
1320 CAB MOUNTING ENSEMBLE DE CABINE 120
1330 CAB(l) CABINE 122
1331 CAB(l)-STEEL CABINE 125-1
1340 CAB(2) CABINE 126
1341 CAB(2)-STEEL CABINE 12~1
1350 CAB(3) CABINE 130
1351 CAB(3)-STEEL CABINE 131-1
1360 STEERING ASS’Y ENSEMBLE DE DIRECTION 132
1370 ENGINE CONTROL SYSTEME D’ACCELERATION DU MOTEUR 136
1380 FRONT LAMP SUPPORT SUPPORT DE PHARES 138
1390 COUNTERWEIGHT & BATTERY BOX-STD. CONTRE-POIDES ET COFFRE A BATTERIE 140
1400 COUNTER WEIGHT & BATTERY BOX-OPT. CONTRE-POIDES ET COFFRE A BATTERIE 142
1410 ENGINE COVER ENSEMBLE MOTEUR COUVERCLE 144
1420 FENDER LADDER ENSEMBLE DE GARDE-BOUE,ECHELLE 146
1430 ELECTRIC PARTS(l)-GAUGE PANEL EQUIPMENT ELECTRIQUE 152
1440 ELECTRIC PARTS(2)-SWITCH BOX EQUIPMENT ELECTRIQUE 154
1450 ELECTRIC PARTS(3)-ELECTRIC BOX EQUIPMENT ELECTRIQUE 156
1460 ELECTRIC PARTS(4)-CABIN EQUIPMENT ELECTRIQUE 160
1470 ELECTRIC PARTS(5)-BA TTERY EQUIPMENT ELECTRIQUE 162
1480 ELECTRIC PARTS(6)-ENGINE RELATED EQUIPMENT ELECTRIQUE 164
1485 ALTERNATOR ALTERNATEUR 165-1
1490 ELECTRIC PARTS(7)-FRONT PARTS EQUIPMENT ELECTRIQUE 166
1500 ELECTRIC PARTS(8)-RELATED PARTS EQUIPMENT ELECTRIQUE 168 (
1510 ELECTRIC WIRING EQUIPMENT ELECTRIQUE 170
1520 AIRCONDITIONER CLIMATISATION 174
1530 AIR HANDLING UNIT REFRIGERATION
(THIS PARTS BOOK IS FOR REFERENCE ONLY.
178
MEGA250·3 PART NUMBERS AND SERAIL NUMBERS MAY BE
OUTDATED. ALWAYS USE THE ONLINE PARTS SYSTEM)
1540 FENDER ASS’Y-FOR GERMAN ENSEMBLE DE GARDE 179-1
e FRONT PARTS
Fig. 2100 EQUIPMENT FRONTAL
LOADER
2101 LOADER EQUIPMENT FRONTAL
2110 ARM RAISE KICK OUT CAPTEUR DE POSITION
2120 ARM FLOAT KICK OUT CAPTEUR DE POSITION
2130 RETURN TO DIG POSITIONNEUR DE GODET
2140 BUCKET-2.4M3-2. 7 4m GODET
2150 BUCKET-2.4M3-2.74m GODET
2160 EMERGENCY STEERING PIPING CONDUITES DE DIRECTION
2170 PALLETE FORK FOURCHE$ A PALETTES
2180 ROTATING BEACON FEU DE CIRCULATION
2190 NOISE REAR COVER COUVERCLE
2200 DEFROSTER DEGELEMENT
2210 ELECTRIC PARTS-CE OPT EQUIPMENT ELECTRIQUE
2220 LOG FORK PIPING CONDUITES DE PINCES
2230 BUCKET-2 .5m3(TOOTH) GODET
2240 BUCKET-2.5m3(EDGE) GODET
2250 DOUBLE FUEL FILTER FILTRE A GAZOLE
2260 BUCKET-2. 7m3(TOOTH) GODET
2270 BUCKET-2. 7 m3(EDGE) GODET
e HYDRAULIC COMPONENTS
Fig. 3100 ENGINE CONNECTION RACCORD MOTEUR
3110 INPUT ENTREE
3120 GEARBOX HOUSING CARTER DE BOITE DE VITESSE
3130 LAY SHAFT ECLA TE D’ARBRE
3140 CLUTCH ASS’Y(KV +Kl)( l) ENSEMBLE D’EMBRA YAGE
3150 CLUTCH ASS’Y(KV+K2)(2) ENSEMBLE D’EMBRA YAGE
3160 CLUTCH ASS’Y(K4+K3)(3) ENSEMBLE D’EMBRAY AGE
3170 OUTPUT SORTIE
3180 SEALING CAP BA<!;UE ET ANCH
3190 POWER TAKE-OFF PRISE MOUVENT
3200 GEAR SHIFT SYSTEM( l) SYSTEME DE BOITE ETAGEE
3210 GEAR SHIFT SYSTEM(2) SYSTEME DE BOITE ETAGGE
3220 PRESSURE REGULATOR REGULA TEUR DE PRESSION 240
3230 FILTER & EMERGENCY STEER PUMP CAP FILTER,CHAPEAU 242
3240 INDUCTIVE TRANSMITTER CAPTEUR IMPLUS 244
3250 SPEED REMPLISS 246
3260 OIL PIPE(l) CONDUITE D’HUILE 248
3270 OIL PIPE(2) CONDUITE D’HUILE 250
3280 LOOSE PARTS PIECE DETACHEE 252
3300 FRONT AXLE ENSEMBLE DU PONT AVANT 254
3305 FRONT AXLE-LOCAL ENSEMBLE DU PONT AVANT 255-1
3310 FRONT DIFFERENTIAL GEAR ENSEMBLE DU DIFFERENCIEL A VANT 256
3315 FRONT DIFFERE~\4~’°R~OK IS F 0~~~-lfJ’e:!\!iafil9~L A VANT 259-1
3320 FRONT PLANE~’REr™MBERS 1\ND SERF•ft-!§~~~~~lf~VANT 260
3325 FRONT PLANET ARY GEAR-LOCAL ENSEMBLE DU REDUCTEUR AVANT 264
3330 PARKING BRAKE DISC & SUPPORT FREIN DE PARKING 265-1
3335 PARKING BRAKE DISC & SUPPORT-LOCAL FREIN DE PARKING 266
3340 REAR AXLE ENSEMBLE PONT ARRIERE 267-1
3345 REAR AXLE-LOCAL ENSEMBLE PONT ARRIERE (
268
3350 REAR DIFFERENTIAL GEAR ENSEMBLE DU DIFFERENCIEL ARRIERE 271-1
3355 REAR DIFFERENTIAL GEAR-LOCAL ENSEMBLE DU DIFFERENCIEL ARRIERE
272
3360 REAR PLANETARY GEAR ENSEMBLE DU REDUCTEUR ARRIERE
275-1
3365 REAR PLANETARY GEAR-LOCAL ENSEMBLE DU REDUCTEUR ARRIERE
3370 MAIN PUMP POMPE PRINCIPALE
276
3380 STEERING PUMP POMPE DE DIRECTION
278
3381 STEERING PUMP POMPE DE DIRECTION
279-1
3390 PRIORITY VALVE SOUPAPE DE PRIORITE 280
3400 CUSHION VALVE SOUPAPE DE SECVRITE 282
3410 STEERING CYLINDER VERIN DE DIRECTION 284
3420 STEERING CYLINDER-R.H VERIN DE DIRECTION 286
3430 BUCKET CYLINDER VERIN DE GODET 288
3440 LIFT CYLINDER-L.H VERIN DE LEVAGE GAUCHE 290
3450 LIFT CYLINDER-R.H VERIN DE LEV AGE DROIT 292
3460 UNLOADER VALVE SOUPAPE DE DECHARGE 295
3461 UNLOADER VALVE SOUPAPE DE DECHARGE 295-1
3470 BRAKE & PILOT SUPPLY VALVE SOUPAPE DE DISTRIBUTION DE FREINAGE 296
3480 SOLENOID VALVE FOR LIS. SOUPAPE A SOLENOIDE 300
3481 SOLENOID VALVE FOR LIS. SOUPAPE A SOLENOIDE 301-1
3490 PILOT OPTION SOLENOID VALVE DISTRIBUTEUR ALIMENTATION 302
3500 CONTROL VALVE TIROIR DE COMMANDE 304
3501 CONTROL VALVE-2 SPOOL(TOSHIBA) TIROIR DE COMMANDE 305-1
3505 CONTROL VALVE-3 SPOOL(TOSHIBA) TIROIR DE COMMANDE 305-5
3510 INLET & OUTLET COVER ENTREE,SORTIE COUVERCLE 306
3520 WORK SECTION-BUCKET ,OPTION PLUNGEUR-GODET ,OPTIONNEL 308
3530 WORK SECTION-BOOM PLUNGEUR-FLECHE 310
3540 PILOT VALVE VANNE PILOTE 313-1
3541 PILOT VALVE VANNE PILOTE 313-3
3550 FRONT AXLE-SUPER MAX. ENSEMBLE DU PONT AVANT 313-7
3560 FRONT DIFFERENTIAL GEAR-SUPER MAX. ENSEMBLE DU DIFFERENCIEL AVANT 313-9
3570 FRONT PLANETARY GEAR-SUPER MAX. ENSEMBLE DU REDUCTEUR A VANT 313-13
3580 PARKING BRAKE DISC-SUPER MAX. FREIN DE PARKING 313-17
3590 REAR AXLE-SUPER MAX. ENSEMBLE PONT ARRIERE 313-19
3600 REAR DIFFERENrlAL GEAR-SUPER MAX. ENSEMBLE DU DIFFERENCIEL ARRI ERE 313-21
3610 REAR PLANETARY GEAR-SUPER MAX. ENSEMBLE DU REDUCTEUR ARRIERE 313-25
e OTHER PARTS
Fig. 4100 NAME PLATE-DOMESTIC ~ i!.1- 3:: ~ ¾ 134
4110 NAME PLATE-ENGLISH PLAQUE D’IDENTIFICATION 316
4120 NAME PLATE-EUROPE(LOW NOISE) PLAQUE D’IDENTIFICATION 320 (
4130 TOOLS OUTILLAGE 324
4140 SPARE PARTS PIECES DE RECHANGE 328
• WORLDWIDEcINE’PW(i)RK)oK IS FOR REFERENCE ONLY.
PART NUMBERS AND SERAIL NUMBERS MAY BE
MEGA250-3 OUTDATED.
DAEWOO DOOSAN M250TC-III PARTS MANUAL 4021 – 7127FEF – PDF DOWNLOAD:

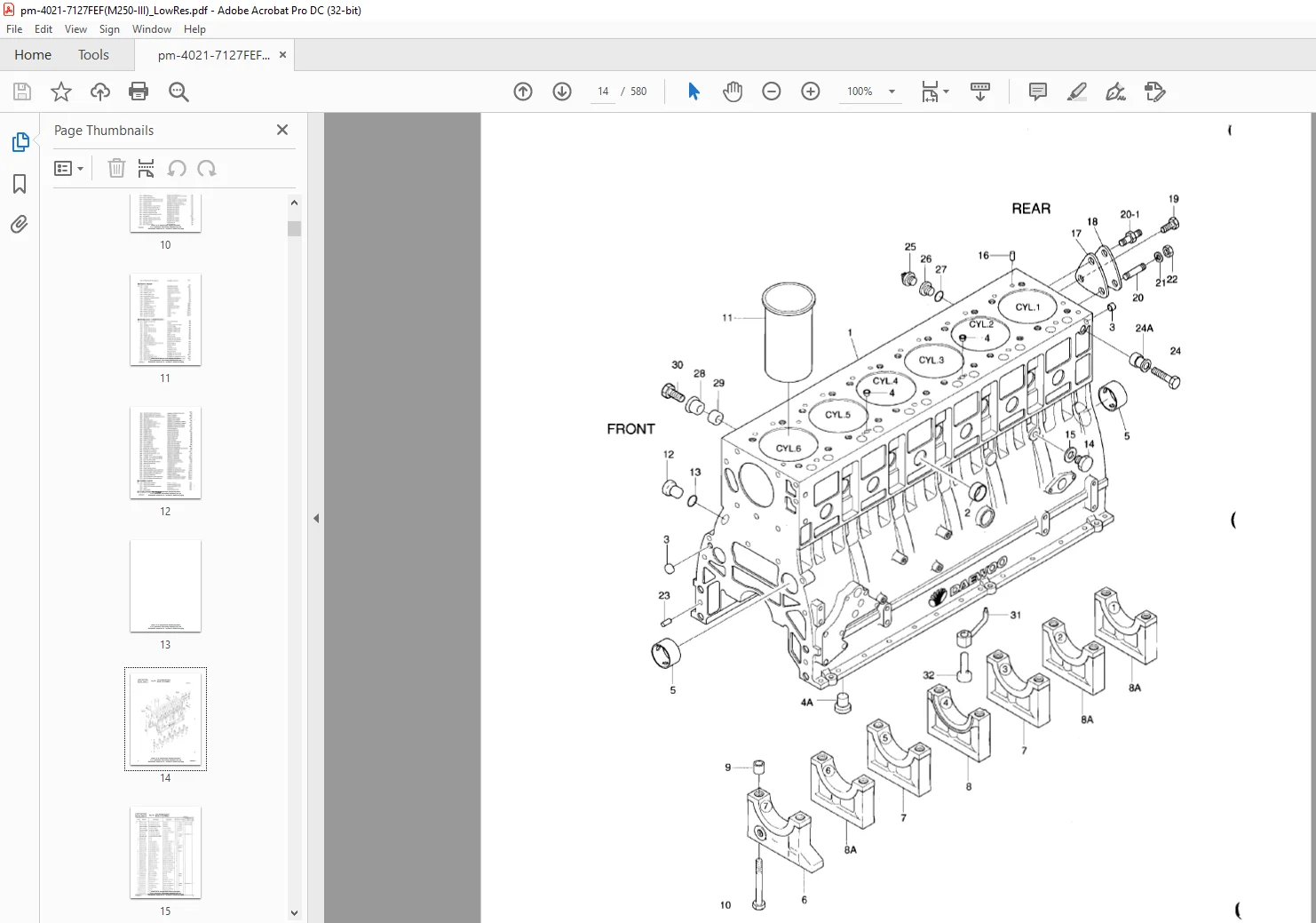

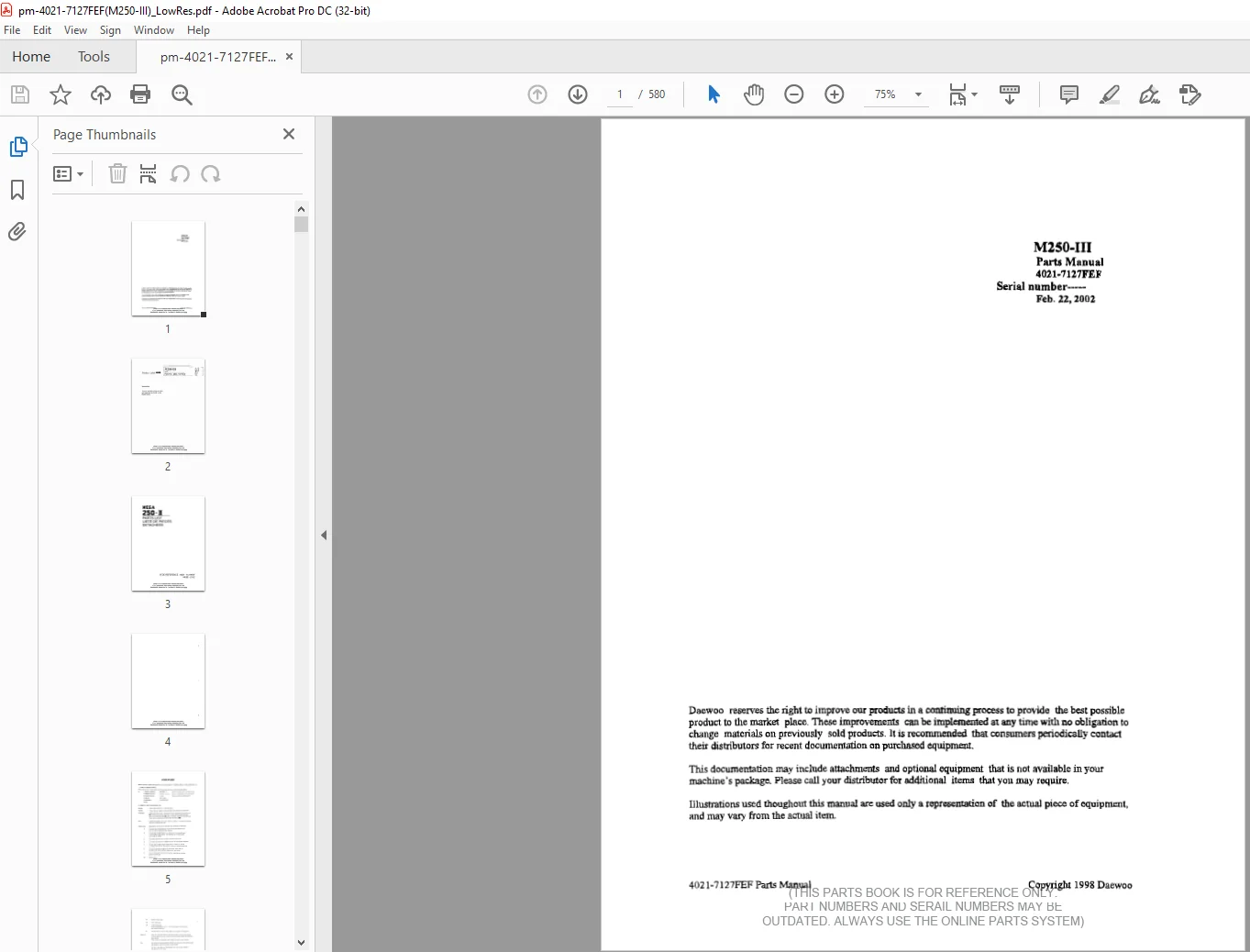

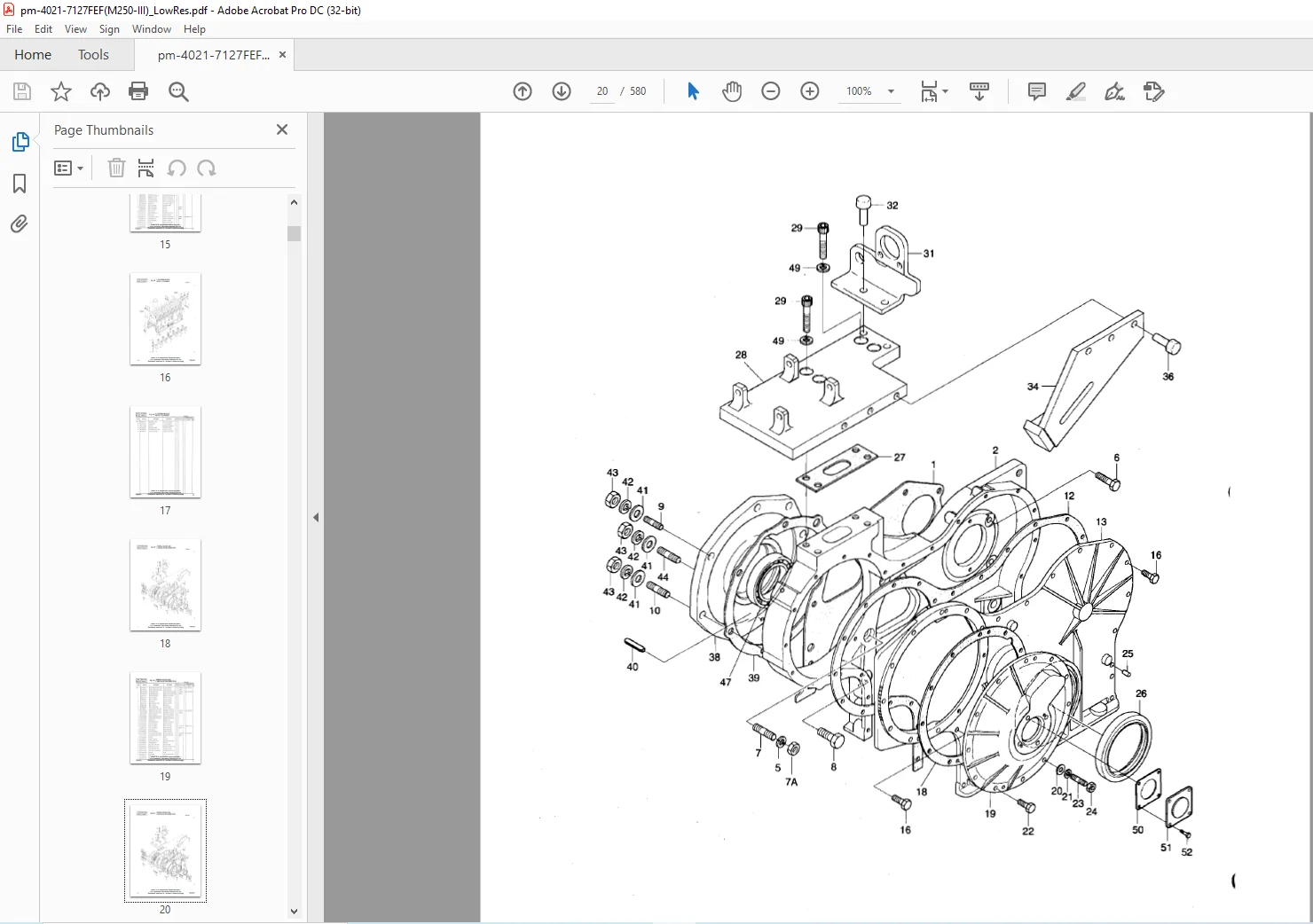

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

 S.M
