Daewoo Doosan M400-III PLUS Parts Manual 4021 – 7145FEF – PDF DOWNLOAD

Description

Daewoo Doosan M400-III PLUS Parts Manual 4021 – 7145FEF – PDF DOWNLOAD

DESCRIPTION:

Daewoo Doosan M400-III PLUS Parts Manual 4021 – 7145FEF – PDF DOWNLOAD

• Daewoo reserves the right to improve our products in a continuing process to provide the best possible product to the market place. These improvements can be implemented at any time with no obligation to change materials on previously sold products.
• It is recommended that consumers periodically contact their distributors for recent documentation on purchased equipment. This documentation may include attachments and optional equipment that is not available in your machine’s package.
• Please call your distributor for additional items that you may require. Illustrations used throughout this manual are used only as a representation of the actual piece of equipment, and may vary from the actual item.

FOREWORD

2. HOW TO USE THIS PARTS LIST.

• Key No. Part No. Description It shows the reference no. on the illustration. It shows the part number of the parts which are included in an illustration. It shows the name of part. Components of an assembly part are shown with [el marks and are shown on the line, or lines. below the assembly part. Qlty Also if the components with [el mark is consists of further components part. These further components are shown with the marks [eel. It shows the quantity use for one machine.
• quantity of components show the quantity for one assembly part. Service code Abbreviations in this column have their own meaning as show below. The parts with this abbreviation shows that the part requires some work on it before installing in the machine. B D The part with this abbreviation is a component of an assembly and is not available independently. The assembly part containing this part should be ordered. K This means that the part is contained in the service part kit.
• M This means that the part is available only with its mating parts altogether. R The part with this abbreviation shows that the quantity of the part is changed depending on the machine, such as an adjusting shim etc. S This part is specially provided as a service part, which was not provided in the machine before shipping from the factory. G This part need grade control and should be requested as the same grade of counter part. OP Optional parts
• (THIS PARTS BOOK IS FOR REFERENCE ONLY. PART NUMBERS AND SERAIL NUMBERS MAY BE OUTDATED. ALWAYS USE THE ONLINE PARTS SYSTEM)
• Serial no. ICA EX Specific design parts. OS Over-sized parts. US Under-sized parts. # (Part with abbreviation “OS” or “US” is described on the line below the standard sized part.) The part with this mark is newly added on that page of the equipment. Serial No. shows the machine serial number which the parts were applied. As to the engine Serial No. shows only engine serial number which the parts were applied.
• Parts without any applicable serial number are used in every machine. ICA shows the interchangeability between the original and the improved parts. Abbreviations used in this column are as follows; Part No. in the column of “Replaceable part” can be used instead of this part but not vice versa. P This must not be used for machine. The part No. in the column “Replaceable part” should be used instead. T Parts No. those in the column of “Replaceable part” can be used as an assembly instead of this part.
• Y This part and the part in the column of “Replaceable part” are interchangeable with each other. Blank : This part has no “Repleaceable part” Replaceable part Interchangeable parts nos. and their required quantity are shown in this column. If interchangeable improved parts are provided for the parts which you may order, the improved parts classified as “I’, “P” T’ or ‘Y” may be supplied. • When repairing, it is recommended to use our standard part. • Researching the assembling parts from

TABLE OF CONTENTS:

Daewoo Doosan M400-III PLUS Parts Manual 4021 – 7145FEF – PDF DOWNLOAD

• ENGINE PARTS
Fig. 011 CYLINDER BLOCK BLOC CYLINDRES
012 TIMING GEAR CASE CARTER DE DISTRIBUTION
013 FLY WHEEL HOUSING CARTER DE VOLANT MOTEUR
014 CRANK SHAFT & PISTON VILEBREQUIN & PISTON
015 CYLINDER HEAD CULLASSE
016 ENGINE TIMING ARBRE A CAMES
017 OIL PUMP POMPE A HUILE
018 OIL FILTER FIL TRE A HUILE
019 OIL COOLER REFROIDISSEUR D’HUILE
020 OIL PAN CARTER D’HUILE
021 COOLING SYSTEM SYSTEME DE VENTILATEUR
022 COOLING WATER PUMP POMPEA EAU
023 INTAKE & EXHAUST MANIFOLD TUBULURE ET COLLECTEUR
024 INJECTION NOZZLE & PIPE BEC ET PIPE D’CINJECTION
025 INJECTION PUMP POMPE D’CINJECTION
026 FUEL FILTER FIL TRE A GAZOLE
027 ALTERNATOR & AIR COMP. MOUNTING MONTAGE DE ALTERNATEUR
028 STARTER DEMARREUR
029 ENGINE MOUNTING MONTAGE POUR MOTEUR
030 OVER HAUL GASKET KIT PIECES DE RECHANGE
eBODYPARTS
Fig. 1100 FRAME CHASSIS
1110 ENGINE MOUNTING MOTEUR
1120 HYDRAULIC OIL TANK RESERVOIR D’HUILE
1121 HYDRAULIC OIL TANK RESERVOIR D’HUILE
1130 FUEL TANK RESERVOIR DE GAZOLE
1140 FUEL PUMP ASS’Y-OPT. POMPE DE GAZOLE
1150 FUEL PIPING CONDUITES D’INJECTION
1160 AXLE & DRIVE SHAFT PONTS ET ARBRES DE TRANSMISSION
1162 AXLE & DRIVE SHAFT-MAX TRAC PONTS ET ARBRES DE TRANSMISSION
1165 AXLE & DRIVE SHAFT-SUPER MAX. TRAC PONTS ET ARBRES DE TRANSMISSION
1170 REAR AXLE PIVOT LUB.PIPING GRAISSAGE DU PIVOT DE PONT
1180 MAIN & STEER PIPING PRINCIPALES ET DIRECTION CONDUITES
1190 CONTROL VALVE PIPING-2 SPOOL STD. CANALISATIONS PRINCIPALES
1200 CONTROL VALVE PIPING-3 SPOOL OPT. CANALISATIONS PRINCIPALES
1210 PILOT PIPING-2 SPOOL STD. CANALISATIONS PILOTE
1220 PILOT PIPING-3 SPOOL OPT. CANALISATIONS PILOTE
1230 BRAKE PIPING(l~THIS PARTS BOOK IS F~~~~g~~Y.
PART NUMBERS 1\ND SERAIL NUMBERS MAY BE
M400·3 PLUS OUTDATED. ALWAYS USE THE ONLINE PARTS SYSTEM)
1232 BRAKE PIPING(2)-LOCAL AXLE CANALISATIONS DE FREIN 116
1240 GREASE PIPING LUBRIFICATION 122
1250 REMOTE PRESSURE PIPING CONDUITES 124
1260 LOAD ISOLATION SYS(LIS)-OPT. CANALISATIONS DU SYSTEME LIS 126
1270 EMERGENCY STEERING PIPING-OPT. CANALISATION DE PILOTAGE 128
1280 HEATER PIPING CANALISATIONS DE CHAUFFAGE 132 i
1290 COOLING SYSTEM SYSTEME DE REFROIDISSEMENT 134
1300 CAB MOUNTING ENSEMBLE DE CABINE 138
1310 CAB(l) CABINE 140
1320 CAB(2) CABINE 144
1330 CAB(3) CABINE 148
1340 FLOOR PLATE ASS’Y TOLE DE PLANCHER 150
1345 SEAT SIEGE 153-1
1346 SEAT SIEGE 153-3
1350 CONTROL STAND ASS’Y ENSEMBLE DE CONSOLE 154
1360 FRONT PANNEL ASS’Y ENSEMBLE DE PANNEAU 158
1370 COVER ASS’Y ENSEMBLE DE COUVERCLE 160
1380 STEERING ASS’Y ENSEMBLE DE DIRECTION 162
1390 ENGINE CONTROL SYSTEME D’ACCELERATION DU MOTEUR 166
1400 FRONT LAMP SUPPORT SUPPORT DE PHARES 168
1410 COUNTER WEIGHT & BATTERY BOX-STD. CONTRE-POIDES ET COFFRE A BATTERIE 170
1415 COUNTER WEIGHT & BATTERY BOX-OPT. CONTRE-POIDES ET COFFRE A BATTERIE 172
1420 ENGINE COVER ENSEMBLE MOTEUR COUVERCLE 174
1430 FENDER LADDER ENSEMBLE DE GARDE-BOUE,ECHELLE 17•8
1440 ELECTRIC PARTS(l)-GAUGE PANEL EQUIPMENT ELECTRIQUE 180
1450 ELECTRIC PARTS(2)-SWITCH BOX EQUIPMENT ELECTRIQUE 182
1460 ELECTRIC PARTS(3)-CABIN EQUIPMENT ELECTRIQUE 184
1470 ELECTRIC PARTS(4)-ELECTRIC BOX EQUIPMENT ELECTRIQUE 186
1480 ELECTRIC PARTS(5)-BATTERY EQUIPMENT ELECTRIQUE 190
1490 ELECTRIC PARTS(6)-ENGINE RELATED EQUIPMENT ELECTRIQUE 192
1495 ALTERNATOR ALTERNATEUR 193-1
1500 ELECTRIC PARTS(7)-FRONT PARTS EQUIPMENT ELECTRIQUE 194
1510 ELECTRIC PARTS(8)-RELATED PARTS EQUIPMENT ELECTRIQUE 196
1520 ELECTRIC WIRING(l) EQUIPMENT ELECTRIQUE 198
1530 ELECTRIC WIRING(2) EQUIPMENT ELECTRIQUE 200
1540 ELECTRIC WIRING(3) EQUIPMENT ELECTRIQUE 202
1550 AIRCONDITIONER( l) CLIMATISATION 204
1560 AIRCONDITIONER(2) CLIMA TISATION 206
1570 AIR HANDLING UNIT REFRIGERATION 208
1580 ROTATING BEACON-OPTION FEU DE CIRCULATION 210
1590 ELECTRIC PARTS-CE OPT. EQUIPMENT ELECTRIQUE 212
1600 FENDER ASS’Y-FOR GERMAN ENSEMBLE DE GARDE 213-1
• FRONT PARTS
(
Fig. 2100 LOADER EQUIPMENT FRONTAL 214
2101 LOADER EQUIPMENT FRONTAL 215-3
(THIS PARTS BOOK IS FOR REFERENCE ONLY.
PART NUMBERS AND SERAIL NUMBERS MAY BE M400-3 PLUS
OUTDATED. ALWAYS USE THE ONLINE PARTS SYSTEM)
2110 ARM RAISE KICK OUT CAPTEUR DE POSITION 216
2120 ARM FLOAT KICK OUT CAPTEUR DE POSITION 218
2130 RETURN TO DIG POSITIONNEUR DE GODET 220
2140 BUCKET-3.9m3 STD.-TOOTH GODET 222
2141 BUCKET-3.9m3 STD.-TOOTH GODET 223-1
2150 BUCKET-3.5m 3 OPT.-TOOTH GODET 224
2151 BUCKET-3.5m 3 OPT.-TOOTH GODET 225-1
2155 BUCKET-3.5m 3 CUTTING EDGE GODET 225-3
2160 BUCKET-3.9m3 CUTTING EDGE GODET 226
2161 BUCKET-3.9m3 CUTTING EDGE GODET 227-1
2170 BUCKET-3.9m3 CUTTING EDGE GODET 228
2171 BUCKET-3.9m3 CUTTING EDGE GODET 229-1
2180 BUCKET-3.9m 3 OPT.-TOOTH GODET 230
2181 BUCKET-3.9m3 OPT.-TOOTH GODET 231-1
2185 BUCKET-3.9m 3 -GERMAN GODET 231-3
2190 PALLET FORK FOURCHES A PALETTES 232
2200 LOG FORK PIPING-OPT. PINCES 234
2210 FLOOR PLATE ASS’Y-STEEL TOLE DE PLANCHER 236
2220 CONTROL STAND ASS’Y-STEEL ENSEMBLE DE CONSOLE 240
2230 FRONT PANEL ASS’Y-STEEL ENSEMBLE DE PANNEAU 244
2240 COVER ASS’Y-STEEL ENSEMBLE DE COUVERCLE 246
2250 CAB( l )-STEEL CABINE 248
2260 CAB(2)-STEEL CABINE 252
2270 CAB(3)-STEEL CABINE 256
2280 LOW NOISE KIT-OPT. ENSEMBLE DE BASSE BRUIT 257-1
2290 DEFROSTER ASS’Y-OPT. DEGELEMENT 257-5
2300 3rd PIPING-FOR TOOL CONDUITES DE TROISIEME 257-7
2310 DOUBLE FUEL FILTER FILTRE A GAZOLE 257-9
• HYDRAULIC COMPONENTS
Fig. 3100 AIR CLEANER FILTREAAIR 258
3101 AIR CLEANER FILTREAAIR 259-1
3105 ENGINE CONNECTION RACCORD MOTEUR 260
3110 CONVERTER CONVERTEUR 262
3115 INPUT ENTREE 266
3120 GEARBOX HOUSING CARTER DE BOITE DE VITESSE 268
3125 LAYSHAFT ECLA TE D’ARBRE 270
3130 CLUTCH-KV+Kl ( l) ENSEMBLE D’EMBRA YAGE 274
3135 CLUTCH-KR+K2(2) ENSEMBLE D’EMBRA YAGE 282
3140 CLUTCH-K4+K3(3) ENSEMBLE D’EMBRAYAGE 286
3145 OUTPUT SORTIE 290
3150 POWER TAKE OFF( l) PRISE MOUVENT 294
3155 POWER TAKE OFF(2) PRISE MOUVENT 298
3160 GEAR SHIFT SYSTEM(]) SYSTEME DE BOITE ETAGEE 300
3165 GEAR SHIFT SYSTEM(2) SYSTEME DE BOITE ETAGEE 302
3170 PRESSURE OIL(;~ PARTS BOOK IS FO~ St:EP~t6N 304
PART NUMBERS AND SERAIL RS MAY BE
M400-33175 EMERGENCY STEERING PUMP POMPE DE DIRECTION 306
3180 IND. TRANSMITTER CAPTEUR IMPLUS 308
3185 FILTER FILTRE 310
3190 FILLER NECK TUBUL. REMPLISS. ET CONPUTER VIT 312
3193 OIL PIPES CONDUITE D’HUILE 314 (
3195 LOOSE PARTS PIECE DETACHEE 316
3200 FRONT AXLE ENSEMBLE DU PONT AVANT 318
3205 FRONT AXLE-LOCAL ENSEMBLE DU PONT AVANT 320
3270 FRONT DIFFERENTIAL GEAR ENSEMBLE DU DIFFERENCIEL AVANT 322
3215 FRONT DIFFERENTIAL GEAR-LOCAL ENSEMBLE DU DIFFERENCIEL AVANT 326
3220 FRONT PLANETARY GEAR ENSEMBLE DU REDUCTEUR AVANT 328
3221 FRONT PLANETARY GEAR ENSEMBLE DU REDUCTEUR AVANT 331-1
3225 FRONT PLANET ARY GEAR-LOCAL ENSEMBLE DU REDUCTEUR AVANT 332
3230 PARKING BRAKE ENSEMBLE DU FREIN DE PARKING 336
32,35 PARKING BRAKE-LOCAL ENSEMBLE DU FREIN DE PARKING 338
3240 REAR AXLE ENSEMBLE PONT ARRIERE 340
3245 REAR AXLE-LOCAL ENSEMBLE PONT ARRIERE 342
3250 REAR DIFFERENTIAL GEAR ENSEMBLE DU DIFFERENCIEL ARRIERE 346
3255 REAR DIFFERENTIAL GEAR-LOCAL ENSEMBLE DU DIFFERENCIEL ARRIERE 348
3260 REAR PLANET ARY GEAR ENSEMBLE DU REDUCTEUR ARRIERE 352
3261 REAR PLANETARY GEAR ENSEMBLE DU REDUCTEUR ARRIERE 355-1
3265 REAR PLANETARY GEAR-LOCAL ENSEMBLE DU REDUCTEUR ARRI ERE 356
3270 MAIN PUMP POMPE PRINCIPALE 360
3271 MAIN PUMP-VANE POMPE PRINCIPALE 361-1
3280 STEERING PUMP POMPE DE DIRECTION 362
3281 STEERING & PILOT PUMP POMPE DE DIRECTION 365-1
3290 CONTROL VALVE-2 SPOOL-STD. TIROIR DE COMMANDE 366
3300 CONTROL VALVE-3 SPOOL-OPT. TIROIR DE COMMANDE 370
3310 FLOW AMPLIFIER VANNE 374
3320 STEERING UNIT ORBITROL 378
3330 CUSHION VALVE SOUPAPE DE SECVRITE 380
3340 RESTRICTION VA VLE SOUPAPE DE DECHARGE 382
3350 BRAKE & PILOT SUPPLY VALVE SOUPAPE DE DISTRIBUTION DE FREINAGE 384
3360 PILOT OPTION SOLENOID VAL VE SOUPAPE A SOLENOIDE PILOTE 388
3380 EMERGENCY STEERING VALVE-OPT. VANNE DE DIRECTION 390
3390 SOLENOID VALVE FOR LIS. SOUPAPE A SOLENOIDE 392
3391 SOLENOID VALVE FOR LIS. SOU PAPE A SOLENOIDE 393-1
3400 ACCUMULATOR FOR LIS. RESERVOIR 394
3410 STEERING CYLINDER VERIN DE DIRECTION 396
3420 BUCKET CYLINDER-R.H. VERIN DE GODET DROIT 398
3430 BUCKET CYLINDER-LH. VERIN DE GODET GAUCHE 400
3440 LIFT CYLINDER-L.H. VERIN DE LEV AGE GAUCHE 402
3450 LIFT CYLINDER-R.H. VERIN DE LEV AGE DROIT 404 (
3460 PILOT VALVE VANNE PILOTE 405-1
3461 PILOT VALVE VANNE PILOTE 405-3
3470 FRONT AXLE HOO~~TS BOOK IS FOO~fl5~~E ONLY. 405-7
PART NUMBERS AND SERAIL NUMBERS MAY BE
M400-3 PLUS
OUTDATED. ALWAYS USE THE ONLINE PARTS SYSTEM)
3480 FRONT DIFFERENTIAL GEAR-OPT. ENSEMBLE DU DIFFERENCIEL AV ANT
3490 FRONT PLANETARY GEAR-OPT. ENSEMBLE DU REDUCTEUR AVANT
3500 PARKING BRAKE-FRONT AXLE-OPT. FREIN STATIONN
3510 REAR AXLE HOUSING-OPT. CORPS DE PONT
3520 REAR DIFFERENTIAL GEAR-OPT. ENSEMBLE DU DIFFERENCIEL ARRIERE
3530 REAR PLANET ARY GEAR-OPT. ENSEMBLE DU REDUCTEUR ARRIERE
• OTHER PARTS
Fig. 4100 NAME PLATE-DOMESTIC ~ ~ .:r: ~
4110 NAME PLATE-EXPORT PLAQUE D’IDENTIFICATION
4115 NAME PLATE-FOPS CABIN PLAQUE D’IDENTIFICATION
4117 NAME PLA TE-EUPORE PLAQUE D’IDENTIFICATION
4120 TOOLS OUTILLAGE
4130 SPARE PARTS PIECES DE RECHANGE
• WORLDWIDE NETWORK
(THIS PARTS BOOK IS FOR REFERENCE ONLY.
M400-3 PLUS
PART NUMBERS AND SERAIL NUMBERS MAY BE
OUTDATED. ALWAYS USE THE ONLINE PARTS SYSTEM)

Contact us: [email protected]

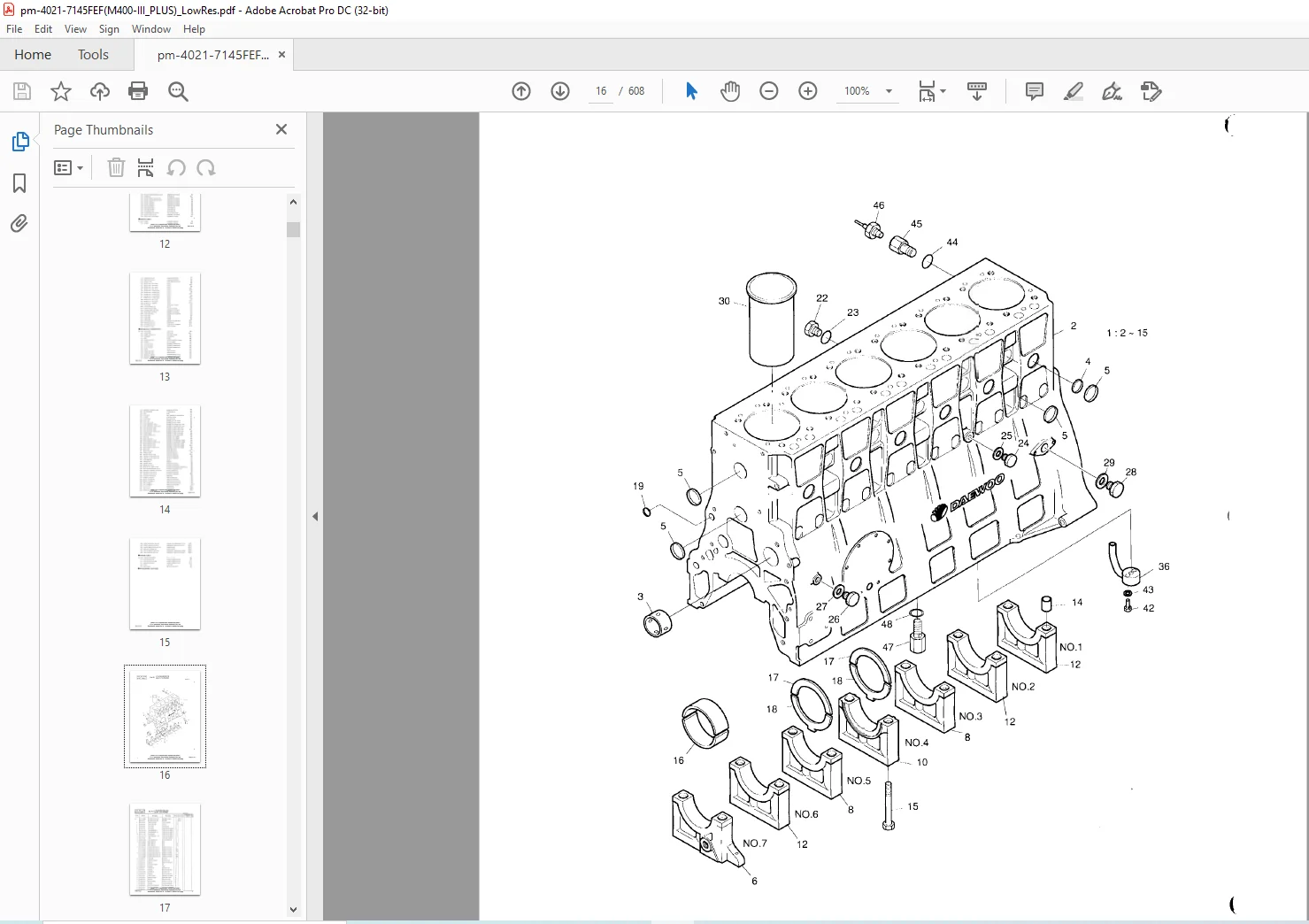

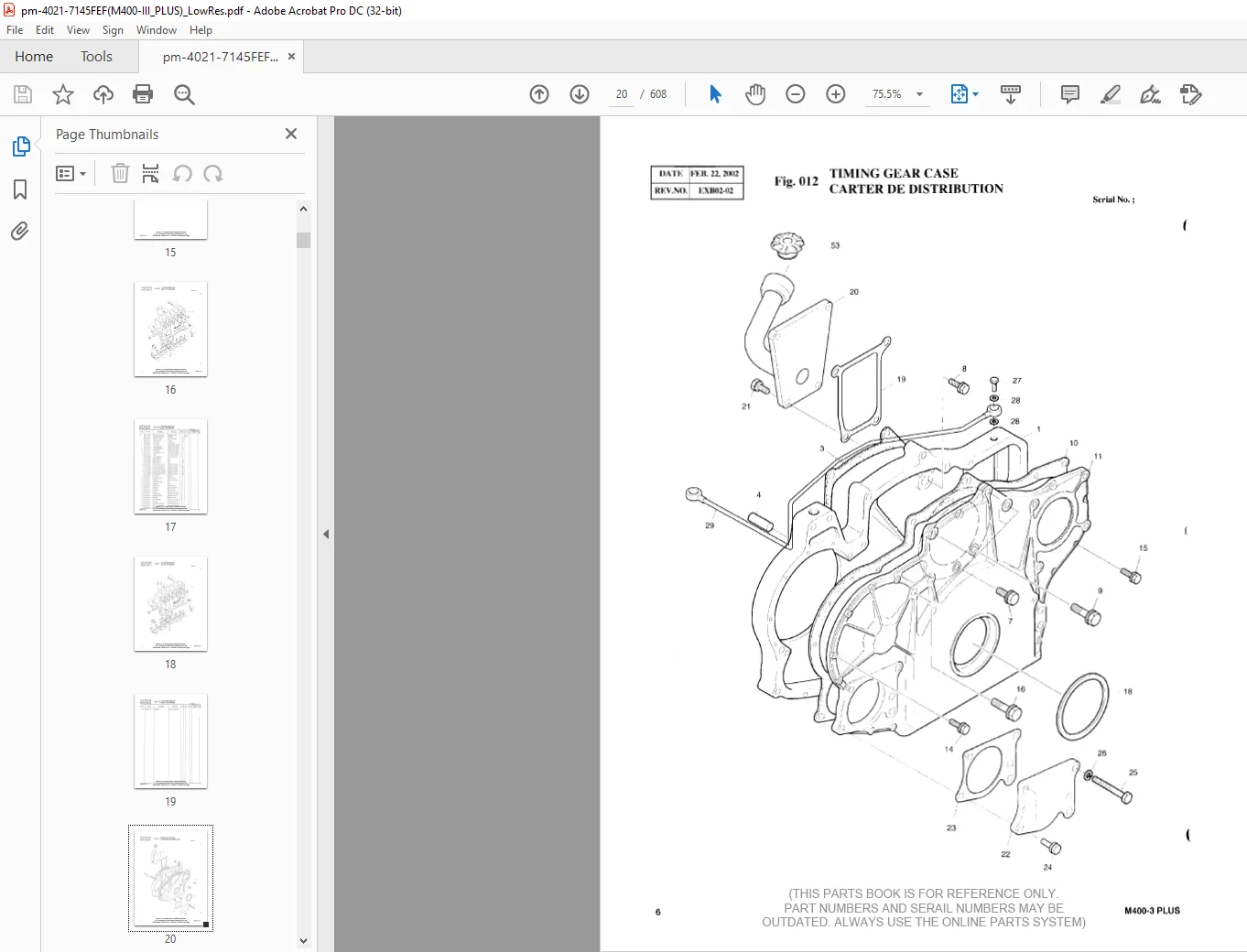

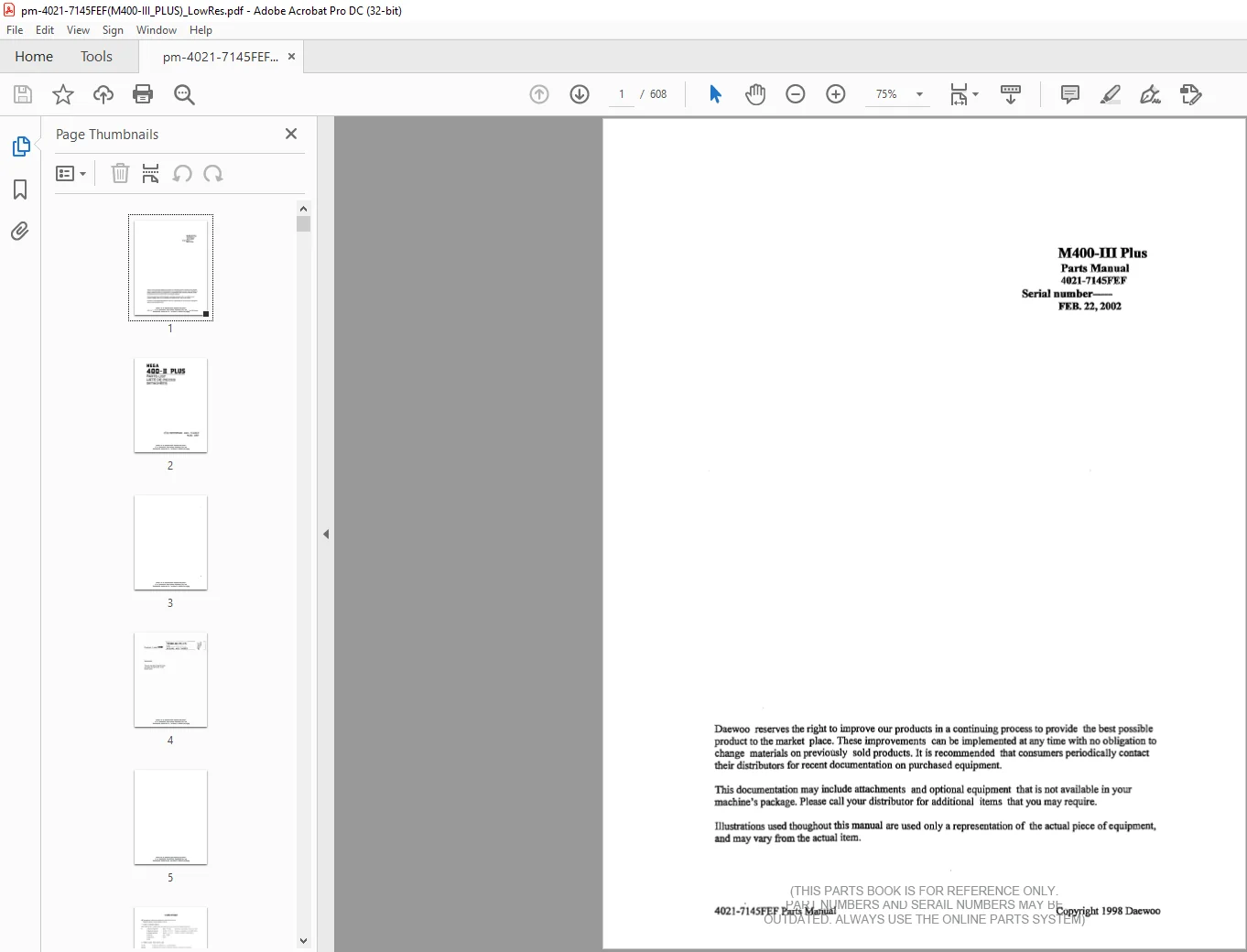

IMAGES PREVIEW OF THE MANUAL:
