Daewoo Doosan Skid Steer Loaders D430 1760XL(DSL802) 2060XL(DSL902) Diesel Engine Service Manual – PDF DOWNLOAD

Description

Daewoo Doosan Skid Steer Loaders D430 1760XL(DSL802) 2060XL(DSL902) Diesel Engine Service Manual – PDF DOWNLOAD

DESCRIPTION:

Daewoo Doosan Skid Steer Loaders D430 1760XL(DSL802) 2060XL(DSL902) Diesel Engine Service Manual – PDF DOWNLOAD

Engine
For Skid Steer Loaders
D430 Diesel Engine
1760XL(DSL802)
2060XL(DSL902)

Important Safety Information :

• Most accidents involving product operation, maintenance and repair are caused by failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing potentially hazardous situations before an accident occurs.
• A person must be alert to potential hazards. This person should also have the necessary training, skills and tools to perform these functions properly. Improper operation, lubrication, maintenance or repair of this product can be dangerous and could result in injury or death.
• Do not operate or perform any lubrication, maintenance or repair on this product, until you have read and understood the operation, lubrication, maintenance and repair information. Safety precautions and warnings are provided in this manual and on the product.
• If these hazard warnings are not heeded, bodily injury or death could occur to you or other persons. The hazards are identified by the “Safety Alert Symbol” and followed by a “Signal Word” such as “WARNING” as shown below.

TABLE OF CONTENTS:

Daewoo Doosan Skid Steer Loaders D430 1760XL(DSL802) 2060XL(DSL902) Diesel Engine Service Manual – PDF DOWNLOAD

Index
Engine
Engine Disassembly…………………………………………..5
Inspection and Repair ………………………………………10
Cylinder Head Inspection……………………………..10
Replacing Combustion Chamber Insert………….10
Valve Spring Inspection ……………………………….10
Valve Inspection ………………………………………….11
Valve Stem and Guide Inspection………………….11
Replacing Valve Guide…………………………………11
Valve Seat Inspection and Refacing ……………..12
Checking Contact between Valve and Valve Seat …12
Rocker Arm and Shaft Inspection ………………….12
Cylinder Block Inspection……………………………..13
Liner Inspection…………………………………………..13
Checking Piston Clearance…………………………..14
Piston and Piston Ring Inspection …………………14
Checking Piston Pin and Bush ……………………..14
Checking Connecting Rod Alignment …………….15
Crankshaft and Bearing Inspection………………..15
Camshaft Inspection ……………………………………16
Checking Idlegear and Spindle……………………..17
Checking Tappet and Guide Clearance ………….17
Checking Push Rod …………………………………….17
Cylinder Liner Repalcement ………………………..18
Engine Assembly …………………………………………….19
Engine Installation …………………………………………..27
Checking Compression Pressure ………………………27
Lubrication System
Lubricating Circuit …………………………………………..28
Oil Pump ……………………………………………………….29
Oil Pressure Relief Valve …………………………………31
Oil Pressure Switch …………………………………………31
Checking Oil Pressure …………………………………….31
Oil Filter …………………………………………………………32
Cooling System
Cooling Circuit …………………………………………………33
Antifreeze Solution …………………………………………..34
Radiator Inspection ………………………………………….34
Thermostat ……………………………………………………..34
Water Pump…………………………………………………….35
“V” Belt and Tension Adjustment ………………………..37
Fuel System
Fuel Flow System…………………………………………….38
Fuel Filter ……………………………………………………….38
Fuel Injection Pump………………………………………….38
Magnet Valve…………………………………………………..44
Fuel Injection Nozzles ………………………………………45
Electrical System
Summary ………………………………………………………..48
Trouble Shooting ……………………………………………..49
Alternator ………………………………………………………..50
Starting Motor………………………………………………….53
Glow Plug ……………………………………………………….58
Glow Plug Relay………………………………………………58
Technical Data…………………………………………………59
Technical Data……………………………………….59

DAEWOO DOOSAN SKID STEER LOADERS D430 1760XL(DSL802) 2060XL(DSL902) DIESEL ENGINE SERVICE MANUAL – PDF DOWNLOAD:

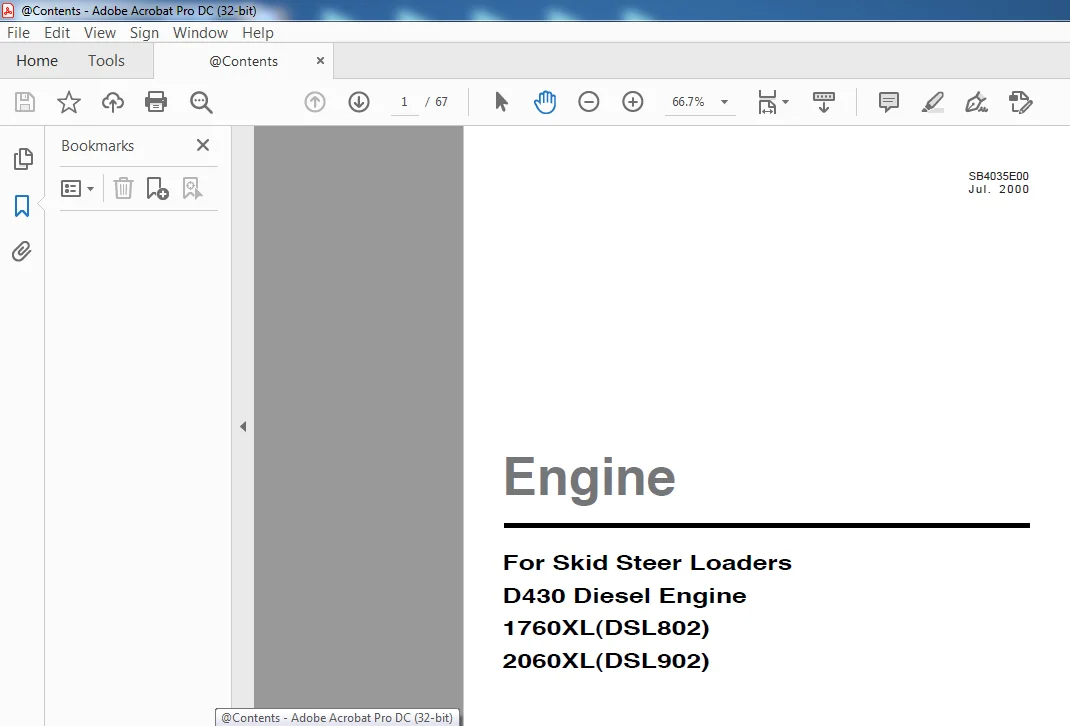

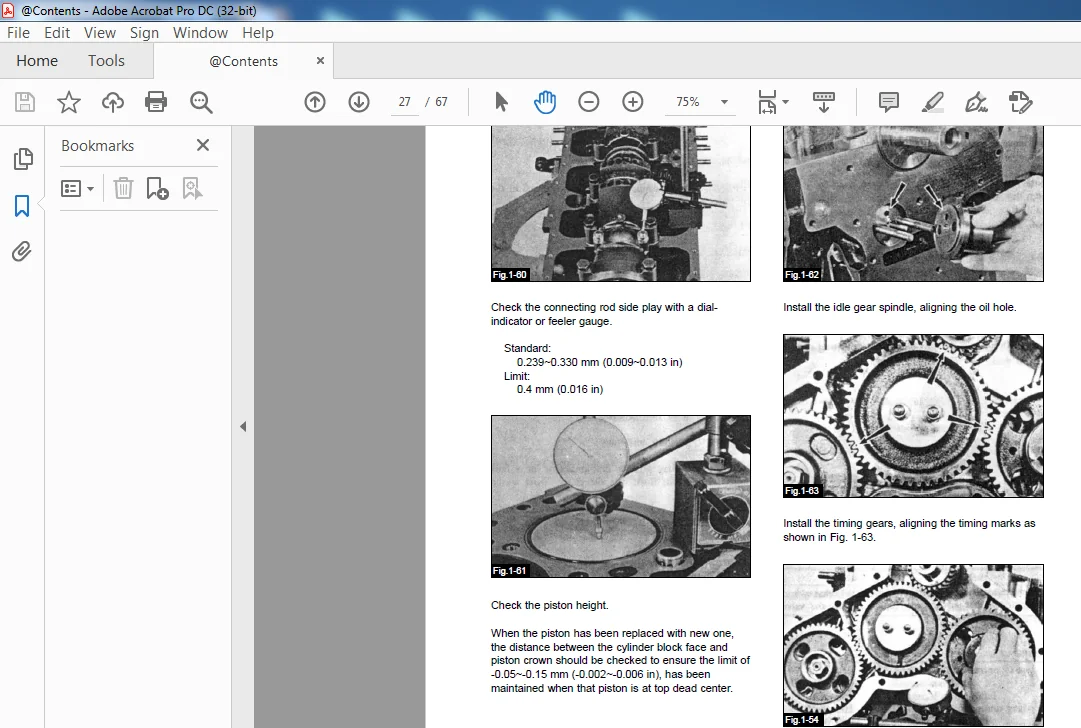

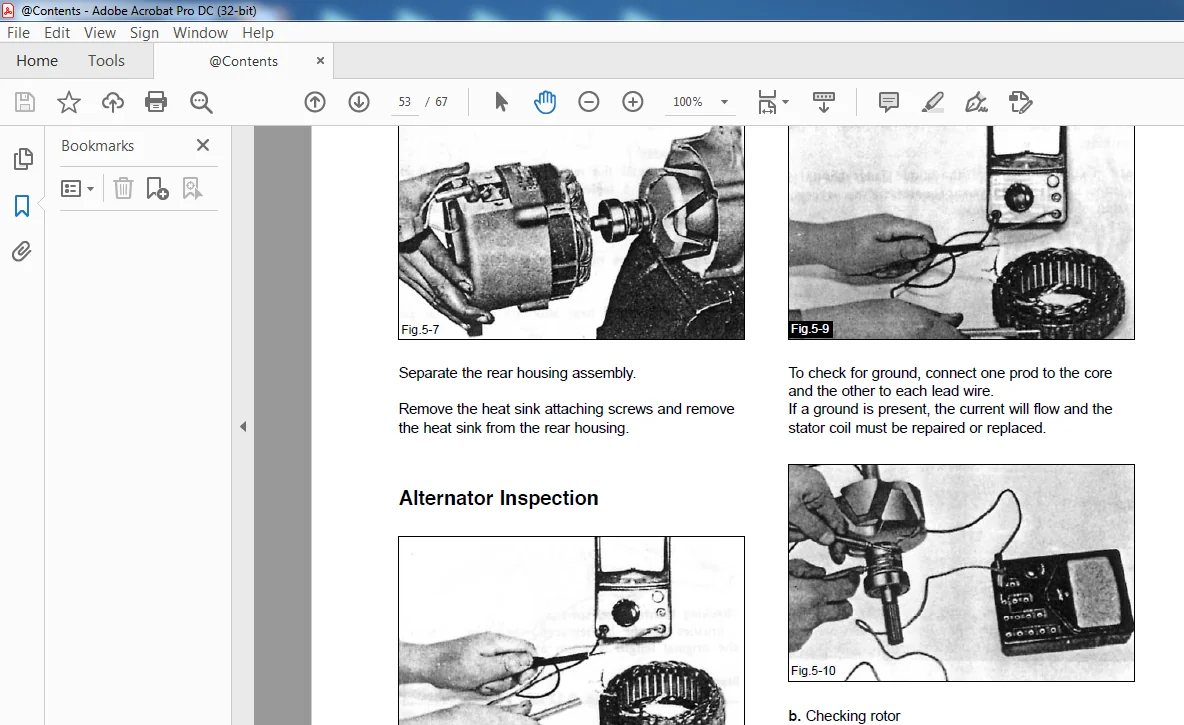

IMAGES PREVIEW OF THE MANUAL:
