Doosan Daewoo Dx225lc Excavator Workshop Parts Manual
FILE DETAILS:
LANGUAGE:ENGLISH
PAGES:700
DOWNLOADABLE:YES
FILE TYPE:PDF
VIDEO PREVIEW OF THE MANUAL:

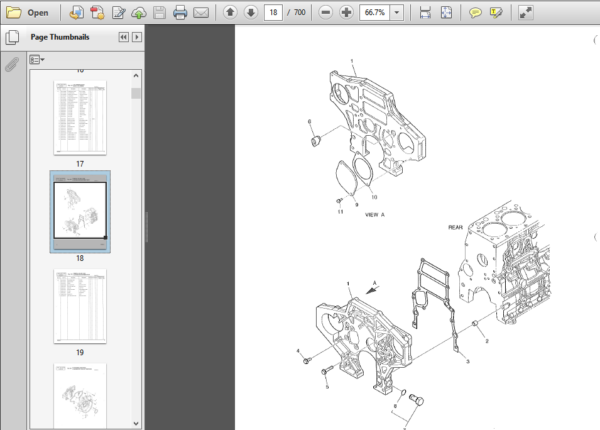

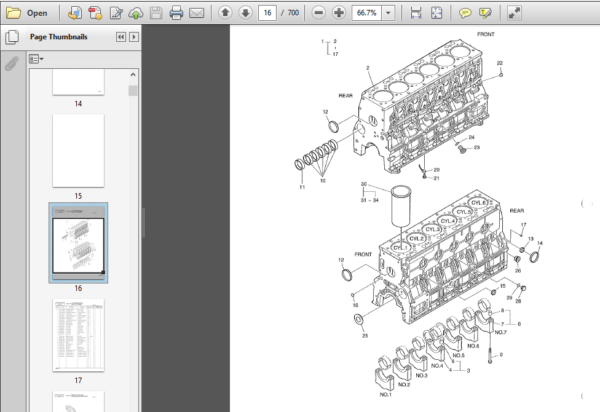

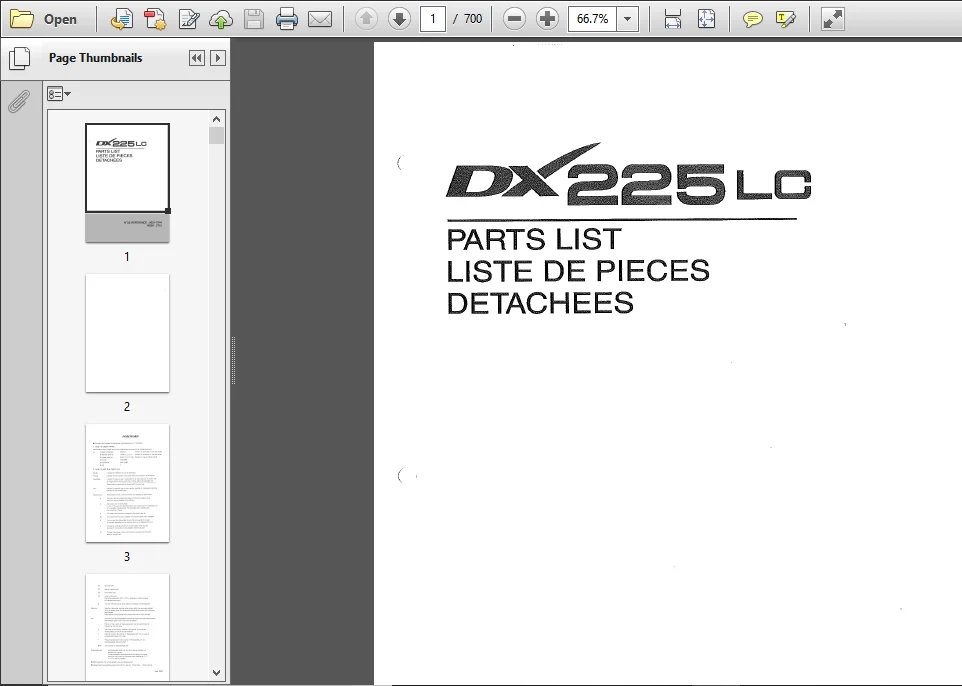

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Doosan Daewoo Dx225lc Excavator Workshop Parts Manual
This parts list is shown the equipment components parts of ‘ DXZZSLCJ .
1. HOW TO ORDER PARTS.
When ordering parts, please specify the follwing items as shown in the following example.
Ex. 1) Model of Machine 2 DX225LC (Shown on name plate on the side cover)
2) Machine Serial No : HEBKOWOOOOO (Shown on nameplate on the bed frame)
3) Engine Serial No 2 DLOSOOOOOOEA (Shown on Engine cylinder block)
4) Part No. 2 K1000698E
5) Description 2 MAIN PUMP
6) Q’ty : 1
2. HOW TO USE THIS PARTS LIST.
Key No. I It shows the reference no. on the illustration.
Part No. I It shows the part number of the parts which are included in an illustration.
Description : It shows the name of part. Components of an assembly part are shown with [0] marks and are shown on the line, or lines, below the assembly part. Also if the components with [a] mark is consists of further components part. These further components are shown with the marks [u].
Qty 2 It shows the quantity use for one machine. quantity of components show the quantity for one assembly part.
Service code : Abbreviations in this column have their own meaning as show below. The parts with this abbreviation shows that the part requires some work on it before installing in the machine.
