DAF CF65 CF75 CF85 Engine Workshop Manual – CE, PE & XE Engine Service & Repair PDF

Description

DAF CF65 CF75 CF85 Engine Workshop Manual – CE, PE & XE Sections

This engine workshop manual covers the DAF CF65, CF75 and CF85 series trucks across three engine families: CE, PE and XE. It is a complete engine service and repair reference, covering the engine itself, its cooling system and its lubrication system, with dedicated diagnostics chapters and full tightening torque data for each family.

File Details

• Manual type: Engine Workshop Manual
• Brand: DAF
• Model series: CF65, CF75, CF85
• Engine families covered: CE, PE, XE
• Language: English
• File format: PDF
• Page count: 400+

Chapters Covered

• 1. CE Engine
• 2. CE-Engine Cooling System
• 3. CE-Engine Lubrication System
• 4. PE Engine
• 5. PE-Engine Cooling System
• 6. PE-Engine Lubrication System
• 7. XE Engine
• 8. XE-Engine Cooling System
• 9. XE-Engine Lubrication System
• Diagnostics: Tractive Problems, CE Engine, PE/XE Engine, Cooling Systems, Lubrication Systems
• Safety Instructions, General, Inspection and Adjustment, Removal and Installation, Cleaning

CE Engine (Chapter 1)

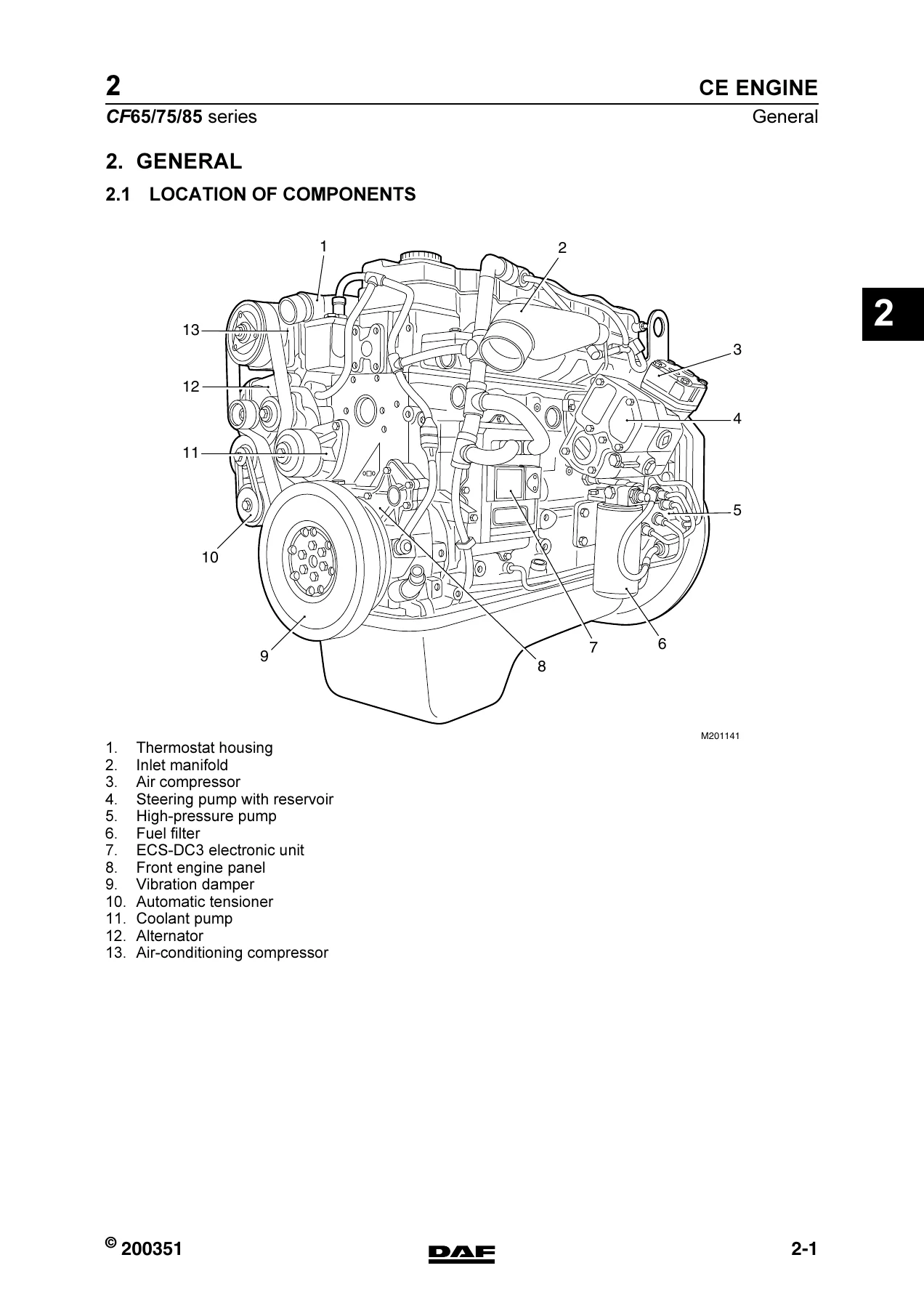

The CE engine chapter opens with general specifications for the CE 136 C, CE 162 C and CE 184 C power units, including bore and stroke (102 x 120 mm), 5.9-litre displacement, compression ratio, injection sequence and output figures. The chapter includes cylinder block and cylinder head flatness limits, cylinder head gasket selection based on average piston projection (1.15 mm or 1.25 mm), cylinder head bolt reuse criteria, valve clearance setting values and gear backlash limits. A dedicated tightening torques section covers starter motor, alternator, air compressor, valve gear, inlet and exhaust manifolds, cylinder head, vibration damper, timing gear, flywheel and flywheel housing fasteners. The cylinder head tightening sequence is illustrated with a numbered bolt pattern and staged torque values.

PE Engine (Chapter 4)

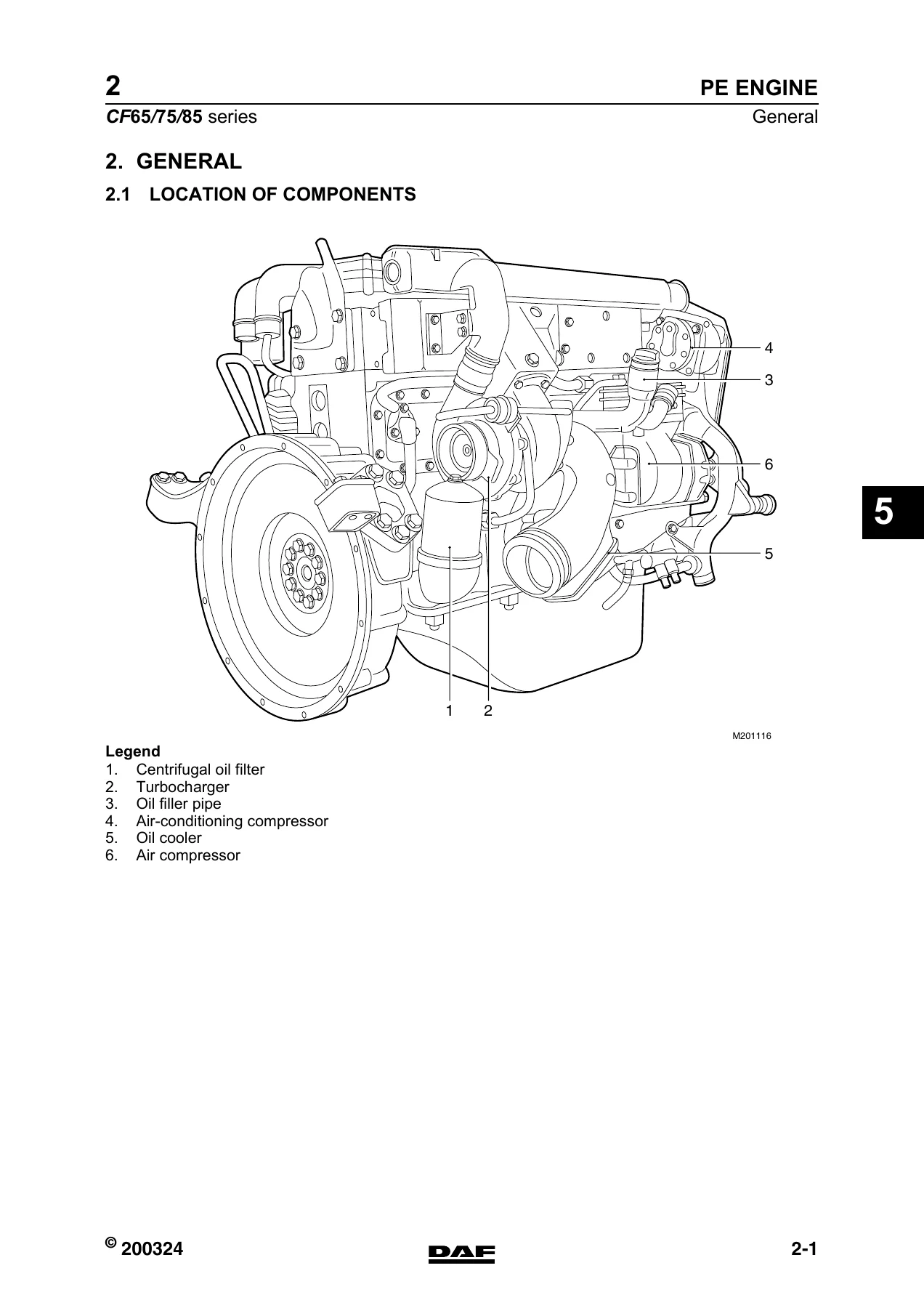

The PE engine chapter covers the PE 183 C1, PE 228 C and PE 265 C engines in detail. It includes cylinder liner protrusion above the block, cylinder head minimum height after overhaul, valve clearance values, crankshaft and camshaft axial play, idler gear backlash, compression pressure limits and flywheel/starter ring gear data. The V-belt tension tables give setting, test, minimum and correction tensions for both multiple and single belts. Tightening torque sections cover the air compressor, exhaust manifold, turbocharger, vibration damper, cylinder head bolts (with the M16/M12 staged procedure and 60-degree angular displacement), timing gear, flywheel housing, engine mountings, and valve gear. The cylinder head bolt procedure includes detailed notes on thread cleaning, sealant handling and the sequence for M16 and M12 bolts.

XE Engine (Chapter 7)

The XE engine chapter covers the XE 250 C1, XE 280 C1, XE 280 C3, XE 315 C1, XE 315 C3 and XE 355 C1 engines. It includes the 130 x 158 mm bore and stroke, 12.6-litre displacement and output ratings. The chapter provides cylinder liner height, cylinder head minimum height, valve clearance, axial play and gear backlash values. V-belt tension data is given for both AVX and XPB raw-edge belts, along with automatic poly-V-belt tensioner settings. Torque tables cover the starter motor, alternator, air compressor, exhaust and inlet manifolds, turbocharger, glow plug relay, main fuse, vibration damper and fan drive, cylinder head attachment bolts, timing gear, flywheel housing, engine mountings, and valve gear including the DEB set screw nut and solenoid valve. The cylinder head tightening sequence is shown with a circular bolt-order diagram.

Cooling Systems (Chapters 2, 5 and 8)

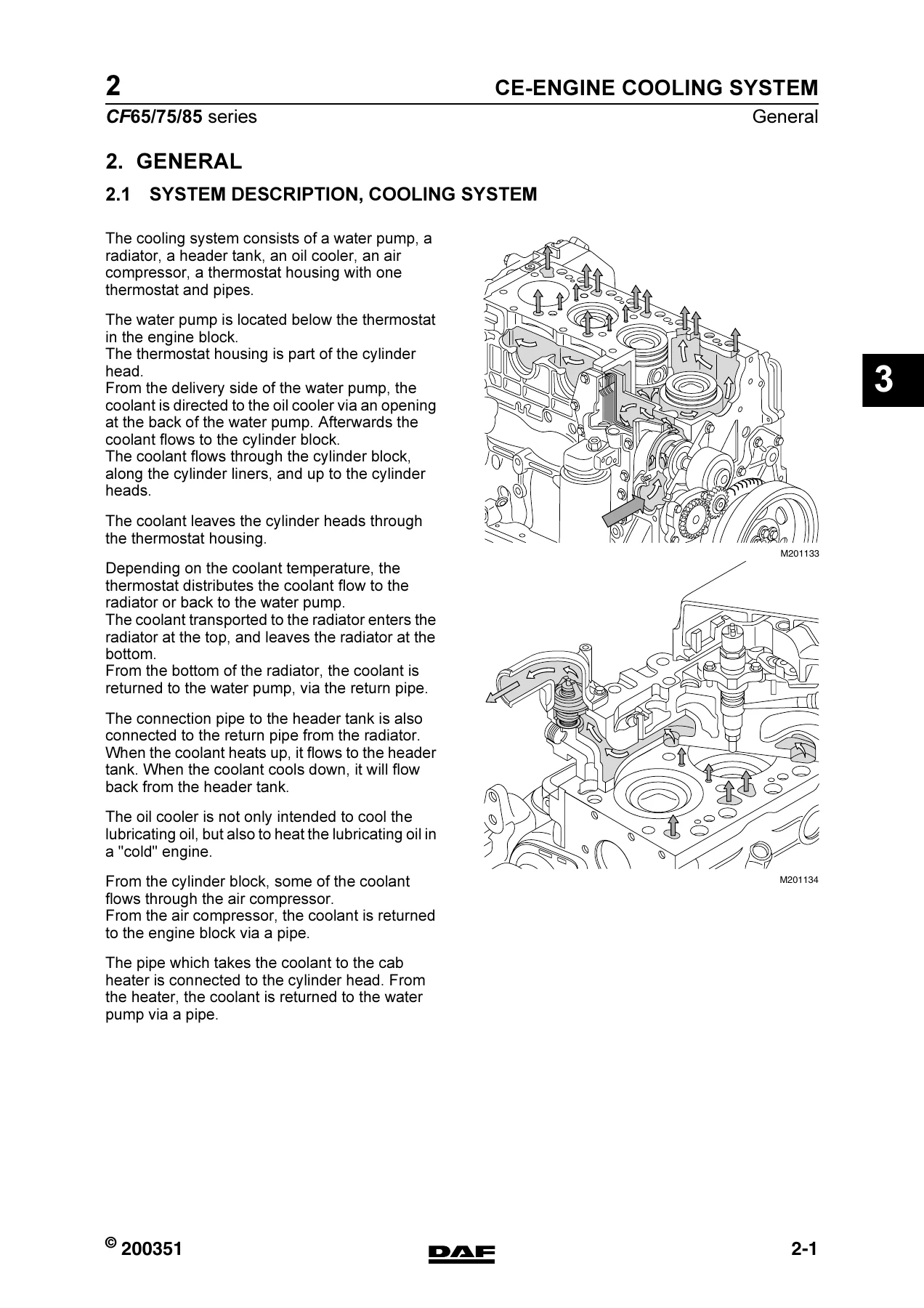

Each engine family has its own cooling system chapter covering the thermostat, pressure cap, viscous fan clutch, coolant pump, radiator and coolant filter where fitted. The CE cooling system chapter gives thermostat opening temperatures (81 degrees C and 94 degrees C), pressure cap relief and underpressure valve settings, and cooling system capacity of approximately 26 litres. The PE chapter covers the PE-specific thermostat settings (87 degrees C and 99 degrees C standard, 83 degrees C and 95 degrees C for intarder or automatic transmission), coolant pump radial play, viscous fan clutch slip limits and a 38-litre standard cooling capacity. The XE chapter includes electronically controlled viscous fan clutch operation, coolant pump radial play, thermostat inspection and cooling system capacity of approximately 47 litres.

Lubrication Systems (Chapters 3, 6 and 9)

The lubrication system chapters cover oil pressure specifications, oil filter type and bypass valve opening pressures, oil cooler test pressures, oil consumption limits and oil pump clearances. The CE lubrication system chapter includes a detailed oil sump pressure conversion table and covers the oil filter, oil cooler, lubricating oil pump, main bearing caps, big-end bearing caps, turbocharger oil supply and oil nozzle torque values. The PE and XE lubrication chapters cover the oil filter element, oil-filter housing, oil cooler, oil sump, oil pump, centrifugal oil filter element and the full engine oil draining and filling procedure with capacity data. The PE/XE lubrication system diagrams show the oil flow path through the pump, cooler, filter and main oil channel.

Diagnostics and Fault-Finding (Diagnostics Section)

A substantial diagnostics section covers tractive problems, acceleration testing, and fault-finding tables for engine functions and vehicle functions across all three engine families. The fault-finding tables list symptoms such as engine starts but does not run, engine stalls and runs again after re-starting, engine starts poorly, engine runs at increased idling speed and does not respond to accelerator pedal, diesel knock during acceleration, irregular running, reduced power at all engine speeds, reduced power above a certain engine speed, white/blue smoke, black smoke, high fuel consumption, reduced maximum engine speed, cruise control does not work, engine cannot be switched off with ignition key, fault indicator lamp issues and no communication with DAVIE. Each symptom is paired with possible causes and remedies, making this a practical diagnostic companion alongside the mechanical procedures.

Inspection and Adjustment, Removal and Installation, Cleaning

Across the CE, PE and XE sections, the manual provides step-by-step inspection and adjustment procedures for valve clearance, timing gear alignment, piston projection, cylinder head bolts, flywheel run-out, engine oil sump pressure, vibration damper thickness, cylinder head and cylinder block flatness, V-belt tension, automatic poly-V-belt tensioner and engine compression pressure. Removal and installation procedures are given for the engine assembly, engine mounts, valve cover, valve sleeve, valve gear, inlet manifold, exhaust manifold, cylinder head, air compressor, steering pump, starter motor, poly-V-belt, alternator, flywheel, starter ring gear, flywheel housing seal, flywheel housing, vibration damper, timing cover, timing gears, timing case, timing case oil seal, front crankshaft seal and front engine panel. Cleaning procedures cover the engine exterior, radiator and air cooler, and the cooling system.

Why This DAF CF65 CF75 CF85 Engine Workshop Manual Matters

Getting the right torque value, the correct tightening sequence or the correct valve clearance is the difference between a repair that lasts and one that comes back. This DAF CF65 CF75 CF85 engine workshop manual gives you the exact figures and procedures for the CE, PE and XE engines, drawn from the same technical data used by professional technicians. Whether you are adjusting valve clearance, replacing a cylinder head gasket, diagnosing a power loss complaint or rebuilding a lubrication system, the specifications and step-by-step instructions are all here.

The fault-finding tables in particular are worth the download on their own. Rather than guessing at a running problem, you can work through the symptom-based tables and narrow down the cause systematically – from poor fuel quality and air in the fuel system through to injector defects, turbocharger issues and pressure relief valve faults. For anyone maintaining or repairing a DAF CF65, CF75 or CF85, this is the reference that keeps the job moving.

IMAGES PREVIEW

Delivered as an instant PDF download, this manual is available immediately after payment. There is no shipping, no waiting and no physical book to lose. Read it on a laptop, tablet or smartphone in the workshop, or print only the pages you need for the job at hand. The PDF format keeps every diagram, table and torque value exactly as it appears in the original document.
