DBC Makina ESD-9 Diamond Core Drill – Spare Parts List

This is the illustrated spare parts catalogue for the DBC Makina ESD-9 Diamond Core Drill, published by DBC Makina Exploration Products with a document date of 2019.07.31. It is the parts reference a workshop, storeman or purchasing officer uses to identify and order the correct component for an ESD-9 rig – not a repair manual, but the document that makes every repair possible, because it tells you exactly which part number belongs to which position on the machine.

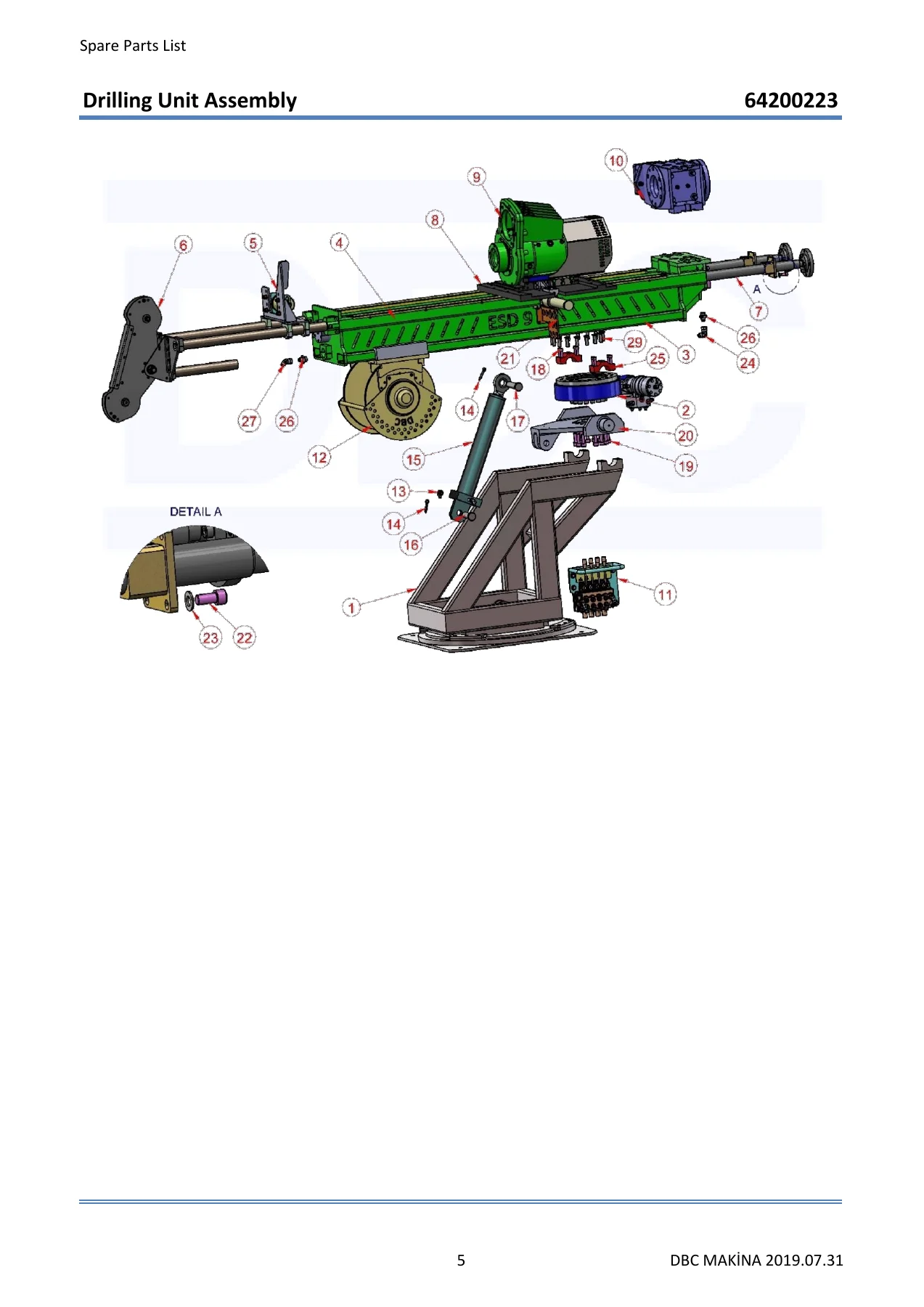

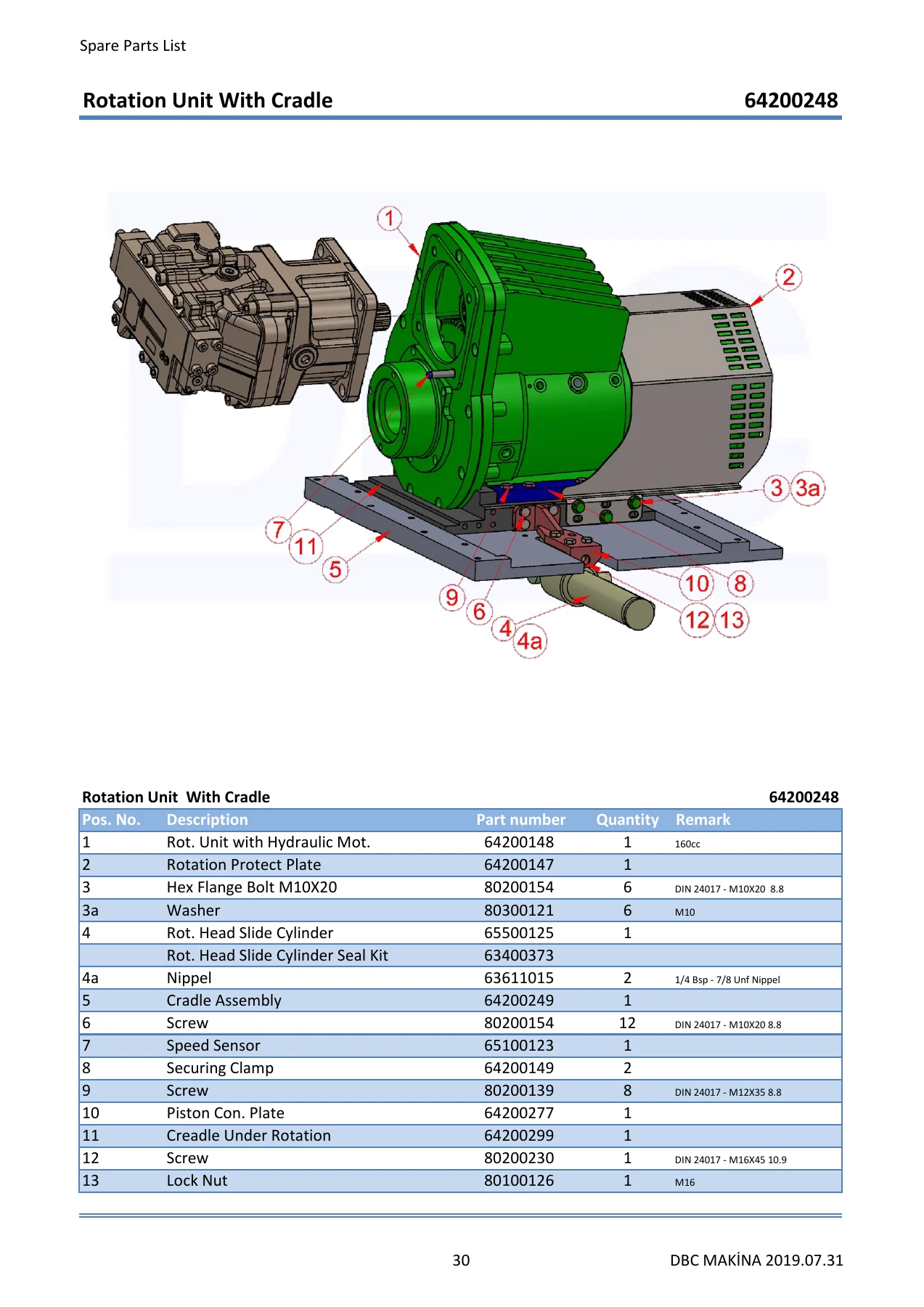

Every major assembly is presented twice: once as a numbered exploded illustration, and once as a table listing position number, description, part number and quantity. That pairing is what makes the DBC ESD-9 spare parts list so practical – you look at the drawing, find the item, then read straight across to the number you need to quote.

File Details

• Manual type: Illustrated Spare Parts List / Parts Catalogue
• Brand / Publisher: DBC Makina Exploration Products
• Machine: ESD-9 Diamond Core Drill
• Document date: 2019.07.31 (DBC Makina 2019)
• Language: English and Italiano (bilingual ordering instructions)
• Page count: 119 pages
• File format: PDF

Ordering Notes Printed in the Document

The catalogue opens with a two-language instruction page that is worth reading before you send any enquiry. It asks the buyer to state the description and part number of the item – explicitly not the reference number – together with the drill type designation and the machine serial number. Parts that sit inside a subassembly are listed immediately underneath that subassembly and are preceded by a dash in the description column, so it is easy to see what is supplied loose and what comes as a complete unit.

Two symbols are used throughout the tables: an asterisk in place of a part number means the item is normally not delivered separately and can only be ordered as part of a kit; a double asterisk marks optional equipment. Hydraulic hoses carry their own instruction – quote the part number plus the hose dimension and length – and the hose listings at the back of the book give the bore, end fittings and length in centimetres for each circuit, including the separate ESD-9 control panel hoses and the crawler hose set.

Chapters Covered

• Ordering instructions (English / Italiano)
• Mast and Feed Frame Assembly 64200223 – stand, worm gear, feed frame holder, feed frame, rod pulley, top pulley, foot assembly, cradle, rotation unit, rod holder, positioner valve, wireline hoist
• Mast and Feed Frame Assembly 64200291 – 1800 mm feed frame variant
• Stand Assembly 64100160 – turntable base, clamps, pins, plates
• Worm Gear Assembly 63300268 – rotary table, valve block, hydraulic motor, fittings
• Feed Frame Holder Assembly 64100234 – frame holder, sliding pads, locking plates
• Feed Beam 850 mm 64200205 – feed beam, clamps, feed cylinder, mast dump cylinder, wear liners, E-stop wire kit
• Feed Beam 1800 mm 64100266 – 1800 mm beam, feed cylinder 1800, mast dump cylinder 1800, wear liner
• Feed Cylinder 850 65500137 – barrel, rod, wear rings, piston seal, end cushion, guide, packing kit
• Feed Cylinder 1800 65500114 – cylinder guides, barrel, rods, end plates, seals, intermediate cushion, packing kit
• Rod Pulley Complete 64200184 – rod centering plate, pulley, locking rod, rod clamp, bearings
• Top Pulley Complete 64100220 and 64100289 (1800) – pulley housing, wireline pulley, bearing, arm, shaft, pipes, variable clamp
• Foot Assembly 64100236 – support screws, plates, feet, liners, lock nuts
• Rotation Unit 1200 Basic 160cc Complete 64200148 – chuck housing, jaws, bearings, pinion, gear, hydraulic motor 160 cc
• Cradle Assembly 64200183 / 64200276 – cradle, sheet bars, slide blocks, sliding pads, locking plates
• Rod Holder Assembly 64200180 – guide sockets, jaw holders, gas spring, bearings, covers
• Gas Spring Assembly 80801085 – seals, piston rod, cylinder, back cover, valve, repair kit
• Positioner Valve Assembly 64200247 – positioner valve 5 sections, levers, dual pilot check valve
• Wireline Hoist Assembly 64200280 – drum, guards, chain drive, gears, level wind screw, roller group
• Control Panel 64200185 – pressure gauges, joysticks, control block, valves, hoses and fittings
• Main and Service Valve Assembly 64200265 – main valve, service valve block, directional valves, covers
• Hydraulic Tank and Power Pack 64200204 / 64200242 / 64200244 – electric motor 90 kW, tank, filters, hand pump, oil cooler
• Oil Cooler Assemblies 64200240 (water) and 64200239 (with hydraulic motor)
• Bulkhead Complete 64200221 and 64200250
• Fuel Tank 64100314 – tank, fuel sensor, cover, elbows
• Crawler Power Unit 64100279 – Lister-Petter engine, coupling set, flange, traction pump assembly
• Traction Pump Assembly 64100275 and Valve Block Complete 64100276
• Jack Assembly 65500138
• Guard Assembly 1800 mm 64100285
• Hydraulic Hoses 63610XXX – ESD-9 hoses, control panel hoses and crawler hoses with dimensions and lengths
• Start Box ESD-9 400V 65100124 – indicator lamps, buttons, contactors, fuses, timers, main switch, power supply, current transformer, logic controller
• Consumables and wear parts – chuck jaws and rod holder jaw kits in BQ, NQ and HQ sizes, top guides and guide bushings

What This Parts List Gives You

Core drills live or die by part identification. A single incorrect seal, guide socket or hydraulic fitting can take a rig out of service for days while the wrong item is returned and the right one is re-ordered. This catalogue removes that risk by tying every component to a position number on an exploded drawing and to a DBC part number you can quote directly.

The depth is unusual for a parts book. The feed cylinders are broken down to individual wear rings, step seals, support rings, rim seals and wipers, and the same seal groups are repeated in dedicated packing kit tables so you can order either the individual seal or the complete kit. The rotation unit runs to over eighty line items covering chuck jaws in BQ, NQ and HQ, bearings, spacers, O-rings, pinion and gear. The wireline hoist is documented down to the level wind screw, roller shaft, spring pin and chain, and the crawler power unit lists the Lister-Petter engine alongside the coupling set, bell housing and traction pump.

The hydraulic section is particularly useful because it does not stop at the fittings. Nipples, elbows, tees, reducers and check valves are all listed with their thread specifications – BSP, UNF and SAE sizes written out in full – and the back of the book carries the complete hose schedule with bore, end fittings and length for the ESD-9, the control panel and the crawler circuits. The electrical start box for the 400 V ESD-9 is itemised part by part as well, from the phase sequence lamp and emergency stop button through to the star-delta timer, contactors and Crouzet logic controller.

Who This PDF Is For

Owners and operators running an ESD-9 on site, workshop fitters rebuilding a feed cylinder or rotation unit, hydraulic technicians tracing a fitting or hose size, and procurement staff who need to raise a purchase order with the right number on it. Because the catalogue covers both the 850 mm and 1800 mm feed frame versions, it stays useful whichever mast configuration your rig carries.
