Dell 2350d 2350dn 3330dn Laser Printer Service Manual PDF
Original price was: $85.00.$18.95Current price is: $18.95.
Official Dell factory service manual (4 Jan 2010) for the Dell 2350d/dn and 3330dn monochrome laser printers. 189-page technician guide with full diagnostics, 200-series paper jam codes, 9xx service errors, fuser/LVPS checks, ESD procedures, removal/replacement FRU illustrations and parts lists.
Description
Dell 2350d 2350dn 3330dn Laser Printer Service Manual PDF DOWNLOAD
Description

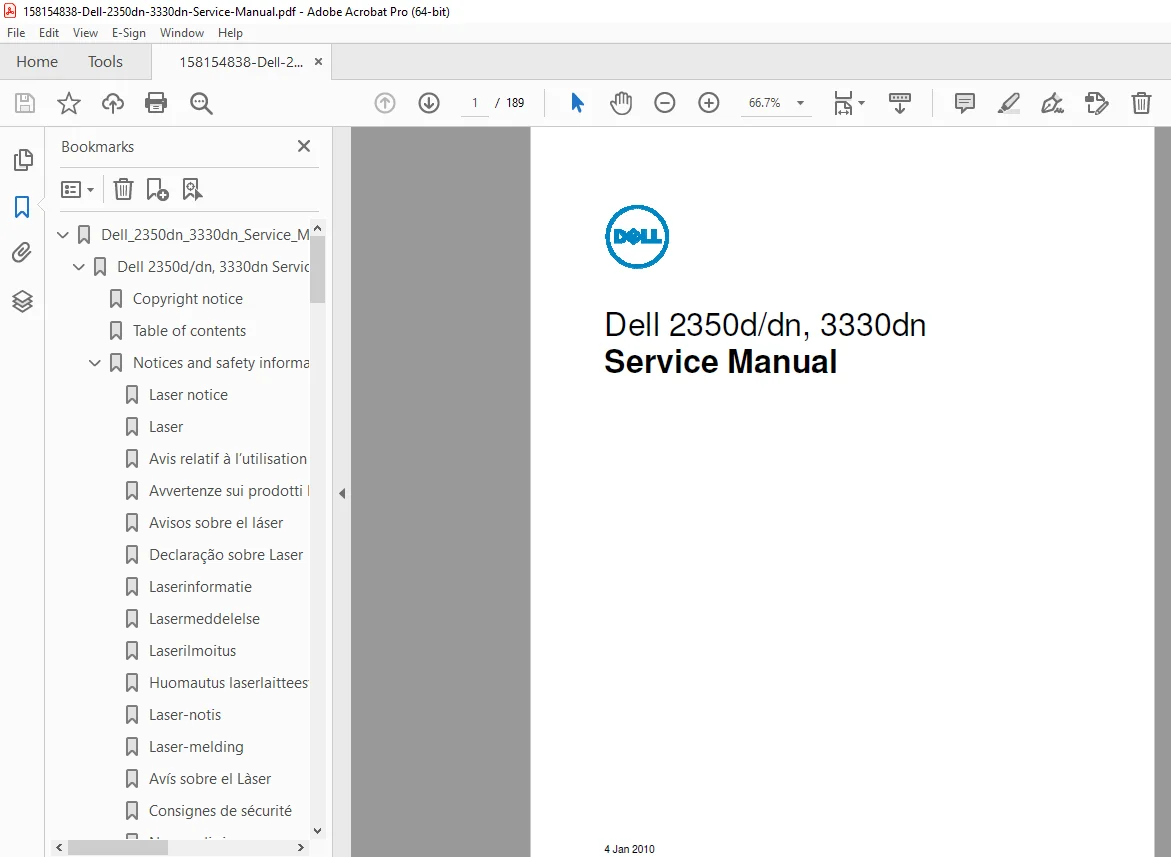

This is the complete Dell 2350d, 2350dn, and 3330dn Monochrome Laser Printer Service Manual dated 4 January 2010 – the official factory-level technical reference used by Dell-authorized service technicians. These printers are rebadged Lexmark E260/E360/E460 series machines, so this manual is also fully applicable to the equivalent Lexmark models (E260d/E260dn, E360d/E360dn, E460dn/E460dw).
The manual provides everything needed for professional-level repair:
- Complete POST and symptom tables
- Detailed 200-series paper jam error codes (exact jam locations)
- 9xx.xx service error code explanations and recovery
- Step-by-step service checks (dead machine, fuser, LVPS/HVPS, main motor, cooling fan, cover interlock, operator panel, paper feed solenoids, etc.)
- ESD-sensitive removal and replacement procedures with exploded views
- Connector locations and pinouts

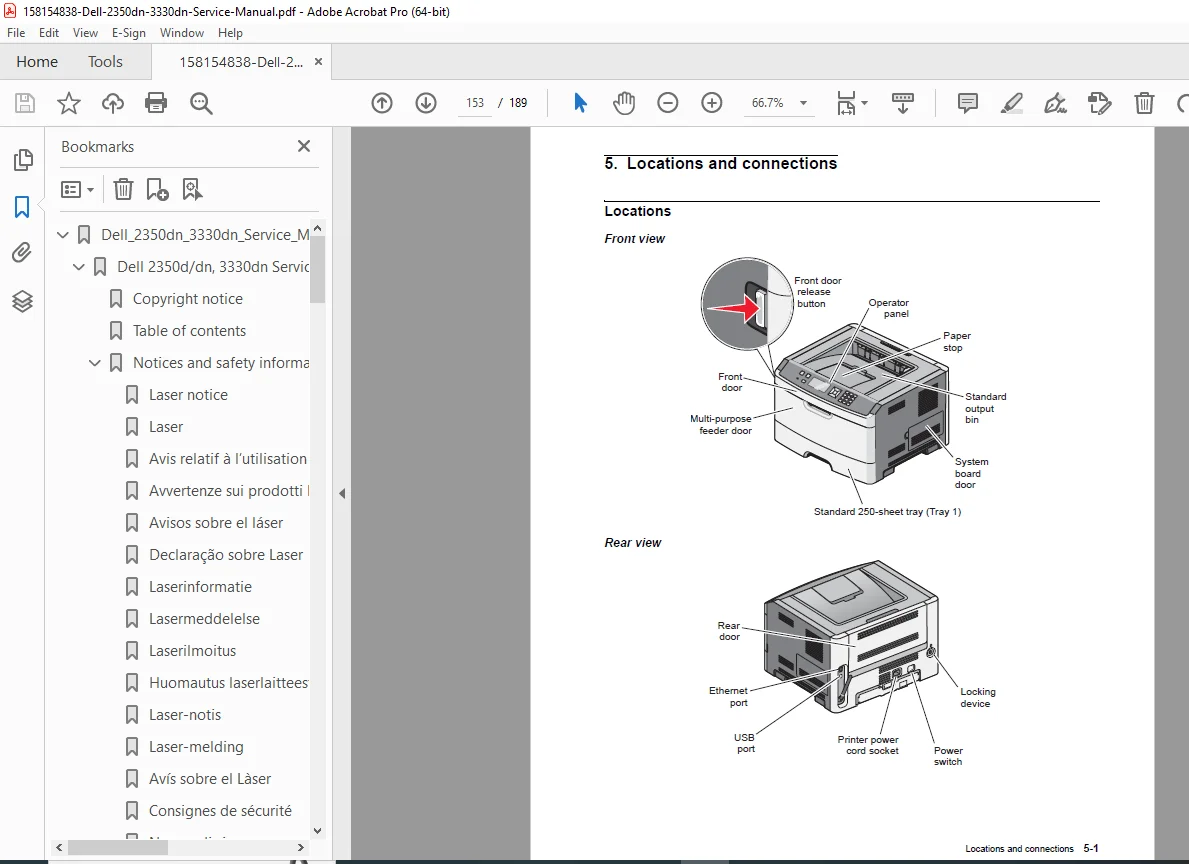

- Theory of operation and paper path diagrams
- Maintenance kits and preventive maintenance schedules
- Parts catalog with part numbers
Still widely used in offices and supported with third-party toners in 2025, these are rock-solid workgroup printers known for reliability – this dell 2350dn service manual and dell 3330dn service manual is the definitive guide for keeping them running.
Detailed Table of Contents
- Notices and Safety Information (Laser, Lithium, Safety)
- General Information (specs, media types, connectivity, print quality)
- Diagnostics Information
- Symptom tables & POST symptoms
- User attendance messages
- Paper jam error codes (200-series)
- Service error codes (9xx.xx)
- Service checks (controller board, fuser, LVPS/HVPS, motor, etc.)
- Paper feed troubleshooting (no pick, picks but stops, multiple feeds)
- Repair Information (removals/replacements with illustrations)
- Connector Locations & Pinouts
- Preventive Maintenance
- Parts Catalog
Perfect for IT departments, printer repair shops, or anyone maintaining Dell 2350d/dn or 3330dn fleets.
File Details
- Manual name: Dell 2350d/dn, 3330dn Service Manual
- Models covered: Dell 2350d, 2350dn, 3330dn (also Lexmark E260/E360/E460 series)
- Year: 4 January 2010
- PDF quality: Excellent factory scan, fully searchable, clear diagrams
- Number of pages: 189
