Detroit Diesel 6V53 Series Engine Manual – TM 9-2815-205-34 Direct/General Support – Models 5063-5299 5063-5392 5063-5393 5063-5395 5063-5398 5063-539F 5063-539L

Description

Detroit Diesel 6V53 Series Engine Manual – TM 9-2815-205-34

This is the U.S. Army Direct Support and General Support Maintenance manual, TM 9-2815-205-34, for the Detroit Diesel Corporation (formerly Detroit Diesel Allison) Series 6V53 diesel engine. The Detroit Diesel 6V53 engine manual covers seven distinct engine models built on the same core platform:
5063-5299, 5063-5392, 5063-5393, 5063-5395, 5063-5398, 5063-539F, and 5063-539L. These engines power the M113 and M551 family of vehicles (FOV), and this TM 9-2815-205-34 manual is the shop-level reference for anyone rebuilding, repairing, or overhauling them.

File Details

• Manual type: Direct Support and General Support Maintenance Technical Manual
• Publication number: TM 9-2815-205-34
• Issuing authority: Headquarters, Department of the Army
• Publication date: 21 August 1992 (Change 1 incorporated)
• Brand/Engine: Detroit Diesel (Detroit Diesel Allison) Series 6V53
• Language: English
• Page count: 593 pages
• File format: PDF

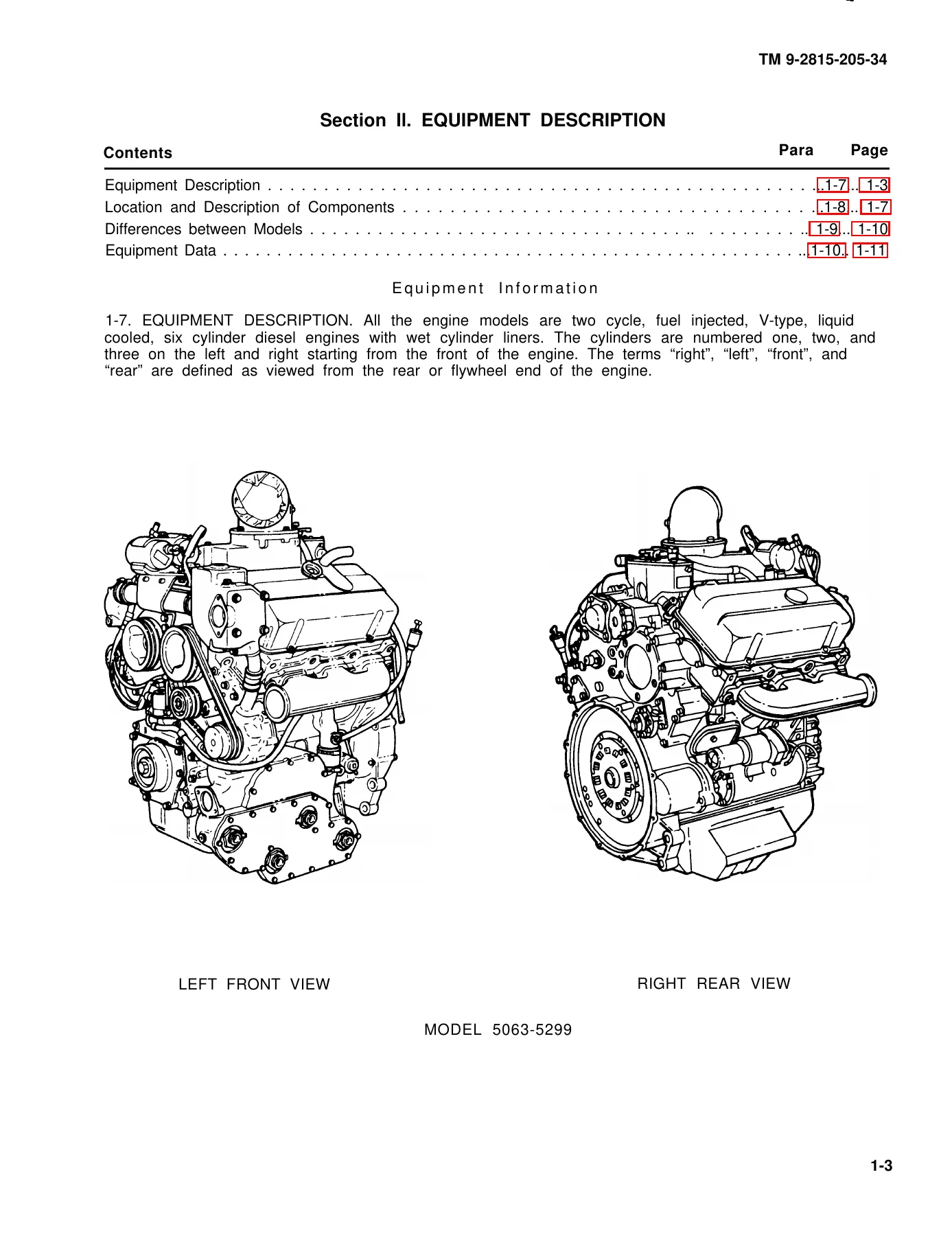

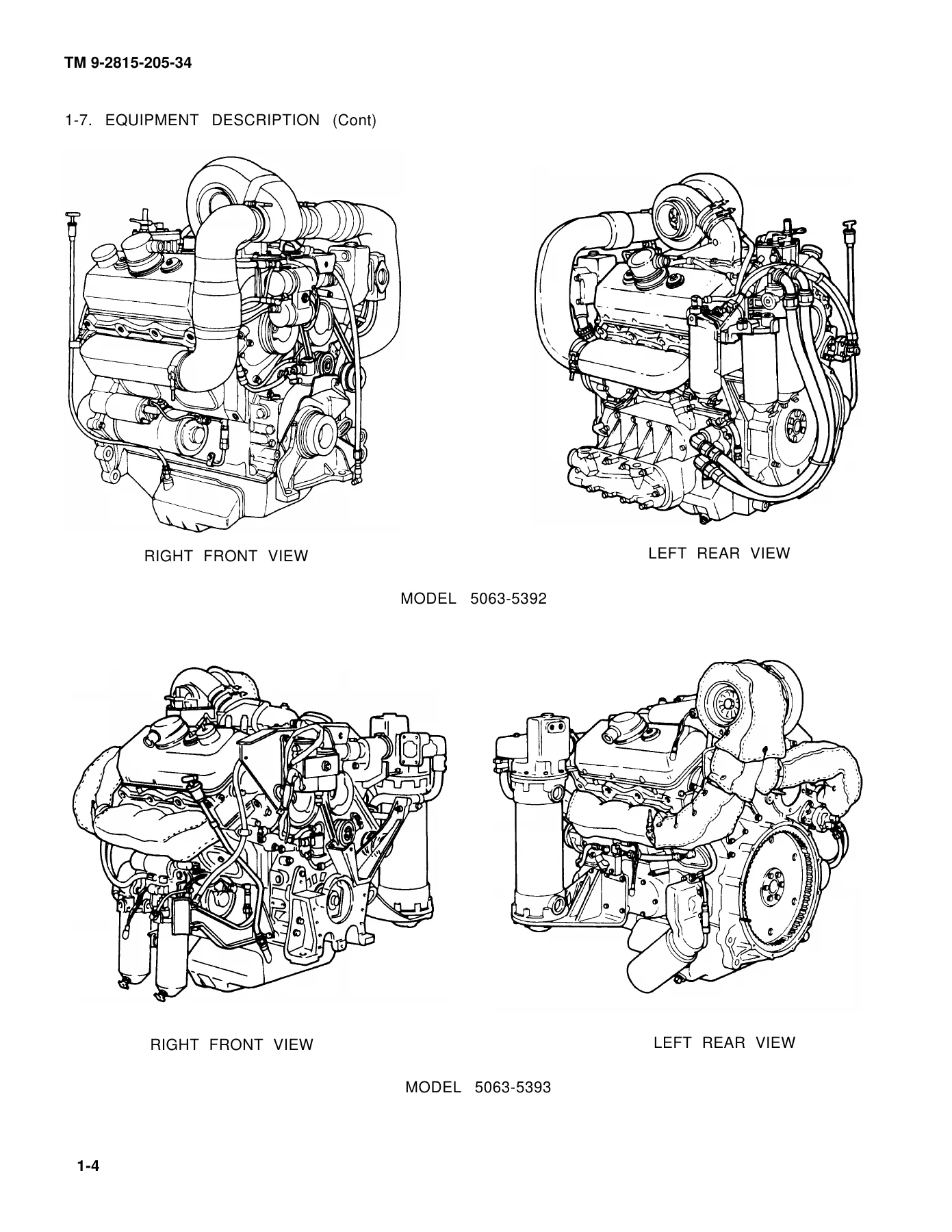

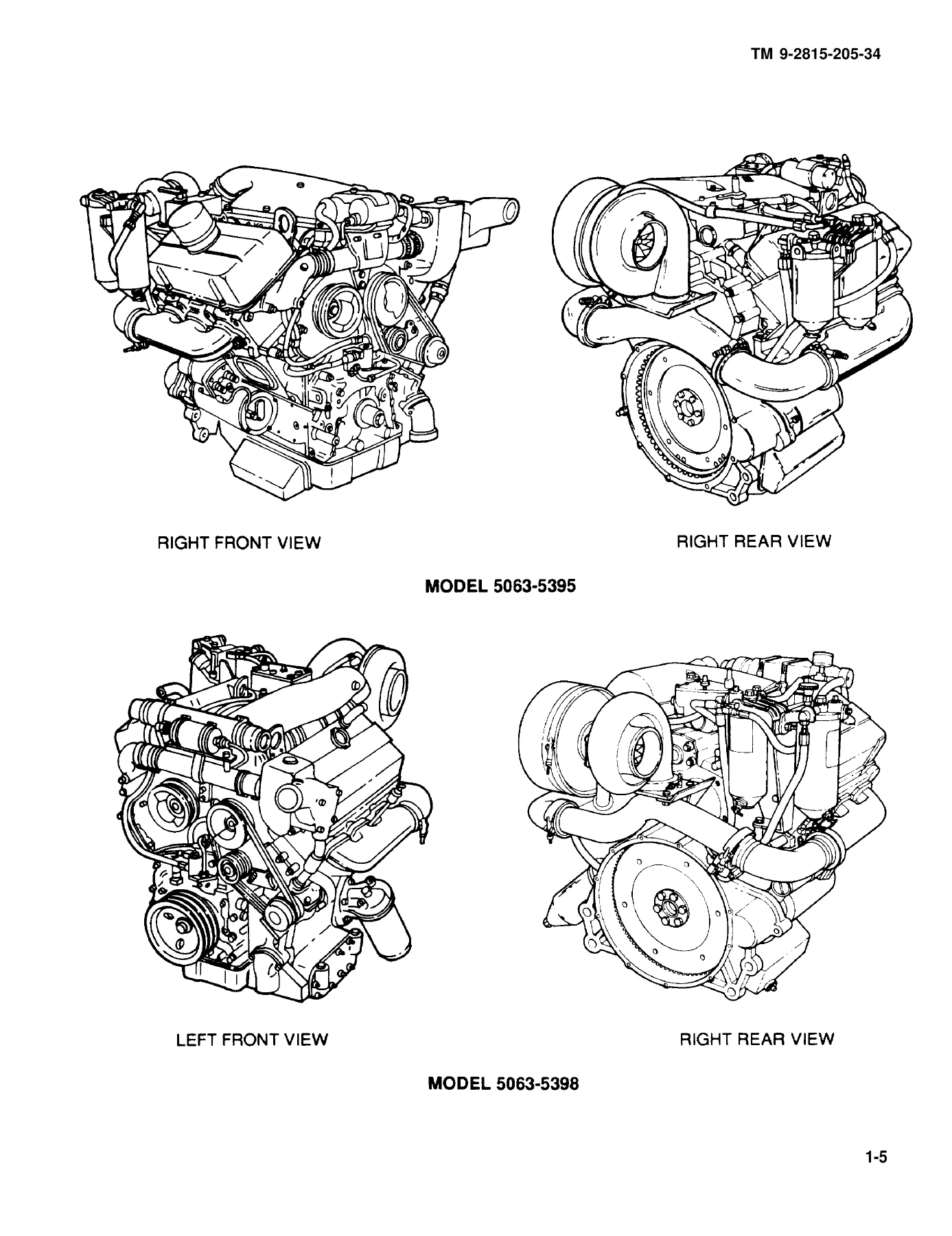

IMAGES PREVIEW

Chapters Covered

• Chapter 1 – Introduction
  • General Information (scope, maintenance forms, EIR, warranty)
  • Equipment Description (component location and function)
  • Principles of Operation (fuel, lubrication, cooling, air induction, crankcase ventilation, electrical, gear train, governor)
• Chapter 2 – General Repair and Engine Preparation Procedures
  • General maintenance, cleaning, and inspection instructions
  • Removal/installation of external components prior to maintenance stand
  • Removal/installation from/to shipping container and maintenance stand
  • Unit support component repair
• Chapter 3 – Repair Procedures for Major Components
  • Direct Support engine maintenance
  • General Support engine maintenance
  • General Support engine disassembly/assembly
  • Direct Support and General Support component repair
• Chapter 4 – Testing and Inspection Procedures
  • Engine preparation, adjustment, and testing
  • Engine run-in and preparation for storage
• Appendices A-G – References, tools and special tools, expendable/durable supplies, manufactured items, general torque limits, mandatory replacement parts, and engine repair specifications
• Glossary and Alphabetical Index

Together these sections take a mechanic from initial engine teardown through component-level repair and back to a fully tested, run-in engine ready for service or storage.

Engine Coverage and Data

All seven 5063-series models are two cycle, fuel injected, V-type, liquid cooled, six cylinder diesel engines with wet cylinder liners, but they differ meaningfully in construction. The manual’s Table 1-1 breaks down cylinder block material (cast iron on most, aluminum on the 5063-5398), turbocharger location, piston and connecting rod style (trunk vs. crosshead), oil cooler plate counts, engine front mount type, and other differences, so a technician working on any single 5063 variant can quickly confirm which repair path applies. Table 1-2 lists engine rating data for every model, including maximum brake horsepower at 2800 RPM (210 hp on the naturally aspirated 5063-5299 up to 300 hp on the 5063-5395, 5063-5398, and 5063-539F), turbocharger part numbers, injector part numbers, and compression ratios ranging from 17.5:1 to 21:1.

Repair and Testing Depth

The bulk of this Detroit Diesel 6V53 series engine manual is step-by-step Direct Support and General Support procedures: removing and installing external components such as oil coolers, fuel filters and strainers, the turbocharger oil supply line, the electric starter, and air box drains, each broken out separately where the seven models differ in mounting location. Chapter 3 continues into full engine disassembly and assembly at the General Support level and detailed repair of major components. Chapter 4 covers the post-repair side of the job: engine preparation for testing, adjustment procedures, engine testing itself, and run-in and storage preparation, so the manual supports a complete rebuild cycle rather than isolated repairs. Appendix E supplies general dry-fastener torque limits by thread size (for example, 30-35 lb-ft for a 3/8-16 fastener, 71-75 lb-ft for 1/2-13) for grade 5, 5.1, 7, and 8 hardware, while Appendix G holds the engine repair specifications used to judge whether a part is within tolerance or must be replaced.

Why This 6V53 Manual Matters

Following the correct Direct Support and General Support procedures in TM 9-2815-205-34 keeps the 6V53’s two-stroke, blower-scavenged combustion system, turbocharging (where fitted), and lubrication and cooling circuits within factory tolerance, which is what keeps these M113/M551 powerplants reliable in the field. Using the wrong torque value, skipping a required inspection step, or reusing a part that Appendix F marks as mandatory-replacement can shorten engine life or cause a repeat failure. This manual gives you the documented, model-specific procedure for each of the seven 5063 variants rather than a generic diesel repair guide.

Instant Delivery

This Detroit Diesel 6V53 engine manual downloads immediately as a PDF after purchase. There is no shipping and no waiting on a physical copy – open it on a laptop, tablet, or phone in the shop, or print the pages you need at the bench.
