Detroit Diesel DD13 DD15 DD16 EPA07 EPA10 Engine Workshop Manual – DDC-SVC-MAN-0081

Description

Detroit Diesel DD13 DD15 DD16 EPA07 EPA10 Engine Workshop Manual – DDC-SVC-MAN-0081

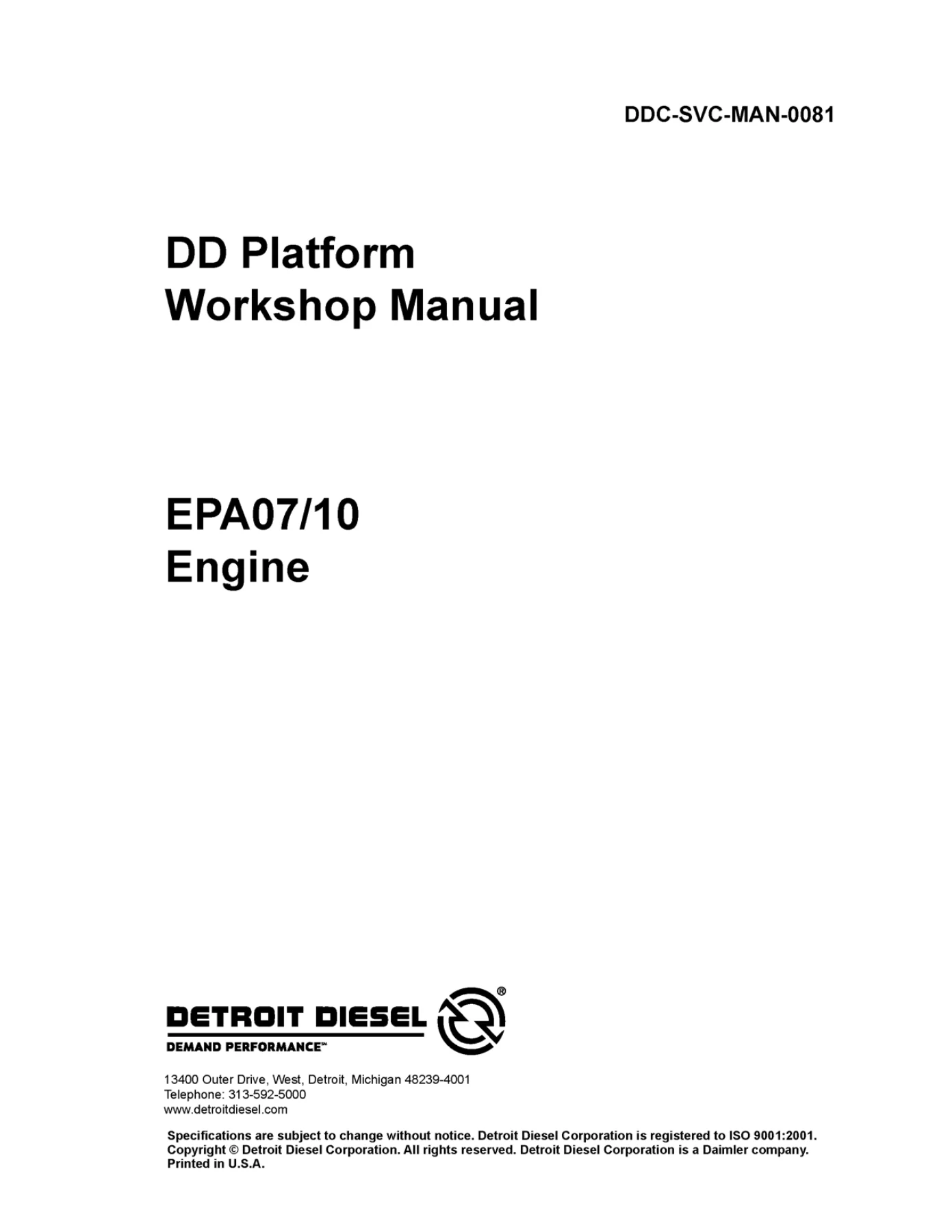

This Detroit Diesel DD13 DD15 DD16 EPA07 EPA10 Engine Workshop Manual is a 442-page technical reference built specifically for the DD Platform engine family. Document number DDC-SVC-MAN-0081, dated 2010 and copyrighted by Detroit Diesel Corporation, this workshop manual walks a technician through every stage of engine service, from the rocker cover down to the cylinder block.

File Details

• Manual type: Engine workshop/service manual
• Brand: Detroit Diesel
• Engines covered: DD13, DD15, DD16 (EPA07 and EPA10 emissions configurations)
• Language: English
• Page count: 442 pages
• File format: PDF
• Document number: DDC-SVC-MAN-0081
• Publication date: 2010

IMAGES PREVIEW

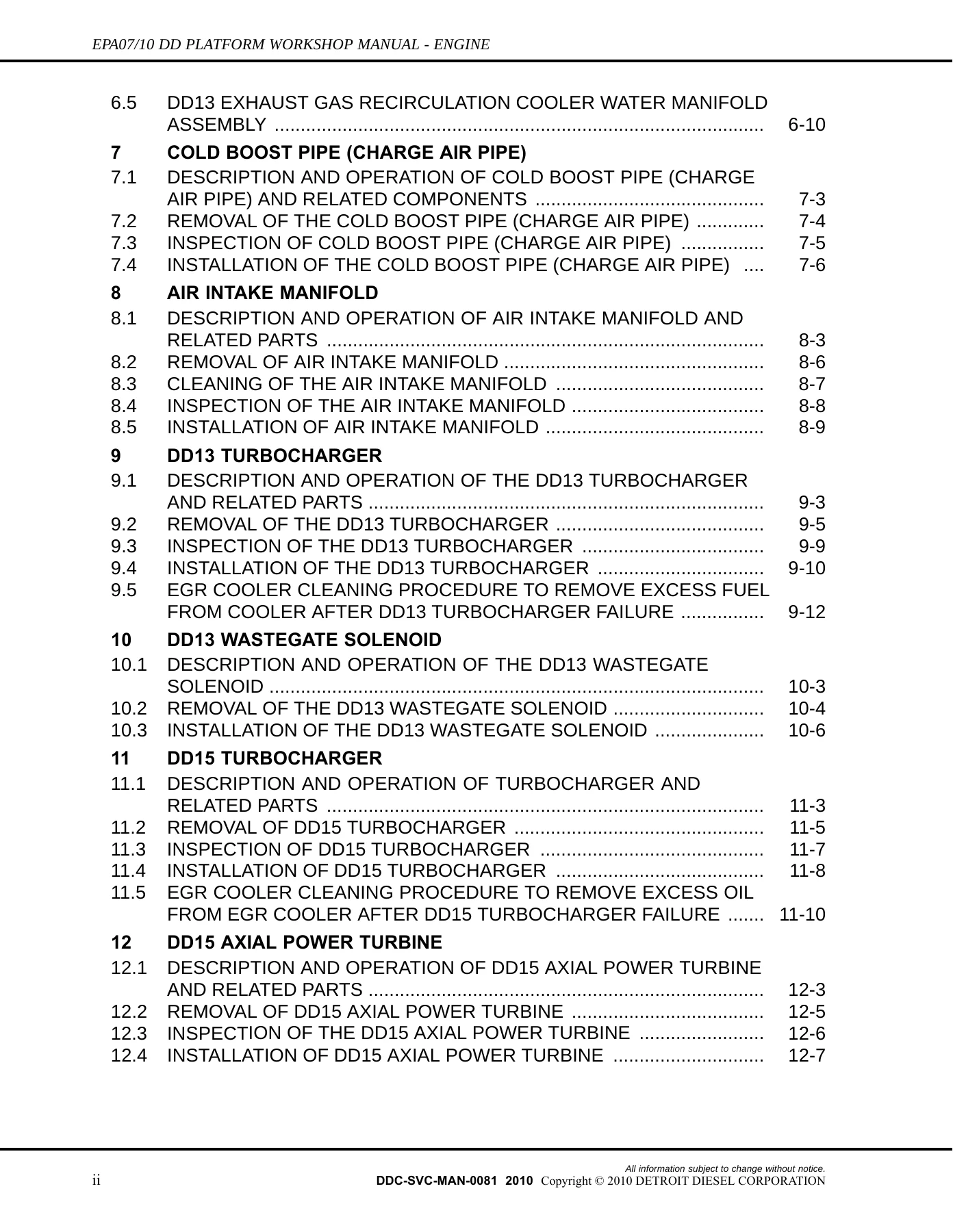

Chapters Covered

• Rocker Cover – description, removal, cleaning and inspection, installation

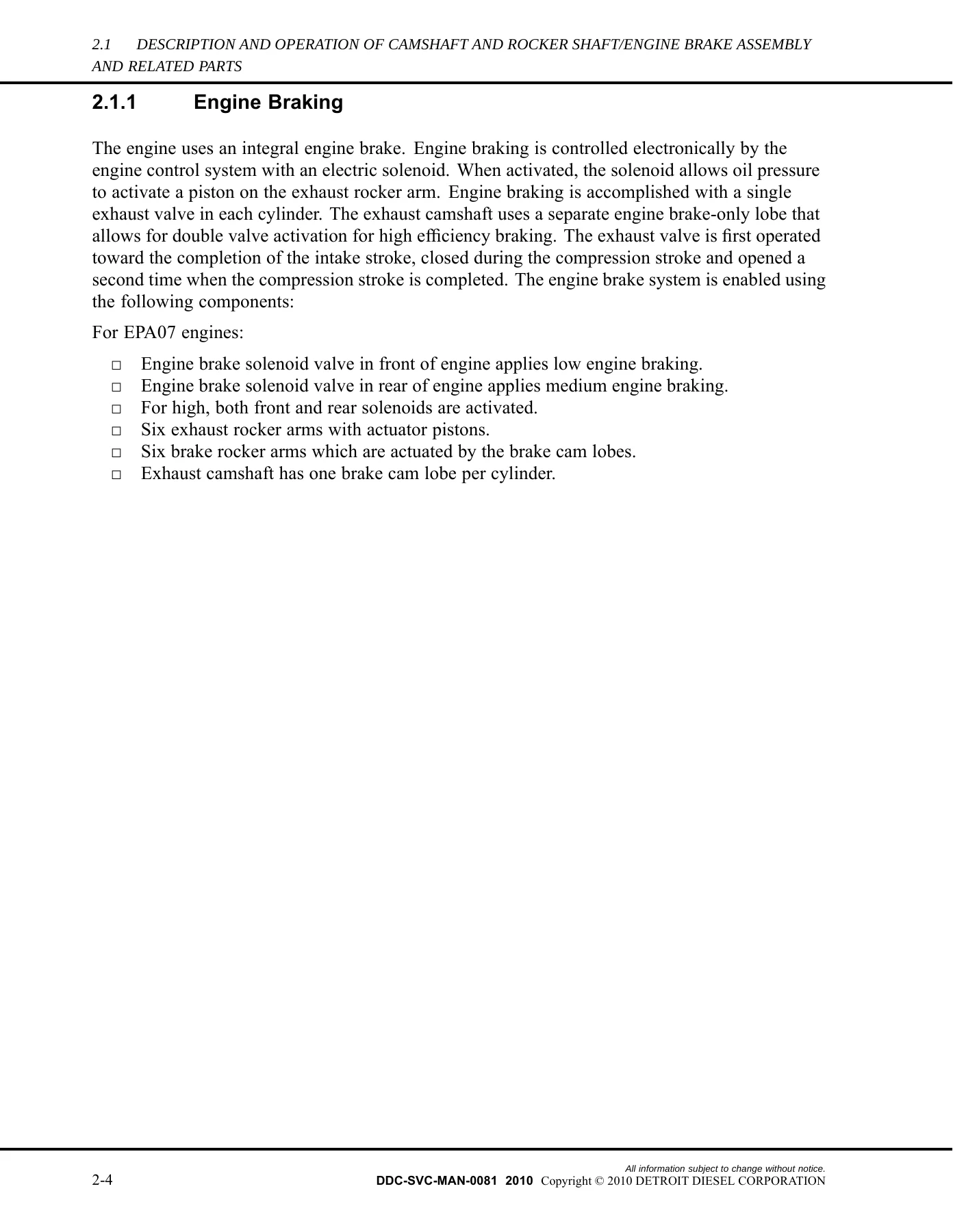

• Camshaft and Rocker Shaft/Engine Brake Assembly – includes DD13 and DD15 EGR cooler cleaning procedures
• Camshaft Housing – removal, inspection, installation
• Camshaft Timing – verification and timing with gear train installed
• Gear Train and Engine Timing – installation, timing, gear lash checking and adjustment
• Water Manifold – DD13, DD15 and DD16 variants
• Cold Boost Pipe (Charge Air Pipe)
• Air Intake Manifold
• DD13 Turbocharger – removal, inspection, installation, EGR cooler cleaning after failure
• DD13 Wastegate Solenoid
• DD15 Turbocharger – removal, inspection, installation, EGR cooler cleaning after failure
• DD15 Axial Power Turbine and Gear Box
• Cylinder Head – DD13 and DD15 removal/installation, valve service, valve lash and engine brake lash adjustment
• Piston and Connecting Rod Assembly – removal, disassembly, inspection, assembly, installation
• Cylinder Liner – removal, inspection, cleaning, installation
• Crankshaft – removal, inspection, installation, front and rear oil seal service
• Lubrication System, Oil Pan, Oil Dipstick Tube, Oil Pump, Crankcase Breather, Oil Filter, Oil Sample Valve, Oil Filler Neck, Oil Coolant Module
• Priming the Lubrication System
• Cooling System – water pump, coolant thermostat, coolant filter and service module, coolant inlet elbow
• Flywheel and Flywheel Housing – inspection, ring gear removal/installation
• Front Engine Mount/Radiator Support and Vibration Damper
• Front Engine Cover and Engine Lifter Brackets
• Belt Drive Tensioner System, Poly-V-Belts, Air Compressor
• Cylinder Block – cleaning, reassembly, installation, full engine removal and disassembly from the vehicle

Taken together, this workshop manual gives a technician a complete top-to-bottom service path for the DD13, DD15, and DD16 EPA07/EPA10 engine platform, with figure-referenced procedures at each stage rather than a general overview.

Why Technicians Rely on This DD Platform Workshop Manual

Every removal and installation sequence in this Detroit Diesel DD13 DD15 DD16 EPA07 EPA10 Engine Workshop Manual is written as numbered, figure-referenced steps, and torque values are called out at the point of use rather than buried in an appendix — for example, camshaft cap bolts torqued to 50-55 N·m (37-40 lb·ft), cylinder head bolts torqued in stages up to 250 N·m (184 lb·ft) with a 90° torque-turn, and gear lash readings specified to the thousandth of an inch on the gear train. That level of detail means a shop or independent technician can perform camshaft timing verification, gear train installation, turbocharger R&R, cylinder head service, piston and connecting rod work, crankshaft removal, and full cylinder block reassembly using factory-documented values instead of guesswork. Getting these procedures and torque specs right protects an expensive rebuild from comebacks and premature wear, especially on gear train and cylinder head work where sequence and torque-turn angle matter as much as the numeric value.

This DD13 DD15 DD16 EPA07 EPA10 Engine Workshop Manual downloads instantly as a PDF after checkout — no shipping wait. Open it on a laptop, tablet, or phone in the shop, or print only the pages you need for the job in front of you.
