DEUTZ BF 4L 2011 Engine Spare Parts Catalogue – 1011154 Parts Manual PDF

Description

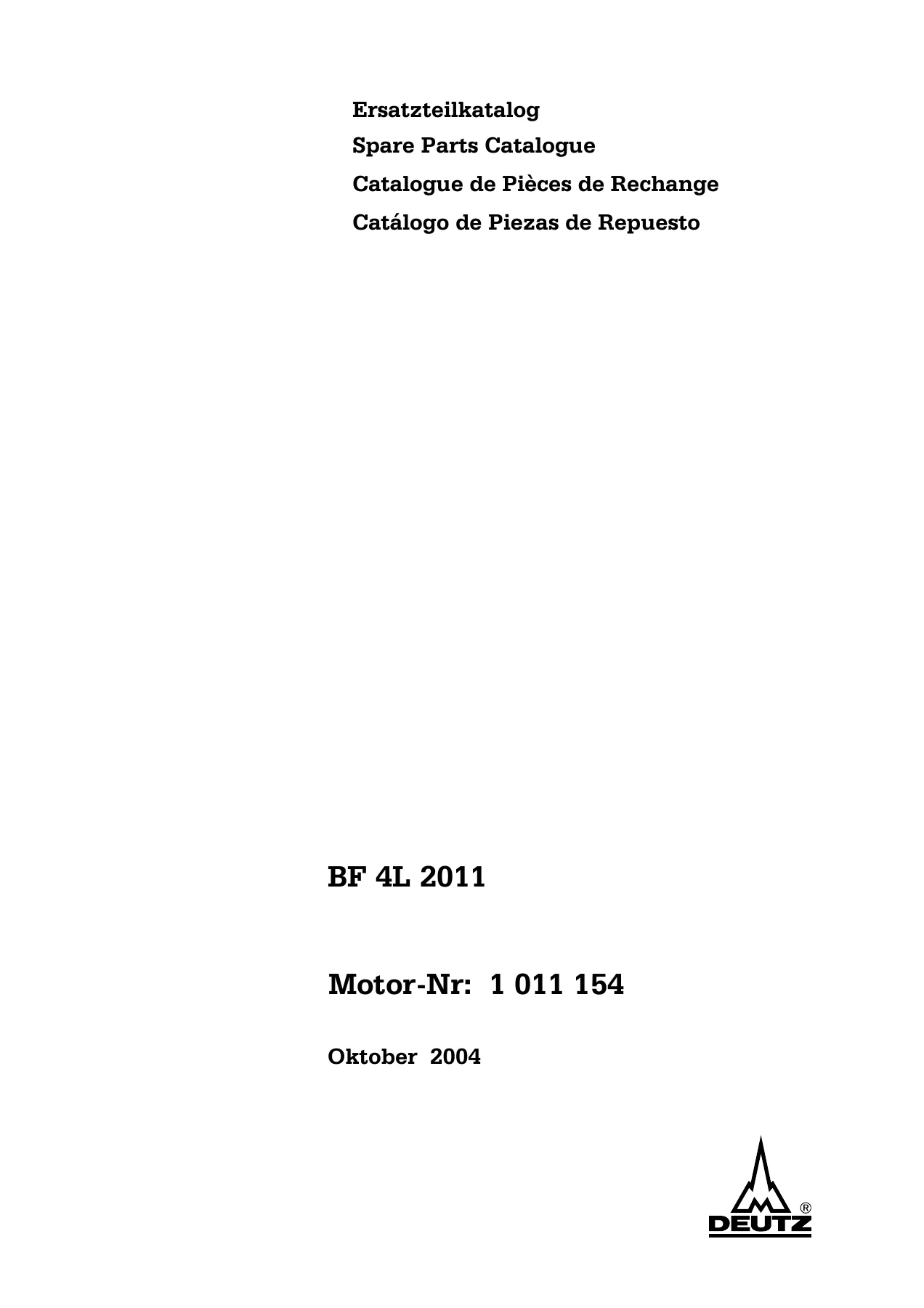

This DEUTZ BF 4L 2011 Spare Parts Catalogue covers engine number 1 011 154 and delivers the complete illustrated parts breakdown for this specific DEUTZ engine. Published by DEUTZ AG in October 2004, the catalogue uses isometric exploded-view drawings with numbered callouts so each component can be matched directly to its DEUTZ part number, required quantity and multilingual description. Whether you are ordering a replacement injector, tracking down a crankcase breather hose or confirming the correct gasket for a cylinder head overhaul, this DEUTZ BF 4L 2011 parts manual gives you the exact reference you need without guesswork.

File Details

• Manual type: Spare parts catalogue (Ersatzteilkatalog)
• Brand: DEUTZ
• Engine model: BF 4L 2011
• Engine number: 1 011 154
• Product number: EU305963
• Publication date: October 2004
• Language: German, English, French, Spanish
• Page count: 118
• File format: PDF

Construction Groups Covered

The DEUTZ BF 4L 2011 spare parts catalogue is organised into the following DEUTZ construction groups (Baugruppen). Each group has its own exploded-view sheet and matching parts table with position numbers, part numbers, quantities and descriptions in four languages.

• 01 — Crankcase, dipstick, rear end cover, crankcase breather
• 02 — Oil pan
• 05 — Power take-off, crankshaft, flywheel, accessories
• 06 — Connecting rod
• 07 — Piston
• 08 — Cylinder head, valve mechanism cover, fastenings, filler cap
• 10 — Camshaft, camshaft drive, fastenings
• 11 — Valve drive, rocker arm bracket, protection hood
• 14 — Lubricating oil pump
• 15 — Lubricating oil filter, oil cooler, filter bracket, pilot line
• 16 — Pressure relief valve, oil suction line, oil return pipe, lubricating oil line
• 17 — Screw plug, fastenings, fuel injection pump
• 19 — Fuel injector
• 20 — Filter cartridge, bracket, fuel supply pump
• 21 — Fuel lines, high-pressure pipes, fuel filter
• 27 — Blanking parts, transfer pipe, charge air pipe
• 33 — Glow plug
• 39 — Torque control capsule, control rod, limit stop, front cover/governor
• 40 — Blanking parts, narrow V-belt, sealing section, blower jacket, cooling fan
• 41 — Exhaust manifold, companion flange
• 43 — Turbocharger
• 44 — Starter, generator
• 48 — Cable harness, electric line, fastenings, plug housing
• 51 — Pressure sensor, temperature transmitter
• 52 — Cover plate
• 56 — Adapter housing
• 57 — Shut-down device, fastenings
• 90 — V-belt guard
• 98 — Supplementary gasket set, gasket set

What This DEUTZ BF 4L 2011 Spare Parts Catalogue Gives You

Rather than a general engine overview, this document is a component-level parts reference built around the DEUTZ modular lookup system. The DEUTZ BF 4L 2011 parts catalogue walks you through a three-step identification chain: first the cross-reference list (GV) matches your engine serial number to the correct product number, then the construction group index (BG) points you to the right spare parts number list sheet (ETL), and finally the exploded-view sheet gives you the exact position number to look up. The result is that every part in the catalogue is tied to a specific engine configuration, not a generic family — which is exactly what you want when a running change has shifted a part number mid-production.

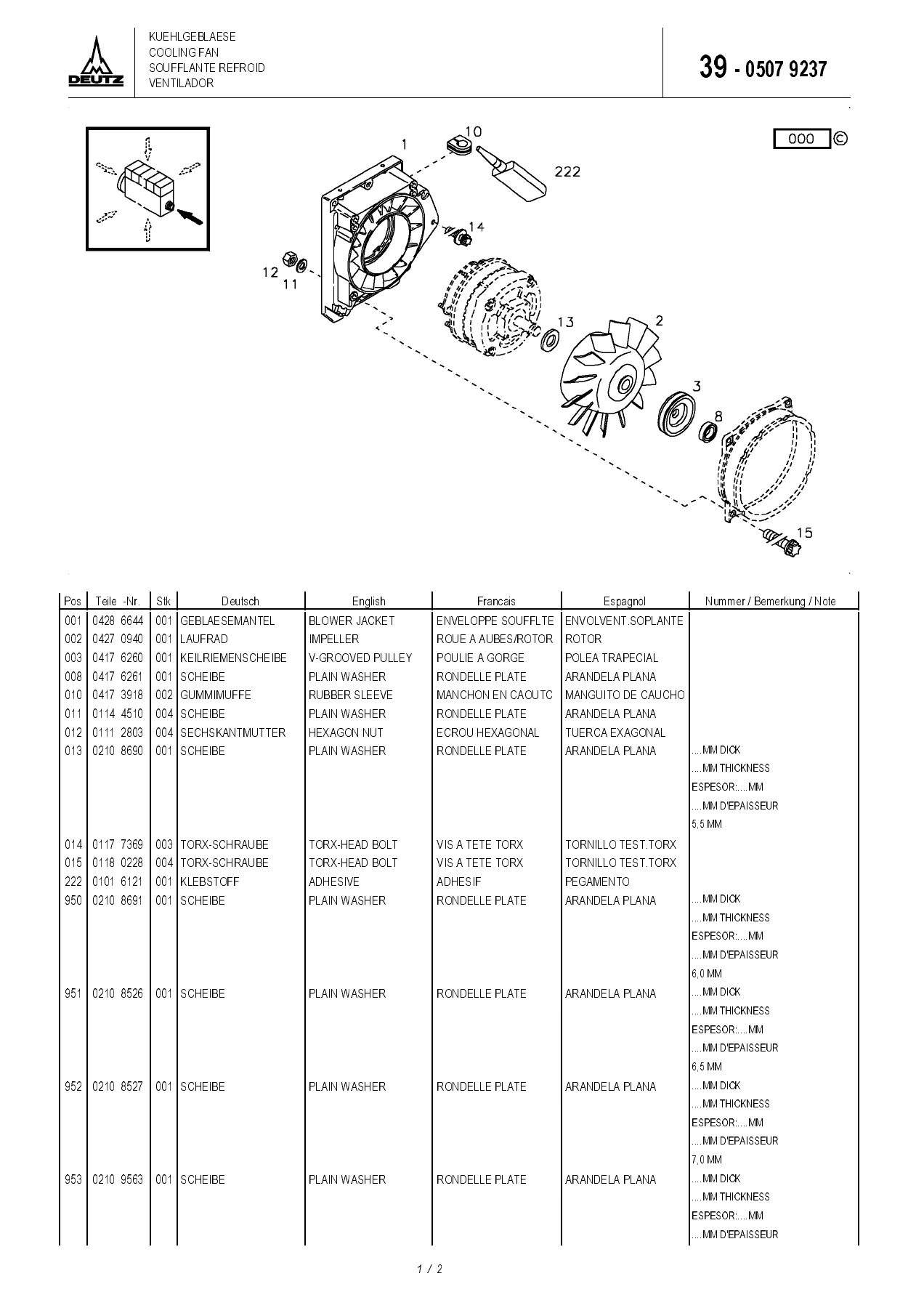

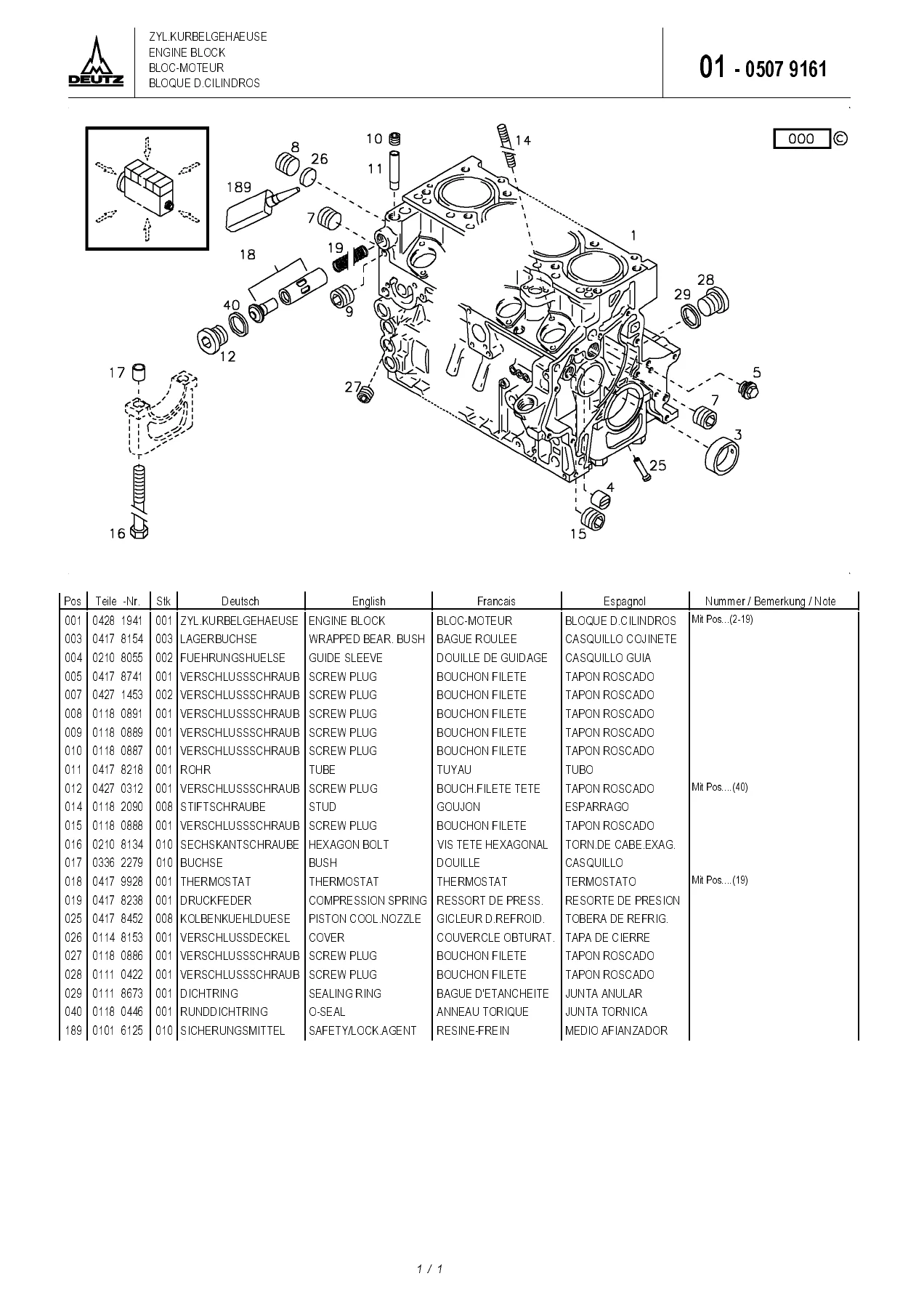

All 118 pages are reproduced as clean PDF pages. The upper half of each ETL sheet shows the isometric exploded drawing; the lower half is the parts table with DEUTZ part number, quantity and the German, English, French and Spanish names side by side. This makes the BF 4L 2011 parts manual usable whether you are a German-speaking workshop foreman, a French-speaking fleet mechanic or an English-speaking rebuilder sourcing components from a DEUTZ service partner.

Systems and Assemblies Documented

The catalogue covers the full engine from top to bottom. On the crankcase side you get the engine block, main bearing shells (standard and undersize), thrust washers, big-end bearing shells, cylinder head with valve seat inserts and valve guides, pistons with rings, connecting rods and bushes, camshaft and camshaft drive, and valve drive components including rocker arms, pushrods and tappets. On the lubrication side the DEUTZ BF 4L 2011 parts catalogue lists the oil pump, oil filter, oil cooler, oil suction pipe, oil return pipe and all associated gaskets and seals. The fuel system section covers the injection pump with its pump plunger classes A through D, the fuel injector, filter cartridge, fuel supply pump, high-pressure pipes and all fuel lines. The air and exhaust side includes the turbocharger, exhaust manifold, companion flange, charge air pipe and suction pipe. Electrical components covered include the starter, generator, cable harness, pressure sensor, temperature transmitter and glow plug. Cooling and drive components include the cooling fan, blower jacket, narrow V-belt, V-belt guard and adapter housing.

How the DEUTZ Parts Lookup Works

The catalogue is designed around a specific workflow that makes finding the right part fast once you understand it. Every engine serial number maps to a product number through the cross-reference list (GV). That product number then leads to the construction group index (BG), which lists every ETL sheet belonging to that product. Each ETL sheet is numbered in the top right corner and sorted by construction group, so you can go straight to the assembly you are working on. Within the sheet, the position number in the drawing matches the position number in the parts table, and the table gives you the part number, quantity and description. The DEUTZ BF 4L 2011 spare parts catalogue PDF reproduces this entire structure faithfully, including the GV sample page, the BG listing and the ETL sheets themselves.

Because the catalogue is tied to engine number 1 011 154 (product number EU305963, engine model BF04L2011), you get parts information that corresponds to that exact build state. DEUTZ notes in the foreword that as engines are further developed, part numbers can change — so having the engine number and product number in hand is what ensures you receive the current genuine part rather than an obsolete one. This document gives you both.

Who This DEUTZ BF 4L 2011 Parts Manual Is For

This DEUTZ BF 4L 2011 parts catalogue is aimed at mechanics, workshop parts departments, fleet maintenance teams and individual owners who need to identify and order components for the BF 4L 2011 engine. It is equally useful for rebuilders who want to confirm bearing shell options (standard, 1st undersize, 2nd undersize), piston ring sets, gasket thicknesses and injection pump plunger classes before placing an order. The multilingual parts tables also help when cross-referencing a part number between a German-language invoice and an English-language parts system.

Get the Complete DEUTZ BF 4L 2011 Spare Parts Catalogue

With this DEUTZ BF 4L 2011 spare parts catalogue on hand you can identify the exact part number for almost any component on the BF 4L 2011 engine, confirm quantities and descriptions, and order with confidence from your DEUTZ service partner. The exploded-view drawings make it straightforward to see how assemblies go together and which fasteners, seals and gaskets belong at each position. Correct part identification prevents the costly cycle of ordering the wrong component, waiting for delivery and dismantling twice. The PDF is delivered instantly after purchase — no shipping, no waiting — and can be viewed on any device or printed for use in the workshop. Keep it on your phone, tablet or laptop, or print the sheets you need for the job in front of you.
