Deutz-Fahr Agrotron K90 K100 K110 K120 Profiline Workshop Standard Times Manual

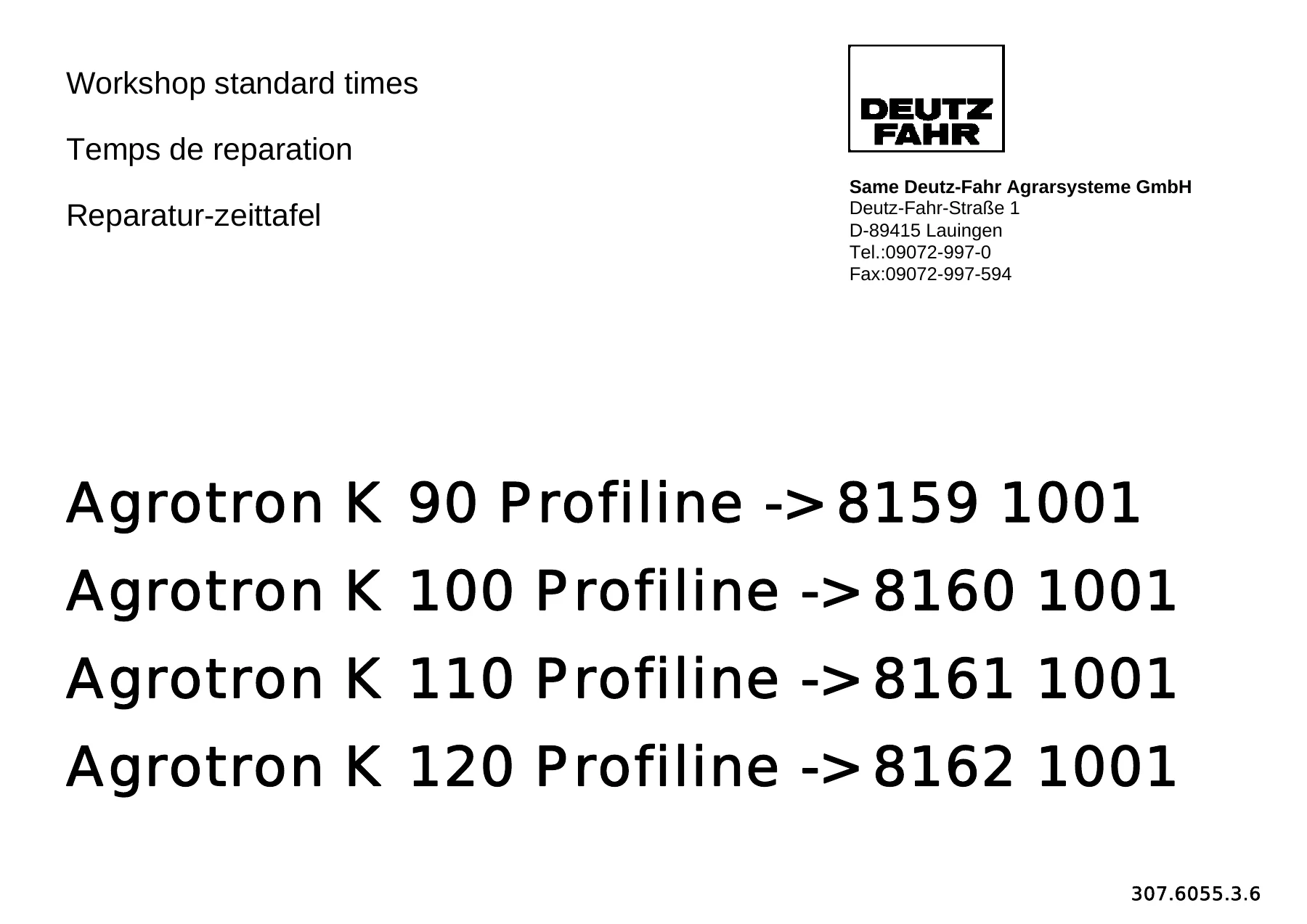

This is the Deutz-Fahr Agrotron K90 K100 K110 K120 Profiline Workshop Standard Times manual – a repair time and flat-rate schedule catalogue issued by Same Deutz-Fahr Agrarsysteme GmbH for the four Profiline Agrotron K tractors. Instead of describing how to dismantle a component in narrative form, it tells you how long the job should take, which operation code identifies it, which preceding operations must be completed first, and which illustrated figure and part numbers belong to the assembly in front of you. For anyone quoting work, planning a workshop slot, costing a repair or checking whether a job has been estimated realistically, this is the reference that turns a repair into a number.

File Details

• Manual type: Workshop standard times / repair times catalogue (temps de reparation / Reparatur-zeittafel)
• Brand: Deutz-Fahr (Same Deutz-Fahr Agrarsysteme GmbH, Deutz-Fahr-Strasse 1, D-89415 Lauingen)
• Models covered: Agrotron K 90 Profiline, Agrotron K 100 Profiline, Agrotron K 110 Profiline, Agrotron K 120 Profiline
• Model identification codes: K 90 Profiline 8159 1001, K 100 Profiline 8160 1001, K 110 Profiline 8161 1001, K 120 Profiline 8162 1001
• Language: English, French and German throughout, with Italian, Spanish and Portuguese service-time introductions
• Page count: 670
• File format: PDF
• Document number: 307605536 (Cod. 307.6055.3.6)

Chapters Covered

The catalogue is organised by reference number, and the sections below follow that structure in the manual’s own wording.

• General index, introduction, updating of the catalogue, abbreviations and directions for placing spare parts
• Index of references and numerical index of order numbers
• Engine – crankshaft, vibration damper, connecting rod, piston, valve mechanism cover, fastenings, cylinder head, gearcase, camshaft, valve drive, oil return, oil cooler box, filter cartridge, oil suction pipe, roller tappet, fuel injection pump, fuel injector, fuel filter, narrow V-belt
• Engine – oil filler neck, crankcase breather, piston cooling nozzle, bleeding tube, flange, crankcase, oil pan, flywheel, counterweights, V-grooved pulley, fuel pump, fuel line, high pressure pipe
• Engine – accessories, charge air pipe, tunnel cover, control rod, actuator, control unit, driving parts, cooling water pump, fan support, exhaust pipe, turbocharger, lubricating oil line, return line, starter, generator
• Engine – temperature transmitter, impulse transmitter, oil pressure switch, engine electrical system, thermo starter, sealing joint, blanking parts, exhaust silencer variants for fixed and suspended cab types
• Gear – flexible couplings, clutch control, gear shift, super creeper reduction gear unit controls, main shaft, transmission shaft, reduction gear unit, bevel wheel gear
• Gear – front transmission variants, clutch, transmission control unit, hydraulic control, drive for gear change box, gearbox, rear axle with brake and brake control variants, independent hand brake, hand brake
• Chassis – 4WD front support, front carrier with suspension, front cover, driven steering axle and sprung front axle variants, differential lock versions, steering cylinder, bevel wheel gear, double coupling, wheel hub, planetary gear, front differential pipes, drive shafts
• P.T.O. – shaft drive, economical control (540 – 1000), shaft protector rear, shaft protector rear export U.S.A.
• Power steering / hydraulic system – steering wheel, steering column, power steering, oil cooler, oil supply and filter, oil tank, oil supply
• Body work – hood and hood supports, hood to cab connection frames, model plates, cooling system, dashboard, pedal support, battery support, metal toolbox, rear lift control, throttle
• Body work – front mudguards and self-adjusting front fenders in 420, 470 and 540 mm widths, cab bearing rubber springing, mechanical cab suspension, pneumatic cab springing, rear wings, mudguard protectors and extensions, ladders, fuel tank, air filter, second operator seat, safety belts, driver’s seat
• Lighting system – hood front part for right and left-hand drive, side lights, working spotlights, headlamps, warning beacon prearrangement, multifunction control unit, joystick bracket, dashboard box instrument panel, steering column switch unit, fuse holder
• Lighting system – control unit and controls, electrical system, control unit support, pre-heating relay, switch for front P.T.O., ISO sockets, battery leads, alternator cables, rear mudguard electrics, roof and automatic climate control harnesses, radar (km/h and MPH)
• Wheels – fixing wheels and the full range of tyre and rim assemblies
• Cab – metallic structures, fixed screen with wiper, opening screen with wiper, bottom windows, cab doors, side plates, rear panel flap, rear hatch with wiper, cable passage bulkhead, rearview mirrors and heated mirrors, floor covering, interior trim, consoles
• Cab – air conditioner face plates, radio fascia, ceilings and roofs with or without skylight, water tanks, ventilation and air conditioning, air compressor, manual and automatic climate control systems, air conditioning lines
• Accessory – 4-way and 8-way hydraulic control valves, hydraulic braking for trailers, connecting plate, rear free return, oil return pipe, quick-action couplers, pneumatic braking systems, air braking Italy and export D, pressure gauge, oil recovery control valves
• Accessory – three-point hitch, adjustable lift rods, manual and automatic lateral stabilizers, swinging drawbar with Piton-Fix, rear oscillating hitch, towing hitch brackets, trailer stands, drawbar couplings, front towing hitch, catching mouth, pick-up-hitch, front ballast
• Parts – tank parts, hydraulic cylinders, accumulator, cardan shafts, steering column, hydraulic pump, gear pump, oil filter, pump components, relay valve, air filter, seat components, lamp components, compressor parts, heating and ventilation, cylinder parts, distributors, trailer brake valves, engagement groups, linkage, towing bars and brackets

What This Standard Times Catalogue Gives You

Every operation in the manual is presented the same way: a section, an operation code, a description of the operation, the single-operation time, any time carried over from preceding operations, and then the detail of those preceding operations with their own codes and times. Times are shown in hours and decimal fractions, where 0.1 equals six minutes, and they refer to the complete operation from start to finish. Because the preceding-operation column is filled in, you can see the real cost of a job rather than the headline figure – removing a rear axle is not simply the time printed against the rear axle line, it is that figure plus the brake, wheel and support work that has to come off first.

The introduction also sets out what the times assume: a suitably trained mechanic of normal ability, working in a typical service centre, with standard workshop tools and the special tools recommended by Same Deutz-Fahr Italia in the relevant workshop manual, in reasonable conditions of work and accessibility. The published figures do not include any time to move the machine to or from the farm or site, and they already take into account the problems encountered when working on used machines rather than new tractors. That is a useful boundary to understand before you use the numbers for a quotation.

Illustrated Assemblies and Part References

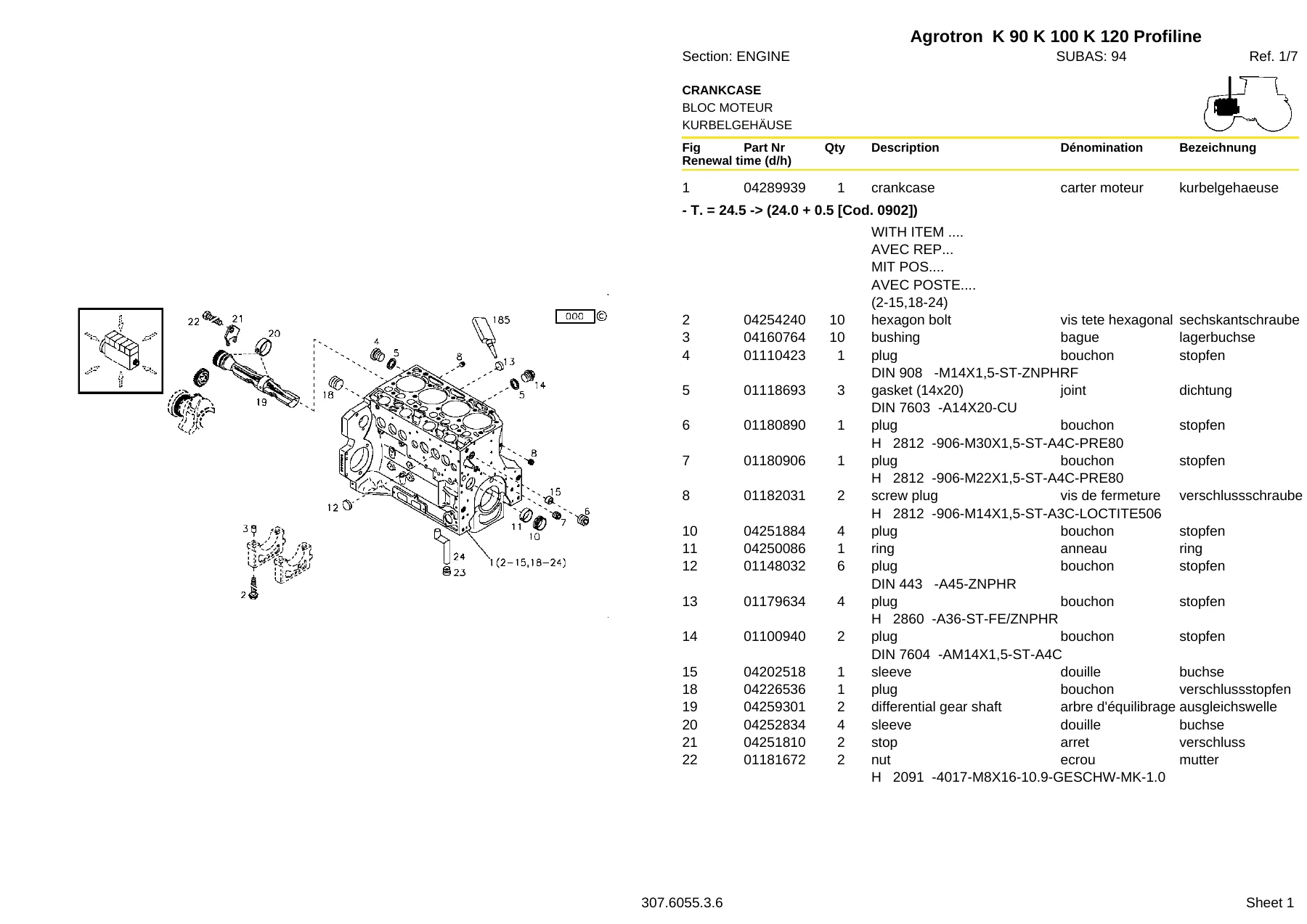

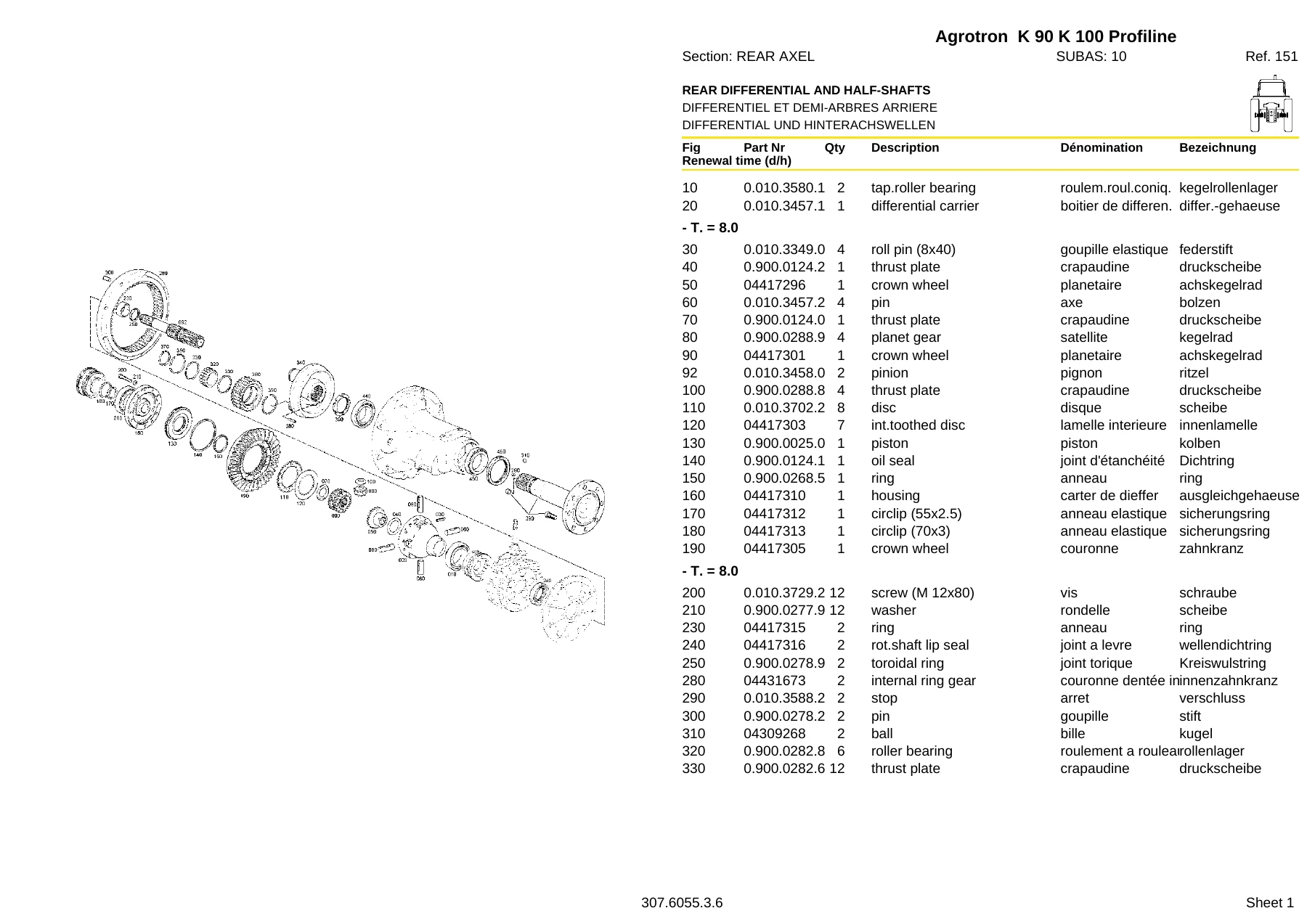

Running alongside the times is a full illustrated parts presentation. Exploded views with numbered callouts appear for the crankcase, cylinder head, oil pan, flywheel and counterweights, crankshaft, pistons, camshaft, oil cooler box, turbocharger, gearbox housings, reduction gear units, bevel wheel gear, brakes, front axle and diff lock assemblies, steering cylinder, wheel hubs, planetary gears, cab structures, doors, mirrors, climate systems, hydraulic control valves and the three-point hitch. Each figure is followed by a parts list giving the figure number, part number, quantity, description and, where applicable, a renewal time or a reference to the associated operation code.

The manual also carries a numerical index of order numbers, letting you work in the opposite direction – start from a part number and find the figure, reference and quantity it belongs to. For a workshop that regularly rebuilds these tractors, or for anyone ordering parts for a K 90, K 100, K 110 or K 120 Profiline, that index alone saves a considerable amount of guessing.

Practical Uses for the Agrotron K Profiline Standard Times Manual

Use it to quote a repair before you start, to compare an estimated job against a published baseline, to decide whether a task is worth doing in-house, to justify an invoice line with a documented operation code, to check that a technician has allowed for the preparatory work hidden behind a component, and to identify which special tool the job calls for. Because the model-specific service-time tables sit alongside a general times table, you can see both the standard allowance and the tailored figure for the K 90, K 100, K 110 and K 120 Profiline.

Why the Correct Reference Matters

Flat-rate time work only holds up if the underlying schedule is the right one for the machine in front of you. A generic tractor labour guide will not carry the Agrotron K Profiline operation codes, the K 90 through K 120 serial identification, the split between 24FWD+8REV and 36FWD+12REV transmissions, or the differences between fixed cab and suspended cab exhaust and suspension arrangements. This catalogue does, and it keeps the time data, the figure references and the part numbers in one document rather than three.
