Doosan DL08 Diesel Engine Operation & Maintenance Manual – Bus & Truck Repair PDF

Description

Doosan DL08 Diesel Engine Operation & Maintenance Manual – Bus & Truck Repair PDF

The Doosan DL08 is a 6-cylinder, 4-stroke, in-line, direct-injection diesel engine built for overland transport and industrial duty, and this Doosan DL08 Diesel Engine Operation & Maintenance Manual is the complete reference for keeping it running. Issued by Doosan Infracore under document number 65.99897-8097 (PS-MMA0417-E1A), it covers the DL08 in both Bus and Truck installations — including the EUPBA, EUPCA, EUPXA and the rest of the EUP-series model suffixes — with the safety regulations, disassembly procedures, torque values and diagnostic logic a working technician actually needs.

Across 221 pages the manual moves from engine specifications and theory of operation through full teardown, inspection, measurement and reassembly, then closes with commissioning, winter operation and the periodic service schedule. Every section is aimed at the person holding the wrench: measurement limits are given in millimetres and kg.m, torque figures are broken into tightening stages, and the common rail fuel system, engine control unit, engine brake and electrical harness are all covered with the depth of a real workshop document rather than a sales brochure.

File Details

• Manual type: Operation & Maintenance Manual
• Brand: Doosan (Doosan Infracore)
• Model: DL08
• Engine type: Water-cooled, 4-cycle, in-line, turbocharged & inter-cooled, direct injection diesel
• Document number: 65.99897-8097 / PS-MMA0417-E1A
• Publication date: Printed in Apr. 2005
• Language: English
• Page count: 221
• File format: PDF

Chapters Covered

• 1. Safety Regulations & Engine Specifications
• 2. Technical Information
• 3. Maintenance (Disassembly and Reassembly of Major Components)
• 4. Commissioning and Operation
• 5. Maintenance of Major Components
• 6. Special Tool List

1. Safety Regulations & Engine Specifications

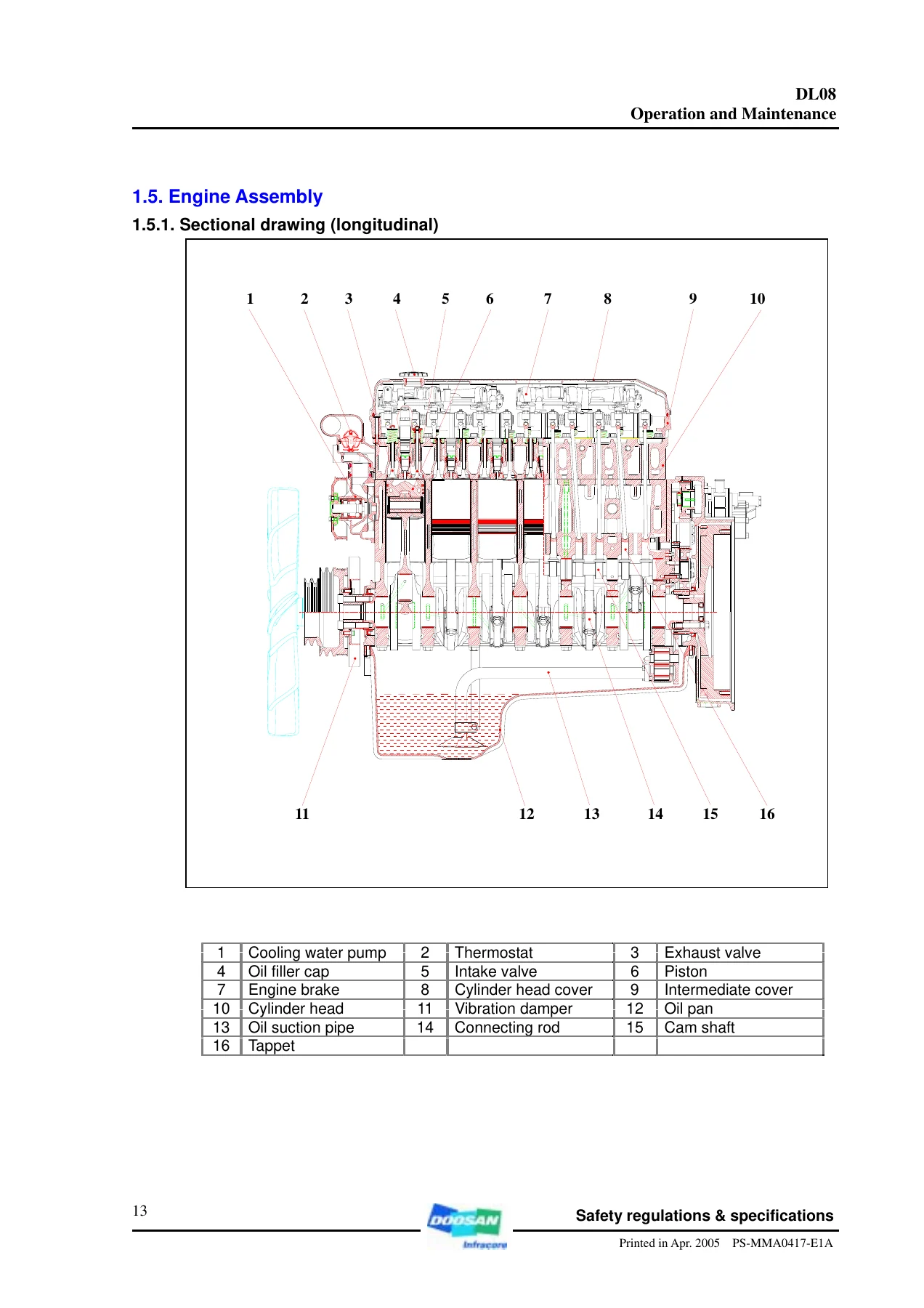

Opens with the general safety regulations every DL08 technician should know before touching the engine: starting and running precautions, hot-surface and rotating-part warnings, safe handling of coolant, fuel and battery acid, plus the rules for welding near the ECU and for disconnecting the battery before electrical work. The specification section then lists the complete DL08 build data — 6 cylinders, 108 × 139 mm bore and stroke, 7,640 cc total piston displacement, 17:1 compression ratio, 836 kg dry weight, firing order 1–5–3–6–2–4 — along with valve clearance values (intake 0.3 mm, exhaust 0.4 mm, Jake brake 1.5 mm), injector type, lubrication capacity and cooling water capacity. Engine power tables break out the 250 PS, 270 PS, 300 PS and 320 PS ratings with matching torque figures and low/high idle speeds, and the section finishes with four separate performance curves and longitudinal / cross-sectional engine assembly drawings.

2. Technical Information

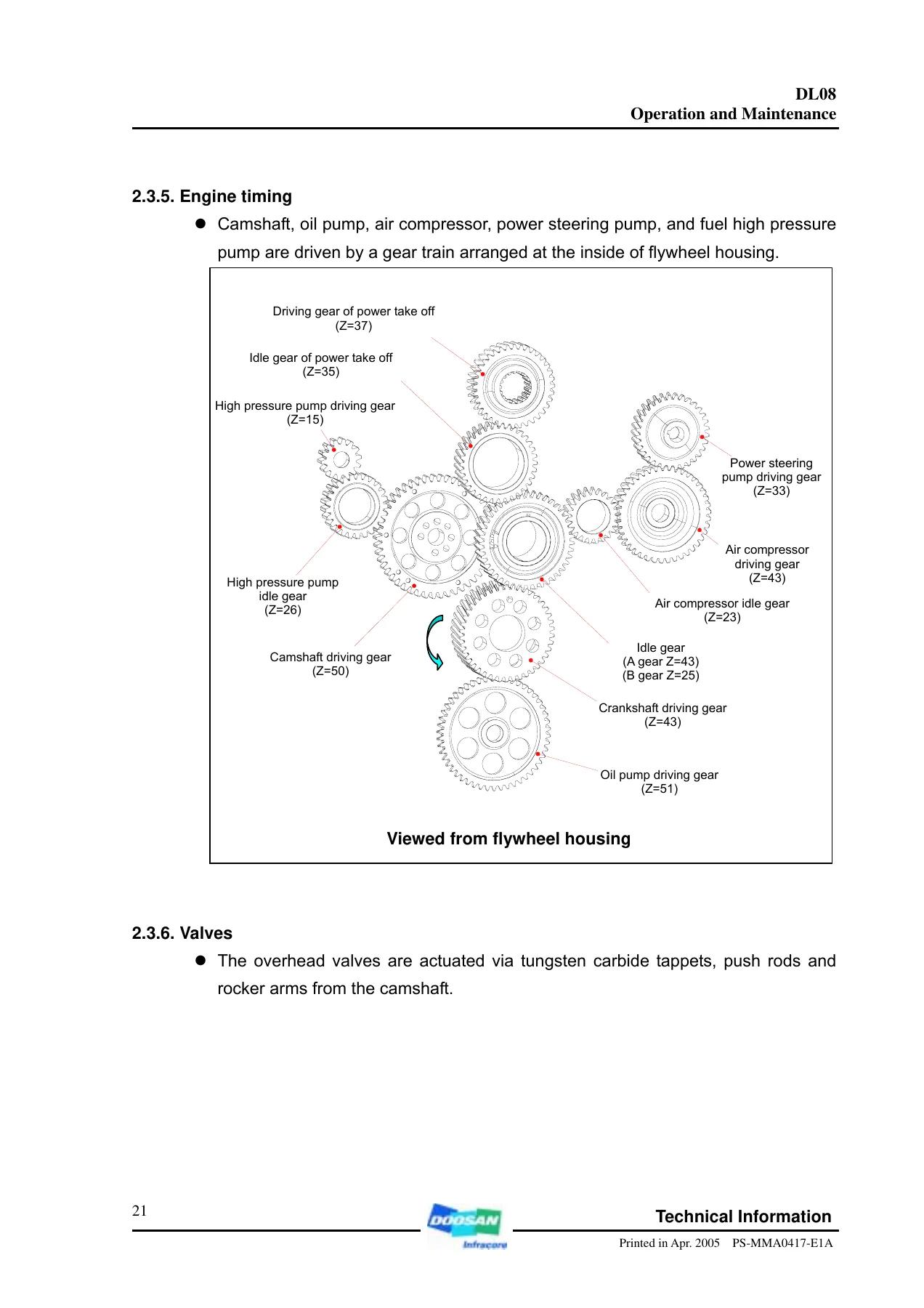

Covers the DL08 system by system. It explains how to read the engine model and serial number stamped on the cylinder block, then walks through the diagnostic SCAN-200 tool and its connection points for both Bus and Truck harnesses. Individual sub-chapters describe the cylinder block, piston and connecting rod assembly, crankshaft, the Bosch CP3.3 high pressure pump, common rail and multi-hole injectors, the ECU, engine timing gear train, valve train, forced-feed lubrication circuit, cooling system with wax-pellet thermostat, turbocharger, air cleaner, fuel filters, battery, alternator (24V × 60A and 24V × 150A) and 24V × 4.5 kW starter. Fuel oil selection charts, coolant mix ratios for winter, valve clearance adjustment sequence and the fuel system bleeding procedure all appear here with their reference values.

3. Disassembly and Reassembly of Major Components

The largest chapter — a step-by-step teardown and rebuild of the DL08. It begins with general repair precautions and the correct order for draining coolant and engine oil, then works through cooling fan, intercooler, belts, air pipes, breather, fuel filter, common rail and high pressure pipes, fuel high pressure pump, alternator, turbocharger, power steering pump, air compressor, oil cooler, water pump, exhaust and intake manifolds, cylinder head cover, engine brake, rocker arms, injectors, cylinder head, ECU, starter, oil pan, vibration damper, oil seals, oil pump, timing gears, flywheel, pistons and liners, crankshaft, camshaft and tappets, oil spray nozzles — each with its removal and refit notes. The measurement and inspection section that follows gives the standard and limit values for cylinder head flatness, valve stems and guides, valve seats and springs, rocker arm and shaft clearance, camshaft end play and lobe height, crankshaft journals and pins, bearing clearances and crush, piston-to-liner clearance, piston ring gaps and side clearance, and connecting rod alignment. Reassembly closes the chapter with every torque figure and tightening order spelled out.

4. Commissioning and Operation

Written for the operator as well as the mechanic. It explains pre-start checks, the correct break-in procedure for the first 5,000 km (load and speed limits, oil level monitoring, first oil and filter change), inspections after starting including oil pressure and coolant temperature expectations, cold-weather starting with the air heater, anti-freeze mixing ratios, prevention of overcooling, valve clearance adjustment procedure, and the correct cylinder-head bolt tightening sequence with the staged angle method.

5. Maintenance of Major Components

Dedicated service chapters for the cooling system (water pump, thermostat, fan belt tension), lubrication system (oil pump clearances, relief valve settings, filter service), turbocharger (axial and radial end play limits, cleaning, refit precautions), air cleaner element service, and the belt drive. Each chapter closes with its own diagnostic and troubleshooting table of complaints, likely causes and corrections. The special tool list at the end names the fuel pump gear assembly jig, oil seal jigs, valve spring compressor, cylinder liner puller, piston insert, oil spray nozzle jig, engine brake slave piston tools and the SCAN-200 diagnostic unit.

Engine Variants and Outputs Covered

The power tables cover every DL08 rating listed in the manual: 250 PS / 184 kW, 270 PS / 199 kW, 300 PS / 221 kW and 320 PS / 235 kW, all at 2,200 rpm, with maximum torque ranging from 883 N.m up to 1,324 N.m at 1,200 rpm. Suffixes include EUPBA, EUPBE, EUPBB, EUPBF, EUPBC, EUPBG, EUPBD, EUPBH, EUPCA, EUPCE, EUPCC, EUPCF, EUPCB, EUPCG, EUPCD, EUPCH, EUPXA, EUPXC, EUPXB, EUPXD, EUPXE and EUPXF, with the corresponding Jake brake option noted for each.

Why This Doosan DL08 Service Manual Belongs in Your Workshop

With a common rail fuel system running up to 1,600 bar, an ECU-controlled injector strategy, a Jake brake that opens the exhaust valves on the compression stroke, and a timing gear train that drives the camshaft, oil pump, air compressor, power steering pump and high pressure pump from one housing, the DL08 is not an engine you want to service on guesswork. A fuel high pressure pipe torqued to the wrong value, a slave piston clearance set outside 1.5 mm, a camshaft end play left above 0.5 mm, or a liner fitted with the wrong piston-to-liner clearance — any of these turns a routine job into a repeat repair. This Doosan DL08 repair manual gives you the values, sequences and inspection limits that Doosan specified, so the first repair is the last one.

Use it to diagnose a no-start with the SCAN-200 fault code tables, to rebuild a cylinder head with the correct valve seat and valve guide limits, to set valve clearances across all six cylinders using the top-dead-centre / overlap method, to service the turbocharger against its axial and radial end play limits, to bleed the fuel system after a filter change, or to commission a fresh engine through the full break-in schedule. Whether the DL08 sits in a city bus, a long-haul truck, or a stationary industrial installation, the procedure is the same.
