Doosan DL420 Wheel Loader Illustrated Parts Catalogue – June 2010 English/French Edition

Description

This Doosan DL420 Illustrated Parts Catalogue is the bilingual English/French 2nd Edition parts reference published for the DL420 wheel loader and dated June 01, 2010. Across 548 pages it maps the entire machine – engine assembly, chassis frame, front loader equipment, transmission, axles, hydraulics, electrical system, cabin and factory options – using numbered exploded figures tied to parts lists, so every component can be identified, cross-referenced and ordered by its Doosan part number. It is a working parts catalogue rather than a repair guide: the goal of every figure is to put the correct component in your hand, with the correct quantity, the correct variant for your machine’s serial range, and the correct replacement number when an older part has been superseded.

File Details

• Manual type: Illustrated Parts Catalogue
• Brand: Doosan
• Model: DL420 wheel loader
• Edition: 2nd Edition
• Date of issue: June 01, 2010
• Language: English and French (bilingual)
• Page count: 548 pages
• File format: PDF

Chapters Covered

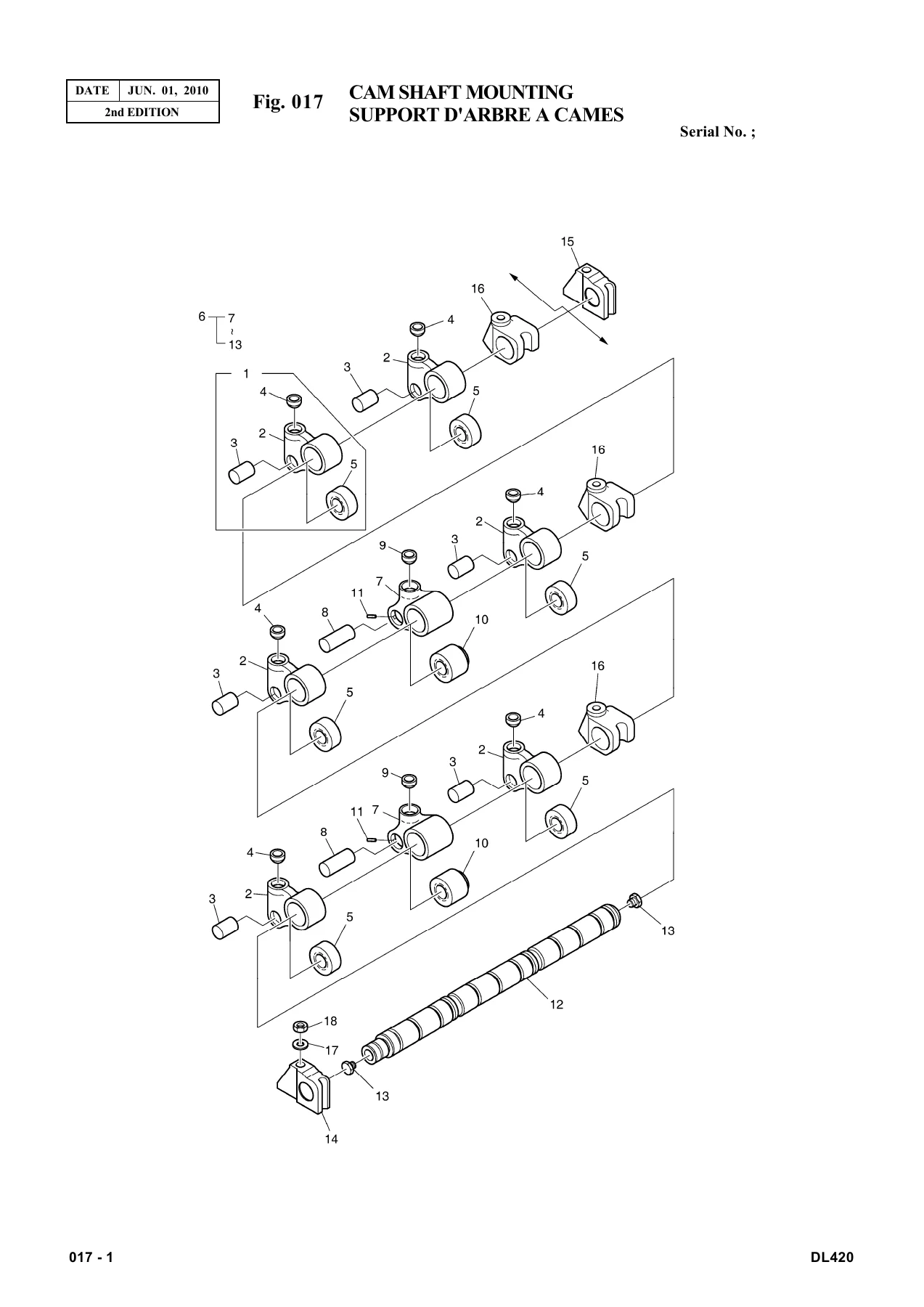

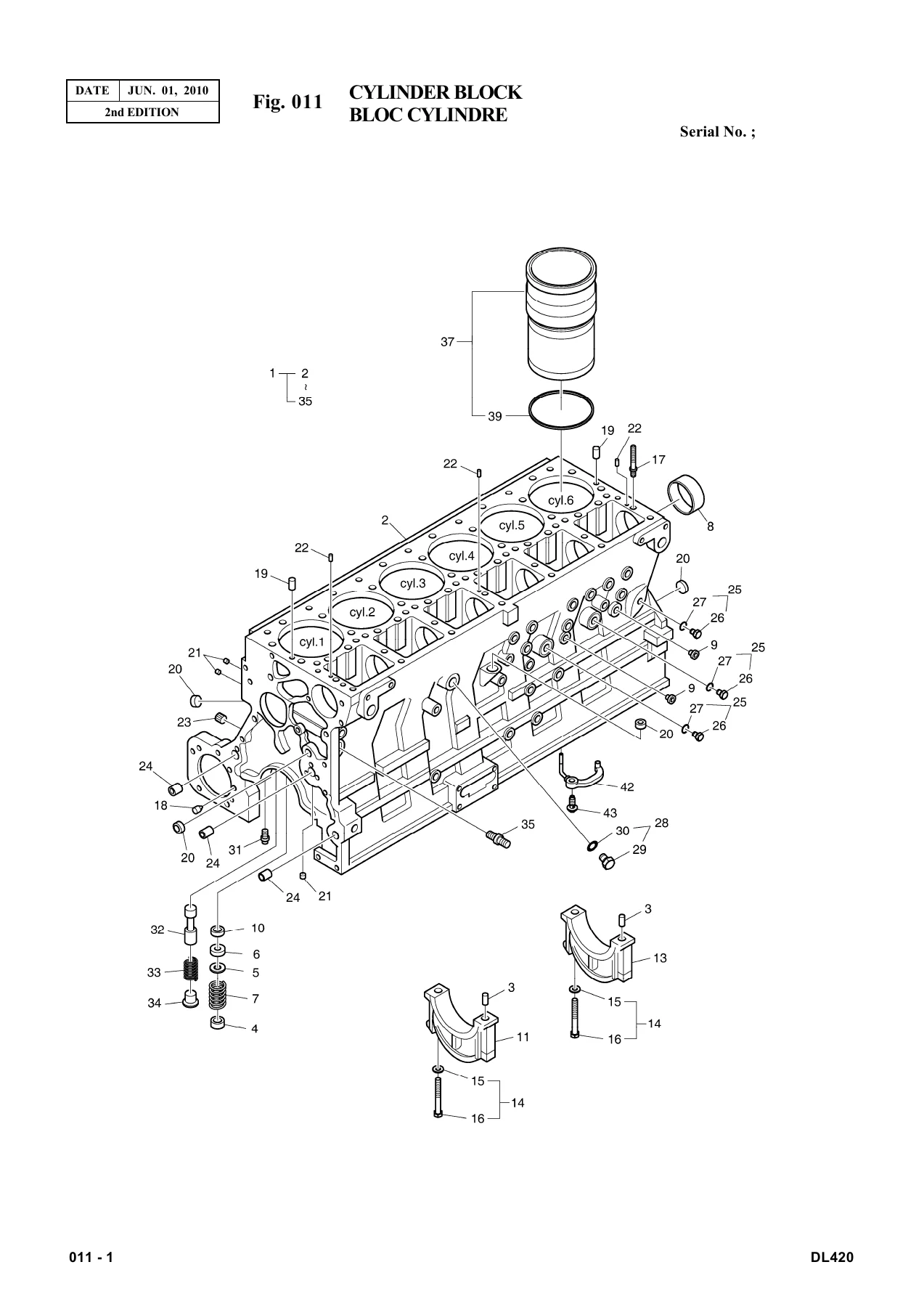

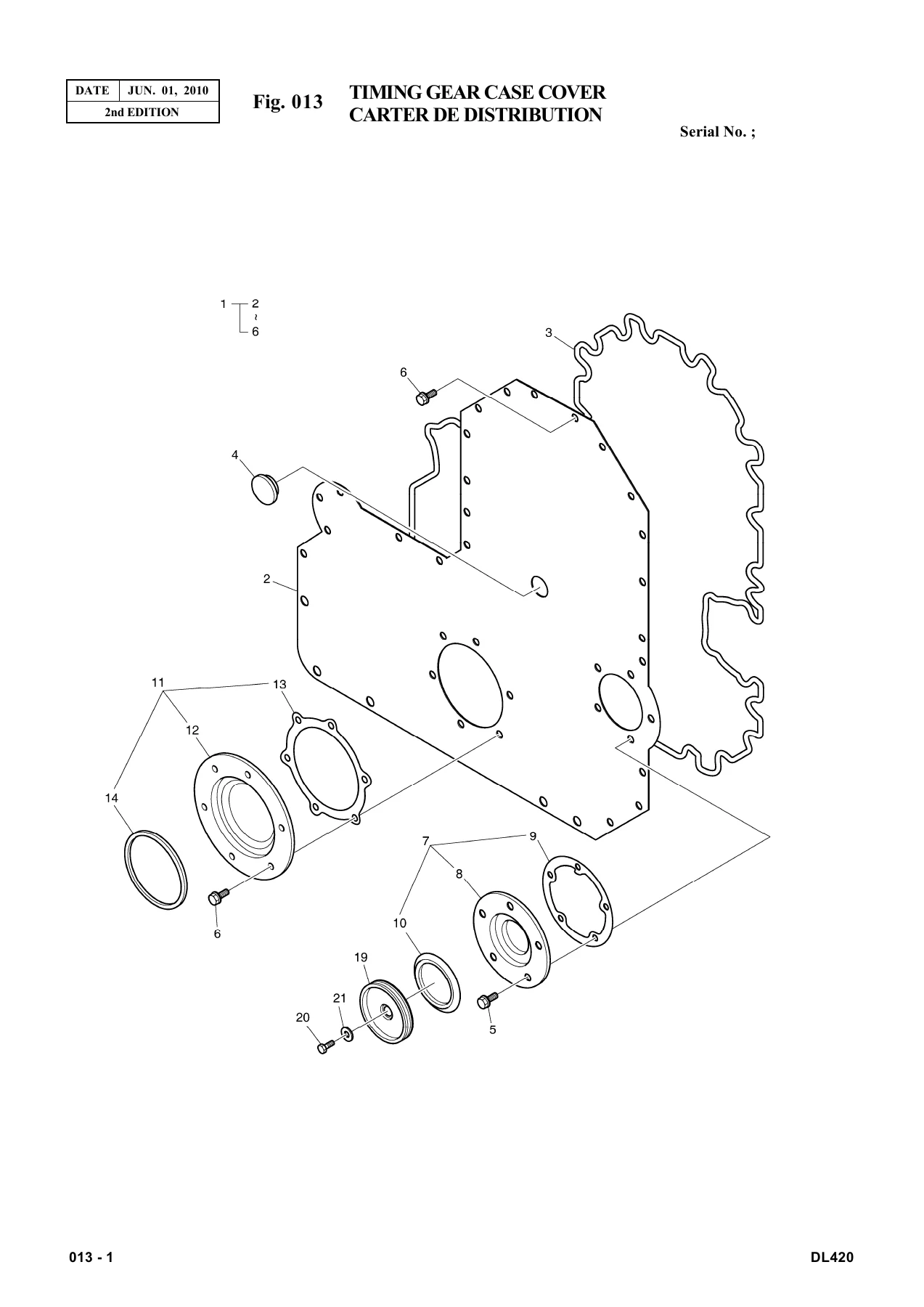

• Engine Parts (Fig. 011-038): cylinder block, timing gear case and cover, flywheel housing, crankshaft and piston, cylinder head, camshaft mounting, rocker arm and camshaft, cylinder head cover, oil pan and pump, oil filler and gauge, oil cooler and filter, thermostat housing, water pump assembly, water filter, drive mounting, exhaust system, intake system, injector, fuel pump driving, fuel pump assembly, fuel flow system, alternator and mounting, lifting hook, starter, wire harness, ECU mounting, engine mounting
• Body Parts (Fig. 1100-1540): frame chassis, engine mounting, air cleaner and muffler, oil tank, fuel tank, axle and drive shaft, wheel assembly, main piping, steering piping, control valve piping, pilot piping, brake pedal valve and steer unit, brake piping, remote pressure check piping, fan guard swing, oil cooler piping, cabin mounting, cabin body / interior / door / glass, mirror, control stand, joystick mounting, seat assembly, duct assembly, steering assembly, counterweight and battery box, baffle, radiator guard, engine cover, radiator grille, fender and ladder
• Front Parts (Fig. 2100-2140): loader arm, front lubrication piping, arm raise kick-out assembly, return-to-dig assembly, bucket with teeth
• Hydraulic Parts (Fig. 3100-3550): engine-to-transmission connection, transmission input, gearbox housing, layshaft, couplings KV/K1, KR/K2 and K3/K4, transmission output, parking brake, power take-offs 1 and 2, gear shift systems, pressure oil pump, suction and oil filters, indicator transmitter, emergency steering pump, temperature sensor, filler neck, oil pipe, front and rear differential carriers, front and rear axle casings, front and rear outputs, front and rear brakes, main pump, rotary group, flow amplifier, fan motor and proportional fan motor, accumulator charging valve, brake and pilot supply valve, brake foot valve, control valve, third-spool control valve, remote control valves (3-lever, 2-lever, FNR), steering cylinder, bucket cylinder, lift cylinder, electric steering valve
• Other Parts (Fig. 4100-4270): tool kit, spare parts, decal sets for third lever, finger tip, specification, fuse box, serial (export and Europe), lubricant (export and Europe), cabin (export and Europe), exterior (export and Europe), machine name, diesel and long boom
• Option Parts (Fig. 5100-5660): additional counterweight, arm float kick-out (mechanical and electric), load isolation system (LIS) and switch, two-spool control valve piping, pilot pipings for finger and FNR configurations, joystick mounting, electric box for finger remocon, FNR switch, rotating beacon, CD player, fuel heater, seat heater, CCTV, multiple bucket sizes (3.5 m3 V-type through 4.5 m3 cutting edge), long boom loader arm, various wheel assemblies, rear-view mirror, counterweight and rear fender mounting, homologation counterweight, fender and protector kits, rear fender support, emergency steering pipings, under cover for low noise, electric steering pipings and control unit, noise filters and homologation beacon

How the Catalogue Is Organised

Every section opens with a figure number and a matching exploded illustration. Callouts on the drawing link directly to the parts table that follows, where the key number, Doosan part number, English description, French description and required quantity sit side by side. Where a part changed during production, the table adds serial-number breakpoints (for example 5001-5032 / 5033-, 5001-5039 / 5040-, 5001-5042 / 5043- and 5001-5045 / 5046-) so the correct variant is chosen for the machine on the bench. Superseded and replaceable part numbers are flagged in a dedicated column so an older casting or seal can be replaced with the number Doosan currently issues. Hardware – bolts, washers, O-rings, seals, grease nipples, clips and shims – is listed alongside the major castings, which means a small consumable and a complete assembly can both be ordered from the same figure without hunting through a separate fasteners catalogue.

Working Across the Whole Machine

Because the Doosan DL420 Illustrated Parts Catalogue runs from the cylinder block all the way through to the homologation decals, it serves as a single-source parts reference rather than a collection of loose section prints. The engine chapter alone resolves the full top and bottom end – liners, main and big-end bearings, head gasket, valve guides, injector sleeves, camshaft brackets, tappets, rocker arms and push rods – while the hydraulic chapter covers the open-centre control valve, remote control valves, steering and lift cylinders, the fan drive, the accumulator charging circuit and both front and rear axle brakes. The electrical and cabin sections name every relay, fuse rating, switch, rocker insert and harness, and the option chapter lists the factory-approved additions such as LIS, emergency steering, heater, CCTV and rotating beacon so a retrofit matches the published specification.

Serial-Number and Variant Handling

The DL420 was produced across several serial ranges and individual parts were revised as the machine evolved. Rather than force one part number onto a component that changed mid-production, the catalogue splits affected lines into serial-keyed columns. This is what makes the same catalogue usable on an older loader and a fresh unit in the same workshop: one lookup gives the correct variant, the replaceable-part flag shows when a newer number supersedes an older one, and parts that carried over unchanged between serial breaks are listed once with the applicable ranges shown in the Serial No. column.

Who Gets the Most from It

Independent workshops servicing Doosan wheel loaders use the DL420 parts catalogue to quote accurately, prepare rebuild jobs and cross-check a supplier’s invoice against the published number. Fleet maintenance teams keep it open at the parts counter to raise a correct order without calling the dealer. Rebuilders pulling a transmission coupling or an axle differential carrier work straight from the exploded figure so no shim, snap ring or O-ring is missed on reassembly. And because the layout is bilingual, both English- and French-speaking technicians can read the same figure without re-keying part names.
