Doosan HP450 VHP400WCU T4F Service Manual PDF
Original price was: $60.00.$26.95Current price is: $26.95.
Download the official doosan hp450 vhp400wcu t4f service manual pdf for expert repairs on your portable air compressor. This doosan p425 hp375wcu t4f compressor maintenance guide covers periodic inspections, lubrication, and filter replacements, while the doosan compressor electronic system troubleshooting manual details diagnostic tools, error codes, and sensor checks. Includes doosan portable power compressor fault codes list for quick resolutions, doosan f69 f68 compressor service procedures for engine and airend, and doosan compressor wiring diagrams and schematics for electrical fixes. Ideal for technicians ensuring reliable Tier 4 Final performance in field operations.
Description
Doosan HP450 VHP400WCU T4F Service Manual – PDF DOWNLOAD
IMAGES:
Description

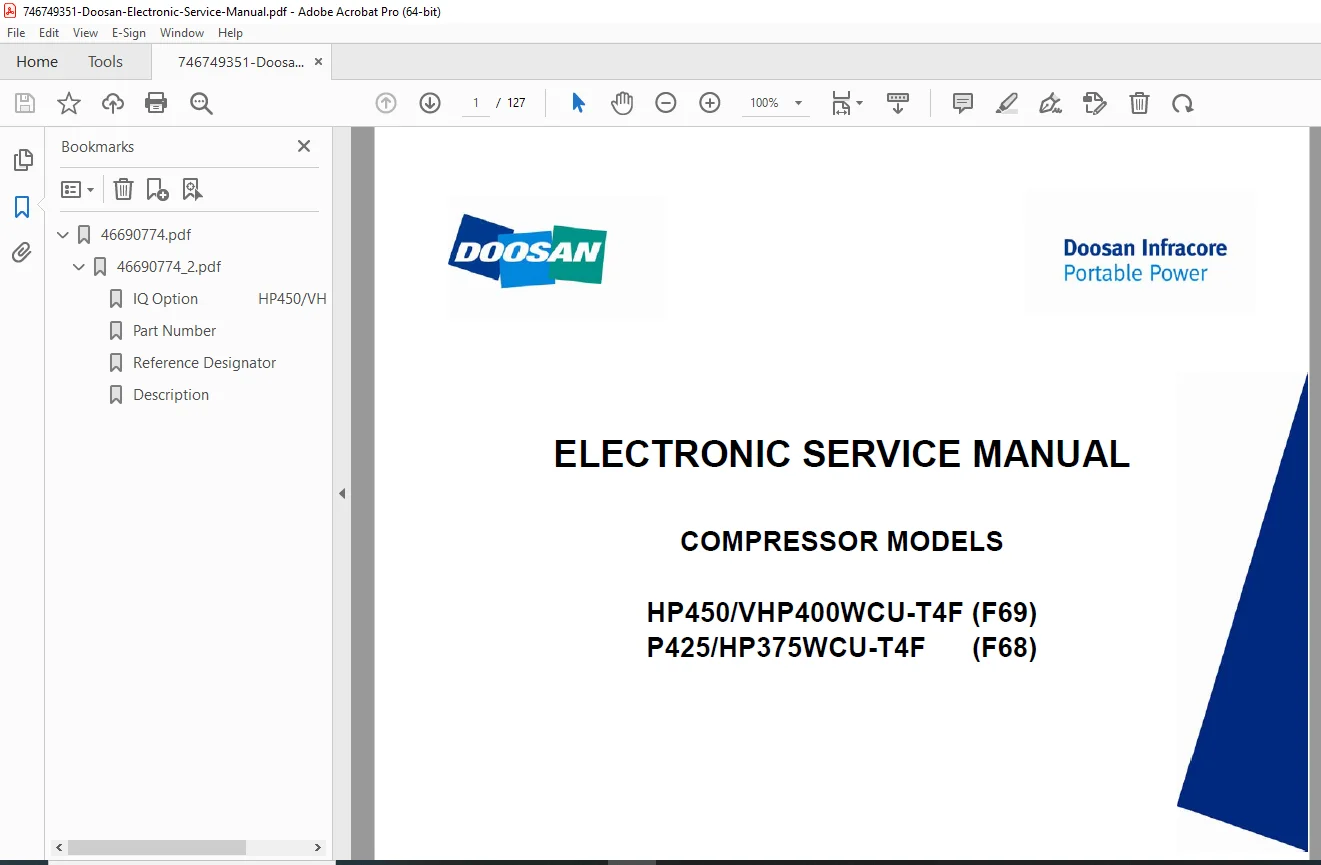

The doosan hp450 vhp400wcu t4f service manual pdf is the comprehensive electronic service resource from Doosan Infracore Portable Power for maintaining and repairing the HP450/VHP400WCU-T4F (F69) and P425/HP375WCU-T4F (F68) portable compressors. Revised in 2016 (Rev C), this 127-page guide focuses on electronic systems, emphasizing safety, precision diagnostics, and genuine parts to prevent downtime in demanding construction and industrial applications.
Technicians can follow the doosan p425 hp375wcu t4f compressor maintenance guide for routine tasks like coolant levels, belt tension, and separator element changes to extend equipment life. The doosan compressor electronic system troubleshooting manual provides step-by-step flowcharts for resolving issues with controllers, relays, and harnesses, complemented by the doosan portable power compressor fault codes list for interpreting shutdown alarms and performance errors. Detailed doosan f69 f68 compressor service procedures cover disassembly of the airend, fuel system, and exhaust aftertreatment for Tier 4 Final compliance, while doosan compressor wiring diagrams and schematics aid in tracing circuits for sensors, solenoids, and power distribution.
Safety warnings highlight risks like high pressure, hot surfaces, and electrical hazards, with recommendations for PPE and lockout/tagout. Diagrams, torque specs, and special tool lists enhance usability for field repairs.
No bookmarks or alphabetic index are explicitly mentioned in available excerpts, but the structured TOC facilitates navigation.
Table of Contents
| Section | Subsection | Page Numbers (Approximate) |
|---|---|---|
| General Information | Foreword; Model Specifications; Serial Number Locations; Compressor Overview | 1-10 |
| Safety | Safety Precautions; Compressed Air Hazards; Exhaust System Warnings; Materials and Fluids; Electrical Safety | 11-20 |
| Electronic System Description | System Component Layout; Controller Functions; Sensors (Pressure, Temperature, Level); Relays and Solenoids; Wiring Harness Overview | 21-40 |
| Operation | Startup Procedures; Shutdown Sequences; Diagnostic Mode Entry; Display Panel Navigation | 41-50 |
| Maintenance | Periodic Maintenance Schedule; Filter Replacement; Fluid Changes; Belt and Hose Inspections; Battery Service | 51-70 |
| Troubleshooting | Fault Code List and Descriptions; Diagnostic Flowcharts; Common Issues (Low Pressure, Overheat, No Start); Error Resolution Steps | 71-100 |
| Service Procedures | Component Removal/Installation (Airend, Radiator, Fuel Tank); Calibration and Adjustments; Wiring Repairs | 101-115 |

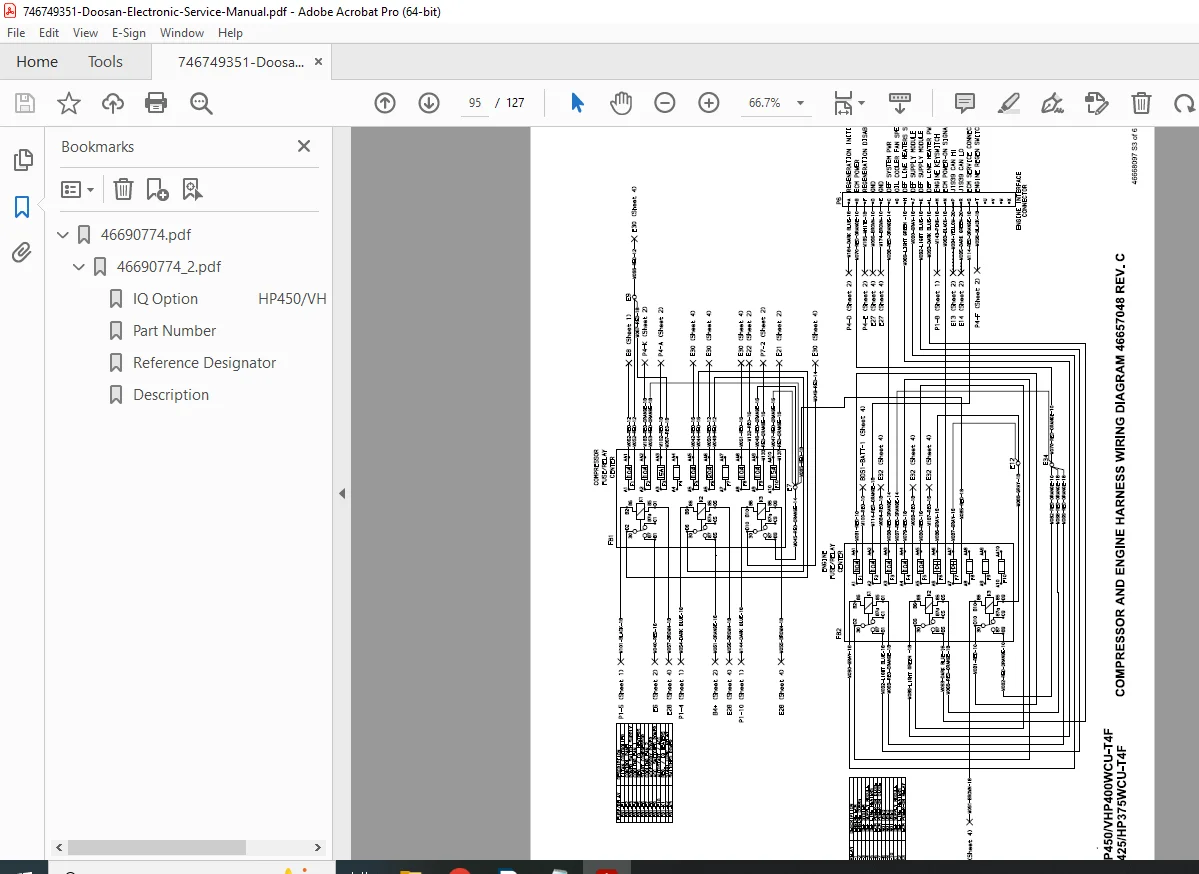

| Schematics and Diagrams | Electrical Wiring Diagrams; Pneumatic Schematics; Hydraulic Layouts | 116-125 |
| Parts List | FRU List; Exploded Views; Ordering Information | 126-127 |
File Details:
- Manual Name: Electronic Service Manual (Book 46668103, Rev C)
- Models Covered: HP450/VHP400WCU-T4F (F69), P425/HP375WCU-T4F (F68)
- Year: 2016
- Manual PDF Quality: High-resolution, searchable text with diagrams and illustrations
- Pages: 127
