Dräger Incubator 8000 Service Manual – Inspection & Retrofit Guide (PDF)
Original price was: $95.00.$28.95Current price is: $28.95.
Official Dräger Incubator 8000 Service Instructions (1989). Covers inspection bulletins, retrofit packages, calibration remedies, electronics module service, fan and evaporator upgrades, sensor alignment, fuse changes, and step-by-step retrofit procedures. Essential for biomedical engineers servicing legacy Dräger neonatal incubators
Description
Dräger Incubator 8000 Service Manual – Inspection & Retrofit Guide (PDF) DOWNLOAD
👶 Dräger Incubator 8000 – Factory Service & Retrofit Manual
This is the original Dräger service instruction set for the Incubator 8000. Unlike a basic user guide, this document is written for authorized service engineers and focuses on:
Inspection service bulletins
Retrofit campaigns and conversion kits
Hardware modifications and remedies
Calibration and fault corrections
Electronics module service
Fan, evaporator, and sensor upgrades
Step-by-step retrofit procedures

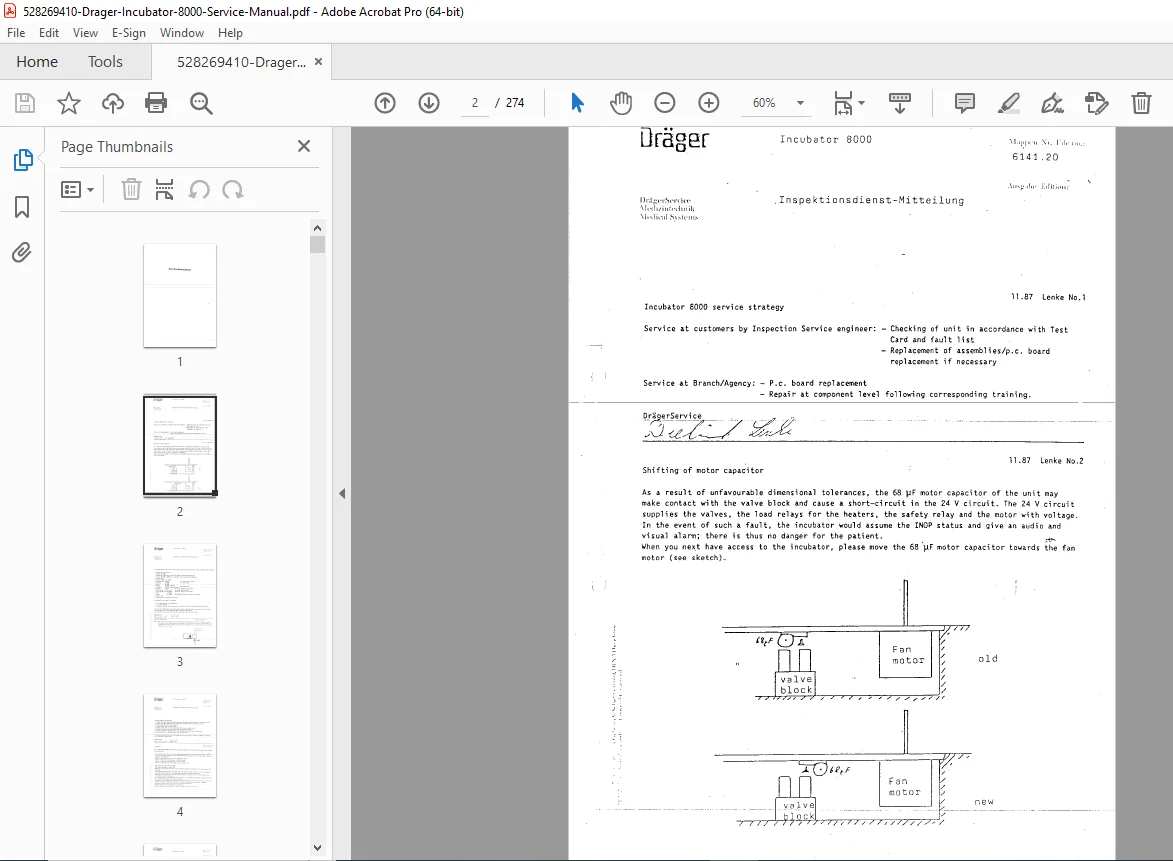

It includes official “Inspektionsdienst-Mitteilung” notices, engineering sketches, wiring changes, component replacements, and acceptance sheets—exactly as issued by Dräger Medical Systems for field upgrades.
📑 Complete Table of Contents (From the Manual)
🔹 Service Instructions
Incubator 8000 Service Strategy
Inspection Service Information
Component Shifts & Engineering Changes
Software Modifications
Faulty O₂ Calibration – Cause & Remedy
Temperature Sensor Safeguard
Regulating Thermostat Conversion
Water Deficiency Signal Improvement
🔹 Conversion Campaigns
Conversion Campaign 11
Items Included in Retrofit
New Water Jar
Hose Attenuation
Swivel Window Modifications
Fan Upgrade
EPROM & RAM Expansion
Control Loop Improvements
Alarm Behavior Enhancements
Humidity Control Changes
Warm-Start Logic
🔹 Retrofitting Package III
Purpose of Retrofit
Software & Memory Expansion (8K RAM)
O₂ Monitoring Improvements
Valve Switching Behavior
Alarm Threshold Adjustments
Initial Conditions After Power-On
🔹 Retrofitting Instructions (Step-by-Step)
Data Backup from Service Modes
Open Electronics Module
Remove CPU Board
Replace EPROM
Replace RAM
Modify Side Panel
Install Wiring Harness
Solder Connections
Secure Boards
Renew Evaporator Cap
Fuse Replacement (F5 / F6)
Install Additional Fan
Replace Seals & Hoses
Reassemble Unit
Functional Checks
Update Test Card
Serial Number Registration
Customer Instruction
Acknowledgement Sheet
🔹 Engineering Sketches & Diagrams
Fan Motor Relocation
Sensor Gap Adjustment
PCB Layouts
Evaporator & Hose Routing
Fuse Location Diagrams
Swivel Window Latch Geometry
📂 File Details
| Item | Description |
|---|---|
| Manual Name | Dräger Incubator 8000 – Service Instructions |
| Brand | Dräger Medical Systems |
| Models Covered | Incubator 8000 |
| Year / Edition | 1989 (VM-DS-PB-1e) |
| Format / Quality | High-quality scanned PDF |
| Total Pages | 274 Pages |
This is the original Dräger field-service documentation—not a generic guide. If you maintain or restore Incubator 8000 units, this manual gives you factory-approved retrofit steps, remedies, and wiring changes.
👉 Download instantly and service the Dräger Incubator 8000 with authentic, engineer-level precision.
