Dronningborg D9000 D9000XS Combine Harvester Fitting Instructions and Spare Parts List

Description

Dronningborg D9000 / D9000XS Fitting Instructions and Spare Parts List

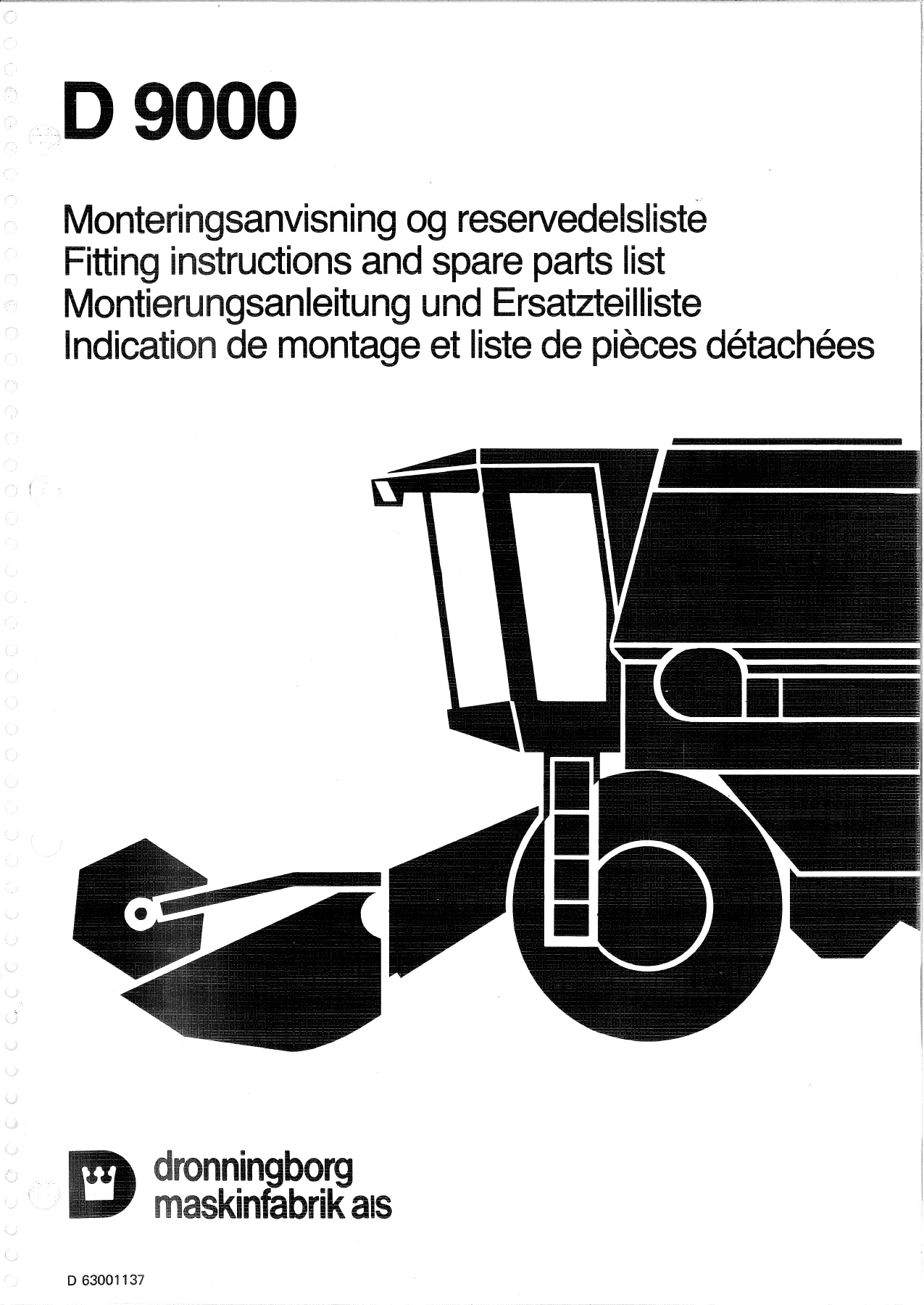

This is the complete fitting instructions and spare parts list for the Dronningborg D9000 and D9000XS self-propelled combine harvesters, covering 16′, 18′, 20′ and 22′ cutting table configurations. The manual is a 548-page multilingual document published under edition 1991/1 and applies from machine No. 47598 and onward. Every assembly is broken down into illustrated exploded views with individual part numbers, quantities and bilingual descriptions, making it an essential reference for anyone maintaining, repairing or rebuilding these combines.

File Details

• Manual type: Fitting instructions and spare parts list
• Brand: Dronningborg
• Model: D9000, D9000XS
• Coverage: 16′, 18′, 20′ and 22′ self-propelled combine harvesters
• Serial range: From machine No. 47598 and onward
• Edition: 1991/1
• Language: Danish, English, German, French
• Page count: 548
• File format: PDF

Chapters Covered

• Skærebord / Table / Schneidwerk / Barre de coupe — knives and fingers, feeder drums, guarding and reducing equipment, table housing with guarding
• Vinde / Reel / Haspel / Rabatteur — reel 1 and 2, reel suspension, hydraulic cylinder and hydraulic motor
• Transportøraksel / Feeder shaft — lower and upper feeder shaft with suspension, feeder chain and protective plates
• Skærebordskobling / Table clutch
• Hydraulikcylinder / Hydraulic cylinder
• Reversering / Reversing device
• Broc og cylinder / Concave and cylinder — grain separator
• Halmyster og krumtappe / Straw shaker and cranks
• Fyldeelevator / Filling elevator — filler pipe, return elevator and returns thresher
• Tommesnegl / Discharge auger — fixed and swivel parts, auger pipe and transmission
• Drivaggregat / Drive unit — suction channel and hydraulic cooler, radiator hoses and cables, air cleaner, strainer, engine bracket and silencer, prop pump and hydraulic pump, power take-off, fan housing
• Brændstoftank / Fuel tank
• Førerplatform / Operator platform
• Førerkabine / Driver cabin
• Kabinetag med sidestolper / Cab roof with side members
• Bremsepedaler og gearskift / Brake pedals and gearshift
• Instrumentpanel, betjeningskasse / Instrument panel, control box
• Førersæde, ratarrangement / Operator seat, steering arrangement
• Ruder / Window panes
• Forpanel, sidestolper, Daniavision / Front panel, side members, Daniavision
• Kabinetag med air-condition / Cab roof with air-condition
• Perron / Platform
• Hydraulik / Hydraulics — chaff spreader, side knife, reel speed, main valve to hydraulic pump, tank tube to flow divider
• Maskinhus / Machine housing — lower and upper guarding, straw nose, wind guarding, engine guarding
• Værktøj / Tools — electrical system, wiring, electrical parts, plugs, cable eyes and short-circuit plugs
• Nummerfortegnelse / Numerical index — numerical list of part numbers cross-referenced to figure and position
• Specifikationer på standardkomponenter / Specifications for standard parts

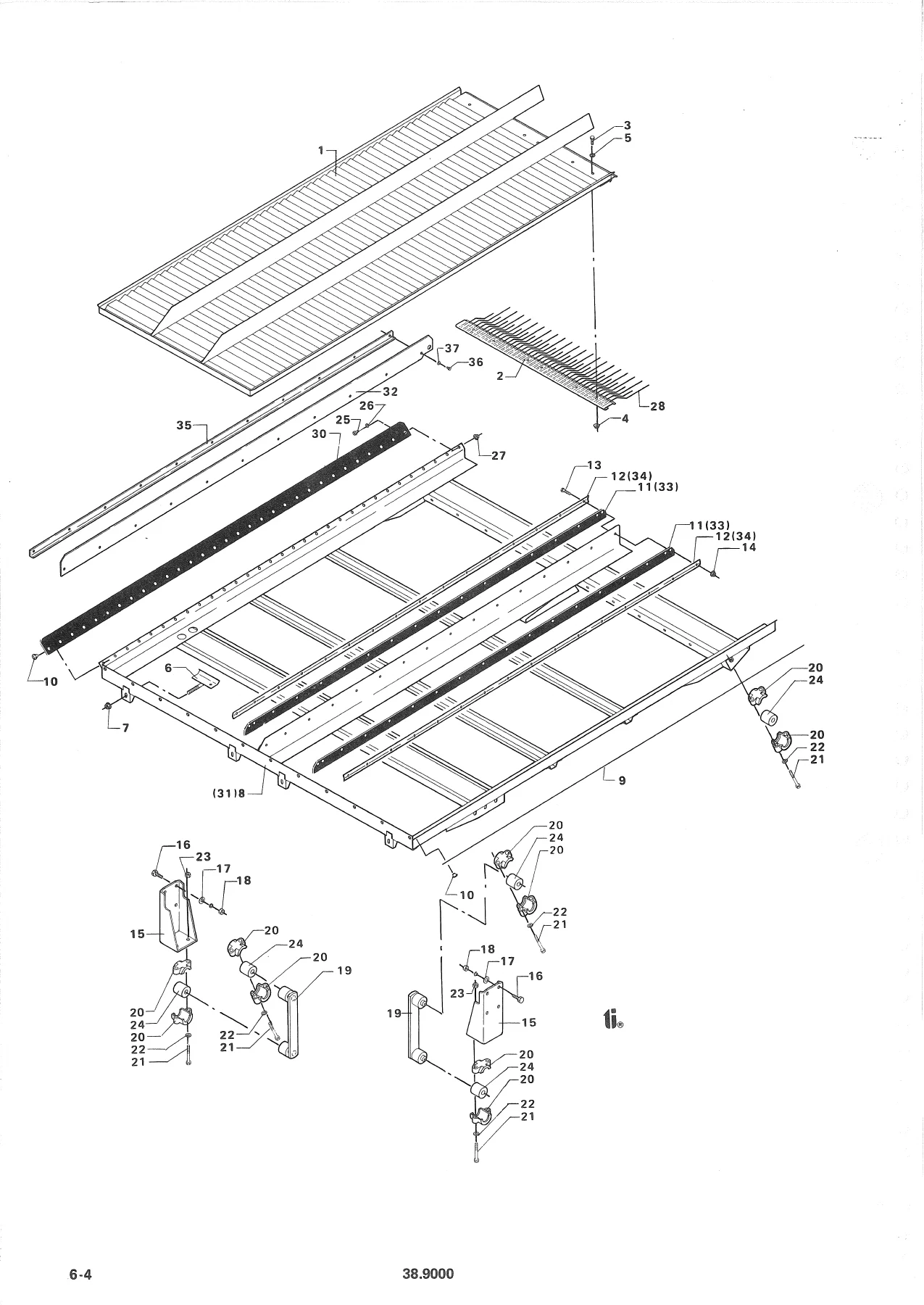

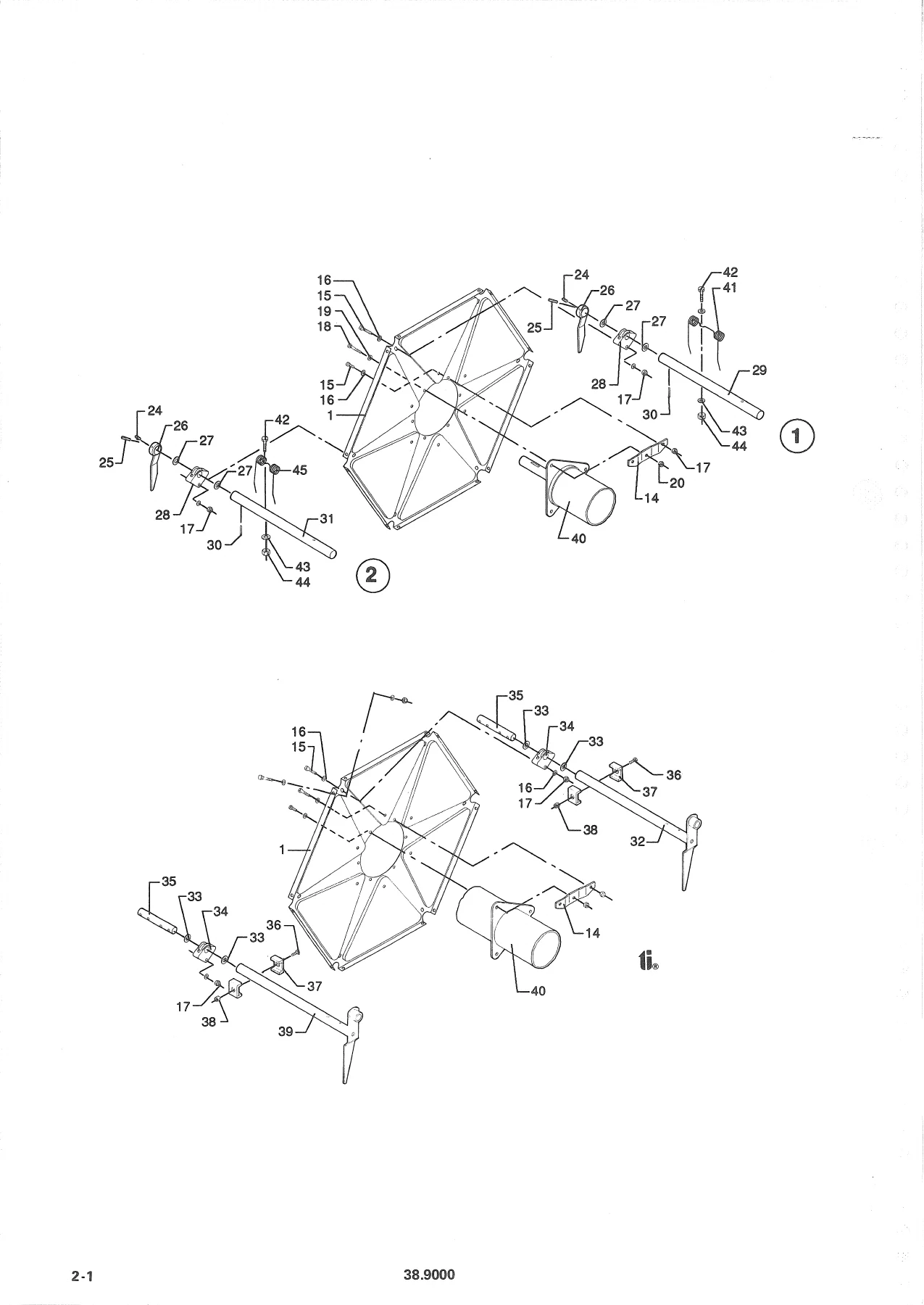

Across these chapters the manual provides a complete part-by-part breakdown of the D9000 and D9000XS. Each section is presented as an exploded illustration with numbered callouts, followed by a column-by-column parts table giving the position number, Dronningborg part number, description in four languages, quantity required and any remarks — such as serial-number cut-offs, optional equipment, or left/right/front/rear fitting positions. The inclusion of a numerical index at the back means any part number can be traced back to its illustration and section without paging through the whole book. Hydraulic and electrical schematic diagrams are also included where those systems are shown, alongside standard-part specifications for fasteners, bearings and seals.
