Ducati Monster 821 Service Manual – Full Workshop Reference

This is the complete Ducati Monster 821 service manual for the 2014 and 2015 model years, covering the European, Australian, USA, Canada, California, France (25 kW) and 35 kW restricted versions. It runs more than a thousand pages across nine sections, from general information and model identification through to crankcase separation, connecting rod overhaul and ABS hydraulic bleeding. Whether you are servicing your own bike or running a workshop, this Ducati Monster 821 service manual gives you the factory procedures and specification values needed to do the job correctly.

File Details

• Manual type: Service / Workshop Manual
• Brand: Ducati
• Model: Monster 821
• Model years covered: 2014 (E) and 2015 (F)
• Language: English
• Page count: 1164 pages
• File format: PDF
• Manufacturer: Ducati Motor Holding
• Section structure: M.01 General through M.09 Engine

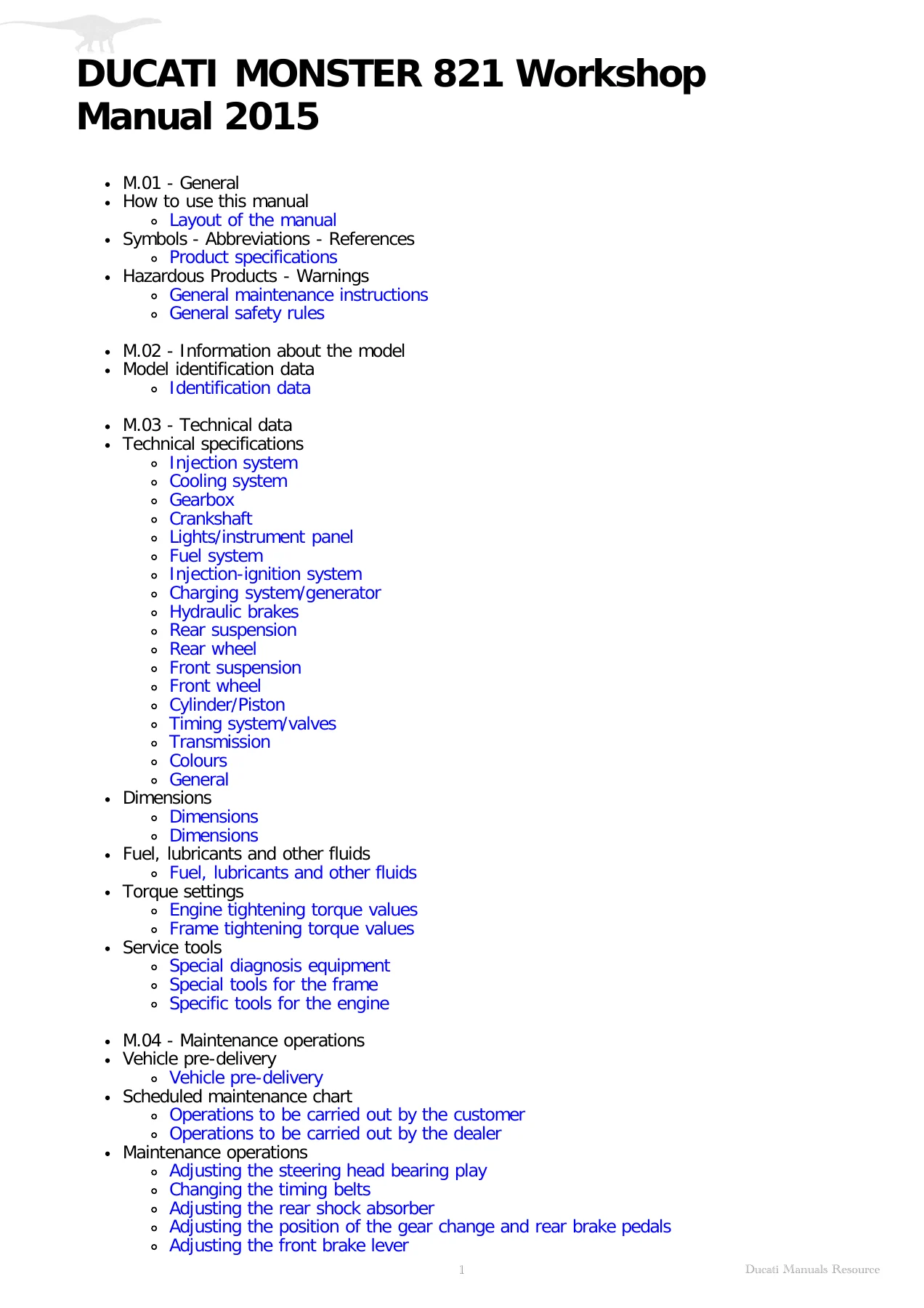

Chapters Covered in This Ducati Monster 821 Service Manual

• M.01 – General: How to use this manual, layout, symbols, abbreviations, hazardous products, safety rules

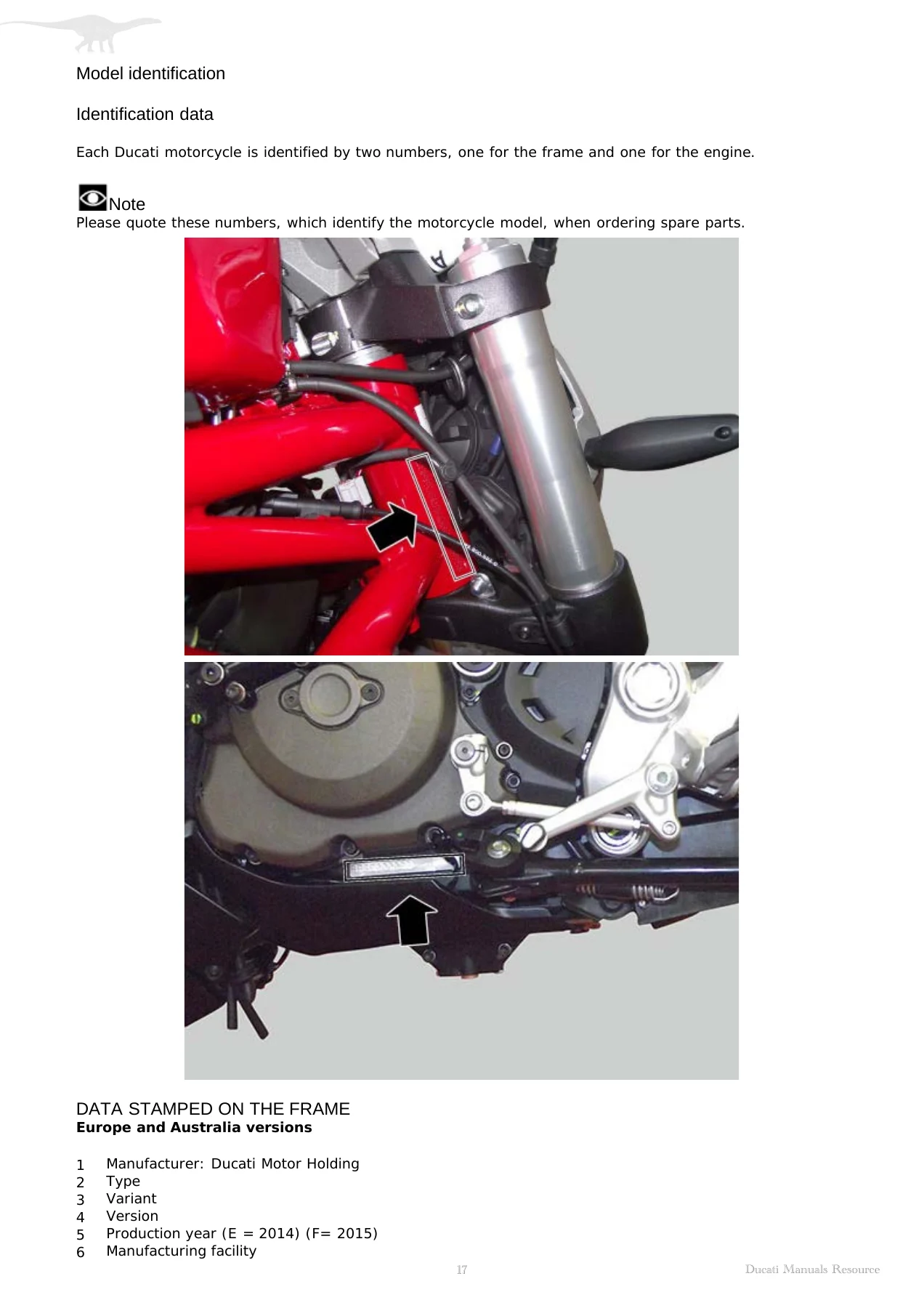

• M.02 – Information about the model: model identification data, VIN data stamped on the frame and engine
• M.03 – Technical data: technical specifications, injection system, cooling system, gearbox, crankshaft, lights/instrument panel, fuel system, injection-ignition, charging system, hydraulic brakes, front and rear suspension, wheels, cylinder/piston, timing system/valves, transmission, colours, dimensions, fluids, torque settings, service tools
• M.04 – Maintenance operations: pre-delivery, scheduled maintenance chart, steering head bearing play, timing belt change, rear shock adjustment, pedal and lever adjustment, chain tension, clutch cable, brake fluid changes, coolant change, air filter, spark plugs, valve clearance, engine oil and filter
• M.05 – Fairings: headlight fairing panel, instrument panel group, seat and side panels, seat release mechanism, front and rear mudguards
• M.06 – Electric system and engine management: wiring diagram, wiring routing tables A to V, fuse box keys, battery charging system, rectifier-regulator, generator, battery, solenoid starter, starter motor, lights, instrument panel functions, Riding Mode customisation, DTC and ABS settings, error codes
• M.07 – Chassis: front and rear wheel, front and rear brake controls, ABS information and component maintenance, handlebar unit, gearchange mechanism, fork and steering head, rear shock absorber, swinging arm, final drive, footpeg brackets, stands, frame inspection
• M.08 – Fuel system / Exhaust system: fuel tank, airbox and throttle body, air intake, exhaust system, canister filter
• M.09 – Engine: engine removal and refit, lubrication system oil pump, cooling system water tank, radiator and water pump, cylinder head checks and adjustments, timing system, camshafts, valves and rocker arms, cylinder and piston, clutch assembly, primary drive gears, gearbox assembly, flywheel and generator, crankcase, connecting rods

Across all nine sections, the manual walks a technician from basic pre-delivery checks right down to splitting the crankcase halves, replacing big-end bearing shells and re-shimming the gearbox shafts. Torque values, service limits and assembly clearances are embedded in each procedure rather than hidden in an appendix, and cross-references point you to the section that must be completed first. That layering is what separates a real Ducati Monster 821 service manual from a generic repair guide – you get the correct tightening sequences, the pre-applied threadlocker callouts and the tool numbers for jobs like the steering tube bearing installation or the Desmodromic valve shim replacement.

Electrical, Diagnostics and Riding Mode Coverage

The electrical section is unusually detailed for this class of manual. Alongside the full wiring diagram, it breaks the harness down into routing tables A through V that tell you exactly where each branch is tied to the frame, the airbox, the rear subframe, the headlight area and the vertical head. There is a dedicated key to the fuse box, a wire colour coding table, and a complete electric system diagram key that maps every numbered component from the ignition switch and LH/RH fans through to the lambda sensors, injectors and the ride-by-wire TPS/ETV unit.

On the electronics side, the manual documents the accelerator position system (APS), CAN line, DTC, ETV, Black Box System (BBS), MAP sensor, timing/rpm sensor, lambda sensors, ECU, handlebar controls and safety sensors. It explains the three Riding Modes (Sport, Touring and Urban) and how to customise engine power, DTC level and ABS calibration through the instrument panel Setting Menu, including how to save the parameters and restore default settings.

Brakes, Suspension and Chassis Detail

Brake work is covered end to end. The hydraulic brakes chapter documents the separate-action ABS with hall-type phonic wheel sensors, the front Brembo M4.32 calliper with 320 mm discs and the rear P34e with a 245 mm disc, along with pad wear limits and fluid change procedures. The ABS section goes further: it details the operating principle, the hydraulic circuit layout, phonic wheel air-gap measurement (1.3 to 1.9 mm) and a full error code table including codes C0031, C0032, C003E, C003D and C0020.

Suspension coverage includes the Kayaba 43 mm upside-down fork with its left and right leg fluid quantities (394 cc and 521 cc), the Sachs progressive rear monoshock with the four preload and rebound presets (Default, Sport, Comfort, Rider+Passenger) and the full overhaul procedures for both. Steering head bearing play adjustment, steering angle setting and swinging arm shaft runout limits are all specified.

Engine Specifications at a Glance

• Longitudinal 90 degree L-twin, four-stroke
• 88 mm bore, 67.5 mm stroke, 821.1 cc displacement
• Compression ratio 12.8:1
• Toothed belt timing with two overhead camshafts, Desmodromic, 4 valves per cylinder, eight rocker arms
• Wet slipper clutch, six-speed gearbox, final drive 15/46
• Denso ferrite generator, 490 W at 14 V, 34.8 A

What This Manual Lets You Do

With the Ducati Monster 821 service manual open on the bench, you can carry out the full scheduled maintenance chart yourself, from oil and filter cartridge changes through to the 24,000 km valve clearance check. You can adjust the Desmodromic opening and closing rocker arm clearances with the specified shim range, refit a camshaft with the correct sealant points and camshaft cap tightening sequence, replace the timing belts with the degree wheel timing procedure, and diagnose electrical faults using the error code table before they strand you.

For deeper jobs, the manual supports separating the crankcase halves, measuring main bearing shell clearance against the crankshaft class table, checking big-end bearing clearance with Plastigauge, overhauling the gearbox shafts, inspecting the selector forks and drum, and rebuilding the connecting rod assembly with the staged 35 Nm / 20 Nm / 35 Nm / 65 degree tightening procedure. Brake system bleeding, ABS hydraulic bleeding, coolant refill, and chain tension adjustment to the 31 to 33 mm slack value are all documented with the exact tool numbers and torque figures you need.

Why the Correct Ducati Monster 821 Service Manual Matters

The Monster 821 uses Desmodromic valve actuation, a ride-by-wire throttle and an ABS system with combined braking and anti-lift-up logic – three areas where the wrong procedure or a guessed torque value leads to expensive damage. The factory specification values in this manual are what allow you to set valve clearances inside tolerance, bleed the ABS unit without introducing air, and torque the frame-to-engine fasteners correctly for rider safety. Every procedure has been written for the person doing the work, not for a brochure.

IMAGES PREVIEW

Instant PDF Delivery

This Ducati Monster 821 workshop manual arrives as an instant PDF download after purchase. There is no shipping, no waiting and no physical book to lose. Read it on a laptop in the garage, on a tablet beside the bike, or on a phone during a roadside diagnosis. Print the pages you need for the job in front of you – the torque tables, the wiring diagram, the ABS routing diagrams – and keep the rest clean. Once downloaded, the file is yours to keep and reference for the life of the motorcycle.
