Ducati Multistrada 1260 DVT MY2020 Workshop Service Manual PDF

Description

Ducati Multistrada 1260 DVT MY2020 Workshop Service Manual

This Ducati Multistrada 1260 DVT MY2020 Workshop Service Manual is a complete 1,213-page factory-style repair reference covering the 1504 (Base), 1504 S, 1504 Pikes Peak, and 1504 S D-air versions built on the Testastretta DVT (Desmodromic Variable Timing) 1262 cc engine platform. It is written for the technician who needs the full depth of a factory Workshop Service Manual, not a condensed owner’s booklet.

File Details

• Manual type: Workshop Service Manual
• Brand / Model: Ducati Multistrada 1260 DVT
• Model Year: MY2020
• Versions covered: 1504, 1504 S, 1504 Pikes Peak, 1504 S D-air
• Language: English
• Page count: 1,213 pages
• File format: PDF

Chapters Covered

• Symbols, abbreviations, technological dictionary (Riding Modes, Ride by Wire, DVT)
• General safety rules and general maintenance instructions
• Identification data (frame and engine number decoding)
• Battery recharging and storage procedures
• General technical specifications (dimensions, frame, suspension, wheels, tyres, brakes)
• Colours and paint codes by version
• Transmission specifications (gearbox ratios, primary/final drive)
• Timing system and valve clearance/adjustment values
• Crankshaft, cylinder/piston, gearbox service limits
• Cooling system specifications
• Front and rear wheel/suspension service data
• Ignition system and spark plug specifications
• Fuel, lubricants and fluid capacities
• Frame tightening torque values (complete torque tables by component)
• Wiring diagram codes and component descriptions
• Bodywork removal/refitting: fairings, tank cover, rear mudguard
• Brake system: front and rear caliper, master cylinder, ABS component service
• Suspension adjustment procedures (fork and shock standard settings)
• Steering: yoke, steering shaft, bearing service
• Electrical system: fuse box, solenoid starter, Electronic Throttle Valve (ETV)
• Instrument panel error warning system
• Wheel and tyre removal, inspection, rebalancing
• Exhaust system and secondary air system removal/refitting
• Engine removal and refitting procedures
• Radiator and water pump service
• Camshaft, cylinder head, and valve timing service (DVT system)
• Clutch malfunction diagnosis and service
• Gearbox and selector drum service, timing gears
• Crankshaft and connecting rod assembly, bearing selection tables

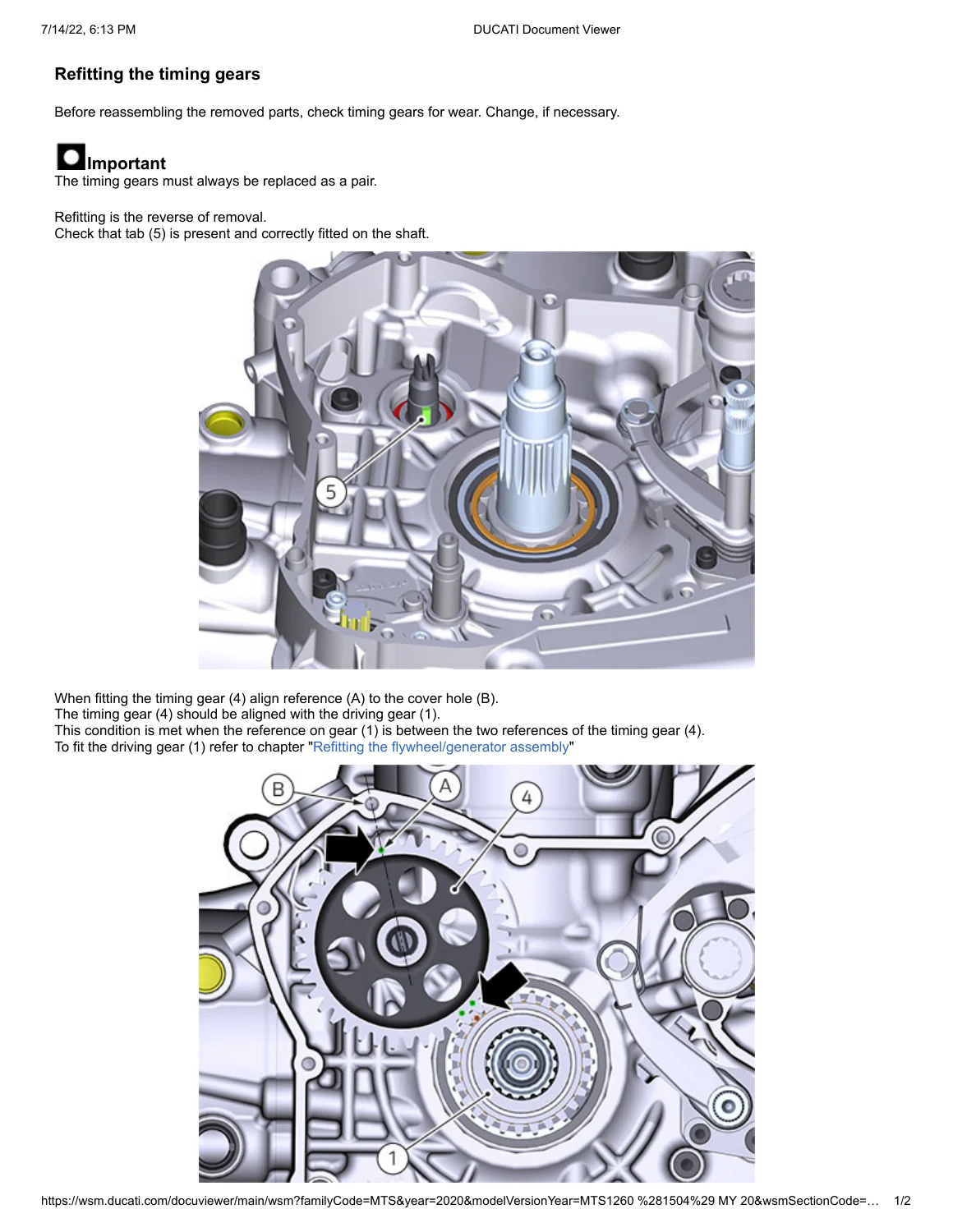

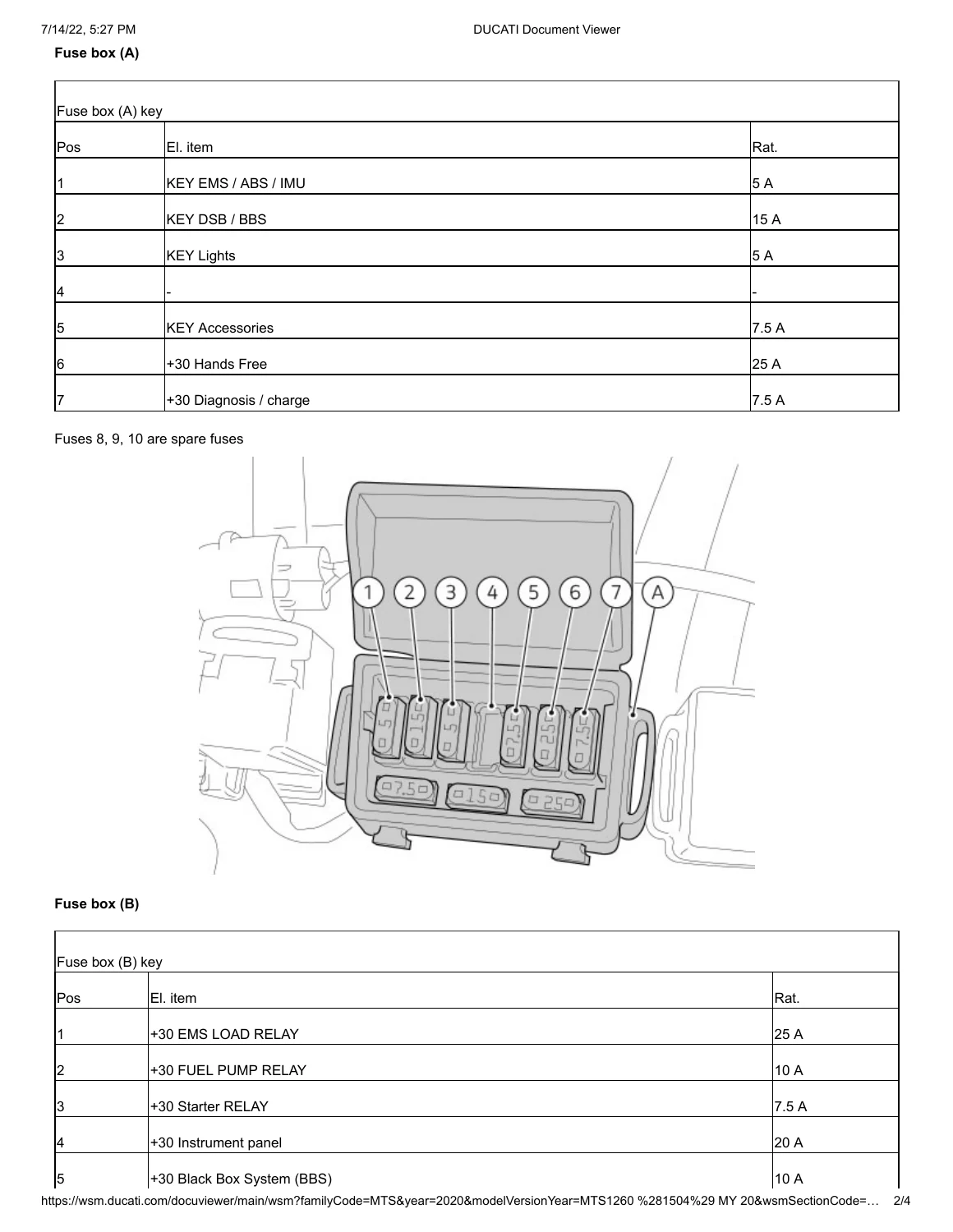

IMAGES PREVIEW

Together these sections give a technician everything needed to diagnose, service, and fully overhaul the Multistrada 1260 DVT engine, chassis, electrical system, and bodywork, following the same reference data and torque specifications used in Ducati’s own workshop documentation.

Engine & Chassis Highlights

• Engine: Ducati Testastretta with DVT, twin-cylinder L-type, 4 valves per cylinder, Dual Spark, liquid-cooled
• Bore x Stroke: 106 mm x 71.5 mm, Displacement: 1262 cc, Compression ratio 13±0.5:1
• Max crankshaft power: approx. 158.2 HP at 9,500 rpm; Max torque: approx. 128 Nm at 7,500 rpm
• 6-speed gearbox, hydraulically-controlled slipper/self-servo wet multiplate clutch
• Steel tubular trellis frame, aluminium single-sided swingarm
• Fuel tank capacity: 20 litres, engine oil: 4.2 litres, coolant: 2.5 litres

Why You Need This Ducati Multistrada 1260 DVT MY2020 Workshop Service Manual
