E- Ton Eton Atv Rxl 50 70 90 Service Manual – PDF

Description

📘 COMPREHENSIVE DOCUMENT OVERVIEW

This comprehensive E-TON service manual 🔧 provides professional-grade technical guidance for the maintenance, repair, and troubleshooting of ATV RXL 50/70/90, RXL 90/90R, and RXL 50M models. This digital manual 📖 is a crucial resource for certified technicians, service professionals, and experienced mechanics working with these specific ATV models. Spanning 66 pages, this in-depth guide covers a wide range of topics, from routine maintenance to complex repair procedures. It equips you with the knowledge to keep your E-TON ATV running smoothly and safely. 🚜

Key features of this manual include detailed engine specifications, fuel system diagnostics, lubrication and cooling system procedures, transmission system analysis, and steering system repair. It also offers detailed instructions on front and rear wheel maintenance, including brake system inspection and replacement. Additionally, the manual covers fenders, exhaust pipe maintenance, and a complete overview of the electrical system, including wiring diagrams. A comprehensive troubleshooting guide aids in diagnosing common issues and provides effective solutions. Parts identification and assembly details further enhance the practical value of this resource.

Safety procedures and warnings ⚠️ are emphasized throughout the manual, ensuring you can perform maintenance and repairs with confidence. Clear step-by-step instructions, accompanied by high-quality images, simplify complex procedures, making this manual accessible to experienced mechanics. Regular maintenance schedules 📋 are outlined, helping you proactively prevent issues and extend the life of your E-TON ATV. The detailed troubleshooting section empowers you to diagnose and address problems efficiently.

🔧 TECHNICAL SPECIFICATIONS & COVERAGE

• Models Covered: E-TON ATV RXL 50, RXL 70, RXL 90, RXL 90R, and RXL 50M.
• Engine Specifications: Detailed information on engine types (air-cooled two-stroke), displacement, bore and stroke, compression ratio, maximum torque, carburetor type, ignition system, starting mechanisms, and lubrication system.
• Electrical System: Comprehensive wiring diagrams, troubleshooting guides for ignition, charging, and starting systems, and information on the battery, ignition coil, alternator, and remote control system.

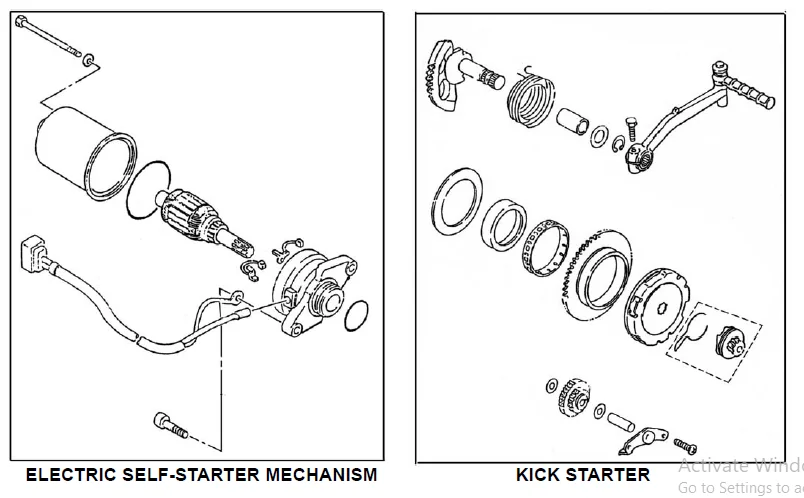

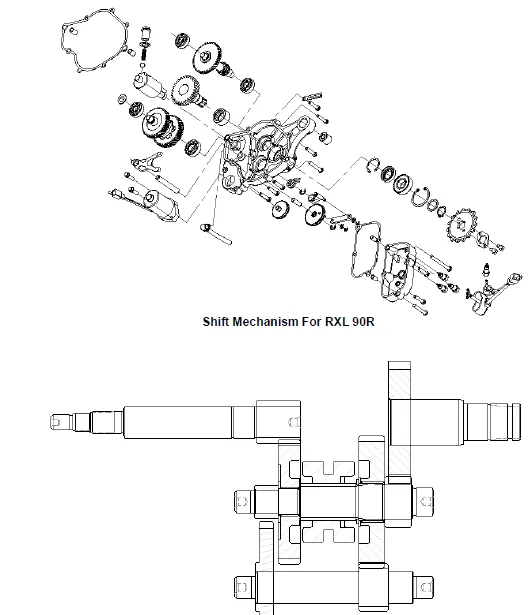

• Transmission and Drivetrain: Covers automatic CVT (Continuously Variable Transmission) with V-belt, gear box specifications (for RXL 90R), electric and kick starter mechanisms, and troubleshooting.
• Chassis and Suspension: Specifications for overall dimensions, seat height, wheelbase, ground clearance, dry weight, fuel capacity, front and rear suspension types.
• Brakes: Front and rear brake system details, including mechanical drum brakes (front on some models) and hydraulic disc brakes (rear), parking brake information, and troubleshooting.
• Wheels and Tires: Tire sizes, recommended tire pressures, and wheel removal and installation.
• Steering: Steering system components, including handlebars, tie-rods, kingpins, and steering shaft, along with adjustment and replacement procedures.

📋 MANUAL SECTIONS & PROCEDURES

• General Information (Safety, Specifications, Serial Numbers)
• Maintenance Schedules
• Engine Removal and Installation
• Fuel System
• Lubrication and Cooling System
• Combustion System (Cylinder, Piston, etc.)
• Transmission System (CVT, Gearbox, etc.)
• Steering System
• Front Wheel System (Wheel Removal, Brakes)
• Rear Wheel System (Wheel Removal, Brakes, Drive Mechanism)
• Fenders and Exhaust Pipe
• Electrical System (Wiring, Battery, Ignition, etc.)
• Troubleshooting

❌ WHAT’S NOT INCLUDED

• Physical printed manual (digital download only)
• Real-time technical support or consultation
• Warranty coverage or repair guarantees

📊 COMPREHENSIVE RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

📋 SEO Schema for Google:

💬 Customer Questions & Answers:

Q: What specific models and years does this manual cover?
A: This manual covers the E-TON ATV RXL 50, RXL 70, RXL 90, RXL 90R, and RXL 50M. The exact year range is not specified within the manual, but it’s based on the latest information available at the time of publication.

Q: What types of maintenance and repair procedures are included?
A: The manual covers a wide range of procedures, including engine removal/installation, carburetor service, lubrication and cooling system maintenance, transmission repair, steering system adjustment, brake inspection and replacement, wheel maintenance, electrical system diagnosis, and troubleshooting various issues.

Q: Is this manual suitable for DIY mechanics or is it for professionals only?
A: While a mechanically inclined individual might find some sections useful, this manual is geared toward professional technicians due to its technical detail and assumed baseline knowledge.

Q: What format is this manual in and how do I access it?
A: This is a digital download in PDF format. After purchase, you’ll have immediate access to download the file and can save it to your computer, tablet, or smartphone.

Q: Are there special tools or diagnostic equipment requirements?
A: The manual does not list specific special tools. However, standard mechanic tools are implied. Carefully review the specific procedure before beginning any work to ensure you have the appropriate tools.

Q: Does this manual include wiring diagrams and hydraulic schematics?
A: Yes, the manual includes wiring diagrams for the electrical systems of the covered ATV models. However, hydraulic schematics are not explicitly mentioned in the manual summary.

Q: Is the manual language technical or user-friendly?
A: The language is technical, targeting trained mechanics familiar with ATV systems and terminology.

Q: Can I print this manual or use it offline?
A: Yes, the PDF format allows printing and offline use.

🛠️ PROFESSIONAL ASSESSMENT & USABILITY

Overall Quality Rating: ⭐⭐⭐⭐ (Very good, detailed information with clear pictures)

Content Classification: Service manual for E-TON ATVs

Language & Accessibility: Technical, targeted towards trained mechanics.

Professional Recommendation: Highly recommended for professional ATV technicians and service shops specializing in E-TON models.

Technical Depth: Good level of detail, covering a wide range of systems and procedures.

Page Count & Scope: 66 pages covering various aspects of maintenance, repair, and troubleshooting.

File Quality & Format: PDF format. Quality seems decent based on the sample images, with clear diagrams and text.

Update Status: Based on the “latest information available at the time of printing” statement, the manual may not be the most current revision. Check for updates from the manufacturer.

🎯 IDEAL USE CASES & APPLICATIONS

• Professional ATV repair shops specializing in E-TON models.
• Experienced mechanics performing advanced repairs or maintenance.
• Technical schools and training programs for ATV mechanics.
• Individuals with substantial mechanical experience working on their own ATVs.
• Parts departments for identifying and ordering correct replacement parts.
