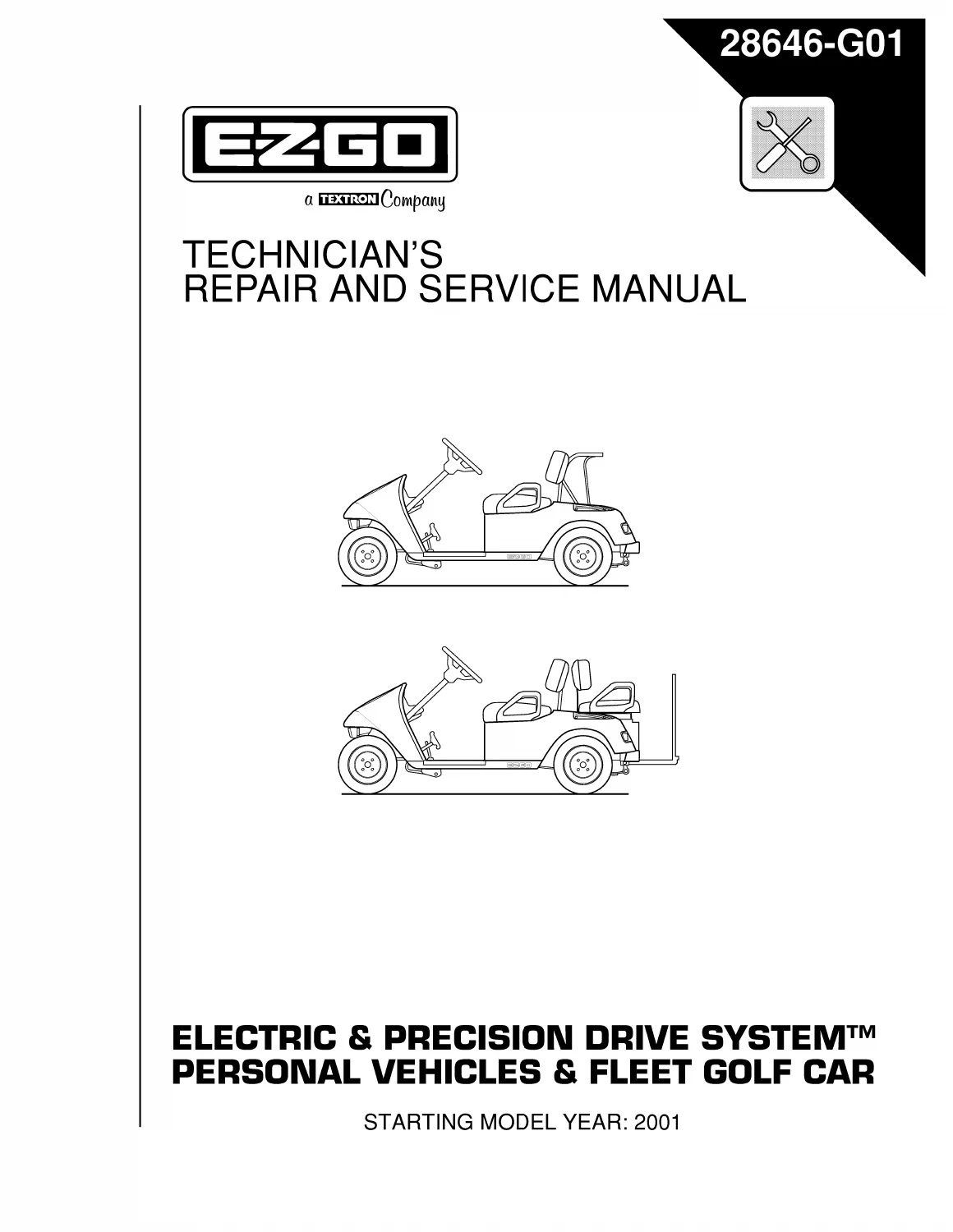

E-Z-GO 36V Electric Golf Car Technician’s Repair & Service Manual – 28646-G01 (2001+)

Description

E-Z-GO 36V Electric Golf Car Technician’s Repair & Service Manual (28646-G01)

This is the factory E-Z-GO Technician’s Repair and Service Manual, Part No. 28646-G01, published by E-Z-GO Division of Textron, Inc. At 228 pages it covers both the standard Electric and the Precision Drive System™ (PDS) variants of the E-Z-GO personal vehicle and fleet golf car line beginning with model year 2001. Five distinct models are addressed in a single volume: the Freedom, PDS Freedom, Fleet Golf Car, PDS Fleet Golf Car, and Shuttle 2+2. Whether you are maintaining a private-use personal vehicle or servicing a fleet of course cars, this manual covers the mechanical and electrical systems common to all these 36-volt E-Z-GO platforms.

The manual is written for trained technicians with mechanical skill — it states plainly that improper service or repair may damage the vehicle or render it unsafe. Each section opens with a direction to read the Safety section (Section B) before attempting any procedure, and every procedure flags Notes, Cautions, and Warnings prominently. The 21 lettered sections move logically from general maintenance and safety through every chassis, electrical, and drivetrain system on the vehicle.

File Details

• Manual type: Technician’s Repair and Service Manual
• Brand/Model: E-Z-GO Electric & PDS Personal Vehicles and Fleet Golf Cars
• Part No.: 28646-G01
• Starting Model Year: 2001
• Publisher: E-Z-GO Division of Textron, Inc., Augusta, Georgia USA
• Language: English
• Pages: 228
• File format: PDF (scanned original)
• Vehicles covered: Freedom, PDS Freedom, Fleet Golf Car, PDS Fleet Golf Car, Shuttle 2+2

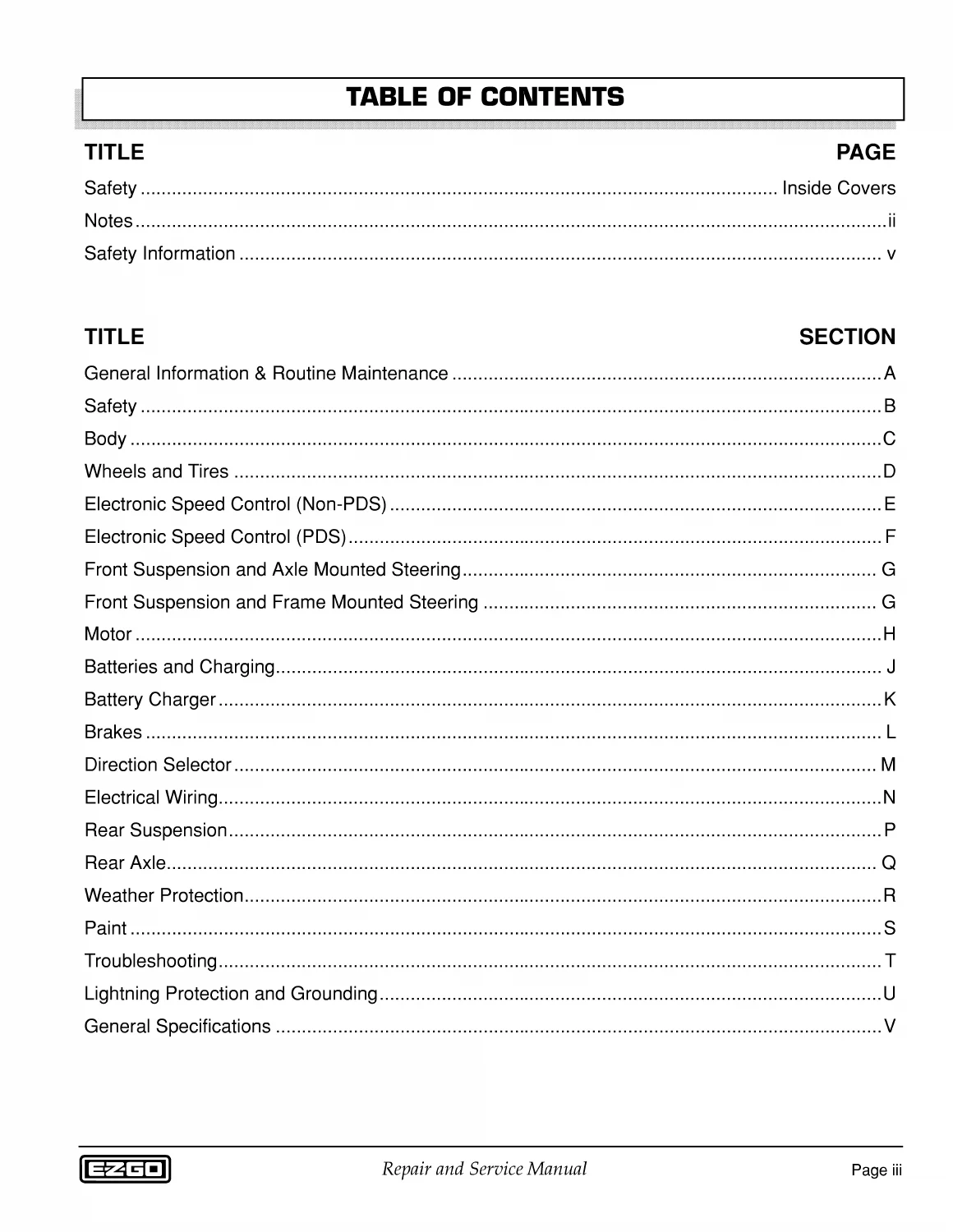

Sections Covered

• Section A – General Information & Routine Maintenance: service intervals, lubrication, inspection procedures, general specifications reference
• Section B – Safety: safety alert symbols, signal words, required safety practices for working on electric vehicles and battery systems
• Section C – Body: body panel removal, installation, and repair procedures
• Section D – Wheels and Tires: wheel removal/installation, tire service; tire specification 18 x 8.50 x 8 (4-ply rated), tire pressure 18–22 psi
• Section E – Electronic Speed Control (Non-PDS): solid state continuously variable speed controller — diagnosis and service for standard Electric vehicles
• Section F – Electronic Speed Control (PDS): Precision Drive System controller — diagnosis, service, and performance option programming (All Terrain, Steep Hill, Mild Hill, Freedom options)

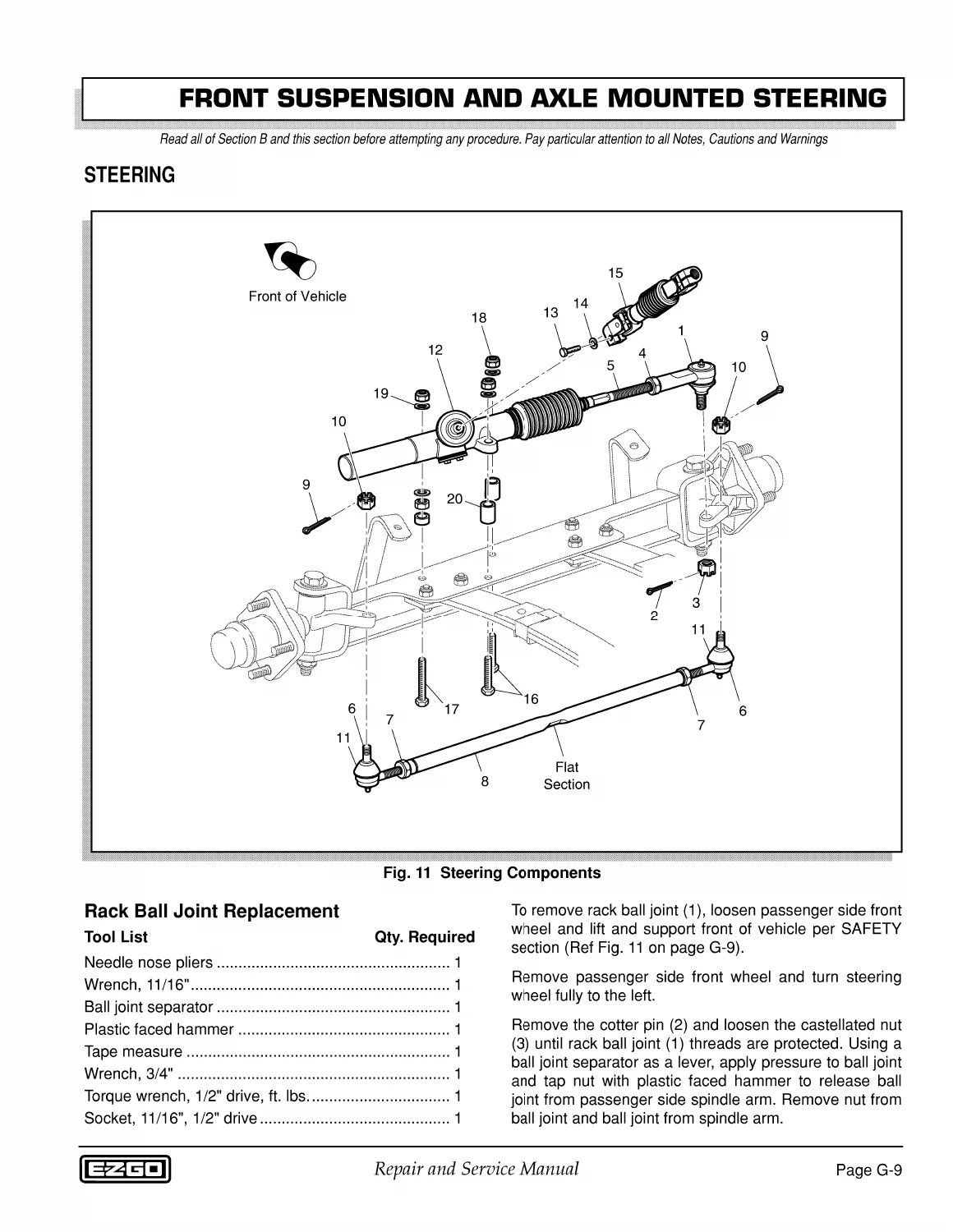

• Section G – Front Suspension and Axle Mounted Steering / Front Suspension and Frame Mounted Steering: rack and pinion steering, ball joint replacement, spindle service, leaf spring and hydraulic shock absorber service
• Section H – Motor: 36V DC motor service — series wound (non-PDS) and shunt wound with speed sensor (PDS); brush inspection and replacement, armature service, motor removal and installation
• Section J – Batteries and Charging: battery inspection, electrolyte level and water purity standards, cleaning, battery testing, prolonged storage procedures; battery specification: 36V DC, six 6-volt deep cycle batteries
• Section K – Battery Charger: PowerWise™ charger diagnosis and service
• Section L – Brakes: dual rear wheel mechanical drum brake service; self-adjusting brakes with combination service/park brake and automatic parking brake release (accelerator kick-off)
• Section M – Direction Selector: forward/reverse selector service
• Section N – Electrical Wiring: wiring diagrams and harness service for all covered models and variants
• Section P – Rear Suspension: leaf spring and hydraulic shock absorber service
• Section Q – Rear Axle: transaxle service; 12.44:1 ratio high efficiency differential with helical gears
• Section R – Weather Protection: enclosure and weather protection accessory service
• Section S – Paint: body panel paint and finish procedures
• Section T – Troubleshooting: systematic fault isolation procedures covering electrical, drivetrain, braking, and charging system problems
• Section U – Lightning Protection and Grounding: grounding system specifications and installation for charging facility installations
• Section V – General Specifications: full vehicle specifications for TXT Electric Freedom, TXT PDS Electric Freedom, TXT Electric Fleet, TXT PDS Electric Fleet

Taken together, these 21 sections give a technician a complete service reference for the 36-volt E-Z-GO platform. The two separate speed control sections — one for standard Electric (Section E) and one for PDS (Section F) — recognize that these two controller types require completely different diagnostic approaches. The motor section similarly distinguishes between the series-wound motor used on non-PDS vehicles and the shunt-wound motor with speed sensor used on PDS variants. The battery section goes well beyond a simple check procedure, covering electrolyte water purity standards, automatic watering device use, and detailed storage protocols.

Important Note on Coverage

This manual covers 36-volt electric E-Z-GO vehicles from model year 2001 onward. It does not cover gasoline-powered E-Z-GO models. PDS (Precision Drive System) and non-PDS variants are both included, with separate sections for their respective speed controllers.

What You Can Do With This Manual

The E-Z-GO 36V repair manual 28646-G01 enables a technician to perform motor brush inspections and replacements, battery bank testing and electrolyte service, speed controller diagnosis (both standard and PDS), brake adjustment and drum brake service, front and rear suspension service, rack-and-pinion steering repair, transaxle maintenance, full wiring diagnosis from wiring diagrams, and systematic troubleshooting of any electrical or drivetrain fault. Correct service procedures and specifications prevent the kind of drivetrain damage that E-Z-GO warns is caused by operating above specified speed — and are the foundation of keeping a fleet of golf cars running reliably season after season. The PDF downloads instantly after payment — open it on any device or print the sections you need for the shop floor.
