E-Z-GO Workhorse 1000 Electric Utility Vehicle Service Parts Manual 1999-2000

Description

E-Z-GO Workhorse 1000 Electric Utility Vehicle Service Parts Manual 1999–2000

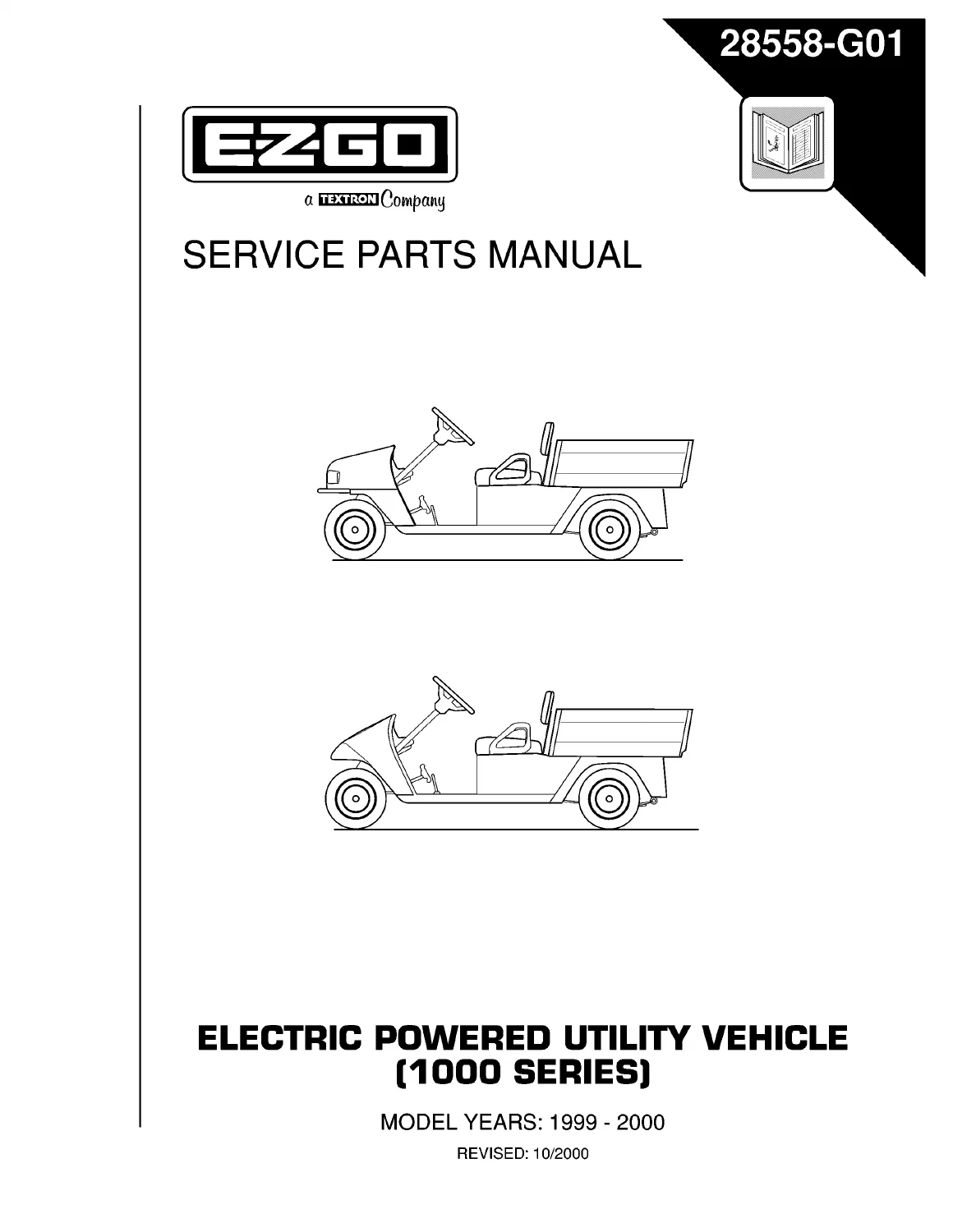

This is the E-Z-GO Service Parts Manual, document number 28558-G01 (revised 10/2000), for the electric-powered 1000 Series utility vehicles built for model years 1999 and 2000. The two variants documented are the Workhorse 1000 and Workhorse 1000 LX — the larger-platform sibling to the 800 Series, distinguished by a bigger 40-inch truck bed, heavier-duty suspension, and variant-specific body treatments for the LX configuration. Published by E-Z-GO Division of Textron, this 136-page parts reference is the standard document for identifying and ordering correct replacement components on the 1000 Series electric utility vehicle.

File Details

• Manual Type: Service Parts Manual
• Document Number: 28558-G01
• Revision: October 2000
• Brand: E-Z-GO (a Textron Company)
• Models Covered: Workhorse 1000, Workhorse 1000 LX
• Model Years: 1999–2000
• Language: English
• Pages: 136
• File Format: PDF

Illustrated Parts Breakdown — Sections Covered

• Accelerator — Pedal Box Assembly, Accelerator Pedal
• Battery Charger — PowerWise Battery Charger (Portable), PowerWise Battery Charger (On Board), Lester Battery Charger (Portable)
• Body — Workhorse 1000 Cowl, Front Shield, Dash Panel, Floor Boards, Ash Tray; Seat Frame, Battery Frame, Splash Panels; Floormat, Seat Wrap, Side Panels, Side Panel Decals, Rocker Panels; Seat Filler Panels, Rear Fenders, Rear Panel, Front Bumper; Ball Hitch, Clevis Hitch; Workhorse 1000 LX Cowl, Front Fenders, Front Shield, Dash Panel, Glove Box Doors; Workhorse 1000 LX Bumper, Side Panel Decals
• Brakes — Brake Pedal (with brake lights), Brake Pedal (without brake lights), Brake Linkage, Wheel Brake
• Cab — Cab, Cab Mounts, Windshield Wiper; Steel Doors, Vinyl Doors, Strobe Light; Control Panel, Defroster/Cooling Fan, Worklight
• Direction Selector — Direction Selector, Reverse Warning Buzzer
• Electric Motor
• Electrical System — Batteries; Charger Receptacle, Fuse Blocks; Ignition Switch, State of Charge Meter, Horn; Headlight; Brake Pedal and Taillight Connections; Turn Signal, Hour Meter; Worklights, Strobe Light; Workhorse 1000 LX Headlights, Turn Signal
• Electronic Speed Control — Electronic Speed Control and Wiring, Solenoid and Wiring
• Front Suspension — Front Axle, Spindle, Wheel Hub, Shock Absorber, Spring
• Rear Axle — Rear Axle, Differential Cover, Drain Plug, Vent, Differential Guard
• Rear Suspension — Leaf Spring, Shock Absorber
• Seats — Seat Back, Seat Bottom, Hip Restraint
• Steering — Steering Box, Steering Shaft/Column/Wheel, Tie Rods
• Truckbed — Manual Dump Bed (40″), Bed Pivot, Tailgate, Decals; Tilt Latch, Bed Prop; Bed Liner, Ramp; Electric Dump Bed, Bed Pivot, Tailgate, Decals; Actuator, Battery Connections, Toggle Switch; Bed Liner, Ramp (electric dump); Flat Bed, Bed Pivot; Tilt Latch, Bed Prop (flat bed); Cargo Racks
• Weather Protection — Sun Top, Inside Mirror, 3-Sided Soft Enclosure, Windshields
• Wheels and Tires — Tire and Wheel Assembly, Wheel, Valve Stem; Wheel Covers
• Specialty Products (Appendix A) — Special Tools, Paint, Performance Products
• Accessories (Appendix B) — Accessories Listing

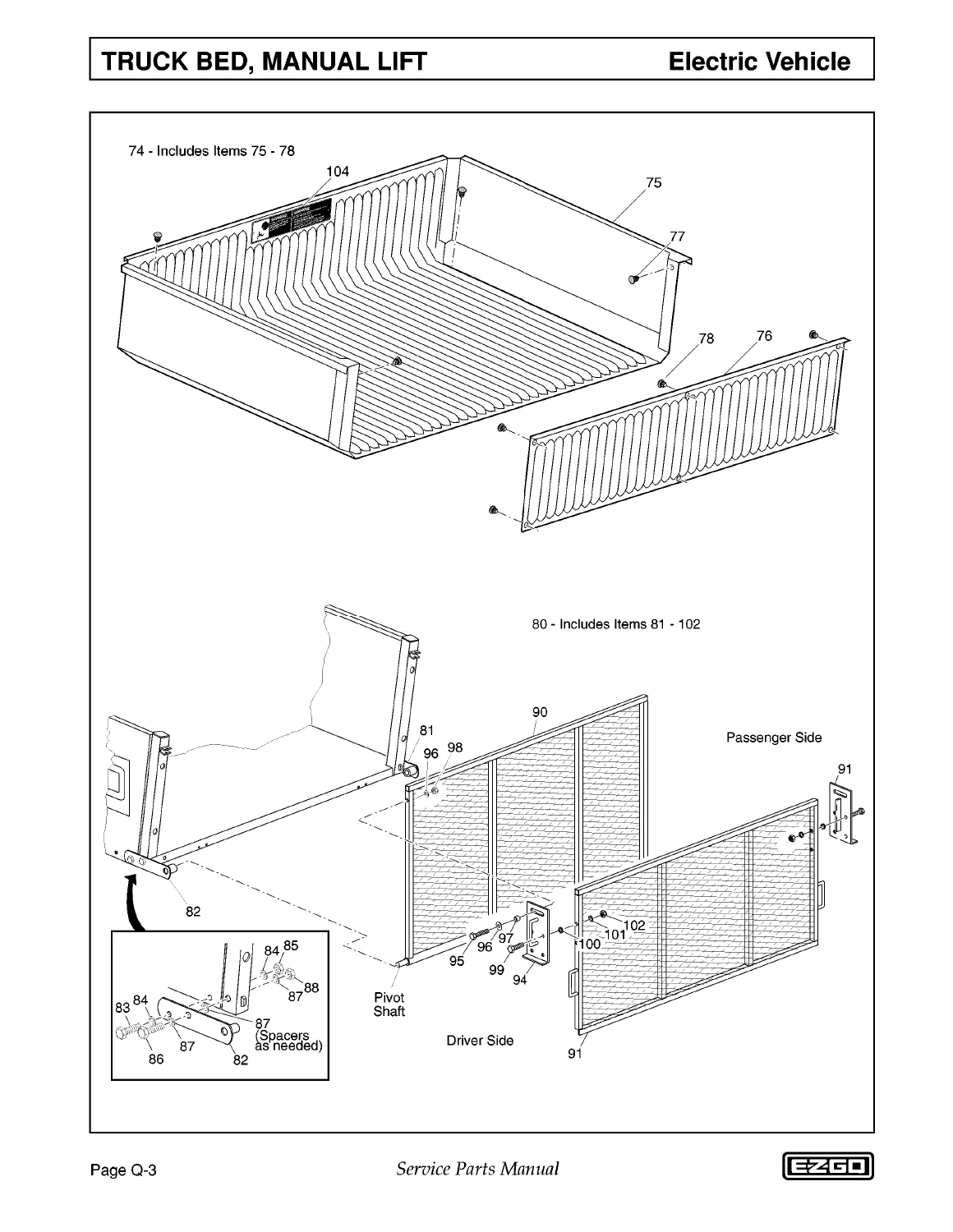

The Workhorse 1000 is a step up from the 800 Series in cargo capacity, with a 40-inch truck bed available in manual dump, electric dump, and flat bed configurations — including a ramp option and cargo racks not found in the 800 Series manual. The 1000 LX body treatment also has more extensive variant-specific content, with dedicated pages for the LX cowl, front fenders, front shield, dash panel, and glove box doors. Each section in this manual follows the standard E-Z-GO format: a left-hand exploded-view illustration paired with a right-hand numbered parts list showing E-Z-GO part numbers and quantities.

What This Manual Supports

The E-Z-GO Workhorse 1000 Service Parts Manual (28558-G01) is the go-to document whenever a technician or owner needs to identify a component, confirm its E-Z-GO part number, or determine whether a part is sold individually or only as part of a larger assembly. The electrical system content — batteries, fuse blocks, charger receptacle, ignition switch, state-of-charge meter, electronic speed controller, and solenoid wiring — gives the detail needed to source correct electrical components without guessing at compatibility. The truckbed section is particularly thorough on the 1000 Series, covering multiple bed styles and the complete electric dump actuator and toggle switch assembly.

Steering, front suspension, rear axle, and rear suspension all have their own illustrated sections, making it straightforward to identify the correct spindle, wheel hub, shock absorber, leaf spring hardware, or differential component for a 1999 or 2000 Workhorse 1000. The Workhorse 1000 LX variant has dedicated body sections — LX owners won’t be forced to hunt through standard-model diagrams to find their specific cowl, fender, or bumper parts.

This PDF is available for immediate download after purchase — no waiting, no shipping. Open it on any device, zoom into any exploded-view diagram, and print individual pages or the full 136-page document as needed. Having the correct E-Z-GO part numbers before contacting a dealer eliminates the risk of ordering mismatched components for your vehicle’s model year and configuration.
