Eaton Fuller Heavy Duty AT-1202 Transmissions TRSM0996 Service Manual – PDF DOWNLOAD

Description

Eaton Fuller Heavy Duty AT-1202 Transmissions TRSM0996 Service Manual – PDF DOWNLOAD

DESCRIPTION:

Eaton Fuller Heavy Duty AT-1202 Transmissions TRSM0996 Service Manual – PDF DOWNLOAD

The AT-1202 model is a two-speed, twin countershaft auxiliary transmission designed primarily for use with heavy-duty transmissions. This auxiliary transmission contains two sets of gears, thus giving the reduction (low) ratio when power is delivered through these two sets of gears. The other speed is obtained by direct (high) drive through the auxiliary. A single shift bar in the right side of the case controls speed changes.

Preventative Maintenance Check List:

The following maintenance checks can be made without removing the transmission from the chassis. Items 1 through 5 can be performed without any prior mechanical work; items 6 through 8 require the dropping of the output driveline and the input driveline where possible.
1. Oil Leaks
• Make visual checks for oil leakage from mainshaft openings, gaskets at bearing covers, top cover, and from front rear
shifting bar bores. Check drain plugs for losseness.
2. Gear Lubricant
• Remove filler plug in right side and check oil level at regular service intervals.
• Change oil at specified intervals, using grade and type recommended.
Note: See Lubrication section for inspection, oil type, grade, and oil capacity.

TABLE OF CONTENTS:

Eaton Fuller Heavy Duty AT-1202 Transmissions TRSM0996 Service Manual – PDF DOWNLOAD

• General Tools
• Aftermarket Tools
• Special Tools
• Capscrews
• Nuts

EATON FULLER HEAVY DUTY AT-1202 TRANSMISSIONS TRSM0996 SERVICE MANUAL – PDF DOWNLOAD:

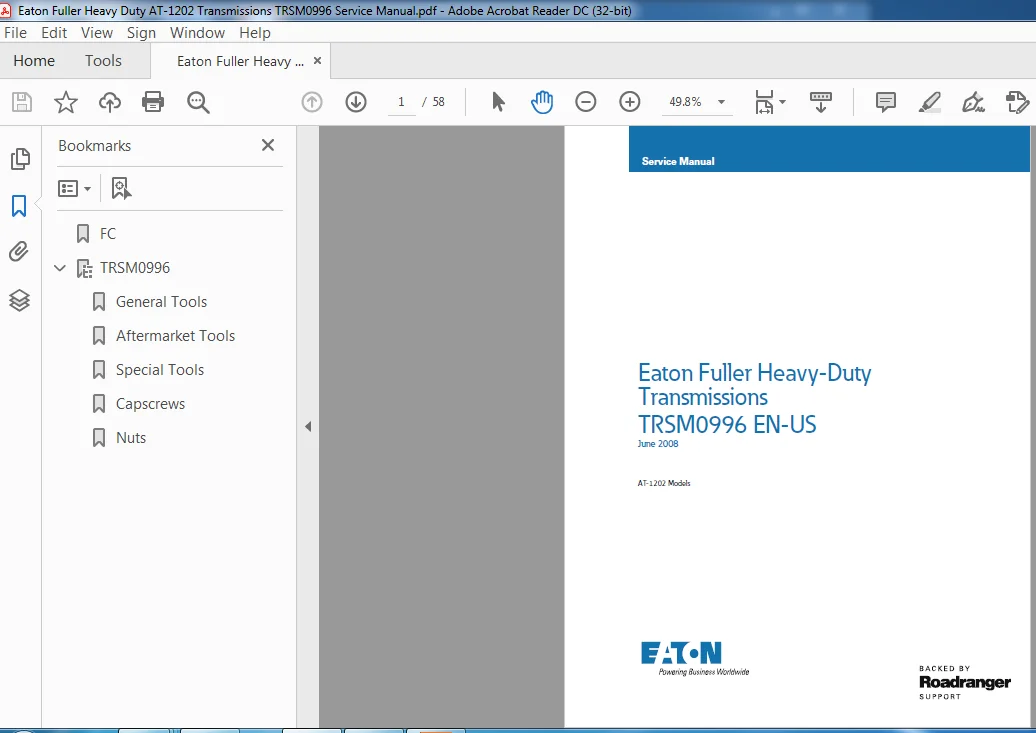

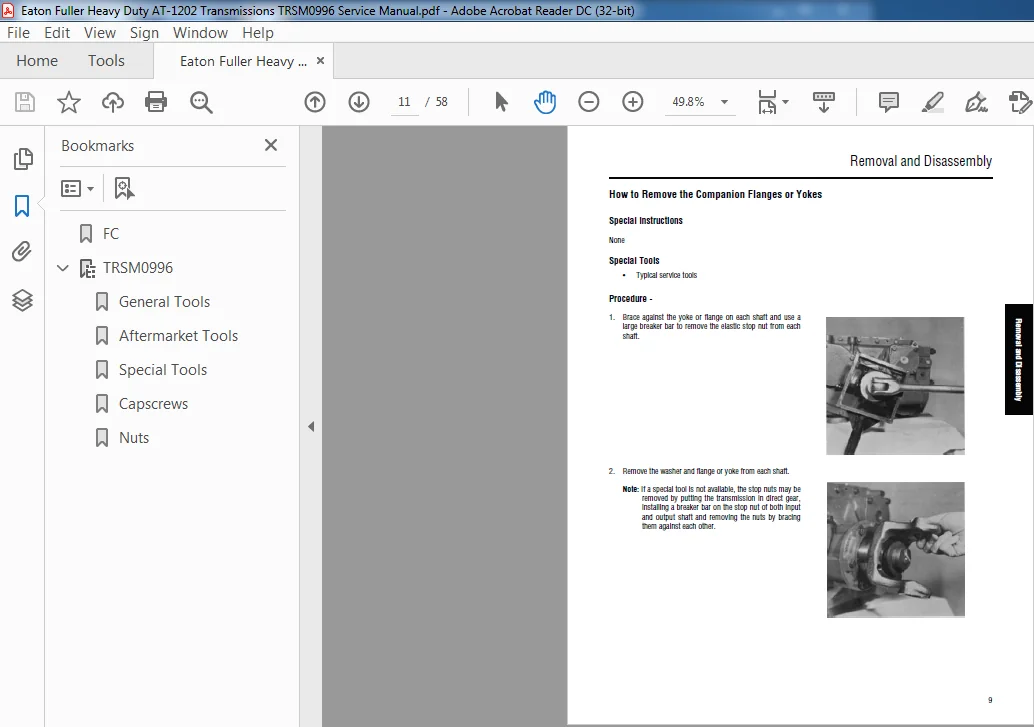

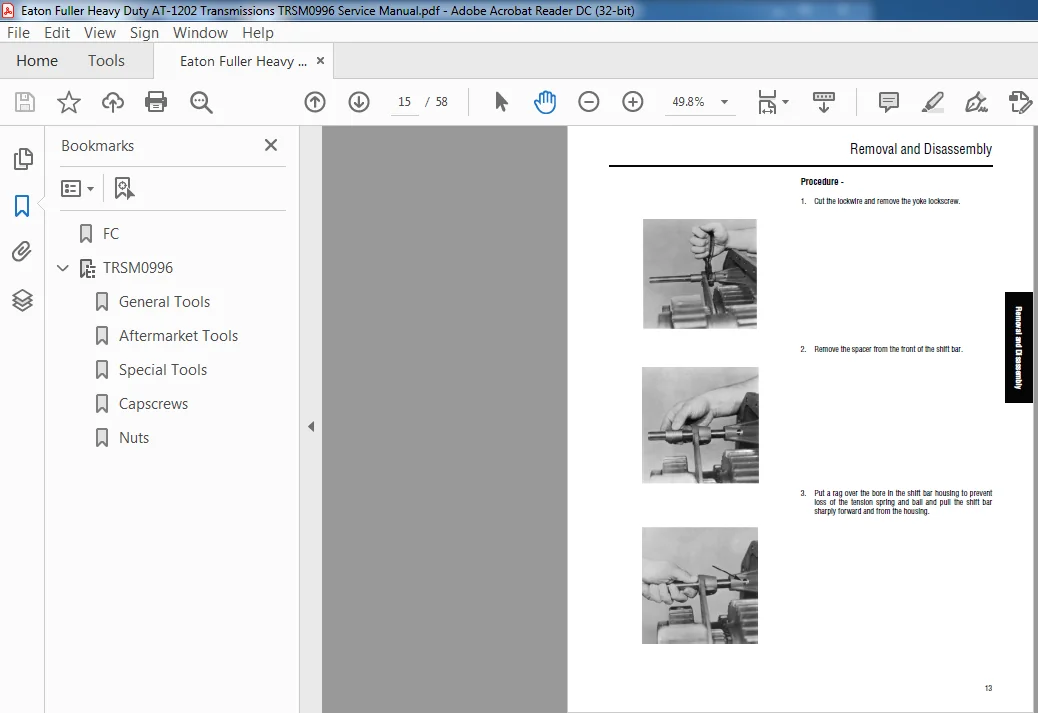

IMAGES PREVIEW OF THE MANUAL:
