Eaton Fuller Heavy Duty RTX-11509 Transmission TRSM0507 Service Manual – PDF DOWNLOAD
Original price was: $56.95.$19.95Current price is: $19.95.
Eaton Fuller Heavy Duty RTX-11509 Transmission TRSM0507 Service Manual – PDF DOWNLOAD
RTO-1258LL – Roadranger, Twin Countershaft, Overdrive, 1250 lbs./ft. Torque Capacity, 8 Progressive
Forward Speeds plus a Low Gear and a Low-Low Gear
R T – 1 2 5 0 9 – Roadranger, Twin Countershaft, 1250 lbs./ft. Torque Capacity, 9 Forward Speeds
RTO-12509 – Same as above but with an Overdrive Ratio
RT-12513 – Roadranger, Twin Countershaft, 1250 lbs./ft. Torque Capacity, 13 Forward Speeds
RTO-12513 – Same as above but with an Overdrive Ratio
Description
Eaton Fuller Heavy Duty RTX-11509 Transmission TRSM0507 Service Manual – PDF DOWNLOAD
FILE DETAILS:
Eaton Fuller Heavy Duty RTX-11509 Transmission TRSM0507 Service Manual – PDF DOWNLOAD
Language : English
Pages : 94
Size : 3.62 MB
Downloadable : Yes
Format : PDF
DESCRIPTION:
Eaton Fuller Heavy Duty RTX-11509 Transmission TRSM0507 Service Manual – PDF DOWNLOAD
Disassembly Precautions:
It is assumed in the detailed disassembly instructions that the lubricant has been drained from the transmission, the necessary linkage and air lines removed and the transmission has been removed from the chassis. Removal of the gear shift lever housing assembly is included in the detailed instructions; however, this assembly must also be removed from transmission before removing unit from vehicle.
Follow each procedure closely in each section, making use of both the text and pictures.

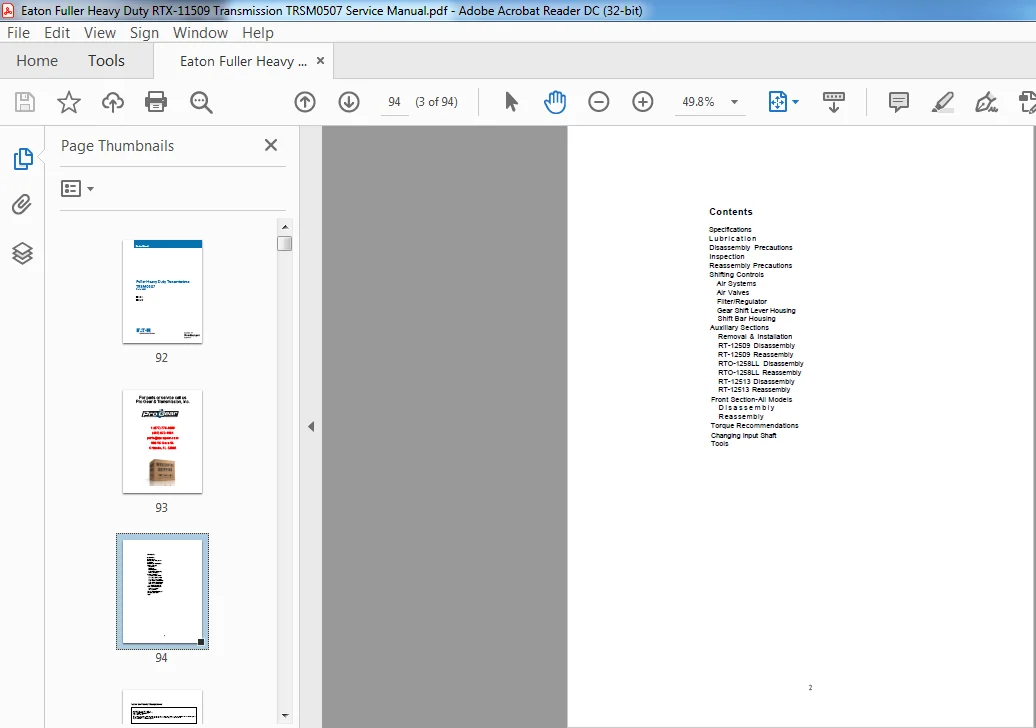

TABLE OF CONTENTS:
Eaton Fuller Heavy Duty RTX-11509 Transmission TRSM0507 Service Manual – PDF DOWNLOAD
Specifications
Lubrication
Disassembly Precautions
Inspection
Reassembly Precautions
Shifting Controls
Air Systems
Air Valves
Filter/Regulator
Gear Shift Lever Housing
Shift Bar Housing
Auxiliary Sections
Removal & Installation
RT-12509 Disassembly
RT-12509 Reassembly
RTO-1258LL Disassembly
RTO-1258LL Reassembly
RT-12513 Disassembly
RT-12513 Reassembly
Front Section-All Models
D i s a s s e m b l y
Reassembly

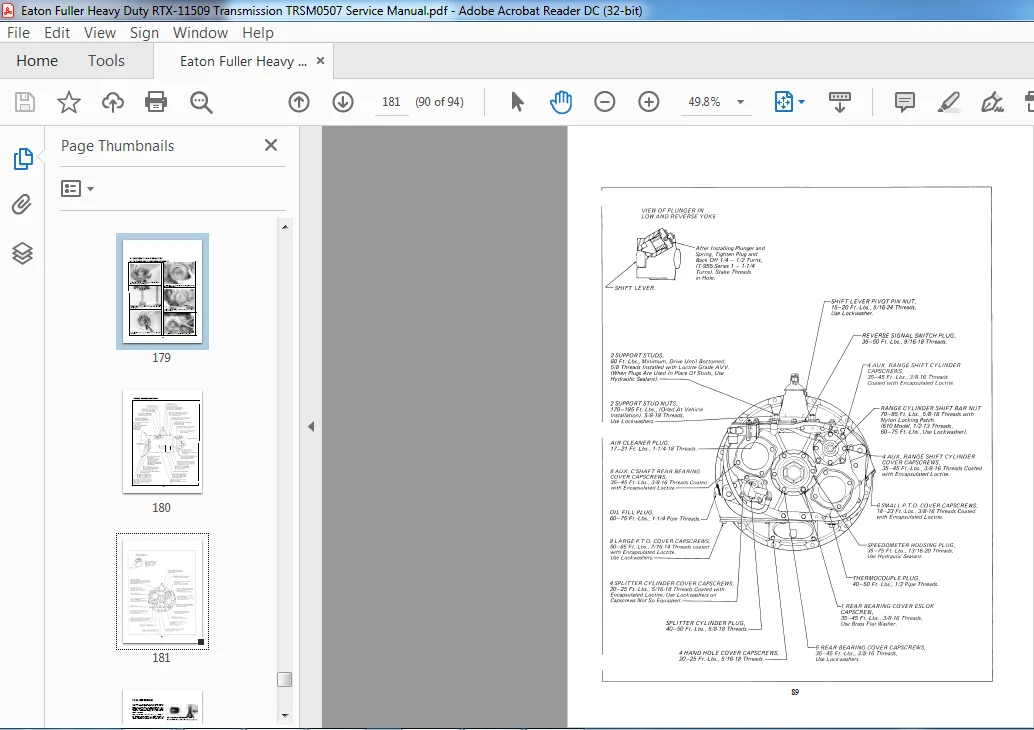

Torque Recommendations
Changing Input Shaft
Tools
