EN CAT Track-Type Loader 963K Track-Type Loader Electrical System Schematic Manual – PDF DOWNLOAD

Description

EN CAT Track-Type Loader 963K Track-Type Loader Electrical System Schematic Manual – PDF DOWNLOAD

FILE DETAILS:

EN CAT Track-Type Loader 963K Track-Type Loader Electrical System Schematic Manual – PDF DOWNLOAD

Language : English
Pages : 22
Downloadable : Yes
File Type : PDF
Size:3.73 MB

LBL1254-UP

TABLE OF CONTENTS:

EN CAT Track-Type Loader 963K Track-Type Loader Electrical System Schematic Manual – PDF DOWNLOAD

Features............................................. 1
Cover Page........................................... 3
Information.......................................... 0
	Component Location............................... 0
		Vol 1 - Cab.................................. 4
		Vol 2 - Chassis and Engine Wiring............ 5
	Connector Location............................... 0
		Vol 1 - Cab.................................. 6
		Vol 2 - Chassis and Engine Wiring............ 7
Schematics........................................... 0
	Function Isolation Tools......................... 0
		Grids On/Off................................. 0
		All Circuits Off............................. 0
		All Circuits On.............................. 0
	Vol 1 - Cab...................................... 8
		Unspecified Circuit.......................... 0
		Black (Ground)............................... 0
		032 (Red) (Battery Power).................... 0
		640 (Blue) (Key Power)....................... 0
		305 (Lt Blue) (Converter 12v Out)............ 0
		021 (Orange) (Starting)...................... 0
		258 (Dk Purple) (Machine Control Circuit).... 0
		509 (Lt Pink) (Engine Control Circuit)....... 0
		613 (Dk Yellow) (Heat/AC).................... 0
		4665 (Tan) (Turn/Wiper/Washer)............... 0
		CON 509 (J1939/1587 D.L.).................... 0
		CON 522 (CAN "B" D.L.)....................... 0
		SUB 651 (Blue Gray) (Ethernet)............... 0
	Vol 2 - Chassis and Engine Wiring................ 9
		Unspecified Circuit.......................... 0
		Black (Ground)............................... 0
		032 (Red) (Battery Power).................... 0
		640 (Blue) (Key Power)....................... 0
		021 (Orange) (Starting)...................... 0
		190 (Dk Pink) (Start Aid).................... 0
		258 (Dk Purple) (Machine Control Circuit).... 0
		509 (Lt Pink) (Engine Control Circuit)....... 0
		613 (Dk Yellow) (Heat/AC).................... 0
		4665 (Tan) (Turn/Wiper/Washer)............... 0
		CON 509 (J1939/1587 D.L.).................... 0
		CON 141 (CAN "C" D.L.)....................... 0
		CON 5767 (Olive Green) (DEF)................. 0
Machine Views........................................ 0
	Vol 1 - Cab...................................... 0
		Cab Front....................................10
		Cab - Top View...............................11
		HVAC Unit....................................12
		Left Hand Console............................13
		Right Hand Console...........................14
	Vol 2 - Chassis and Engine Wiring................ 0
		Aftertreatment View..........................15
		Batteries....................................16
		Chassis RH View..............................17
		DEF View.....................................18
		Engine Views.................................19
		Front Chassis View...........................20
		Radiator View................................21
		Steering Pump View...........................22

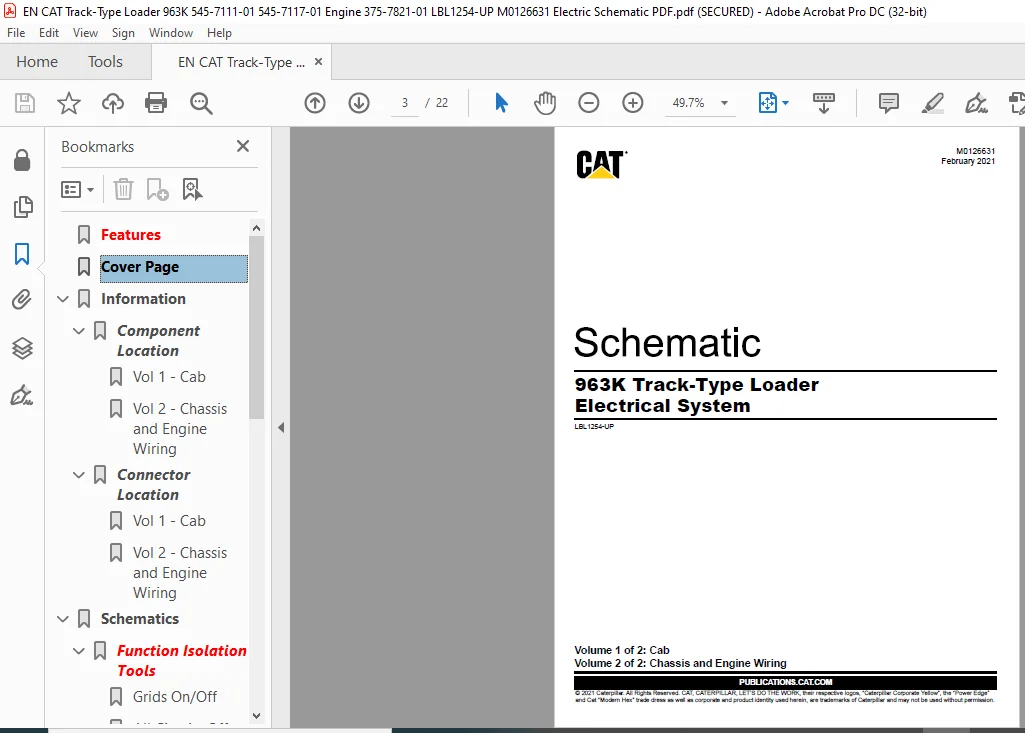

IMAGES PREVIEW OF THE MANUAL:
