EN CAT Track-Type Tractor D5N and D6N Track-Type Tractor Hydraulic System Schematic Manual

Description

EN CAT Track-Type Tractor D5N and D6N Track-Type Tractor Hydraulic System Schematic Manual  – PDF DOWNLOAD

FILE DETAILS:

EN CAT Track-Type Tractor D5N and D6N Track-Type Tractor Hydraulic System Schematic Manual – PDF DOWNLOAD

Language : English
Pages :16
Downloadable : Yes
File Type : PDF
Size:1.64 MB

D5N:
AGG01335-UP
AKD01135-UP
CFH00300-UP
CKT00400-UP
D6N:
ALH00735-UP
CBF00300-UP
CBJ00400-UP
ALR00635-UP
CCG00400-UP

TABLE OF CONTENTS:

EN CAT Track-Type Tractor D5N and D6N Track-Type Tractor Hydraulic System Schematic Manual – PDF DOWNLOAD

Features........................................ 1
Cover Page...................................... 2
Information..................................... 0
	Component Location.......................... 0
		Page 1 of 2............................. 3
		Page 2 of 2............................. 4
	Tap Location................................ 5
	Fluid Power Symbols......................... 6
	Electrical Symbols.......................... 7
Schematic....................................... 8
Machine Views................................... 0
	Machine Component Locations................. 9
	D5N Pump Lines Group
.......................10
	D6N Pump Lines Group .......................11
	Hydraulic Implement Pump Port Locations
....12
	Hydraulic Lines - Pump to Tank .............13
	Hydraulic Tank and Filter
..................14
	Implement Hydraulics Remote Taps ...........15
	Valve Group Location........................16

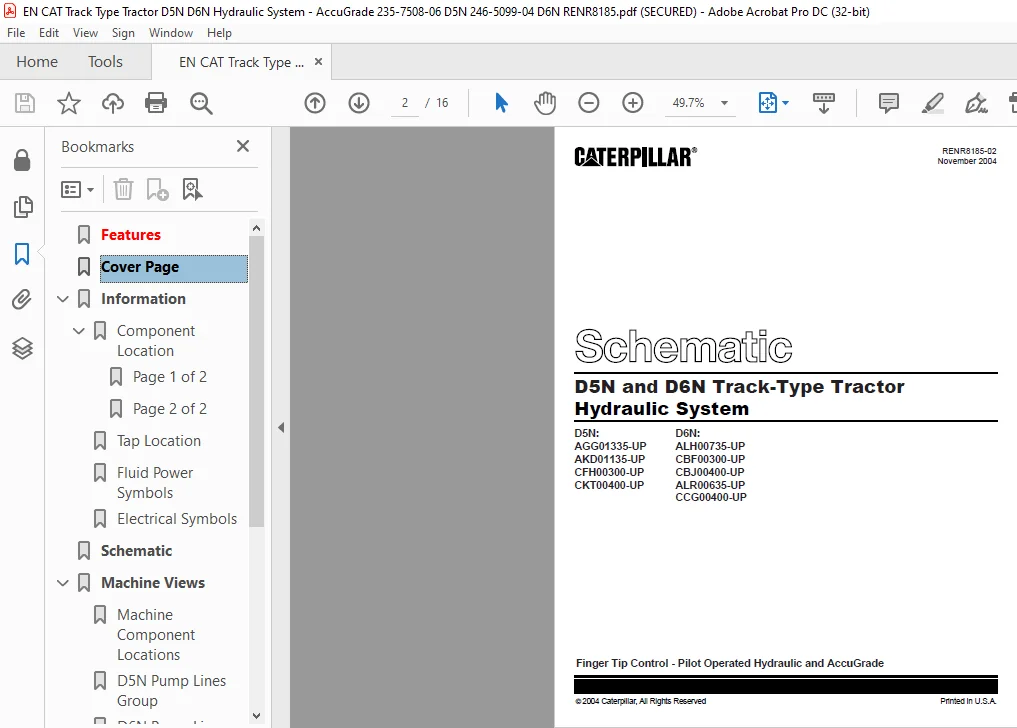

IMAGES PREVIEW OF THE MANUAL:
