Epiroc Cabletec M Spare Parts Catalog 8999418100-001 PDF Download

Description

Epiroc Cabletec M Spare Parts Catalog 8999418100-001 PDF Download

This Epiroc Cabletec M Spare Parts Catalog 8999418100-001 PDF Download is the illustrated parts book for the Cabletec M underground cable-bolting rig. It is built as a service-parts listing rather than a repair procedure manual: every major assembly is shown as an exploded drawing, then itemized with Epiroc part numbers, names, quantities, and remarks so a workshop can identify the correct component before ordering. Publication identifier 8999418100-001 appears throughout the headers as Cabletec M.

File Details

• Manual type: Spare parts catalog (parts and service)
• Brand / model: Epiroc Cabletec M
• Document number: 8999418100-001
• Language: English (selected part remarks also use Swedish terms as printed)
• Page count: 1663
• File format: PDF

What the Catalog Identifies on the Machine

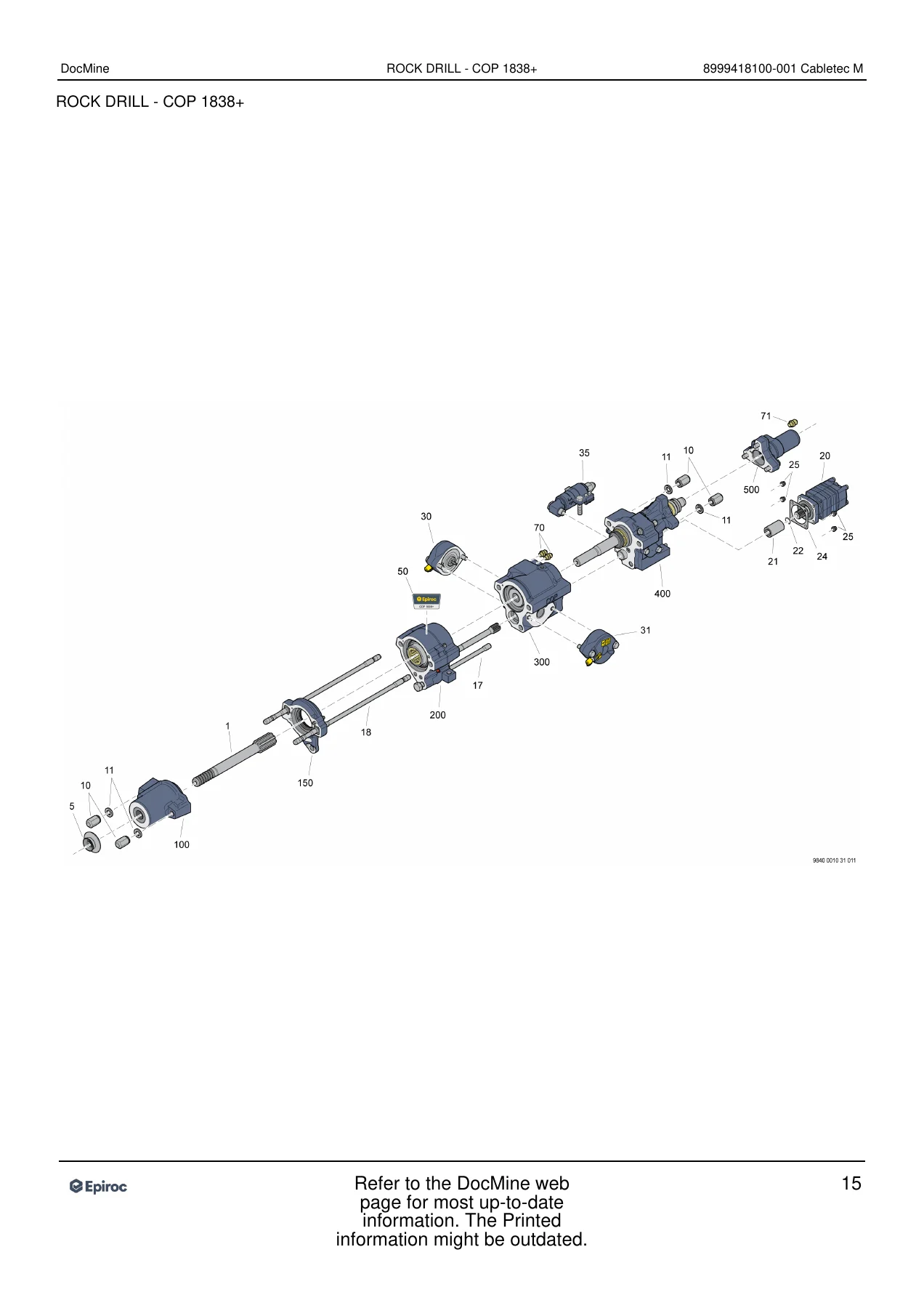

The Cabletec M configuration documented here is a diesel-carrier cable bolter with a Deutz TCD 4.1 T4F power unit, a COP 1838+ hydraulic rock drill, a BMHP 6805-ME feed, an RHS 10 5′ T38 rod handler, and a BUT 32 PD boom. Cabin and compressor maintenance is listed against compressor GAR 5. The complete rock-drill assembly is called out as part 8311126350. Front-head options are given for shank guides D=38, D=45, and D=52, with conversion kits from COP 1838+ to COP 1838AW+ and from shank D=38 to D=45.

Rotation motors listed on the drill are MSQ 80 SH, MSQ 100 SH, MSQ 160 SH, and MSYQ 250 SH. Shank adapters in the COP 1838+ breakdown include R32, R32E, R38, R38E, T38, T38E, T45E, and TC35E lengths with Secoroc reference numbers printed in the remarks column. That level of detail is why shops keep the Epiroc Cabletec M Spare Parts Catalog 8999418100-001 PDF Download next to the parts counter.

Preventive Maintenance Kits Printed in the Book

Opening service-parts pages group scheduled kits rather than leaving filters scattered across later chapters.

• 500 engine hours PM kit 6060005486 for the Deutz TCD 4.1 T4F: alternator belt 5112013055, engine air primary filter 6060003052, air safety filter element 6060001446, DEF fluid filters 6060008285 and 5112004164, two fuel fine filters 6060005692, fuel pre-filter 6060005693, engine oil filter 6060005710, transmission oil filter 5112280563
• Hydraulic oil tank breather 8231085419 at 250 hours (cabin + compressor GAR 5 line)
• 500 / 1000 / 2000 percussion-hour PM kits 6060005504, 6060005505, and 6060005506
• COP 1838+ seal kit 3115917092 (COP 1838+/1640+/EX+), O-ring set, damping-piston seal kit
• Overhaul kit 3115923895 for COP 1838ME+ / 600 impact hours
• Overhaul kit 3115923896 for COP 1838+ D=38 / 1200 impact hours
• Overhaul kit 3115923897 for COP 1838+ D=52 / 1200 impact hours

IMAGES PREVIEW

Kit contents are based on a standard machine; the catalog itself notes that optional equipment needing hourly service is ordered separately.

Chapters Covered

• Parts and service – Cabletec M
• Maintenance – Deutz TCD 4.1 T4F; PM kits – 500 engine hours
• Maintenance – cabin + compressor GAR 5; PM kits – 500 / 1000 / 2000 percussion hours
• Rock drill – COP 1838+: front head (shank guide D=38 / D=52), stop ring, cover group, gear housing, rotation chuck, intermediate part (underground), cylinder group, front and rear seal houses, back head
• Hydraulic motors MSQ 80 SH, MSQ 100 SH, MSQ 160 SH, MSYQ 250 SH; right/left accumulators; valve; return accumulator
• Label set, optional set, tools set, pressure gauge set, overhaul fixture, charging device, hydraulic-motor connection plate
• Conversion kits: COP 1838+ to COP 1838AW+; shank D=38 to D=45; COP 1638/1838/2238 to plus versions; four-corner straight splines
• O-ring set; seal kits; 600- and 1200-impact-hour overhaul kits
• Feed – BMHP 6805-ME: feed beam, end piece, cradles and holders, pulley wheel, hose holder/guide, spacer L=265, cylinder 70/50×1150, front/rear stingers, linear sensor, drill-steel support BSH-XS, protection, hose nipple and hose sets
• Rod handling – RHS 10 5′ T38: end pieces, turning devices, rod-handling arm with RCS transfer, gripper-arm cylinders, sensors, T38 bushing set, form-oil kit
• Boom – BUT 32 PD: assembly set, hose nipples, swivel kit, boom frame-to-boom hoses, rear/mid/front boom parts, boom attachment and links, expanding shafts, boom cylinder HC09 125/85/536, telescope set, check and double check valves, cylinder protection
• Angle indication, laser boom-alignment unit, inclinometer installation, boom sensors (60 mm and 80 mm axle, extension, deflection), RCS boom-module cable set
• Cable-bolting boom and unit: hoist arm, trunnion base, rotary unit, inner boom and three extensions with cylinders, cable feeder, wire cutter, guide, wire buckler, tensioner, cable pusher, drum, 468 cc hydraulic motor, valve cabinet
• Hydraulic set and hydr. system: proportional direction valves, pressure-reducing valves, flow control RX Z2FS6-2-4X-2Q, direction valve 4WRA6E30-2X/G24, 50/50 flow divider, overcenter valve G 3/4 inch 70-350 bar
• Carrier: boom frame complete, swivel lock, articulation lockbar, boom bracket, front support legs BSJ 10-40 and rear jacks / BSJ 10-55, fire-extinguisher attachment 4-12 kg
• Diesel engine unit: engine, adapter set, hydraulic transmission, torque-converter and pump-drive groups, shafts (forward, reverse idler, reverse and 2nd, low, 3rd clutch, idler, output), charging pump, valves, cooling system, radiator, expansion tank, exhaust, air-filter set, fuel system 4-cyl
• Canopy, rear frame, battery box, I/O-module attachment, driveline (drive shaft, planet gear, brake set, crown wheel, differential, pendulum, cardan shafts)
• Wheel set 113/114 axle: XZM 12.00R24 water wheel, rim offset 0 mm, tire set 12.00 R24 XZM
• Sign and label sets, laser E134/E135, drill-bit box, counterweight
• Cabin: platform, drivers panel, protection roof, accelerator pedal, foot plate, drivers chair and swing, emergency set A48, table, cab attachment, reverse camera kit
• Cable reel: torque unit, gear housing, shaft/chain/commutator kits, earth ring, bushings, pilot ring, brushes, phase rings, drum, limit switches, hydraulic motor, BUFLEX 3×95+3G16+2×1.5 mm2 cable and lug set, reel control A57
• Hydr. system, steer cylinder HC20T 125/63-500, brake/steering hose set, power unit and hyd. oil tanks, return filter 2.5 bar bypass, pump sets, couplings, oil cooler, electric oil filler
• Drill system valve stack (inlet, valve, manifold, outlet sections) and RHS/stinger/extractor hydraulics
• Electrical system: cabinets A10 / A50 / A40, plinth modules, main switch, fan set, emergency sets A41 and A48, electric motor 001, 24 V carrier / boom-frame / engine-frame / rear-frame / canopy circuits, lights, battery module, fuse kit
• RCS control: operator unit RCS5, joysticks, palm grip, CAN and frame cable sets, reel control A94, watermist and rota/feed cables, WLAN, feed module, cement-unit RCS
• Air/water system including hole blow, water pump set, compressor complete with oil separator, ECL lubrication pump, water-mist system, air receiver, filter set, water inlet, cleaning unit, left-side MK9 water-spray kit
• Auto grease system (pump P203-2XN-1K6-24-1A1.10-V10), carrier and crane lube, manual grease system, cement grout system (silo, mixer, agitator, scraper, drive unit, pump unit)
• Hose reel kit and fire suppression – Ansul and Checkfire, tank with attachment, fire-suppression hose list

Taken together, the book is a full illustrated breakdown of the Cabletec M as configured in 8999418100-001: drill, feed, rod handling, boom, cable-bolting head and drum, carrier and engine, wheels, cabin, cable reel, power unit, drill hydraulics, 24 V and RCS electrics, air/water/mist, lubrication, cement, and fire suppression. A technician uses the drawing callouts, then matches item, part number, quantity, and remarks on the facing list. Reman numbers appear as a column when a remanufactured option is listed.

How the Parts Lists Are Laid Out

Typical sheets use columns for Item, Part No., Name, Qty, Remarks, Reman No., and L. Complete-assembly rows name the group (for example ROCK DRILL COP 1838+ or FEED BMHP 6805-ME). Child items carry the hardware that makes up that group. Remarks flag variants such as shank-guide diameter, motor size, hose length, or not sold separately. Several COP 1838+ housings are marked not sold separately so the list itself prevents a wasted order. Conversion and overhaul kits are called out as complete assemblies with their own child parts, which is the practical way to rebuild the drill at 600 or 1200 impact hours without hunting seals one line at a time.

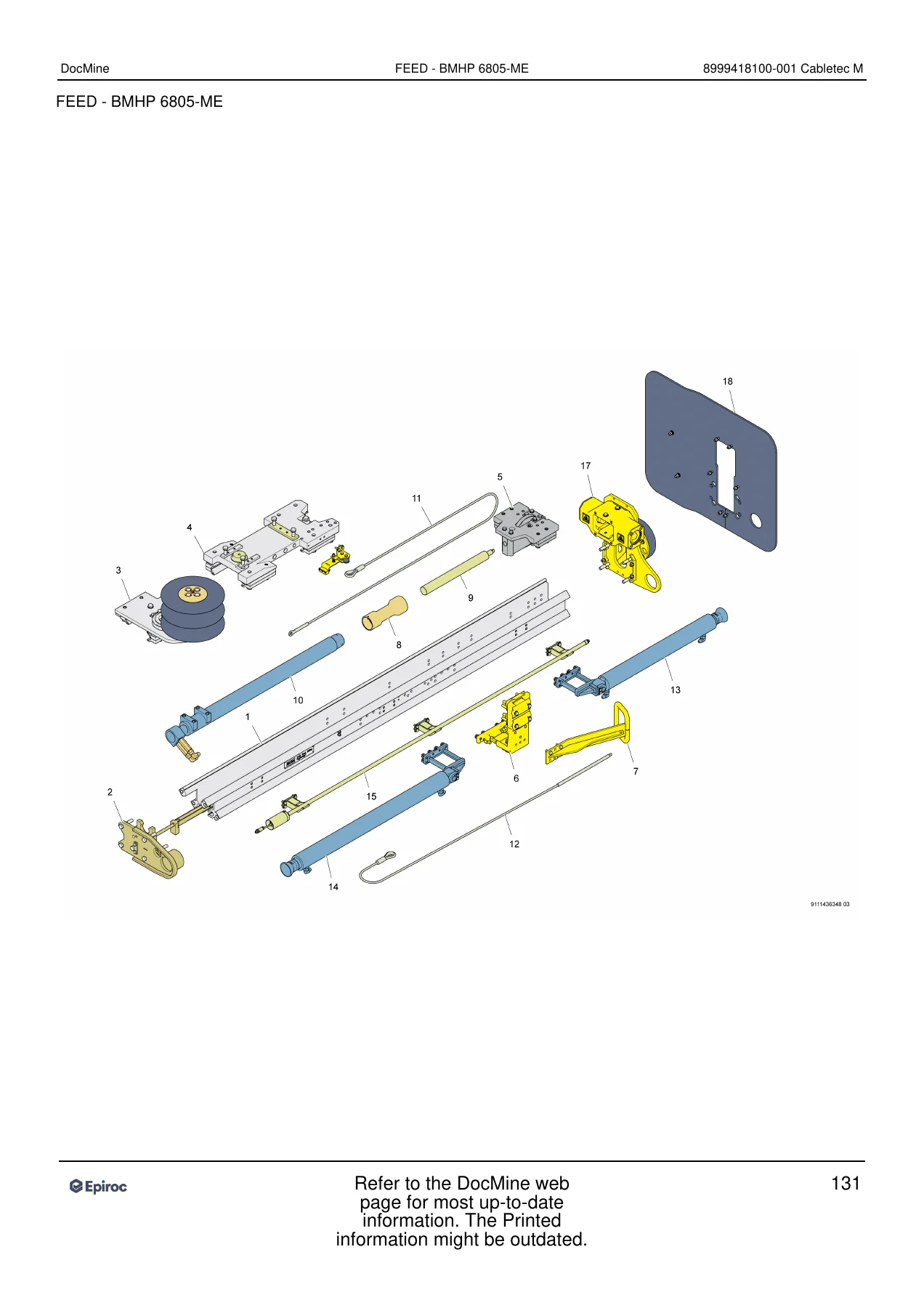

Feed sheet 131 shows the BMHP 6805-ME beam 9111436322 with COP 1838 cradle 3128314099, intermediate cradle 3128314095, pull and return ropes, stingers, and the rock-drill hose nipple set. Boom sheets split rear, mid, and front sections of the BUT 32 PD, including expanding shafts and the rear boom cylinder HC09 125/85/536. Cable-bolting pages continue through the three extension booms, wire path (cutter, guide, buckler, tensioner, pusher), and the drum with 468 cc motor. Carrier and diesel pages walk the torque-converter transmission groups shaft by shaft. Electrical and RCS pages list cabinets, junction boxes, cable sets, and operator hardware rather than schematic theory.

Who This Catalog Helps

Mine maintenance crews, rebuild shops, and parts buyers working on a Cabletec M use the Epiroc Cabletec M Spare Parts Catalog 8999418100-001 PDF Download to match a worn piece to a number before the machine is down waiting on the wrong filter or seal. It supports PM kit planning at 250 / 500 engine hours and 500 / 1000 / 2000 percussion hours, COP 1838+ seal and overhaul kit selection by shank diameter and impact hours, feed and boom hardware identification, cable-reel and BUFLEX cable replacement, and locating RCS, water-mist, cement, and fire-suppression attachments. It does not replace a workshop service manual: torque procedures, diagnostics, and wiring theory are outside this parts book. Footers also state that printed information might be outdated and point readers to the DocMine web page for the latest data, so treat listed numbers as the 8999418100-001 snapshot and confirm critical lines before a large order.

Get the Catalog and Identify Parts Correctly

With this file on hand you can walk from an exploded COP 1838+, BMHP 6805-ME feed, BUT 32 PD boom, cable-bolting unit, diesel/transmission group, or cable reel drawing to the exact Epiroc part number and quantity. That is what keeps a Cabletec M supplied with the right PM kit, seal set, motor, hose, sensor, or drum component instead of a near-miss from a similar rig. Instant PDF delivery after payment — no shipping wait — and you can open or print the sheets on the device you already use in the workshop or warehouse.
